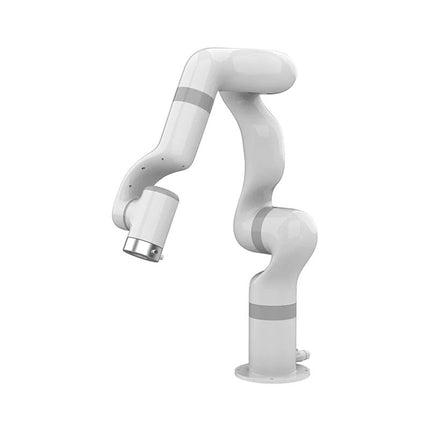

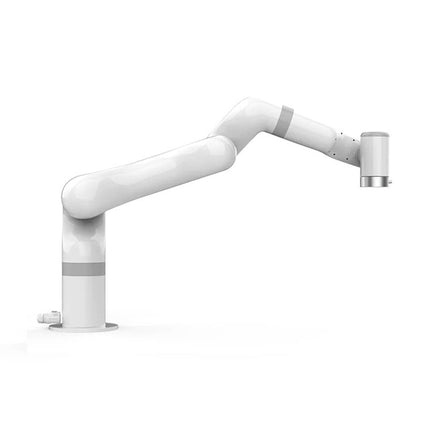

UFactory 850 Robotic Arm

  • BrandUFactory

Description

UFactory 850 is the most powerful robot with industrial grade performance.

Features

  • 6DoF
  • Payload: 5 kg
  • Reach: 850 mm
  • Repeatability: 0.02 mm
  • Weight: 20 kg

Applications

  • Glambot
  • Welding
  • Screwdriving
  • Robot Vision
  • Industrial Production

Designed for both mobile platforms and your workbench

  • The AC control box contains an AC-DC adapter inside, 100-240 V AC is all ready to go.
  • The DC control box supports 48-72 V wide inputs, it perfectly fits the battery system on your mobile platform.

Flexible Deployment With Safe Feature

  • Hand teaching, space-saving and easy to re-deploy to multiple applications without changing your production layout. Perfectly for recurrent tasks.
  • Collision detection is available for all of our cobots. Your safety is always the top priority.

Graphical Interface For Beginner-Friendly Programming

  • Compatible with various operation systems, including macOS and Windows.
  • Web-based technology compatible with all major browsers.
  • Drag and drop to create your code in minutes.

Powerful And Open Source SDK At Your Fingertips

  • Fully functional open-source Python/C++ SDK provides more flexible programming.
  • ROS/ROS2 packages are ready-to-go.
  • Example codes help you to deploy the robotic arm smoothly.

Specifications

UFactory 850 xArm 5 xArm 6 xArm 7
Payload 5 kg 3 kg 5 kg 3.5 kg
Reach 850 mm 700 mm 700 mm 700 mm
Degrees of freedom 6 5 6 7
Repeatability ±0.02 mm ±0.1 mm ±0.1 mm ±0.1 mm
Maximum Speed 1 m/s 1 m/s 1 m/s 1 m/s
Weight (robot arm only) 20 kg 11.2 kg 12.2 kg 13.7 kg
Maximum Speed 180°/s 180°/s 180°/s 180°/s
Joint 1 ±360° ±360° ±360° ±360°
Joint 2 -132°~132° -118°~120° -118°~120° -118°~120°
Joint 3 -242°~3.5° -225°~11° -225°~11° ±360°
Joint 4 ±360° -97°~180° ±360° -11°~225°
Joint 5 -124°~124° ±360° -97°~180° ±360°
Joint 6 ±360° ±360° -97°~180°
Joint 7 ±360°

Hardware

Ambient Temperature Range 0-50°C
Power Consumption Typical 240 W, max 1000 W
Input Power Supply 48 V DC, 20.8 A
Footprint Ø 190 mm
Materials Aluminum, Carbon Fiber
Base Connector Type M8x4
ISO Class Cleanroom 5
Robot Mounting Any
End Effector Communication Protocol Modbus RTU
End Effector I/O 2x DI / 2x DO / 2x AI / 1x RS485
Communication Mode Ethernet

Included

  • 1x UFactory 850 robotic arm
  • 1x AC control box
  • 1x Control box power cable
Product form

UFactory 850 is the most powerful robot with industrial grade performance. Features 6DoF Payload: 5 kg Reach: 850 mm Repeatability:... Read more

No reviews
€ 11.779,00 incl. VAT
Members identical

      Details

      SKU: 20811
      EAN: 0618455052675

      Description

      UFactory 850 is the most powerful robot with industrial grade performance.

      Features

      • 6DoF
      • Payload: 5 kg
      • Reach: 850 mm
      • Repeatability: 0.02 mm
      • Weight: 20 kg

      Applications

      • Glambot
      • Welding
      • Screwdriving
      • Robot Vision
      • Industrial Production

      Designed for both mobile platforms and your workbench

      • The AC control box contains an AC-DC adapter inside, 100-240 V AC is all ready to go.
      • The DC control box supports 48-72 V wide inputs, it perfectly fits the battery system on your mobile platform.

      Flexible Deployment With Safe Feature

      • Hand teaching, space-saving and easy to re-deploy to multiple applications without changing your production layout. Perfectly for recurrent tasks.
      • Collision detection is available for all of our cobots. Your safety is always the top priority.

      Graphical Interface For Beginner-Friendly Programming

      • Compatible with various operation systems, including macOS and Windows.
      • Web-based technology compatible with all major browsers.
      • Drag and drop to create your code in minutes.

      Powerful And Open Source SDK At Your Fingertips

      • Fully functional open-source Python/C++ SDK provides more flexible programming.
      • ROS/ROS2 packages are ready-to-go.
      • Example codes help you to deploy the robotic arm smoothly.

      Specifications

      UFactory 850 xArm 5 xArm 6 xArm 7
      Payload 5 kg 3 kg 5 kg 3.5 kg
      Reach 850 mm 700 mm 700 mm 700 mm
      Degrees of freedom 6 5 6 7
      Repeatability ±0.02 mm ±0.1 mm ±0.1 mm ±0.1 mm
      Maximum Speed 1 m/s 1 m/s 1 m/s 1 m/s
      Weight (robot arm only) 20 kg 11.2 kg 12.2 kg 13.7 kg
      Maximum Speed 180°/s 180°/s 180°/s 180°/s
      Joint 1 ±360° ±360° ±360° ±360°
      Joint 2 -132°~132° -118°~120° -118°~120° -118°~120°
      Joint 3 -242°~3.5° -225°~11° -225°~11° ±360°
      Joint 4 ±360° -97°~180° ±360° -11°~225°
      Joint 5 -124°~124° ±360° -97°~180° ±360°
      Joint 6 ±360° ±360° -97°~180°
      Joint 7 ±360°

      Hardware

      Ambient Temperature Range 0-50°C
      Power Consumption Typical 240 W, max 1000 W
      Input Power Supply 48 V DC, 20.8 A
      Footprint Ø 190 mm
      Materials Aluminum, Carbon Fiber
      Base Connector Type M8x4
      ISO Class Cleanroom 5
      Robot Mounting Any
      End Effector Communication Protocol Modbus RTU
      End Effector I/O 2x DI / 2x DO / 2x AI / 1x RS485
      Communication Mode Ethernet

      Included

      • 1x UFactory 850 robotic arm
      • 1x AC control box
      • 1x Control box power cable
