Siglent SDS1204X-E 4-ch Oscilloscope (200 MHz)

  • BrandSiglent

Description

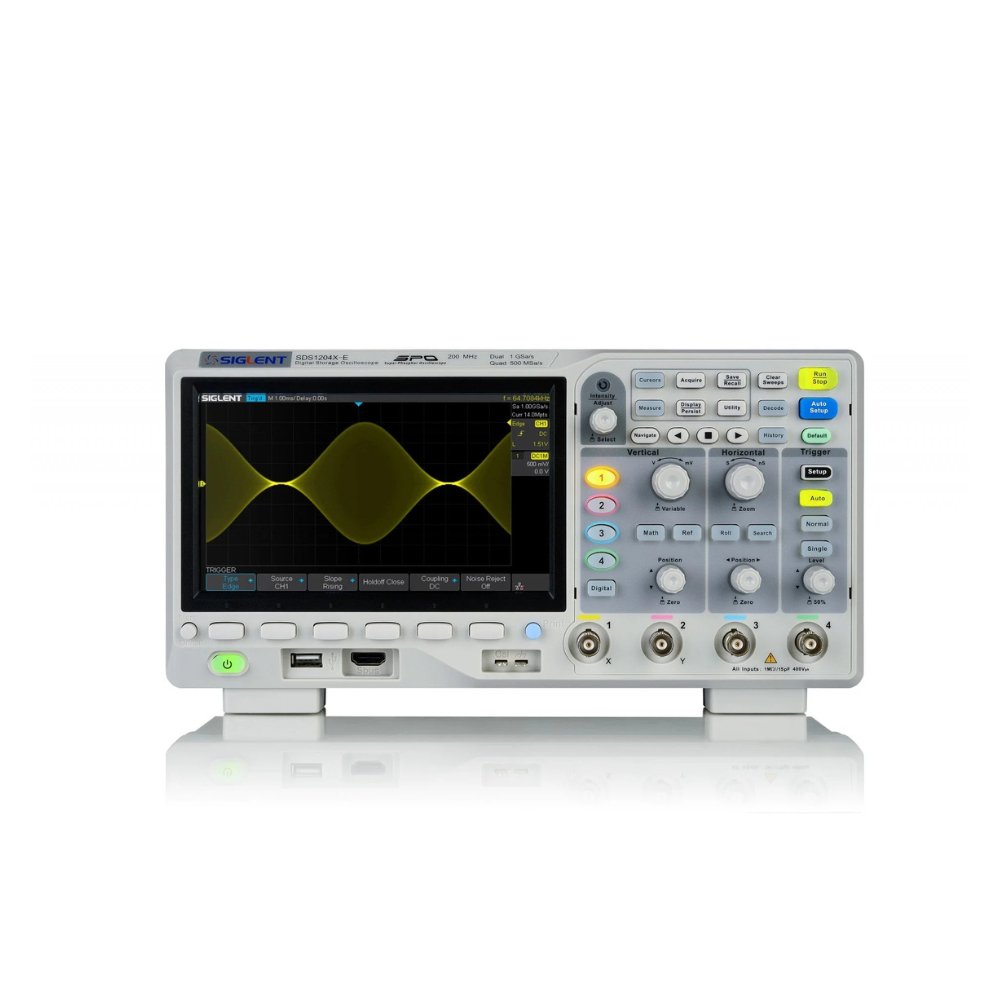

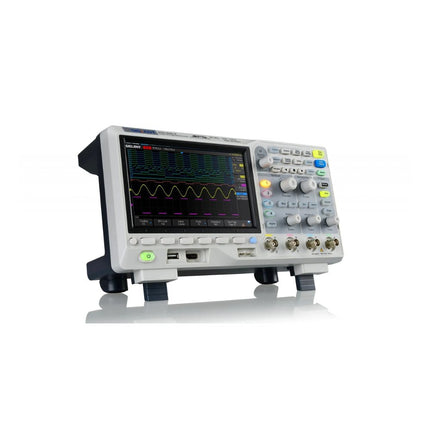

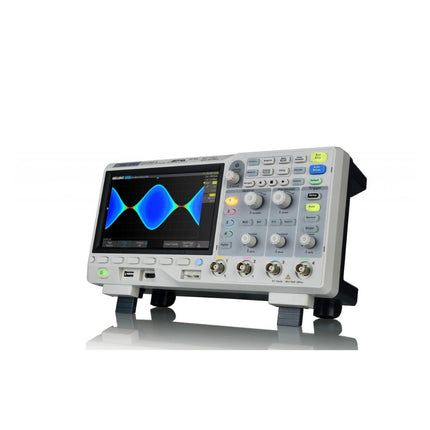

The Siglent SDS1204X-E is a powerful 200 MHz four-channel oscilloscope that is built on the same platform as the very popular SDS1202X-E but with several significant improvements, including two 1 GSa/s ADCs and two 14 Mpt memory modules. Waveform capture rates are up to 100,000 wfms/s in normal mode and 400,000 wfms/s in sequence mode. The SDS1000X-E scopes feature a large 7” 256-level color display with intensity grading and color temperature features.

Specifications

Bandwidth 200 MHz
Sampling Rate (Max.) 1 GSa/s
Channels 2CH+EXT
4CH
Memory Depth (Max.) 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode)
Waveform Capture Rate (Max.) 100,000 wfms/s (normal mode), 400,000 wfms/s (sequence mode)
Trigger Types Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger (Standard) I²C, SPI, UART/RS232, CAN, LIN
Decode Type (Standard) I²C, SPI, UART/RS232, CAN, LIN
16 Digital Channels
(four channel series only, option)
Maximum waveform capture rate up to 1 GSa/s, Record length up to 14 Mpts/CH
USB AWG module
(four channel series only, option)
One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts
Bode plot ( four channel series only) Minimum start frequency of 10 Hz, minimum scan bandwith of 500 Hz,
maximum scan bandwidth of 120 MHz (dependent on Oscilloscope and AWG bandwidth),
500 maximum scan frequency points
USB WIFI adapter
(four channel series only, option)
802.11b/g/b, WPA-PSK, the adapter must be supplied by Siglent to ensure proper functioning
