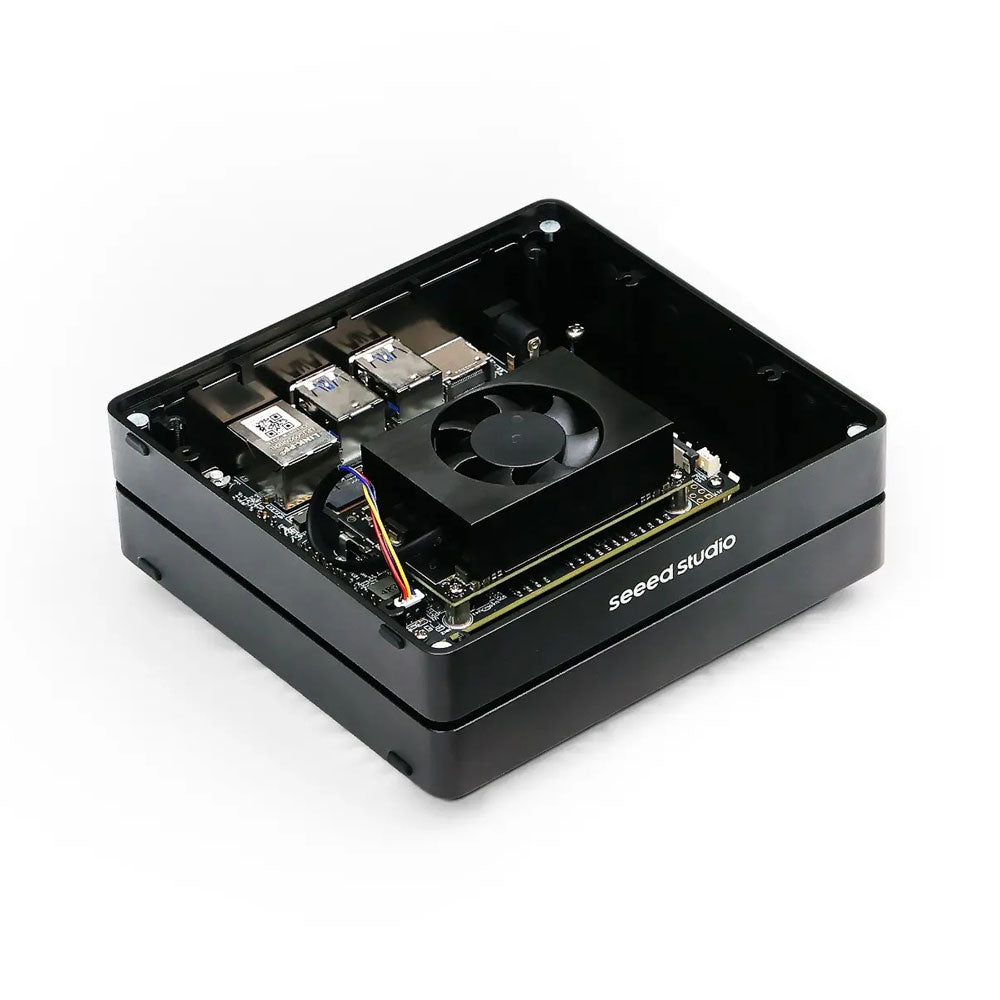

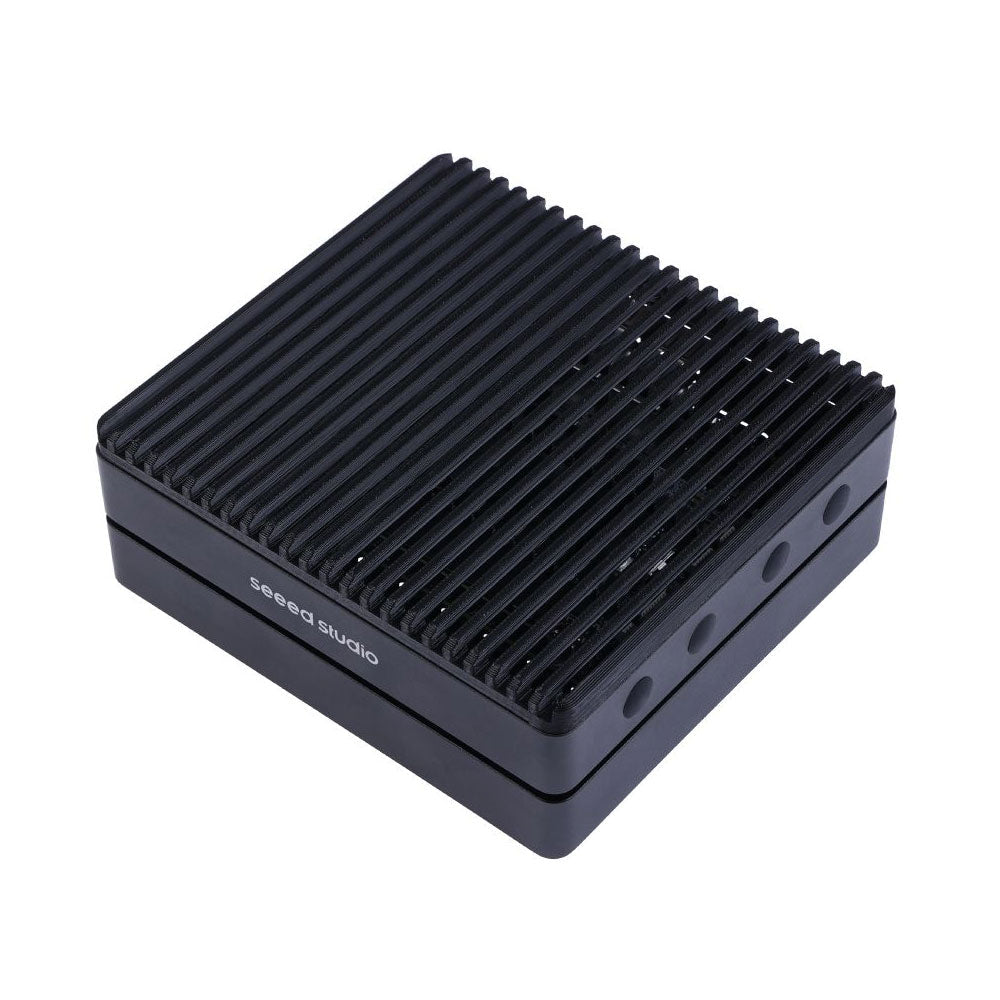

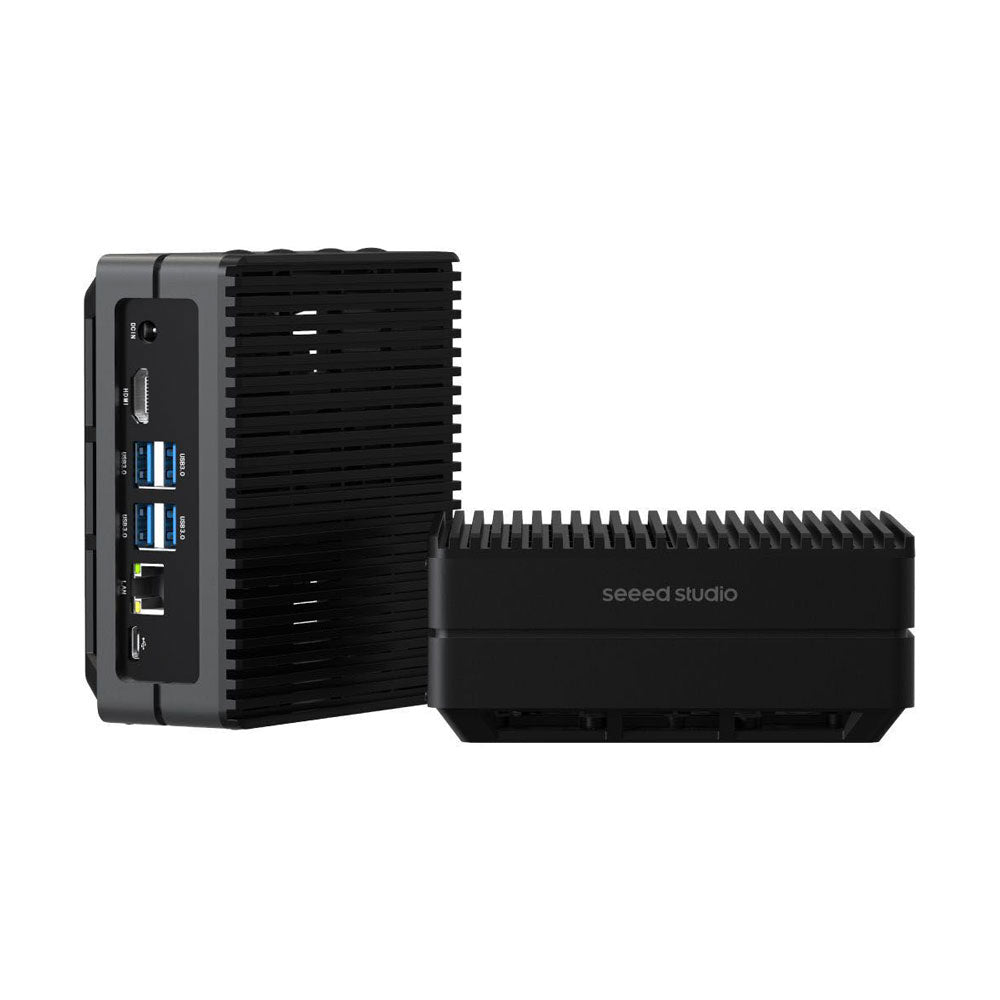

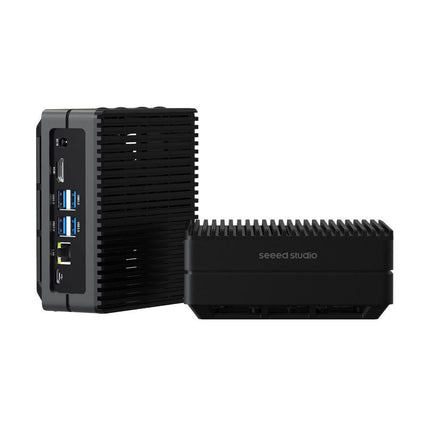

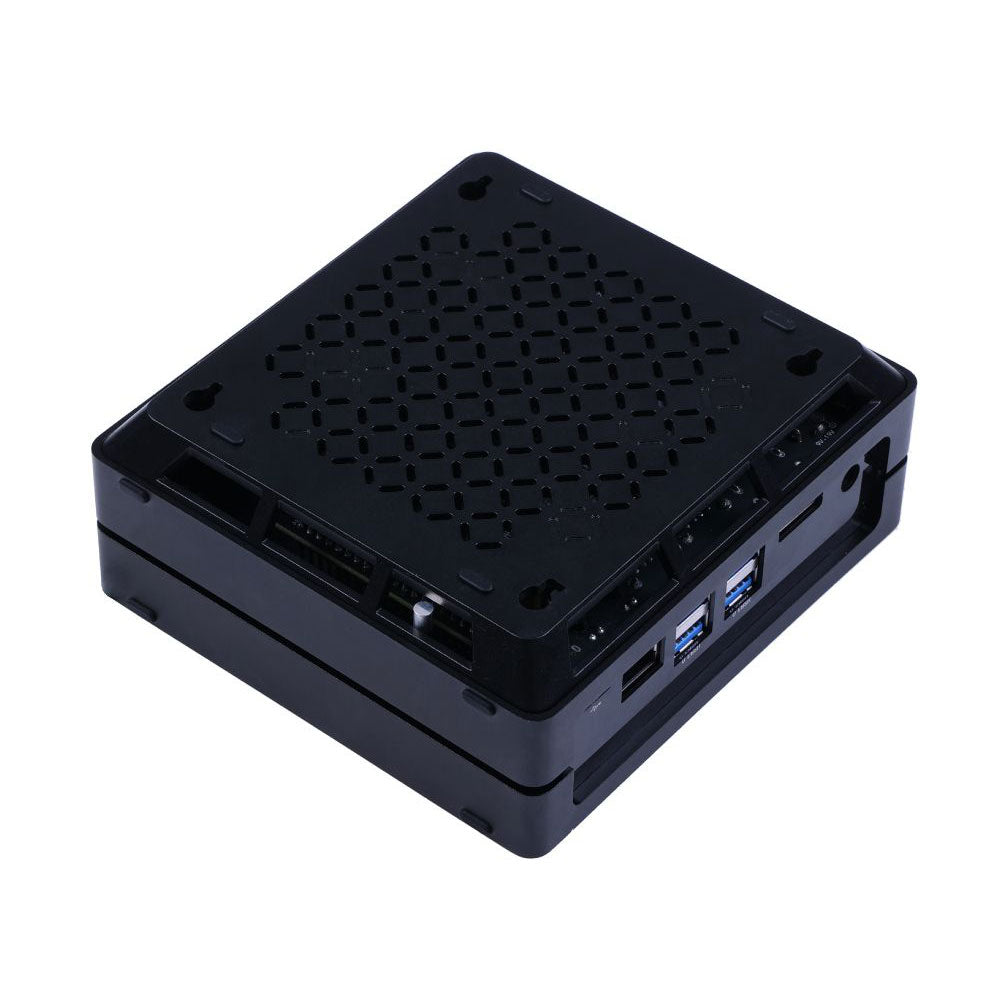

reComputer J3010 – Edge AI Device with NVIDIA Jetson Orin Nano (4 GB)

  • BrandSeeed Studio

Description

The reComputer J3010 is a compact and powerful edge AI device powered by the NVIDIA Jetson Orin Nano SoM, delivering an impressive 20 TOPS AI performance – up to 40 times faster than the Jetson Nano. Pre-installed with Jetpack 5.1.1, it features a 128 GB SSD, 4x USB 3.2 ports, HDMI, Gigabit Ethernet, and a versatile carrier board with M.2 Key E for WiFi, M.2 Key M for SSD, RTC, CAN, and a 40-pin GPIO header.

Applications

  • AI Video Analytics
  • Machine Vision
  • Robotics

Specifications

Jetson Orin Nano System-on-Module
AI Performance reComputer J3010, Orin Nano 4 GB (20 TOPS)
GPU 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores (Orin Nano 4 GB)
CPU 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5 MB L2 + 4 MB L3
Memory 4 GB 64-bit LPDDR5 34 GB/s (Orin Nano 4 GB)
Video Encoder 1080p30 supported by 1-2 CPU cores
Video Decoder 1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)

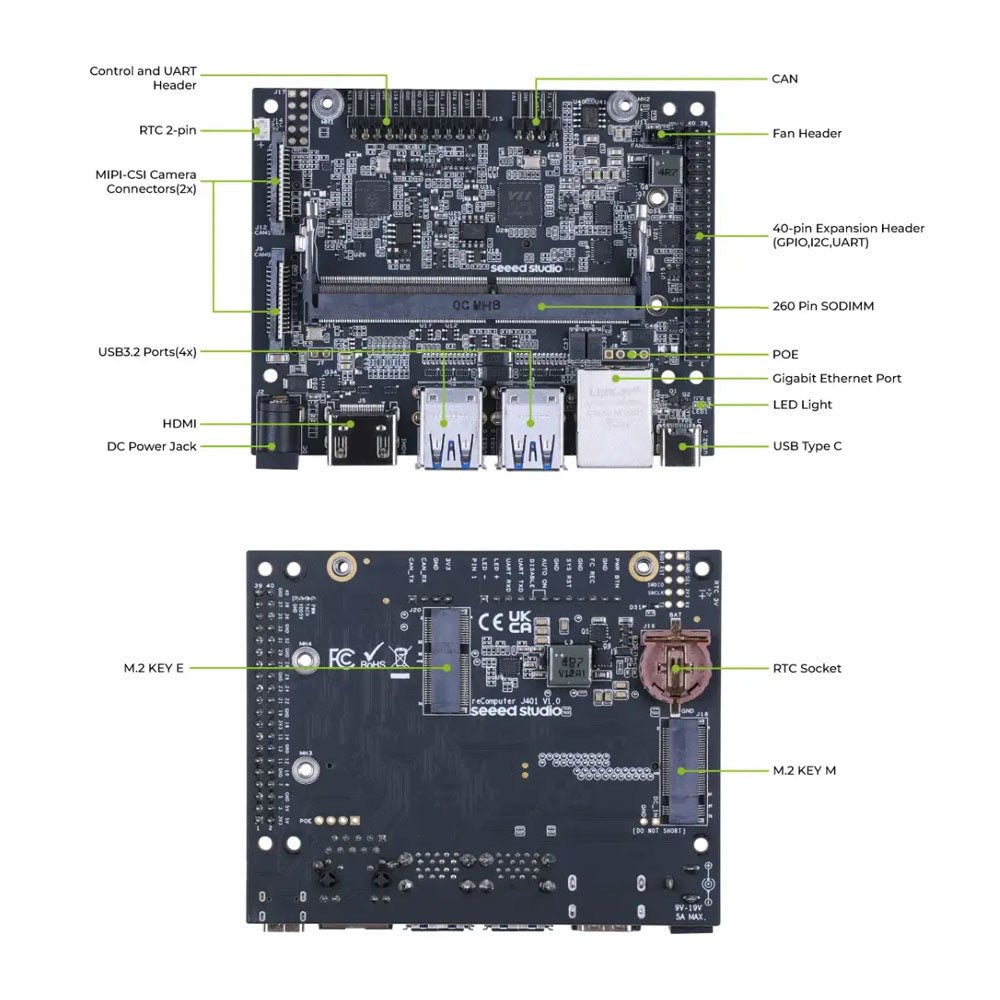

Carrier Board
Storage M.2 Key M PCIe (M.2 NVMe 2280 SSD 128 GB included)
Networking Ethernet 1x RJ-45 Gigabit Ethernet (10/100/1000M)
M.2 Key E 1x M.2 Key E (pre-installed 1x Wi-Fi/Bluetooth combo module)
I/O USB 4x USB 3.2 Type-A (10 Gbps)
1x USB 2.0 Type-C (Device Mode)
CSI Camera 2x CSI (2-lane 15-pin)
Display 1x HDMI 2.1
Fan 1x 4-pin Fan Connector (5 V PWM)
CAN 1x CAN
Multifunctional Port 1x 40-Pin Expansion header
1x 12-Pin Control and UART header
RTC RTC 2-pin, supports CR1220 (not included)
Power Supply 9-19 V DC
Mechanical Dimensions 130 x 120 x 58.5 mm (with Case)
Installation Desktop, wall-mounting
Operating Temperature −10°C~60°C

Included

  • 1x reComputer J3010 (system installed)
  • 1x Power adapter (12 V / 5 A)

Downloads


Product form

The reComputer J3010 is a compact and powerful edge AI device powered by the NVIDIA Jetson Orin Nano SoM, delivering... Read more

€ 699,00 incl. VAT
Members € 629,10

    • Ship today? Order within Dec 13, 2024 17:00:00 +0100
      • Shipping may take longer during the festive season.

    Details

    SKU: 20969
    EAN: 110110146

    Description

    The reComputer J3010 is a compact and powerful edge AI device powered by the NVIDIA Jetson Orin Nano SoM, delivering an impressive 20 TOPS AI performance – up to 40 times faster than the Jetson Nano. Pre-installed with Jetpack 5.1.1, it features a 128 GB SSD, 4x USB 3.2 ports, HDMI, Gigabit Ethernet, and a versatile carrier board with M.2 Key E for WiFi, M.2 Key M for SSD, RTC, CAN, and a 40-pin GPIO header.

    Applications

    • AI Video Analytics
    • Machine Vision
    • Robotics

    Specifications

    Jetson Orin Nano System-on-Module
    AI Performance reComputer J3010, Orin Nano 4 GB (20 TOPS)
    GPU 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores (Orin Nano 4 GB)
    CPU 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5 MB L2 + 4 MB L3
    Memory 4 GB 64-bit LPDDR5 34 GB/s (Orin Nano 4 GB)
    Video Encoder 1080p30 supported by 1-2 CPU cores
    Video Decoder 1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)
    Carrier Board
    Storage M.2 Key M PCIe (M.2 NVMe 2280 SSD 128 GB included)
    Networking Ethernet 1x RJ-45 Gigabit Ethernet (10/100/1000M)
    M.2 Key E 1x M.2 Key E (pre-installed 1x Wi-Fi/Bluetooth combo module)
    I/O USB 4x USB 3.2 Type-A (10 Gbps)
    1x USB 2.0 Type-C (Device Mode)
    CSI Camera 2x CSI (2-lane 15-pin)
    Display 1x HDMI 2.1
    Fan 1x 4-pin Fan Connector (5 V PWM)
    CAN 1x CAN
    Multifunctional Port 1x 40-Pin Expansion header
    1x 12-Pin Control and UART header
    RTC RTC 2-pin, supports CR1220 (not included)
    Power Supply 9-19 V DC
    Mechanical Dimensions 130 x 120 x 58.5 mm (with Case)
    Installation Desktop, wall-mounting
    Operating Temperature −10°C~60°C

    Included

    • 1x reComputer J3010 (system installed)
    • 1x Power adapter (12 V / 5 A)
