Description

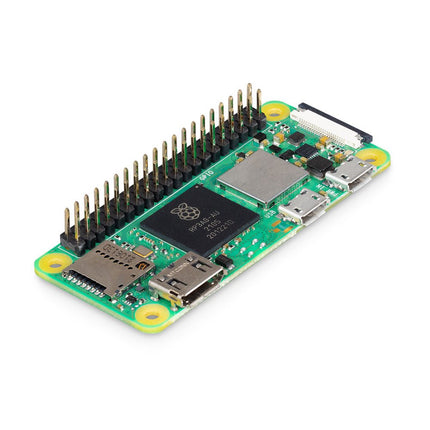

Raspberry Pi Zero 2 WH is the successor to the breakthrough Raspberry Pi Zero W(H). The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1 GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512 MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 WH with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.
Features
- 64-bit quad-core processor
- VideoCore IV GPU
- 512 MB LPDDR2 DRAM
- 802.11b/g/n wireless LAN
- Bluetooth 4.2 / Bluetooth Low Energy (BLE)
- MicroSD card slot
- Mini HDMI and USB 2.0 OTG ports
- Micro USB power
- With mounted 40-pin header
- Composite video and reset pins via solder test points
- CSI camera connector
Specifications
| SoC |
Broadcom BCM2710A1 |
| CPU |
64-bit ARM Cortex-A53 (4x 1 GHz) |
| GPU |
Broadcom VideoCore VI |
| RAM |
512 MB LPDDR2 |
| Wireless LAN |
2.4 GHz IEEE 802.11b/g/n |
| Bluetooth |
Bluetooth 4.2, BLE |
| USB |
1x micro USB (for data)
1x micro USB (for power supply) |
| GPIO |
HAT-compatible 40-pin GPIO header |
| Video & Audio |
1080P HD video & stereo audio via mini-HDMI connector |
| SD card |
microSD (for operating system and storage) |
| Power |
5 VDC / 2.5 A (supplied via micro USB connector) |
| Dimensions |
65 x 30 x 5 mm |
Raspberry Pi Zero 2 WH is footprint-compatible with earlier Zero models.
