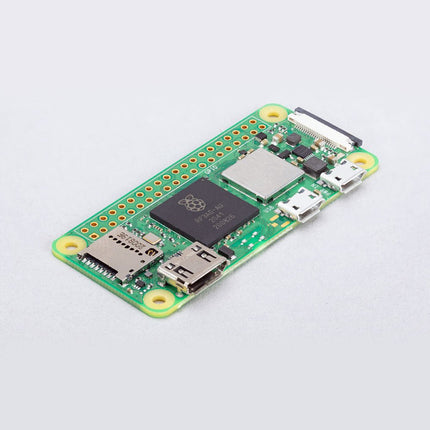

Raspberry Pi Zero 2 W

  • BrandRaspberry Pi Foundation

Description

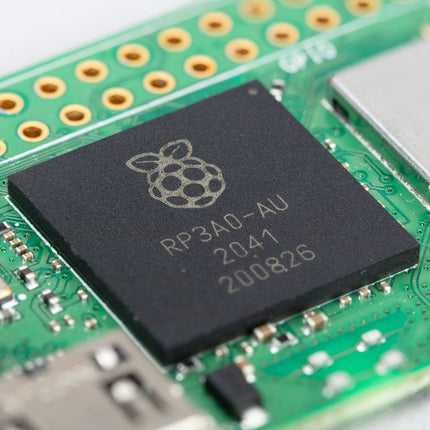

Raspberry Pi Zero 2 W is the successor to the breakthrough Raspberry Pi Zero W. The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1 GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512 MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.

Features

  • 64-bit quad-core processor
  • VideoCore IV GPU
  • 512 MB LPDDR2 DRAM
  • 802.11b/g/n wireless LAN
  • Bluetooth 4.2 / Bluetooth Low Energy (BLE)
  • MicroSD card slot
  • Mini HDMI and USB 2.0 OTG ports
  • Micro USB power
  • HAT-compatible 40-pin header
  • Composite video and reset pins via solder test points
  • CSI camera connector

Specifications

SoC Broadcom BCM2710A1
CPU 64-bit ARM Cortex-A53 (4x 1 GHz)
GPU Broadcom VideoCore VI
RAM 512 MB LPDDR2
Wireless LAN 2.4 GHz IEEE 802.11b/g/n
Bluetooth Bluetooth 4.2, BLE
USB 1x micro USB (for data)
1x micro USB (for power supply)
GPIO HAT-compatible 40-pin GPIO header
Video & Audio 1080P HD video & stereo audio via mini-HDMI connector
SD card microSD (for operating system and storage)
Power 5 VDC / 2.5 A (supplied via micro USB connector)
Dimensions 65 x 30 x 5 mm

Raspberry Pi Zero 2 W is footprint-compatible with earlier Zero models.


Product form

Raspberry Pi Zero 2 W is the successor to the breakthrough Raspberry Pi Zero W. The board incorporates a quad-core 64-bit Arm Cortex-A53... Read more

€ 19,95 incl. VAT
Members identical

      Details

      SKU: 19906
      EAN: 5056561800004

      Description

      Raspberry Pi Zero 2 W is the successor to the breakthrough Raspberry Pi Zero W. The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1 GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512 MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.

      Features

      • 64-bit quad-core processor
      • VideoCore IV GPU
      • 512 MB LPDDR2 DRAM
      • 802.11b/g/n wireless LAN
      • Bluetooth 4.2 / Bluetooth Low Energy (BLE)
      • MicroSD card slot
      • Mini HDMI and USB 2.0 OTG ports
      • Micro USB power
      • HAT-compatible 40-pin header
      • Composite video and reset pins via solder test points
      • CSI camera connector

      Specifications

      SoC Broadcom BCM2710A1
      CPU 64-bit ARM Cortex-A53 (4x 1 GHz)
      GPU Broadcom VideoCore VI
      RAM 512 MB LPDDR2
      Wireless LAN 2.4 GHz IEEE 802.11b/g/n
      Bluetooth Bluetooth 4.2, BLE
      USB 1x micro USB (for data)
      1x micro USB (for power supply)
      GPIO HAT-compatible 40-pin GPIO header
      Video & Audio 1080P HD video & stereo audio via mini-HDMI connector
      SD card microSD (for operating system and storage)
      Power 5 VDC / 2.5 A (supplied via micro USB connector)
      Dimensions 65 x 30 x 5 mm

      Raspberry Pi Zero 2 W is footprint-compatible with earlier Zero models.


      Customer Reviews

      Based on 2 reviews
      50%
      (1)
      50%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      R
      Ralf M.
      Raspberry Pi Zero 2 W

      Flottes drop-in Replacement für den alten Zero W und kommt mit dem 500mA, die er als USB 2.0-Gadget verbrauchen darf, auch locker aus, sodass man keine zusätzliche Stromversorgung benötigt, wenn man USB-Device konfigurieren möchte.. (150mA bis max. 400mA beim Booten, 100-125mA in Ruhe mit WiFi,) Raspberry Pi OS minimal bootet in knapp 30 Sekunden von µSD.

      J
      Julien P.
      Works as expected but gpio hard to solder

      A GPIO soldered version could be great as it is not easy to solder 40 pins
