Description
The Raspberry Pi High Quality Camera offers higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, and is designed to work with interchangeable lenses in both C and CS Mount form factors. Other lens form factors can be accommodated using third-party lens adapters.
Specifications
| Sensor |
Sony IMX477R stacked, back-illuminated sensor
12.3 megapixels
7.9 mm sensor diagonal
1.55 x 1.55 μm pixel size |
| Output |
RAW12/10/8, COMP8 |
| Back focus |
Adjustable (12.5–22.4 mm) |
| Lens standards |
CS Mount
C Mount (C/CS adapter included) |
| IR cut filter |
Integrated |
| Ribbon cable length |
200 mm |
| Tripod mount |
1/4”-20 |
Included

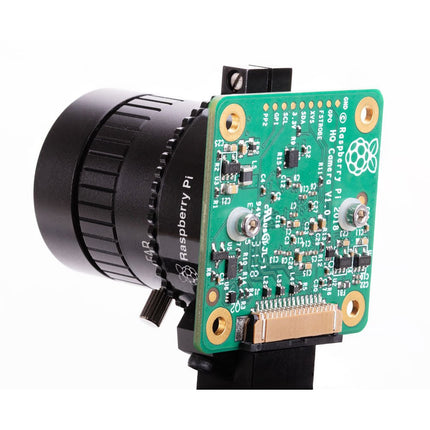

- 1x Circuit board carrying a Sony IMX477 sensor
- 1x FPC cable for connection to a Raspberry Pi

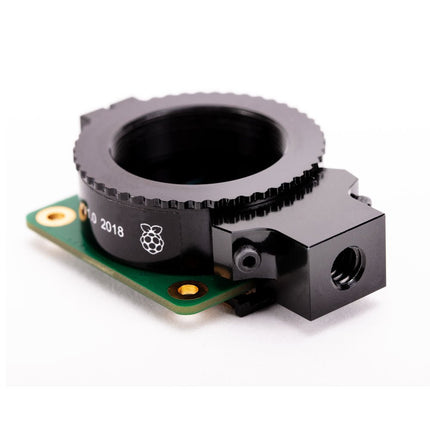

- 1x Milled aluminium lens mount with integrated tripod mount and focus adjustment ring
- 1x C/CS Mount adapter
Required
