Description
The Raspberry Pi 5 delivers more performance than ever before. Thanks to the faster CPU, GPU and RAM, Raspberry Pi 5 is up to 3x faster than its already fast predecessor. In addition to the speed boost, the Raspberry Pi 5 (which features the new Raspberry Pi RP1 silicon for advanced I/O capabilities) also offers the following features for the first time ever: RTC, an on/off button and a PCIe interface.
Features
- 64-bit quad-core ARM Cortex-A76 processor (2.4 GHz)
- VideoCore VII GPU (800 MHz)
- 16 GB of LPDDR4X RAM (4267 MHz)
- Raspberry Pi silicon RP1 I/O controller chip
- Real-time clock
- On/off button
- PCIe 2.0
- UART connector
- Fan connector
Specifications
| SoC |
Broadcom BCM2712 |
| CPU |
ARM Cortex-A76 (ARM v8) 64-bit |
| Clock speed |
4x 2.4 GHz |
| GPU |
VideoCore VII (800 MHz) |
| RAM |
16 GB LPDDR4X (4267 MHz) |
| WiFi |
IEEE 802.11b/g/n/ac (2.4 GHz/5 GHz) |
| Bluetooth |
Bluetooth 5.0, BLE |
| Ethernet |
Gigabit Ethernet (with PoE+ support) |
| USB |
2x USB-A 3.0 (5 GBit/s)
2x USB-A 2.0 |
| PCI Express |
1x PCIe 2.0 |
| GPIO |
Standard 40-pin GPIO header |
| Video |
2x micro-HDMI ports (4K60)
2x 4-lane MIPI (DSI/CSI) |
| Multimedia |
H.265 (4K60 decode)
OpenGL ES 3.1, Vulkan 1.2 |
| SD card |
microSD |
| Power |
5 V/5 A (via USB-C)
Power over Ethernet (PoE+) |

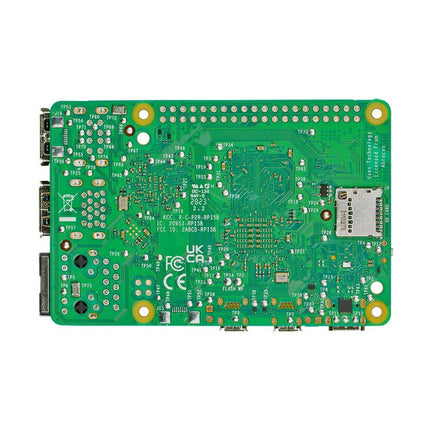

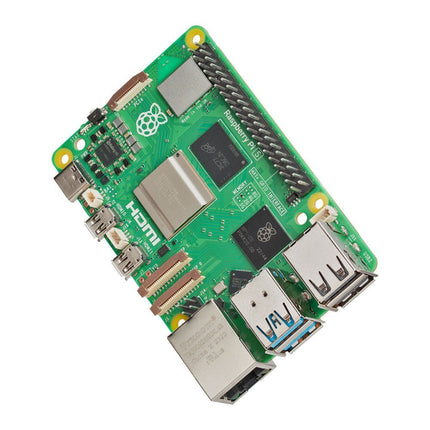

Raspberry Pi 5
