Description

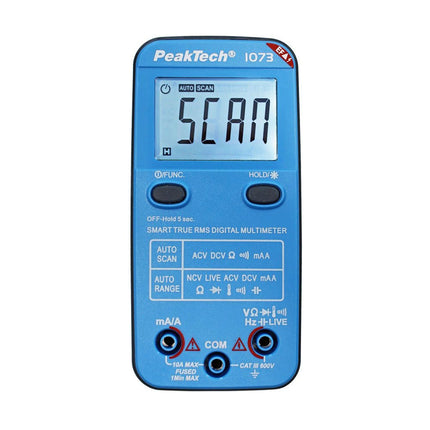

The PeakTech 1073 smart digital multimeter combines state-of-the-art technology with an impressive range of functions in a compact design. It measures voltages up to 600 V AC/DC, is CAT III certified and features True RMS for precise measurements with varying voltages. The integrated NCV voltage tester enables non-contact voltage detection, while the LIVE test reliably identifies phases and neutral conductors.
Thanks to the automatic search of the measuring function, you no longer need a rotary selector switch. The multimeter automatically recognizes what is being measured and adjusts itself accordingly. The 4000-digit LCD display with blue backlighting ensures clear readability of the measured values and changes to red when measuring ranges are exceeded or the NCV voltage tester detects a voltage.
In addition to the standard measurements for voltage, current (AC & DC), resistance, continuity, diode test and temperature, this multimeter also offers capacitance and frequency measurements.
Features
- Smart True RMS multimeter with automatic function selection
- Manual function selection possible at the touch of a button
- 3¾ digit LCD display with 4,000 counts
- Backlight (blue/red) and LED light
- Continuity test and diode test function
- Capacitance, temperature & frequency measurement
- Live test and NCV voltage tester
- Auto-Power-Off and battery status indicator
- Sturdy ABS plastic housing
- Safety: EN 61010-1, CAT III 600 V
Specifications
| Digital counts |
4000 |
| Basic Accuracy DC |
±0.5% |
| Over voltage category |
CAT III 600 V |
| Display Type |
LCD |
| Range selection |
Auto |
| Auto-Scan |
Yes |
| LED-lamp |
Yes |
| NCV |
Yes |
| True RMS |
Yes |
| V DC max. |
600 V |
| A AC max. |
10 A |
| Hz max. |
4 kHz |
| Capacitance max. |
1 mF |
| OHM max. |
40 MΩ |
| Temp. max. |
1200°C (2192°F) |
| Temp. min. |
−200°C (−328°F) |
| mA DC max. |
4000 mA |
| V AC max. |
600 V |
| A DC max. |
10 A |
| mA AC max. |
4000 mA |
| Power supply |
2x 1.5 V AAA batteries |
| Dimensions |
130 x 63 x 35 mm |
| Weight |
116 g (incl. batteries) |

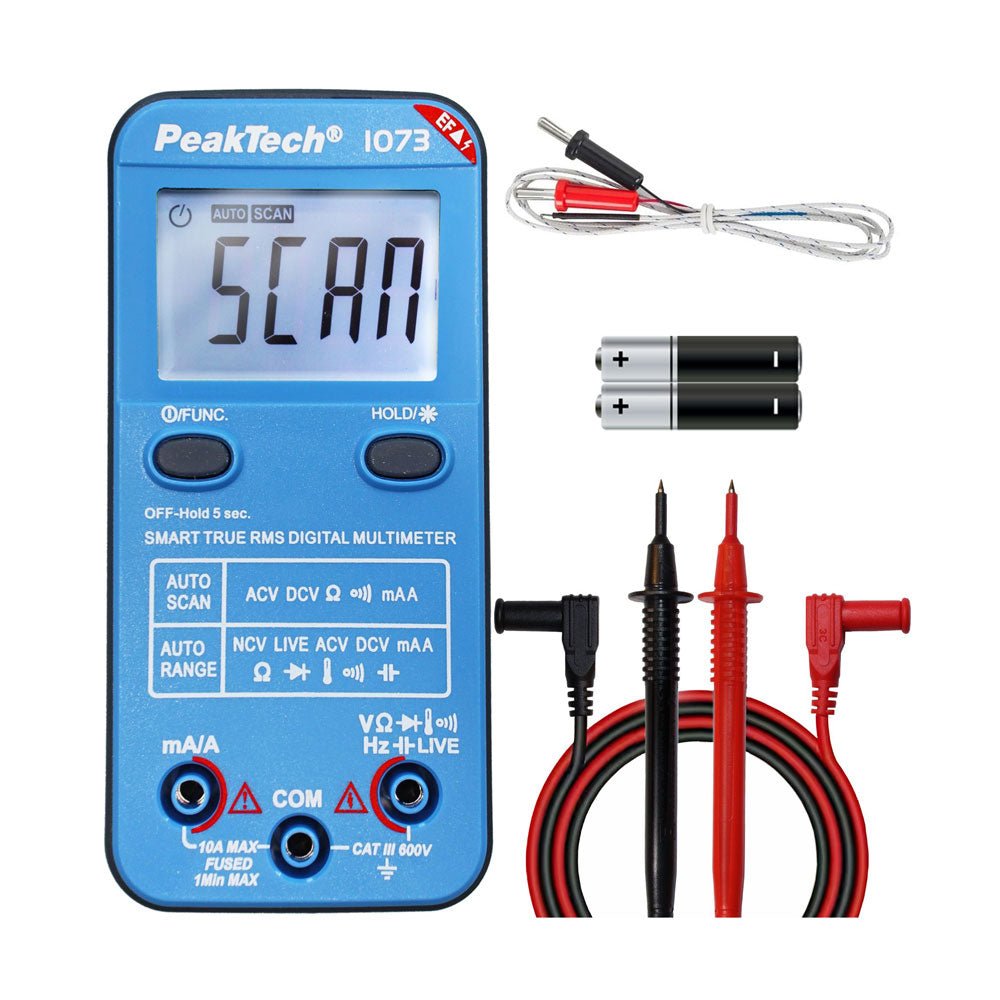

Included
- 1x PeakTech 1073 Multimeter
- 2x Test leads
- 1x Thermocouple
- 2x Batteries
- 1x Manual
