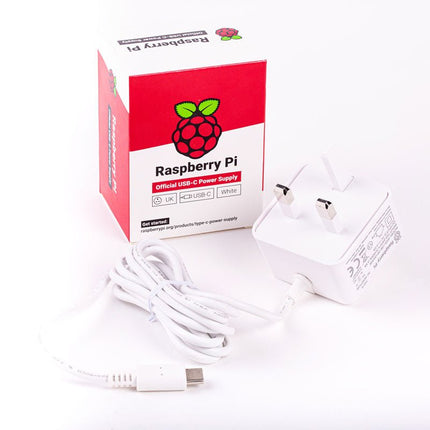

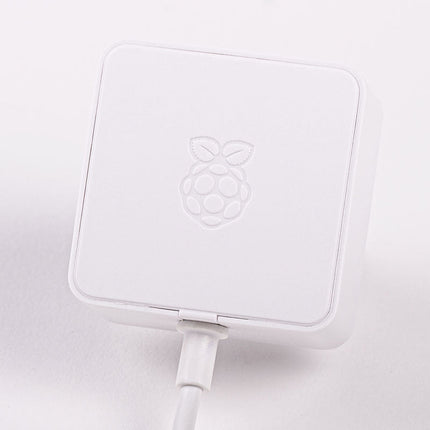

Official UK Power Supply for Raspberry Pi 4 (white)

  • BrandRaspberry Pi Foundation

Description

The Raspberry Pi USB-C power supply is designed specifically to power the latest Raspberry Pi 4 Model B computers.

The power supply features a USB-C cable and is available in four different models to suit different international power sockets, and in two colors.

Specifications

Output
Output voltage +5.1 V DC
Minimum load current 0 A
Nominal load current 3.0 A
Maximum power 15.3 W
Load regulation ±5 %
Line regulation ±2 %
Ripple & noise 120 mVp-p
Rise time 100 ms maximum to regulation limits for DC outputs
Turn-on delay 3000 ms maximum at nominal input AC voltage and full load
Protection Short circuit protection
Overcurrent protection
Over temperature protection
Efficiency 81% minimum (output current from 100%, 75%, 50%, 25%)
72% minimum at 10% load
Output cable 1.5 m 18AWG
Output connector USB Type-C
Input
Voltage range 100-240 VAC (rated)
96-264 VAC (operating)
Frequency 50/60 Hz ±3 Hz
Current 0.5 A maximum
Power consumption (no load) 0.075 W maximum
Inrush current No damage shall occur, and the input fuse shall not blow
Operating ambient temperature 0-40°C
Product form

The Raspberry Pi USB-C power supply is designed specifically to power the latest Raspberry Pi 4 Model B computers. The... Read more

€ 9,95 (incl. VAT)
Members identical

      Details

      SKU: 18958
      EAN: 0765756931236

      Description

      The Raspberry Pi USB-C power supply is designed specifically to power the latest Raspberry Pi 4 Model B computers.

      The power supply features a USB-C cable and is available in four different models to suit different international power sockets, and in two colors.

      Specifications

      Output
      Output voltage +5.1 V DC
      Minimum load current 0 A
      Nominal load current 3.0 A
      Maximum power 15.3 W
      Load regulation ±5 %
      Line regulation ±2 %
      Ripple & noise 120 mVp-p
      Rise time 100 ms maximum to regulation limits for DC outputs
      Turn-on delay 3000 ms maximum at nominal input AC voltage and full load
      Protection Short circuit protection
      Overcurrent protection
      Over temperature protection
      Efficiency 81% minimum (output current from 100%, 75%, 50%, 25%)
      72% minimum at 10% load
      Output cable 1.5 m 18AWG
      Output connector USB Type-C
      Input
      Voltage range 100-240 VAC (rated)
      96-264 VAC (operating)
      Frequency 50/60 Hz ±3 Hz
      Current 0.5 A maximum
      Power consumption (no load) 0.075 W maximum
      Inrush current No damage shall occur, and the input fuse shall not blow
      Operating ambient temperature 0-40°C
