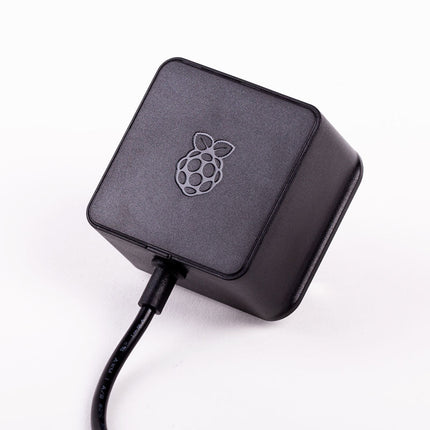

Official EU Power Supply for Raspberry Pi 4 (black)

  • BrandRaspberry Pi Foundation

Description

The Raspberry Pi USB-C power supply is designed specifically to power the latest Raspberry Pi 4 Model B computers.

The power supply features a USB-C cable and is available in four different models to suit different international power sockets, and in two colors.

Specifications

Output
Output voltage +5.1 V DC
Minimum load current 0 A
Nominal load current 3.0 A
Maximum power 15.3 W
Load regulation ±5 %
Line regulation ±2 %
Ripple & noise 120 mVp-p
Rise time 100 ms maximum to regulation limits for DC outputs
Turn-on delay 3000 ms maximum at nominal input AC voltage and full load
Protection Short circuit protection
Overcurrent protection
Over temperature protection
Efficiency 81% minimum (output current from 100%, 75%, 50%, 25%)
72% minimum at 10% load
Output cable 1.5 m 18AWG
Output connector USB Type-C
Input
Voltage range 100 - 240 Vac (rated)
96 - 264 Vac (operating)
Frequency 50 / 60 Hz ± 3 Hz
Current 0.5 A maximum
Power consumption (no load) 0.075 W maximum
Inrush current No damage shall occur, and the input fuse shall not blow
Operating ambient temperature 0 - 40 °C
Product form

The Raspberry Pi USB-C power supply is designed specifically to power the latest Raspberry Pi 4 Model B computers. The... Read more

No reviews

€ 9,95 incl. VAT
Members identical

    • Ship today? Order within Apr 18, 2024 17:00:00 +0200

    Details

    SKU: 18961
    EAN: 0644824914886

    Description

    The Raspberry Pi USB-C power supply is designed specifically to power the latest Raspberry Pi 4 Model B computers.

    The power supply features a USB-C cable and is available in four different models to suit different international power sockets, and in two colors.

    Specifications

    Output
    Output voltage +5.1 V DC
    Minimum load current 0 A
    Nominal load current 3.0 A
    Maximum power 15.3 W
    Load regulation ±5 %
    Line regulation ±2 %
    Ripple & noise 120 mVp-p
    Rise time 100 ms maximum to regulation limits for DC outputs
    Turn-on delay 3000 ms maximum at nominal input AC voltage and full load
    Protection Short circuit protection
    Overcurrent protection
    Over temperature protection
    Efficiency 81% minimum (output current from 100%, 75%, 50%, 25%)
    72% minimum at 10% load
    Output cable 1.5 m 18AWG
    Output connector USB Type-C
    Input
    Voltage range 100 - 240 Vac (rated)
    96 - 264 Vac (operating)
    Frequency 50 / 60 Hz ± 3 Hz
    Current 0.5 A maximum
    Power consumption (no load) 0.075 W maximum
    Inrush current No damage shall occur, and the input fuse shall not blow
    Operating ambient temperature 0 - 40 °C
