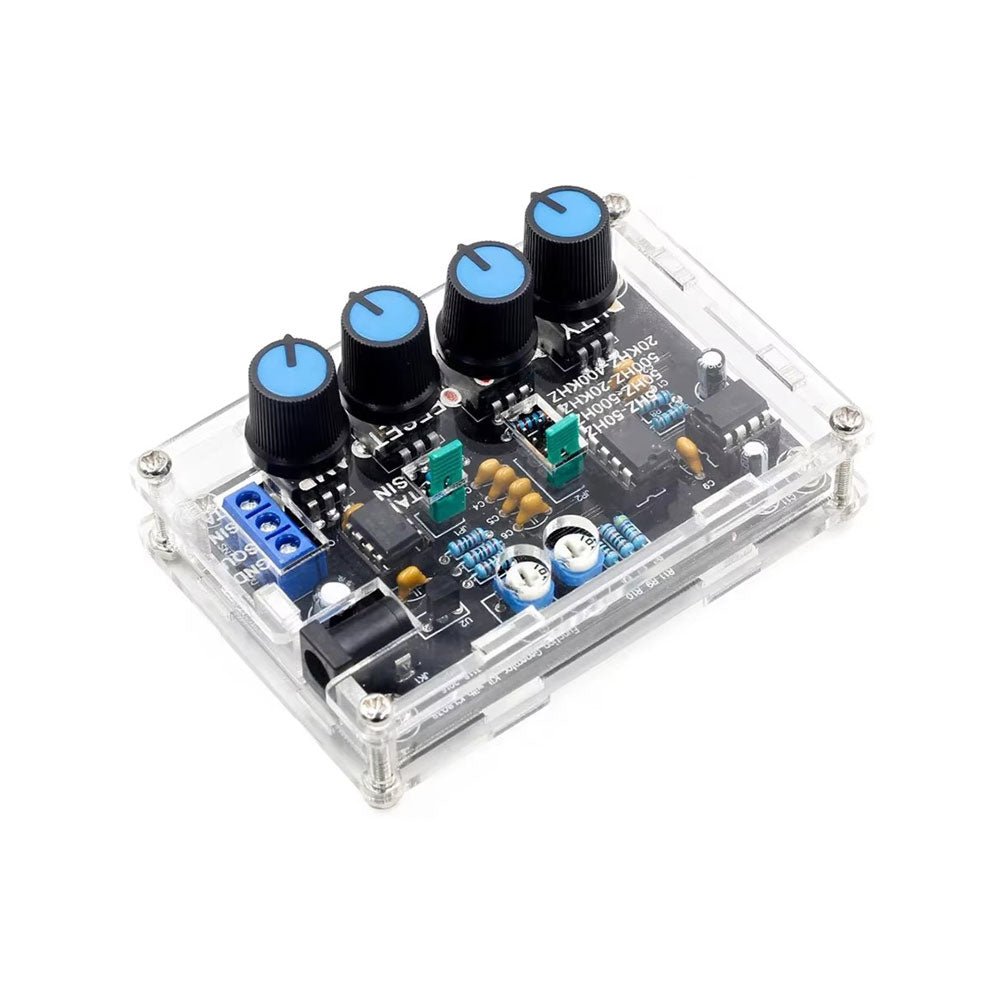

ICL8038 Signal Generator DIY Kit (5 Hz – 400 kHz)

Description

The ICL8038 signal generator delivers versatile waveforms, including sine, triangle, square, and forward/reverse sawtooth, making it suitable for a wide range of applications. Powered by the ICL8038 chip and high-speed operational amplifiers, it ensures exceptional precision and signal stability.

With a frequency range of 5 Hz to 400 kHz, it supports applications from audio to radio frequencies. Its adjustable duty cycle, ranging from 2% to 95%, allows for precise waveform customization to meet various needs.

The DIY kit is beginner-friendly, featuring through-hole components for easy assembly. It includes all necessary parts, an acrylic shell, and a detailed manual, providing everything required to build and use the signal generator efficiently.

Specifications

Frequency range 5 Hz~400 KHz (adjustable)
Power supply voltage 12 V~15 V
Duty cycle range 2~95% (adjustable)
Low distortion sine wave 1%
Low temperature drift 50 ppm/°C
Output triangular wave linearity 0.1%
DC bias range −7.5 V~7.5 V
Output amplitude range 0.1 V~11 VPP (working voltage 12 V)

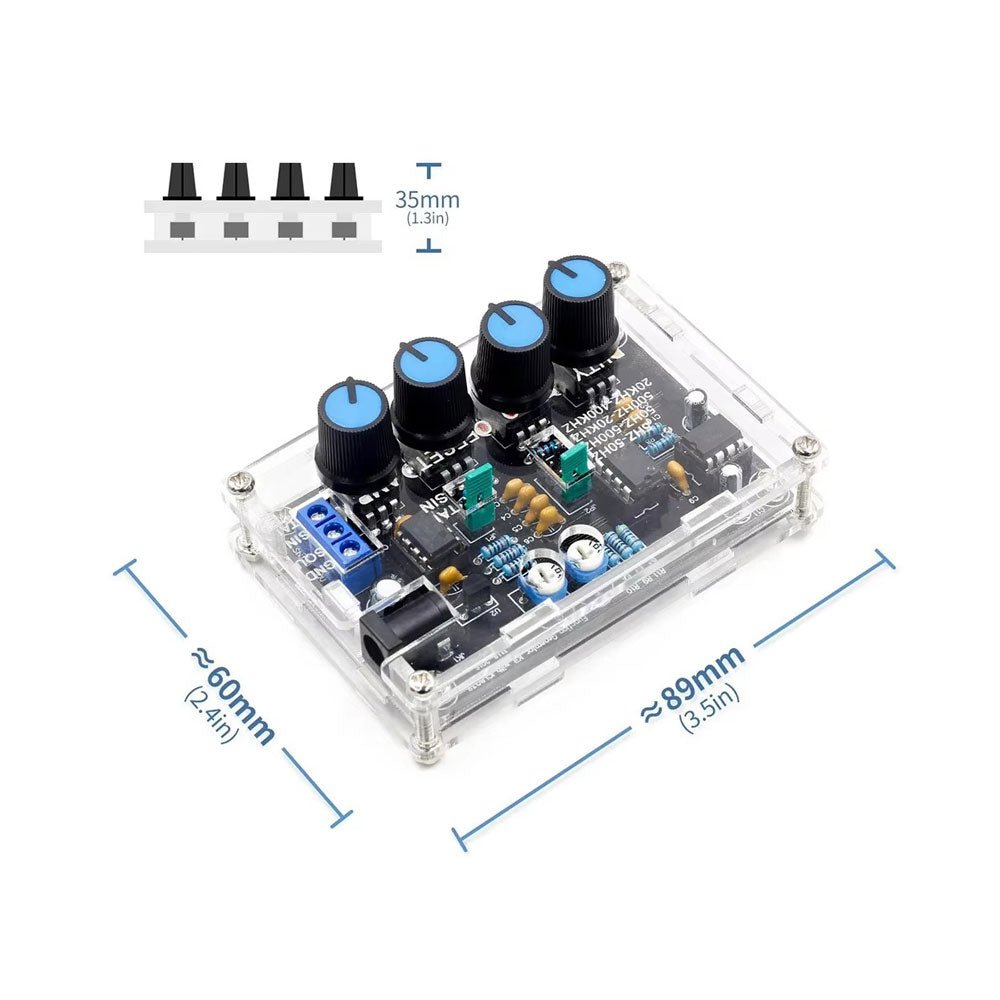

Dimensions 89 x 60 x 35 mm
Weight 81 g

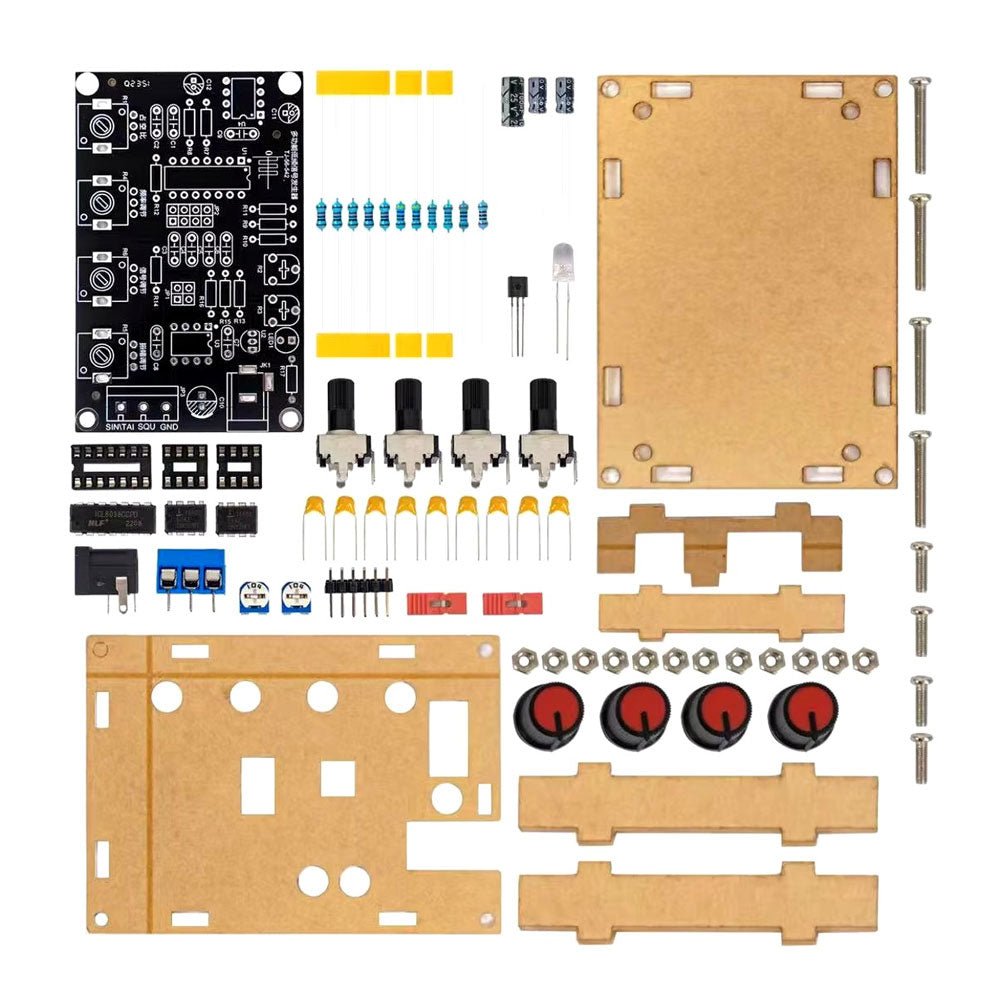

Included

  • PCB incl. all necessary components
  • Acrylic shell
  • Manual
Product form

The ICL8038 signal generator delivers versatile waveforms, including sine, triangle, square, and forward/reverse sawtooth, making it suitable for a wide... Read more

€ 14,95 incl. VAT
Members € 13,46

      Details

      SKU: 20939
      EAN: 020939

      Description

      The ICL8038 signal generator delivers versatile waveforms, including sine, triangle, square, and forward/reverse sawtooth, making it suitable for a wide range of applications. Powered by the ICL8038 chip and high-speed operational amplifiers, it ensures exceptional precision and signal stability.

      With a frequency range of 5 Hz to 400 kHz, it supports applications from audio to radio frequencies. Its adjustable duty cycle, ranging from 2% to 95%, allows for precise waveform customization to meet various needs.

      The DIY kit is beginner-friendly, featuring through-hole components for easy assembly. It includes all necessary parts, an acrylic shell, and a detailed manual, providing everything required to build and use the signal generator efficiently.

      Specifications

      Frequency range 5 Hz~400 KHz (adjustable)
      Power supply voltage 12 V~15 V
      Duty cycle range 2~95% (adjustable)
      Low distortion sine wave 1%
      Low temperature drift 50 ppm/°C
      Output triangular wave linearity 0.1%
      DC bias range −7.5 V~7.5 V
      Output amplitude range 0.1 V~11 VPP (working voltage 12 V)
      Dimensions 89 x 60 x 35 mm
      Weight 81 g

      Included

      • PCB incl. all necessary components
      • Acrylic shell
      • Manual

      Customer Reviews

      Based on 2 reviews
      0%
      (0)
      0%
      (0)
      100%
      (2)
      0%
      (0)
      0%
      (0)
      D
      David H.
      Inadequate manual

      Product works as described but instructions were in chinese. Had difficulty translating because of poor printing. Needed to understand circuit diagram to orientate electrolytic capacitors: wasn't sure what the markings on them meant. An oscilloscope is required to adust the sine wave output properly. This was not made clear in the marketing information.

      H
      H.P. V.
      Product prima maar slechte handleiding

      Bestelling snel en in goede orde ontvangen. Of het werkt weet ik nog niet want ik moet het nog in elkaar zetten, Ik heb echter wel een opmerking over de bijgesloten handleiding. Die is in het Chinees en bovendien van een erg slechte druk-kwaliteit. Vanwege dat laatste is deze ook nauwelijks met Google Translate te vertalen: onleesbaar. Is er geen betere handleiding beschikbaar?
