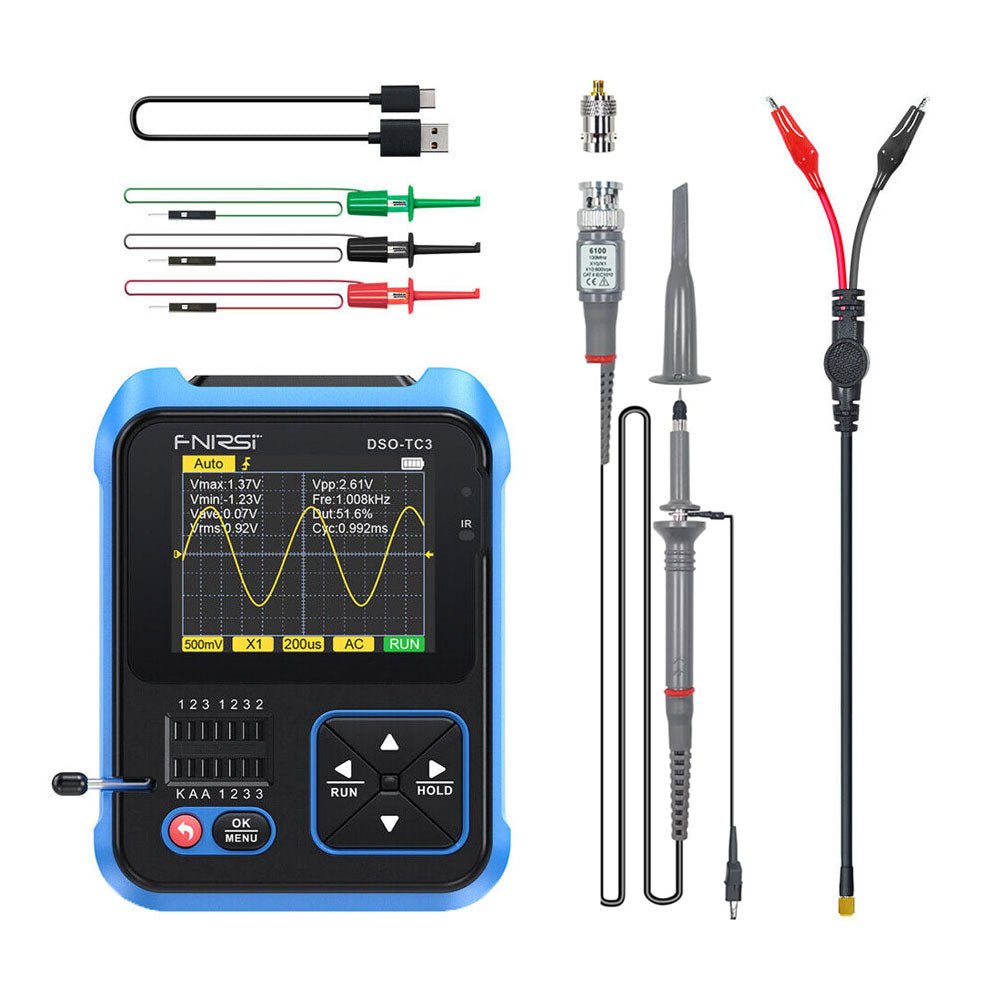

The FNIRDSI DSO-TC4 is a multifunctional transistor oscilloscope that is both comprehensive and practical. It is designed for use in maintenance and R&D applications, integrating an oscilloscope, transistor tester, and signal generator into a single device. Features Equipped with a 2.8-inch TFT color screen for a clear and intuitive display Built-in high-capacity rechargeable lithium battery (1500 mAh) with a standby time of up to 4 hours Compact and lightweight, ideal for mobile use Specifications Oscilloscope Analog Bandwidth 10 MHz Real-Time Sampling Rate 48 MSa/s Input Impedance 1 MΩ Coupling Mode AC/DC Test Voltage Range 1:1 Probe: 80 Vpp (+40 V) 10:1 Probe: 800 Vpp (+400 V) Vertical Sensitivity 10 mV/div~10 V/div (X1 range) Vertical Displacement Adjustable with indication Time Base Range 50ns~20s Trigger Mode Auto/Normal/Single Trigger Type Rising edge, Falling edge Trigger Level Adjustable with indication Waveform Freeze Yes (HOLD function) Automatic Measurement Max, Min, Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle Component Tester Transistor Amplification factor "hfe"; Base-Emitter voltage "Ube", Ic/Ie, Collector-Emitter reverse leakage current "Iceo", Ices, Forward voltage drop of protection diode "Uf" Diode Forward voltage drop <5 V (Forward voltage drop, Junction capacitance, Reverse leakage current) Zener Diode 0.01~32 V Reverse Breakdown Voltage (K-A-A Test Area) Field-Effect Transistor (FET) JFET: Gate capacitance "Cg", Drain current Id under "Vgs", Forward voltage drop of protection diode "Uf" IGBT: Drain current Id under Vgs, Forward voltage drop of protection diode Uf MIOSTET: Threshold voltage "Vt", Gate capacitance "Cg", Drain-Source resistance "Rds", Forward voltage drop of protection diode "Uf" Unidirectional SCR Trigger voltage <5V, Gate level (Gate voltage) Bidirectional SCR Trigger current <6mA (Gate voltage) Capacitor 25pF~100mF, Capacitance value, Loss factor "Vloss" Resistor 0.01Ω~50MΩ Inductor 10μH~1000μH, DC resistance DS18B20 Temperature sensor, Pins: GND, DQ, VDD DHT11 Temperature and humidity sensor, Pins: VDD, DATA, GND Signal Generator Output Waveform Supports 13 waveform outputs Waveform Frequency 0-50 KHz Square Wave Duty Cycle 0-100% Waveform Amplitude 0.1-3.0 V General Display 2.8-inch TFT color screen Backlight Brightness adjustable Power Supply USB-C (5 V/1 A） Battery 3.7 V/1500 mAh Languages English, German, Spanish, Portuguese, Russian, Chinese, Japanese, Korean Dimensions 90 x 142 x 27.5 mm Weight 186 g Included 1x FNIRSI DSO-TC4 (3-in-1) Oscilloscope (10 MHz) 1x P6100 Oscilloscope probes (10X) 1x Alligator clip probe 3x Test hooks 1x Adapter 1x USB-C charging cable 1x Manual Downloads Manual Firmware V0.0.3 (+V1.0.9)

Read more less

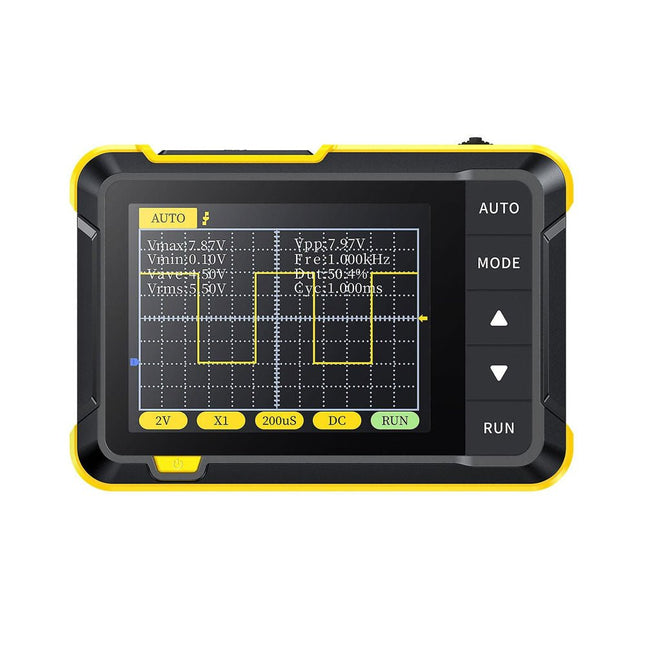

The FNIRSI DSO152 is an extremely practical and cost-effective handheld oscilloscope with a real-time sampling rate of 2.5 MSa/s, a bandwidth of 200 kHz and complete trigger functions (single, normal and automatic). It can be used for both periodic analog signals and non-periodic digital signals and can measure voltages up to ±400 V. Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments. It is equipped with a high-resolution 2.8-inch LCD screen with a resolution of 320x240 pixels and a built-in 1000 mAh high-quality lithium battery for up to 4 hours of operation. Specifications Sampling rate 2.5 MSa/s Bandwidth 200 kHz Vertical sensitivity 10 mV/DIV - 20 V/DIV (Progress according to the 1-2-5 way) Time base range 10µS/DIV - 50s/DIV (Progress according to the 1-2-5 way) Voltage range X1: ±40 V (Vpp: 80 V)X10: ±400 V (Vpp: 800 V) Trigger method Auto/Normal/Single Coupling method AC/DC Display 2.8" (320 x 240 pixels) USB charging 5 V/1 A Lithium battery capacity 1000 mAh Square wave calibration Frequency: 1K, Duty cycle: 50% Dimensions 99 x 68.3 x 19.5 mm Weight 100 g Included FNIRSI DSO152 oscilloscope Alligator clip probe USB cable Lanyard Manual Downloads Manual Firmware V0.1

Read more less

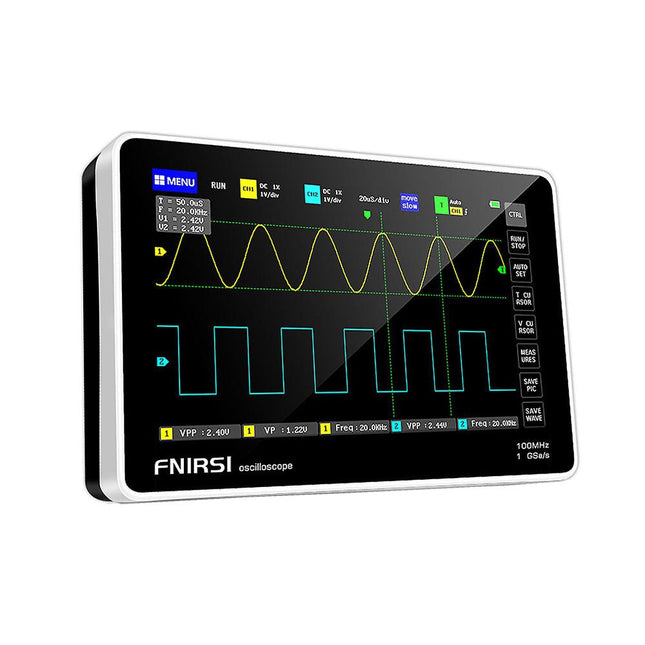

The FNIRSI 1013D is a fully featured 2-channel tablet oscilloscope with a high-resolution 7-inch LCD screen (800 x 480 pixels). The oscilloscope has a real-time sampling rate of 1 GSa/s and an analog bandwidth of 100 MHz. With full trigger functions (single/normal/automatic), it can be used for periodic analog signals or non-periodic digital signals. The built-in high-voltage protection module can withstand a continuous voltage of up to 400 V. Features Intelligent anti-burn,1X can withstand up to 400 V withstand voltage. 100 MHz analog bandwidth @ 1 GSa/s sampling rate (1X = 5 MHz,10X = 100 MHz). Fully fit 7-inch 800 x 480 resolution color TFT LCD display with bright colors and high contrast. Capacitive touching screen, the same as the touching mode of modern mobile tablet, is not a resistive touching screen with ancient nail operation. High measurement voltage range, 1X can measure 0~40 V, 10X can measure 0~400 V,100X can measure 0~4000 V. Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time−, Period. Cursor measurement function, it is convenient to manually measure the period and frequency and voltage. Complete triggering function (single, normal, automatic). At any time, the waveform display (pause function) is frozen. Equipped with high efficiency One-button AUTO. One-button waveform storage and screenshot. Built-in 1 GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data. Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc. Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis. Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals. FFT display function, can analyze the spectral characteristics of the signal. Built-in 6000 mAh rechargeable lithium battery, fully charged for 4 hours of continuous use at the highest screen brightness. Memory compression technology, waveform refresh screen does not flicker. Screen brightness adjustment. Background grid brightness adjustment. Applications Electronic DIY Appliance repair Car repair Equipment debug Scientific research Product development Specifications Channels 2 LCD size 7 inch LCD resolution 800 x 480 Display technology TFT Bandwidth 100 Mhz Sampling rate 1 GSa/s Rise time <3nS Storage depth 240 Kbit Input resistance 1 MΩ Sensitivity 50 mV ~ 500 V Time base 50S ~ 10nS Trigger mode Single/Normal/Auto Trigger edge Rising/Falling Coupling AC/DC Highest test voltage 1X: 40 V, 10X: 400 V Cursor Position XY, Trigger Y Roll mode Yes One button AUTO Yes Waveform storage 1000 pictures + 1000 waveforms Waveform manager Yes Voltage accuracy ±2% Frequency precision ±0.01% high precision Parameter 12 kinds in total Battery 6000 mAh Lithium Standby 4 hours Extension USB export Power supply USB-C, 5 V @ 2 A/3 A/4 A Dimensions 184 x 124 x 50 mm Weight 650 g Included 1x FNIRSI 1013D 2-ch Tablet Oscilloscope 2x 100 MHz Probes (1X and 10X) 1x USB charger 1x USB cable 1x Manual Downloads Manual Firmware

Read more less

An illustrated chronicle of Teknology for collectors and restorers Oscilloscopes have made a major contribution to the advancement of human knowledge, not only in electronics, but in all sciences, whenever a physical quantity can be converted into a timerelated electrical signal. This book traces the history of a crucial instrument through many Tektronix products. This is the company that invented and patented most of the functions found in all oscilloscopes today. Tek is and will always be synonymous with the oscilloscope. In nearly 600 pages, with hundreds of gorgeous photos, diagrams, anecdotes, and technical data, you'll travel through the history of Tektronix in a superb collector's edition with a technical point of view. The author is not afraid to get his hands dirty restoring his own Tek equipment. The journey starts in the early 1950s. It ends in the '90s, after exploring the ins and outs of the most interesting models in the 300, 400, 500, 5000, 7000, and 11000 series, from tubes to advanced hybrid technologies. Downloads NEW: Free Supplement (136 pages, 401 MB)
