Description

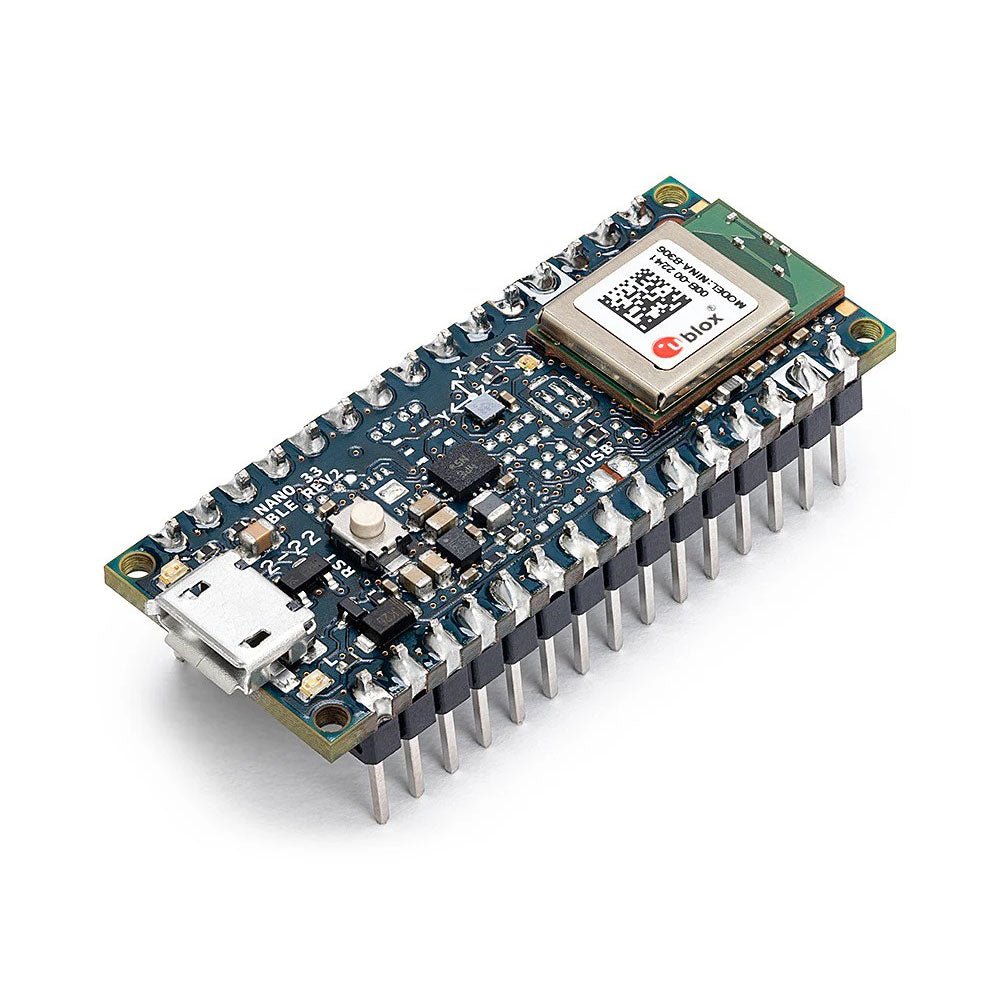

The Arduino Nano 33 BLE Rev2 stands at the forefront of innovation, leveraging the advanced capabilities of the nRF52840 microcontroller. This 32-bit Arm Cortex-M4 CPU, operating at an impressive 64 MHz, empowers developers for a wide range of projects. The added compatibility with MicroPython enhances the board's flexibility, making it accessible to a broader community of developers.
The standout feature of this development board is its Bluetooth Low Energy (Bluetooth LE) capability, enabling effortless communication with other Bluetooth LE-enabled devices. This opens up a realm of possibilities for creators, allowing them to seamlessly share data and integrate their projects with a wide array of connected technologies.
Designed with versatility in mind, the Nano 33 BLE Rev2 is equipped with a built-in 9-axis Inertial Measurement Unit (IMU). This IMU is a game-changer, offering precise measurements of position, direction, and acceleration. Whether you're developing wearables or devices that demand real-time motion tracking, the onboard IMU ensures unparalleled accuracy and reliability.
In essence, the Nano 33 BLE Rev2 strikes the perfect balance between size and features, making it the ultimate choice for crafting wearable devices seamlessly connected to your smartphone. Whether you're a seasoned developer or a hobbyist embarking on a new adventure in connected technology, this development board opens up a world of possibilities for innovation and creativity. Elevate your projects with the power and flexibility of the Nano 33 BLE Rev2.
Specifications
| Microcontroller |
nRF52840 |
| USB connector |
Micro USB |
| Pins |
Built-in LED Pins |
13 |
| Digital I/O Pins |
14 |
| Analog Input Pins |
8 |
| PWM Pins |
All digital pins (4 at once) |
| External interrupts |
All digital pins |
| Connectivity |
Bluetooth |
u-blox NINA-B306 |
| Sensors |
IMU |
BMI270 (3-axis accelerometer + 3-axis gyroscope) + BMM150 (3-axis Magnetometer) |
| Communication |
UART |
RX/TX |
| I²C |
A4 (SDA), A5 (SCL) |
| SPI |
D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS) |
| Power |
I/O Voltage |
3.3 V |
| Input Voltage (nominal) |
5-18 V |
| DC Current per I/O Pin |
10 mA |
| Clock Speed |
Processor |
nRF52840 64 MHz |
| Memory |
nRF52840 |
256 KB SRAM, 1 MB flash |
| Dimensions |
18 x 45 mm |
