Arduino Make-Your-Uno Kit

Description

Learn the basics of electronics by assembling manually your Arduino Uno, become familiar with soldering by mounting every single component, and then unleash your creativity with the only kit that becomes a synth!

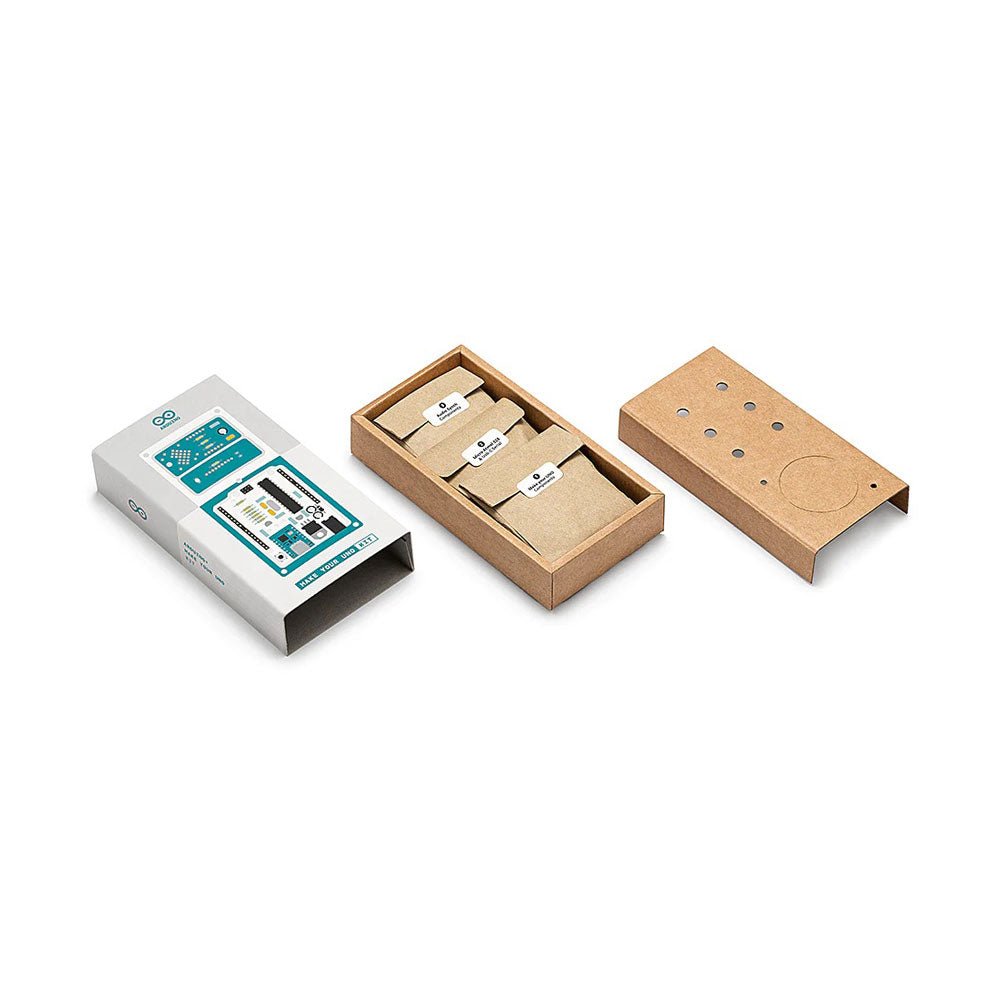

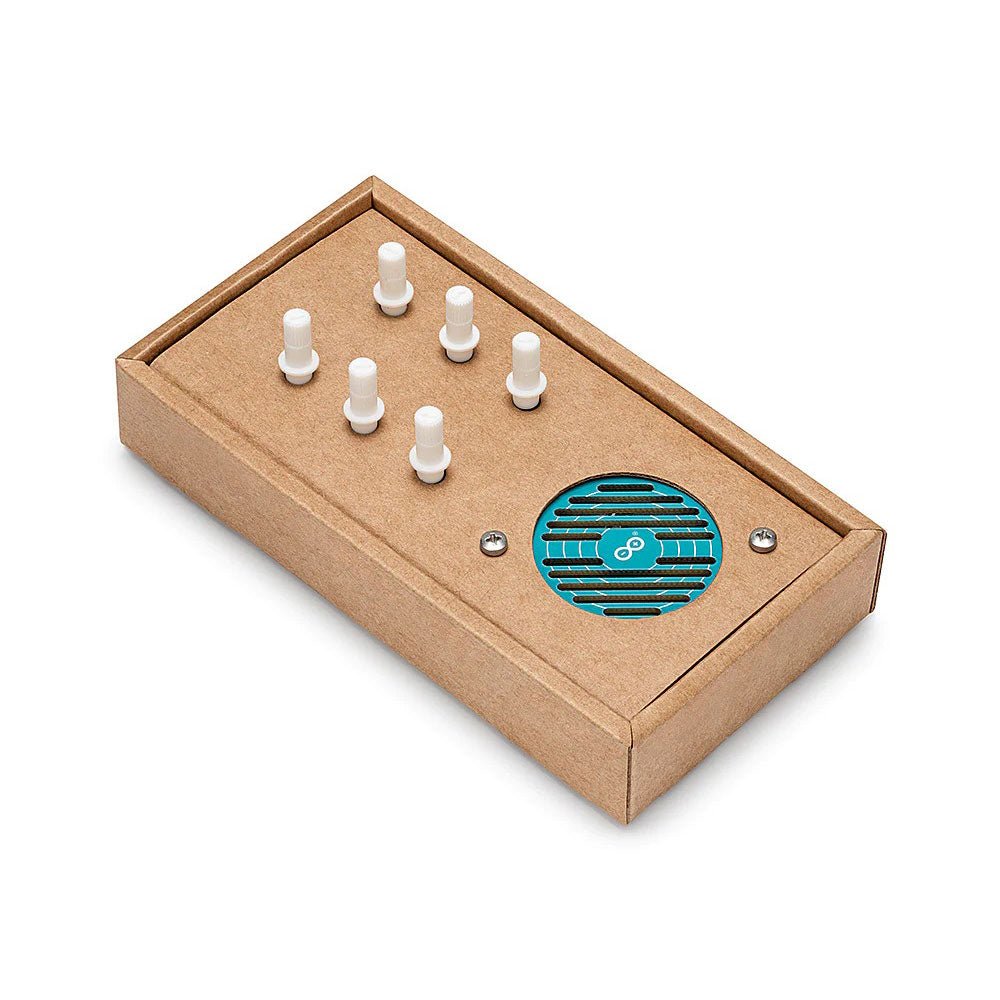

The Arduino Make-Your-Uno kit is really the best way to learn how to solder. And when you are done, the packaging allows you to build a synth and make your music.

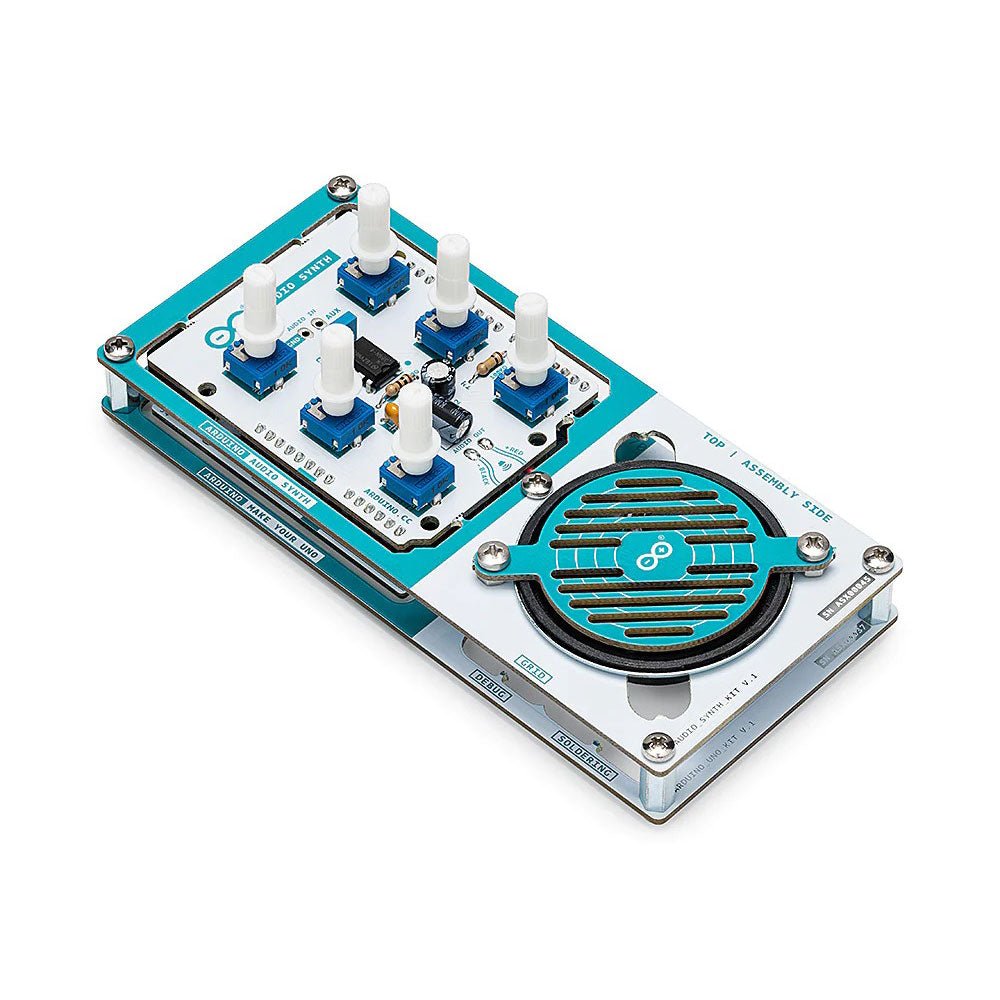

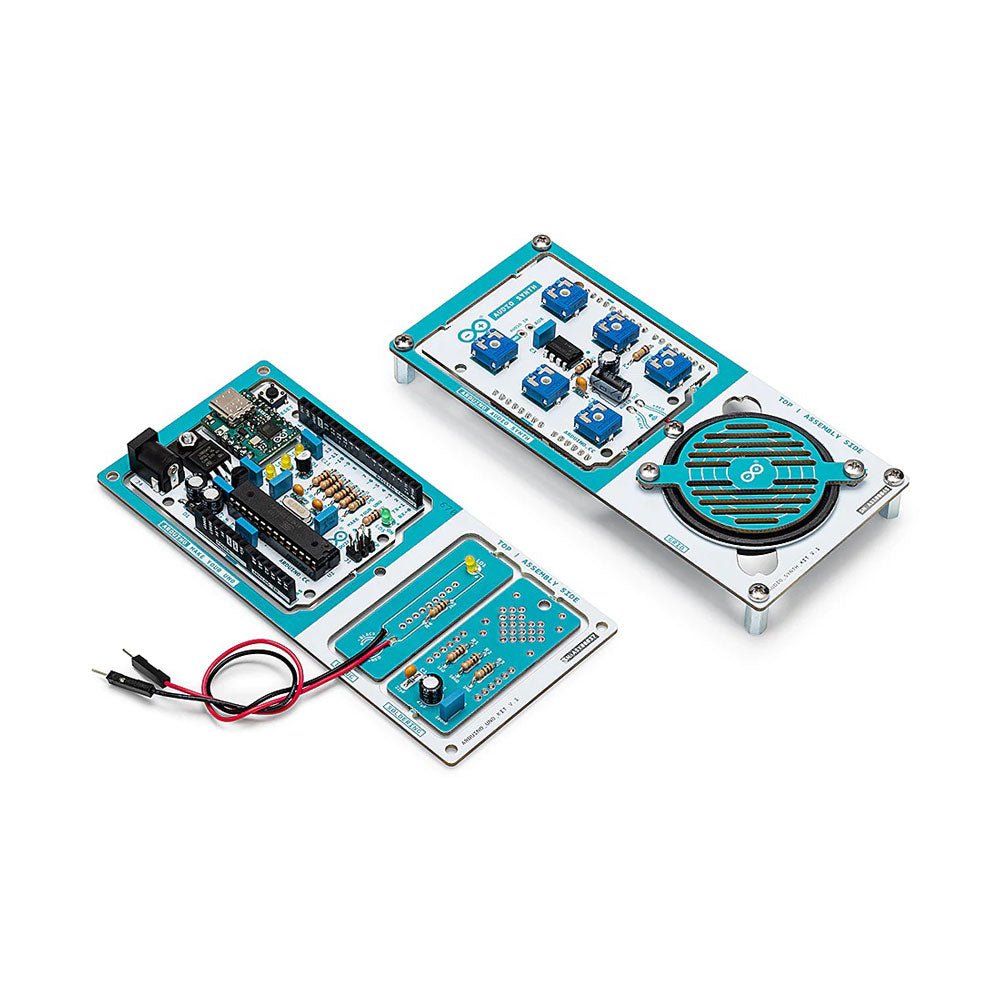

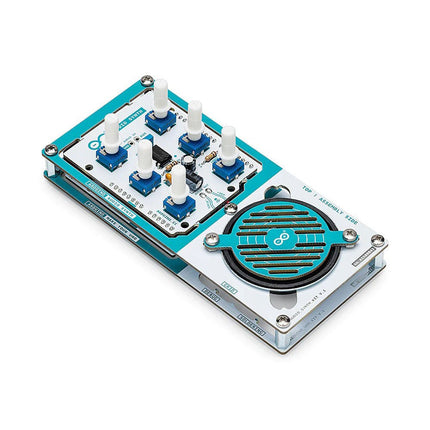

A kit with all the components to build your very own Arduino Uno and audio synthesizer shield.

The Make-Your-Uno kit comes with a complete set of instructions in a dedicated content platform. This includes video material, a 3D interactive viewer for following detailed instructions, and how to program your board once it is finished.

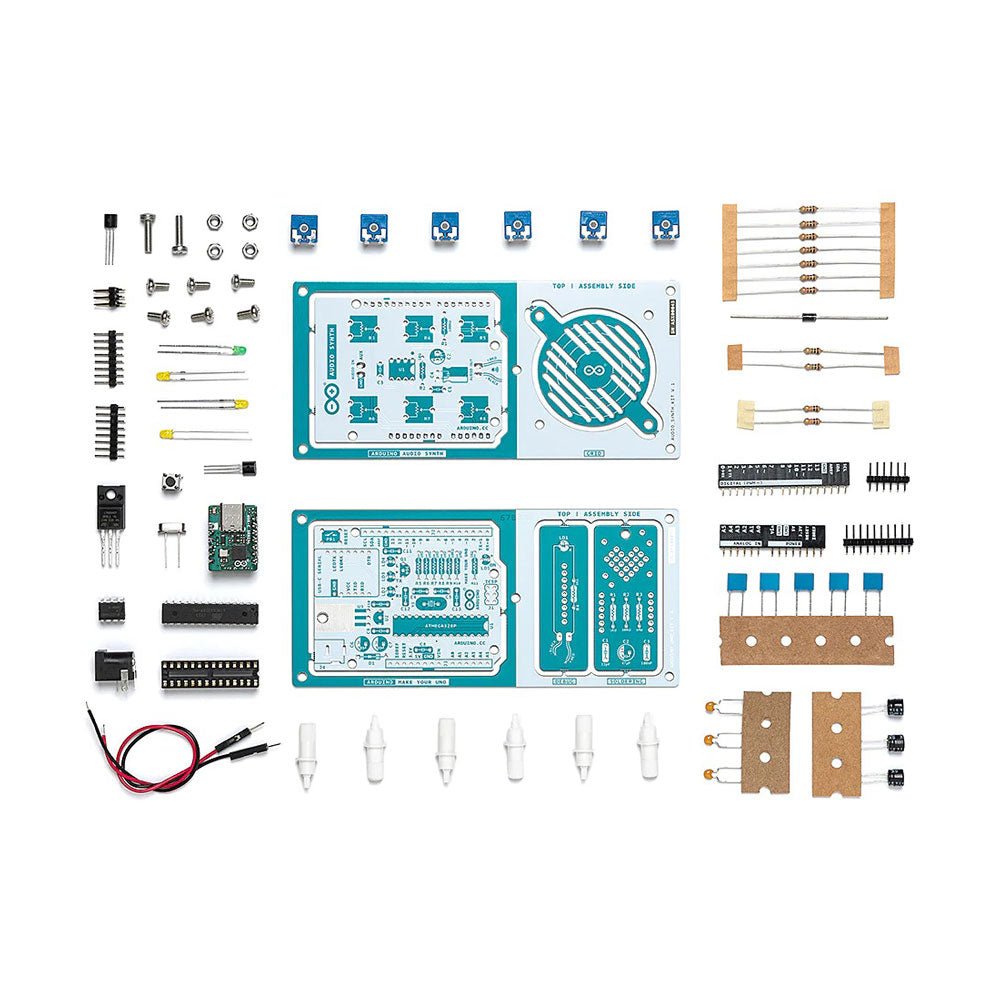

This kit contains:

  • Arduino Make-Your-Uno
    • 1x Make-Your-Uno PCB
    • 1x USB C Serial adapter Board
    • 7x Resistors 1k Ohm
    • 2x Resistors 10k Ohm
    • 2x Resistors 1M Ohm
    • 1x Diode (1N4007)
    • 1x 16 MHz Crystal
    • 4x Yellow LEDs
    • 1x Green LED
    • 1x Push-Button
    • 1x MOSFET
    • 1x LDO (3.3 V)
    • 1x LDO (5 V)
    • 3x Ceramic capacitors (22pF)
    • 3x Electrolytic capacitors (47uF)
    • 7x Polyester capacitors (100nF)
    • 1x Socket for ATMega 328p
    • 2x I/O Connectors
    • 1x Connector header 6 pins
    • 1x Barrel jack connector
    • 1x ATmega 328p Microcontroller
  • Arduino Audio Synth
    • 1x Audio Synth PCB
    • 1x Resistor 100k Ohm
    • 1x Resistor 10 Ohm
    • 1x Audio amplifier (LM386)
    • 1x Ceramic capacitors (47nF)
    • 1x Electrolytic capacitors (47uF)
    • 1x Electrolytic capacitors (220uF)
    • 1x Polyester capacitor (100nF)
    • 4x connectors pin header
    • 6x potentiometer 10k Ohm with plastic knobs
  • Spare parts
    • 2x Electrolytic capacitors (47uF)
    • 2x Polyester capacitor (100nF)
    • 2x Ceramic capacitors (22pF)
    • 1x Push-Button
    • 1x Yellow LEDs
    • 1x Green LED
  • Mechanical parts
    • 5x Spacers 12 mm
    • 11x Spacers 6 mm
    • 5x screw nuts
    • 2x screws 12 mm
Product form

Learn the basics of electronics by assembling manually your Arduino Uno, become familiar with soldering by mounting every single component,... Read more

No reviews

€ 79,95 incl. VAT
Members € 71,96

    • Ship today? Order within Apr 21, 2024 17:00:00 +0200

    Details

    SKU: 20330
    EAN: 7630049203433

    Description

    Learn the basics of electronics by assembling manually your Arduino Uno, become familiar with soldering by mounting every single component, and then unleash your creativity with the only kit that becomes a synth!

    The Arduino Make-Your-Uno kit is really the best way to learn how to solder. And when you are done, the packaging allows you to build a synth and make your music.

    A kit with all the components to build your very own Arduino Uno and audio synthesizer shield.

    The Make-Your-Uno kit comes with a complete set of instructions in a dedicated content platform. This includes video material, a 3D interactive viewer for following detailed instructions, and how to program your board once it is finished.

    This kit contains:

    • Arduino Make-Your-Uno
      • 1x Make-Your-Uno PCB
      • 1x USB C Serial adapter Board
      • 7x Resistors 1k Ohm
      • 2x Resistors 10k Ohm
      • 2x Resistors 1M Ohm
      • 1x Diode (1N4007)
      • 1x 16 MHz Crystal
      • 4x Yellow LEDs
      • 1x Green LED
      • 1x Push-Button
      • 1x MOSFET
      • 1x LDO (3.3 V)
      • 1x LDO (5 V)
      • 3x Ceramic capacitors (22pF)
      • 3x Electrolytic capacitors (47uF)
      • 7x Polyester capacitors (100nF)
      • 1x Socket for ATMega 328p
      • 2x I/O Connectors
      • 1x Connector header 6 pins
      • 1x Barrel jack connector
      • 1x ATmega 328p Microcontroller
    • Arduino Audio Synth
      • 1x Audio Synth PCB
      • 1x Resistor 100k Ohm
      • 1x Resistor 10 Ohm
      • 1x Audio amplifier (LM386)
      • 1x Ceramic capacitors (47nF)
      • 1x Electrolytic capacitors (47uF)
      • 1x Electrolytic capacitors (220uF)
      • 1x Polyester capacitor (100nF)
      • 4x connectors pin header
      • 6x potentiometer 10k Ohm with plastic knobs
    • Spare parts
      • 2x Electrolytic capacitors (47uF)
      • 2x Polyester capacitor (100nF)
      • 2x Ceramic capacitors (22pF)
      • 1x Push-Button
      • 1x Yellow LEDs
      • 1x Green LED
    • Mechanical parts
      • 5x Spacers 12 mm
      • 11x Spacers 6 mm
      • 5x screw nuts
      • 2x screws 12 mm
