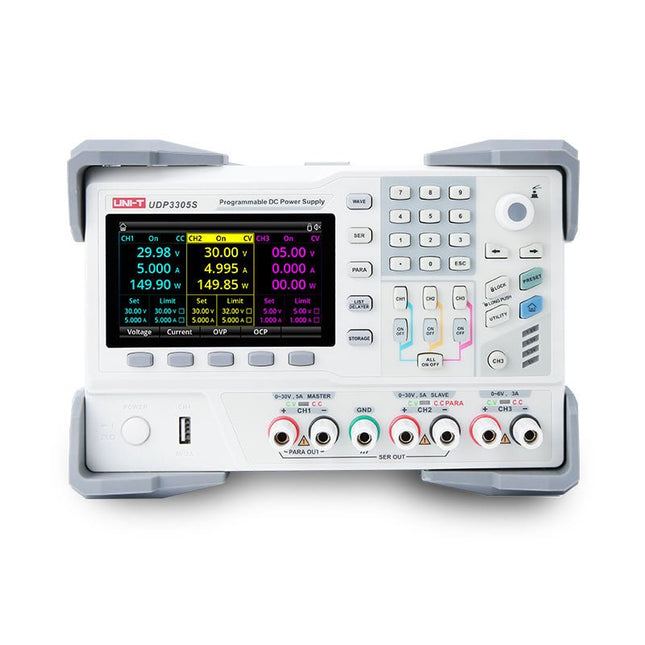

The UDP3305S-E is a high-performance programmable linear DC power supply. It has a clear LCD user interface, excellent performance indicators, a variety of analysis functions and communication interfaces. It can meet the diversified test needs of users. It aims to provide cost-effective DC programmable power supply equipment for teaching, scientific research, industry and other fields. LCD interactive interface Using a 4.3-inch high-definition display screen, it provides users with a man-machine interface with rich functions and simple operation, which can display the current set output voltage/current, actual output voltage/current and protection output voltage/current value of the power supply in real time. The functional interface is simple and comprehensive, easy to operate. One-key setting for series and parallel The series-parallel connection between CH1 and CH2 of the main channel can be realized without external connection, which simplifies the connection and makes the test easier. List/Delayer function With list and delay setting functions, it can set up to 2048 sets of data according to test requirements, and the number of cycles can reach 99999. It is used with waveform templates, which is very convenient for cycle testing and aging testing. Rich remote control interface Standard RS232 communication interface, Ethernet interface, Digital I/O and master and slave USB interfaces, can be controlled by remote connection to Ethernet, or through RS232 and USB, with the host computer software to achieve software control. Specifications Type Linear DC power supply Channels 4 Total power 328 W Output voltage CH1/CH2: 0~30 VCH3: 0~6 VCH4: 5 V Output current CH1/CH2: 0~5 ACH3: 0~3 ACH4: 2 A Resolution 10 mV, 1 mA Setting accuracy 0.3% +20 mV<0.2% +5 mA Connectivity USB Device, RS-232, LAN, USB host, Digital I/O Included 1x UDP3305S-E DC Power Supply 1x Power cord 1x USB cable Downloads Datasheet User manual Programming manual Software V1.0 Firmware V1.10

Read more less

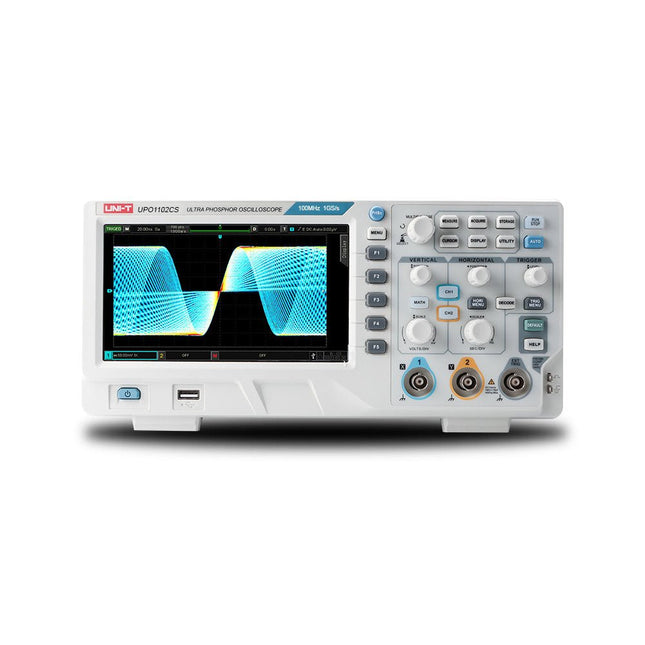

UNI-T UPO1102CS is a multifunctional, low-cost 2-channel digital phosphor oscilloscope with 100 MHz bandwidth and 1 GSa/s sampling rate. It can be widely used in the fields of electronic and electrical design, debugging, education and industrial design. UPO1000CS series adopts parallel digital signal processing technology, which greatly improves the data processing speed and waveform capture rate. The original Ultra Phosphor technology can present the cumulative effect of the tested signal as a multi-layered afterglow. Compared with traditional digital storage oscilloscopes, the persistence of digital phosphor oscilloscopes can present three-dimensional waveform data of amplitude, time and signal intensity. Fast Acquire technology can accurately capture abnormal events such as video, jitter, noise and runt signals. Specifications UPO1102CS UPO1202CS Bandwidth 100 MHz 200 MHz Analog channels 2 2 Sampling rate 1 GSa/s 1 GSa/s Storage depth 56 Mpts per channel 56 Mpts per channel Rise time ≤3.5ns ≤1.8ns Capture rate 500,000 wfms/s 500,000 wfms/s Waveform record 100,000 frames 100,000 frames Features 7' WVGA (800 x 480) TFT LCD Ultra Phosphor super fluorescent display effect, up to 256 levels of gray display Support RS232, I²C, SPI, CAN and LIN trigger Innovative RS232, I²C, SPI, CAN and LIN hardware decoding Vertical scale: 1 mV/div-20 V/div Low background noise: <100 μVrms 1M points enhanced FFT function. Support frequency setting, waterfall diagram, detection setting and marker measurement etc 36 kinds of waveform parameters can be automatically measured Rich trigger functions (edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration, setup and hold, Nth edge and pattern trigger) Multi-Scopes support dual-channel independent trigger fluorescence display Multi-channel independent 7-bit hardware frequency counter DVM supports dual-channel independent AC and DC true RMS measurement Waveform arithmetic functions (FFT, +, -, ×, ÷, digital filtering, logic operations, and advanced operations) Rich interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail) Support SCPI programmable instrument standard command Support WEB access and control Downloads Datasheet Programming Manual User's Manual Quick Start Guide Software

Read more less

The UPO1104 4-channel digital oscilloscope utilizes Ultra Phosphor 2.0 technology. It features a bandwidth of 100 MHz and a real-time sampling rate of up to 2 GSa/s. It supports an independent DVM module, offers extensive trigger and bus decoding functions, and supports full-memory hardware real-time decoding. The UPO1104 can be widely used in embedded system design, instrumentation, consumer electronics, automotive electronics, field maintenance, education, and many other fields. Features Bandwidth: 100 MHz Channels: 4 Sampling rate: 2 GSa/s Vertical scale: 500μV/div-20 V/div Low-base noise: <100μVrms Maximum storage depth up to 56 Mpts Waveform capture rate of up to 500,000 wfms/s The hardware can be continuous waveform recording 120,000 frames in real time Automatic measurement of 36 waveform parameters, the measurement range divides into screen and cursor area Supports 7 digits hardware frequency meter measurement DVM supports AC/DC TRMS (true virtual value) measurement Waveform calculation function (FFT, add, subtract, multiply, divide, digital filter, logical operation and advanced operation) 1M sampling points to enhance FFT function, it supports frequency setting, waterfall curve, demodulation mode and marker measurement Multiple trigger functions (edge, pulse width, video, slope, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge and code pattern) Supporting RS232, I²C, SPI trigger Innovative RS232, I²C, SPI full memory hardware for real-time decoding Ultra phosphor display effect, 256 grayscale display 7-inch WVGA (800x480) TFT LCD Multiple interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM) Supporting waveform navigation, marker and segment Supporting SCPI programmable standard command Support WEB access and control Dimensions: 306 x 138 x 107 mm Weight: 2.45 kg Specifications Model UPO1104 UPO1204 Bandwidth 100 MHz 200 Mhz Analog channels 4 4 Real-time sampling rate 2 GSa/s 2 GSa/s Rise time ≤3.5 ns ≤1.8 ns Storage depth 56 Mpts 56 Mpts Waveform capture rate 500,000 Wfms/s 500,000 Wfms/s Included 1x UNI-T UPO1104 4-ch Phosphor Oscilloscope (100 MHz) 4x Passive probe (100 MHz) 1x Power cord 1x USB cable 1x Manual Downloads Datasheet Software

Read more less

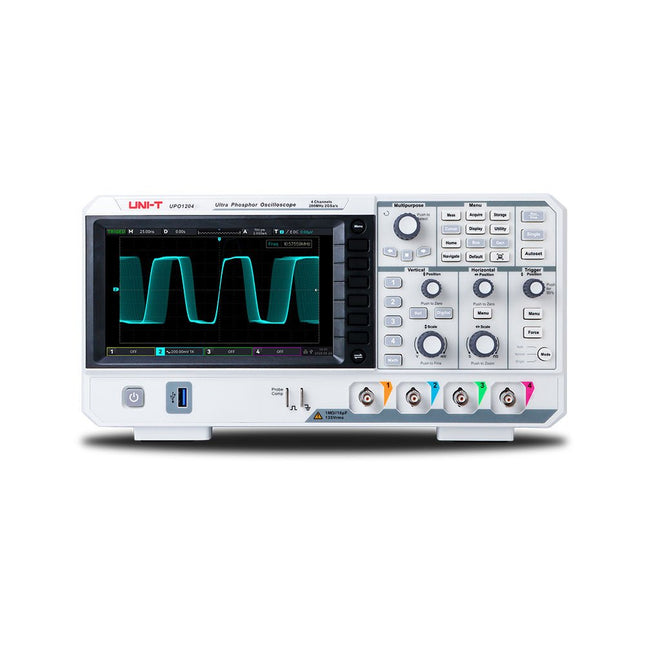

The UPO1204 4-channel digital oscilloscope utilizes Ultra Phosphor 2.0 technology. It features a bandwidth of 200 MHz and a real-time sampling rate of up to 2 GSa/s. It supports an independent DVM module, offers extensive trigger and bus decoding functions, and supports full-memory hardware real-time decoding. The UPO1204 can be widely used in embedded system design, instrumentation, consumer electronics, automotive electronics, field maintenance, education, and many other fields. Features Bandwidth: 200 MHz Channels: 4 Sampling rate: 2 GSa/s Vertical scale: 500μV/div-20 V/div Low-base noise: <100μVrms Maximum storage depth up to 56 Mpts Waveform capture rate of up to 500,000 wfms/s The hardware can be continuous waveform recording 120,000 frames in real time Automatic measurement of 36 waveform parameters, the measurement range divides into screen and cursor area Supports 7 digits hardware frequency meter measurement DVM supports AC/DC TRMS (true virtual value) measurement Waveform calculation function (FFT, add, subtract, multiply, divide, digital filter, logical operation and advanced operation) 1M sampling points to enhance FFT function, it supports frequency setting, waterfall curve, demodulation mode and marker measurement Multiple trigger functions (edge, pulse width, video, slope, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge and code pattern) Supporting RS232, I²C, SPI trigger Innovative RS232, I²C, SPI full memory hardware for real-time decoding Ultra phosphor display effect, 256 grayscale display 7-inch WVGA (800x480) TFT LCD Multiple interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM) Supporting waveform navigation, marker and segment Supporting SCPI programmable standard command Support WEB access and control Dimensions: 306 x 138 x 107 mm Weight: 2.45 kg Specifications Model UPO1104 UPO1204 Bandwidth 100 MHz 200 Mhz Analog channels 4 4 Real-time sampling rate 2 GSa/s 2 GSa/s Rise time ≤3.5 ns ≤1.8 ns Storage depth 56 Mpts 56 Mpts Waveform capture rate 500,000 Wfms/s 500,000 Wfms/s Included 1x UNI-T UPO1204 4-ch Phosphor Oscilloscope (200 MHz) 4x Passive probe (200 MHz) 1x Power cord 1x USB cable 1x Manual Downloads Datasheet Software

Read more less

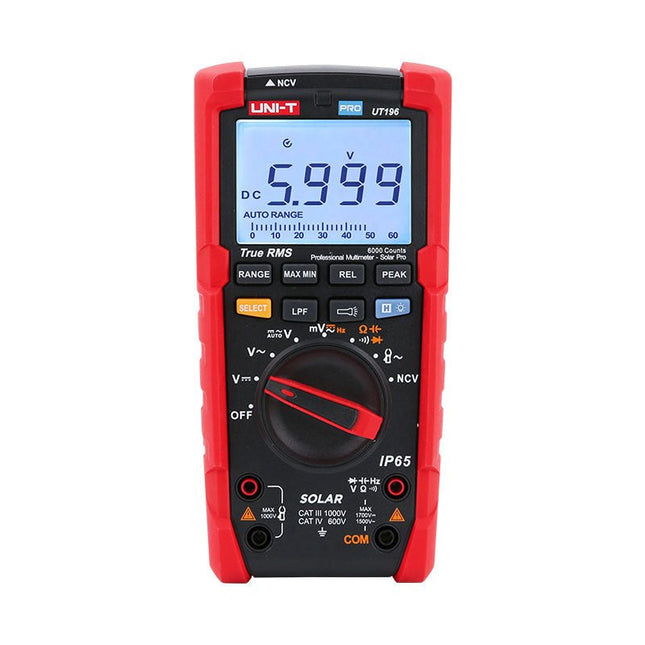

The UT196 True RMS solar multimeter is an ideal tool for solar power system maintenance. This rugged meter is designed for technicians who work in rugged outdoor environments. UT196 can measure up to 1700 V DC and 1500 V AC voltages, and 3000 A AC current with an external current clamp sensor. This solar meter offers IP65 protection and able to withstand 2 m drop as well. The UT196 solar multimeter is designed with 1700 V DC, 1500 Vrms AC overload protection and tested for safe usage in CAT III 1000 V, CAT IV 600 V environments. Features True RMS Measure up to 1700 V DC and 1500 V AC for high voltage applications e.g. solar array, wind IP65 protection CAT III 1000V, CAT IV 600 V Analog bar Frequency response: 45 Hz~1 kHz Low-pass filter function Low impedance mode Built-in flashlight, bright backlight and visual alarm Applications High DC voltage measurement Output voltage and frequency measurement Voltage and frequency measurement Current and frequency measurement Specifications Range UT196 DC voltage (V) 1700 V ±0.2% +5 AC voltage (V) 1500 V ±0.8% +3 Frequency (Hz) 1 MHz ±0.08% +4 Resistance (Ω) 60 MΩ ±0.8% +2 Capacitance (F) 60 mF ±1.9% +5 Power 9 V battery Dimensions 195 x 95 x 58 mm Included UT196 Solar Multimeter Battery Test leads Downloads Datasheet Manual

Read more less

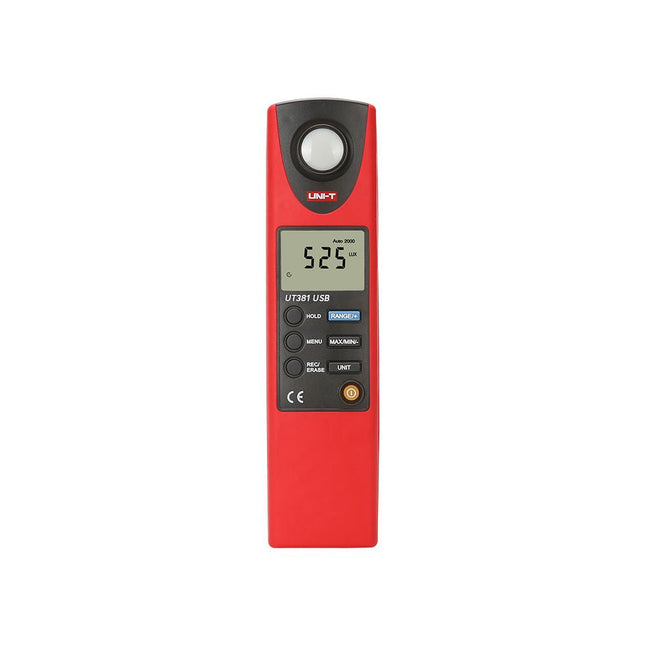

The UT381 light meter measures light intensity and displays the results in Lux or FC. It has a high sampling rate of 100/s. The low power consumption enables continuous operation of up to 200 hours. The results can be stored in the device and transferred to a PC for further analysis, printing and saving. Features Auto/manual range, data hold Auto power off (cancelable) MAX/MIN modes 2044 sets data storage Displays time and adjustable record intervals (0.5~255s) Restore to default mode Lux/FC selectable Specifications Illuminance measurement (Lux) 20 Lux ±(3%+20) 200 Lux ±(3%+8) 2000 Lux ±(3%+8) 20000 Lux ±(3%+8) Display count 2000 Data storage 2044 Auto power off approx. 10 minutes Low battery indication approx. ≤7.1 V Auto range √ Data hold √ MAX/MIN mode √ Real-time clock √ Auto record time setup √ USB interface √ Power 9 V battery (6LF22) Display 22.5 x 32.5 mm Dimensions 195 x 45 x 26 mm Weight 185 g Downloads Datasheet Manual

Read more less

The UT603 is a handheld digital inductance capacitance meter for testing resistors, capacitors and inductors. It can also be used to measure transistor parameters. This accurate meter (with 2000 counts) can be used to check electronic components in labs, production lines and maintenance facilities. Features Manual range Continuity buzzer Diode and transistor test Low battery indication Specifications Resistance (Ω) 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ ±(0.8%+1) Capacitance (F) 2 nF / 20 nF / 200 nF / 2uF / 20 uF / 200 uF / 600uF ±(1%+5) Inductance (H) 2 mH / 20 mH / 200 mH / 2 H / 20 H ±(2%+8) Display counts 2000 Power 9 V battery (6F22) Display 61 x 32 mm Dimensions 172 x 83 x 38 mm Weight 312 g Included 1x UNI-T UT603 LCR meter 1x 9 V block battery 2x Test leads with alligator clips 1x Manual Downloads Manual Datasheet

Read more less

The UT622E handheld LCR meter features powerful functions, high accuracy, fast speed, and long standby time. With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable battery, and 100 kHz test frequency, the meter can be used for longstanding accurate and convenient measurement in any occasion. It is suitable for the measurement and screening of inductance, capacitance, and resistance in laboratories, production lines, maintenance points, etc. Features Max. test frequency: 100 kHz Accuracy: 0.1% Display count: 99999 Max. test rate: 20 times/s DCR: Yes Connectivity: Mini-USB Display: 2.8" TFT LCD Specifications Testfrequency 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz Test level 0.1 Vmrs, 0.3 Vrms, 1 Vrms Output impedance 100 Ω Measurement parameters Primary: L/C/R/Z/DCRSecondary: D/Q/Θ/ESR DSR speed test Fast (20 times/s), medium (5 times/s), or slow (2 times/s) Range Auto/Hold Tolerance range 1%~20% Equivalent mode Series/Parallel Clearing connection Open/Short circuit Fuse of test ports 0.1 A/250 V Communication interface Mini-USB MAX reading of primary parameters 99999 MIN resolution 0.0001 Maximum accuracy 0.10% L 0.00 µH~99.999 H C 0.00 pF~99.999 mF Z/R 0.0000 Ω~9.9999 MΩ ESR 0.0000 Ω~999.99 Ω D 0.0000~9.9999 Q 0.0000~99999 Θ -179.9°~179.9° DCR 0.01 mΩ~20.000 MΩ Power supply 3.7 V/1800 mAh lithium polymer battery Display 2.8" TFT LCD (320x240) Dimensions 93 x 192 x 44 mm Weight 420 g Included UT622E LCR meter Short circuit board Four-terminal kelvin test leads USB cable Manual Downloads Datasheet Manual Software
