DC brushed motors are the most commonly used and widely available motors in the market. The Cytron 10 Amp 5-30 V DC Motor Driver will help you add functionality to your DC motor. It supports both sign-magnitude PWM signal and locked-antiphase. It is compatible with full solid-state components resulting in higher response time and eliminates the wear and tear of the mechanical relay. Features Supports motor voltage from 5 V to 30 V DC Current up to 13 A continuous and 30 A peak 3.3 V and 5 V logic level input Compatible with Arduino and Raspberry Pi Speed control PWM frequency up to 20 kHz Fully NMOS H-Bridge for better efficiency No heat sink is required Bi-directional control for one Brushed DC motor Regenerative Braking Downloads User Manual Arduino Library

Read more less

Features Dual channel, Bi-directional control motor driver Support motor voltage from 2.5 V to 9.5 V DC Maximum current up to 1.0 A continuous and 1.5 A peak (<5 seconds) 5 V Output (200 mA) to power the controller. Inputs compatible with 1.8 V, 3.3 V and 5 V logic (Arduino, Raspberry Pi, etc). Solid state components provide faster response time and eliminate the wear and tear of mechanical relay Regenerative Braking Speed control PWM frequency up to 20 KHz (Actual output frequency is same as input frequency) Dimension: 43 mm (W) x 35 mm (L) x 14 mm (H) The Problem Faced by Beginners in Driving DC Brushed Motor Maker Drive is designed by taking into account feedback from users, especially 1st time users. If you are a beginner that needs a simple motor driver to drive DC brushed motor for building mobile robot or other purposes, you might come across some of these obstacles: Burning your Motor Driver - Many low cost motor driver does not come with Reserve Polarity Protection and this might result in smoke coming out from the driver if you connect the power in wrong polarity. This gives you a burnt motor driver and of course the waste of money and your precious time. Too Bulky for compact projects - Some motor drivers come with a big heat sink and take up too much space. Hard to test and troubleshoot - With normal motor drivers, beginners face a common problem during building project - difficulty in testing and troubleshooting the circuit. Yes, even with a clear schematic or diagram, the circuit will not work right after you complete the connection. Most of the time, you will need to test or troubleshoot. Without easy to use input and output indicator, you will need to write a program to test the motor driver. And that increases the complexity of debugging as you do not know whether the problem is due to wire connection or coding in your program. Separate Power for Low Voltage Motor - Many low cost motor drivers have an onboard 5 V linear voltage regulator, which is great to power your controller like Arduino. But this linear voltage regulator will not output 5 V if Vin is lower than 7 V. Yet, many small toy motors used in DIY projects are rated at lower than 7 V. These motors are suitable to be powered by two AA or AAA batteries (3 V or less) or single cell Li-ion 18650/Li-Po battery (3.7 V rated voltage). With that, you will need two separate power sources, one for the motors and another one to get stable 5 V output for controller such as Arduino board. Maker Drive is designed to solve the above problems while adding some useful features: Fool Proof - Maker Drive comes with Reverse Polarity Protection at Vin/Vmotor/Vbatt (Power for motor) terminal. With this protection it will greatly reduce the risk of damaging the motor driver Compact Design - Maker Drive is designed to be compact, roughly the size of a passport photo, 43 mm (W) x 35 mm (L) x 14 mm (H) 4 Test Buttons (2 for each channel) - Easily test the motor or your mechanism without any controller or coding. Maker Drive comes with two manual test buttons for each channel. Pressing one of the buttons will drive the output full speed in a direction (if there is motor connected) on respective channel. While another button will drive the output in another direction. These buttons are useful to test the motor direction, connection and operation; even without controller. You can also use these buttons as manual activation button. No programming is needed to use these buttons. 4 Indicator LEDs (2 for each channel) - Easily test your coding and wire connections. With these indicator LEDs, you can check output voltage direction even without connecting the driver to your motor. And combining with the Manual Test Buttons, you can test the Maker Drive easily even without controller and motor connected. You can also easily identify where the error occurs for easy troubleshooting. Of course no programming is needed here either. These LEDs are quite useful for testing and troubleshooting. Buck-boost regulator to produce 5 V output from input voltage as low as 2.5 V- Allows you to power a 5 V controller with 2 AA batteries. Maker Drive can produce output of 5 V with input voltage range, from 2.5 V up to 9.5 V. This 5 V output can supply 200 mA to an external circuit such as a controller (Arduino), saving the trouble of getting another power source for your controller. Now your project can be powered with a single power source. And with the wide input voltage range, you can power Maker Drive with two AA or AAA batteries (1.5 V x 2 = 3 V) or single cell Li-ion or Lipo batteries that have rated voltage of 3.7 V. Although Maker Drive is not an Arduino Shield, it is compatible with a number of Arduino main boards: Arduino Uno R3 Arduino Mega 2560 Arduino Nano Arduino Pro Mini in addition to that, it accepts 1.8 V, 3.3 V & 5 V logic (for control) and is compatible with controllers such as Raspberry Pi, BeagleBone, ESP8266, ESP32, etc. Requirements for the motor you use: DC Brush motor (Two Terminals) Operating voltage from 2.5 V to 9.5 V DC Rated Current <= 1.0 A Peak Current <= 1.5 A Suggested Power Sources 2 x AA/AAA batteries (2 x 1.5 V = 3.0 V) 3 x AA/AAA batteries (3 x 1.5 V = 4.5 V) 4 x AA/AAA batteries (4 x 1.5 V = 6.0 V) 1 x Li-ion 18650 battery (1 x 3.7 V, 3.0 V to 4.2 V) 2 x Li-ion 18650 batteries (2 x 3.7 V = 7.4 V, 6.0 V to 8.4 V) 1 x Li-ion 14500 battery (1 x 3.7 V, 3.0 V to 4.2 V) 2 x Li-ion 14500 batteries (2 x 3.7 V = 7.4 V, 6.0 V to 8.4 V) Documents Datasheet Arduino Sketch: Select PWM_PWM_DUAL under example Fritzing files

Read more less

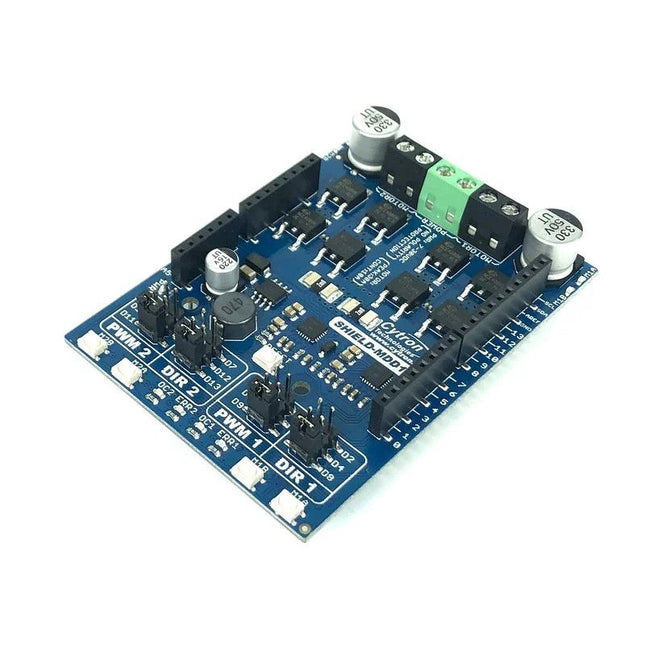

You can control the motor driver with PWM and DIR inputs. The Arduino pins for these inputs are configurable via jumpers. If the specified pins on Arduino are already used up by other application/shield, you can select another pin easily with the jumper. There is also a possibility to quickly and conveniently test the functionality of the motor driver with the onboard test buttons and output LEDs. Buck regulator which produces 5 V output is also available to power the Arduino mainboard, which eliminates the need of extra power supply for the Arduino mainboard. The board also offers various protection features. Overcurrent protection prevents the motor driver from damage when the motor stalls or an oversized motor is hooked up. When the motor is trying to draw current more than what the motor driver can support, the motor current will be limited at the maximum threshold. Assisted by temperature protection, the maximum current limiting threshold is determined by the board temperature. The higher the board temperature, the lower the current limiting threshold. As a result, the motor driver delivers its full potential depending on the current conditions without damaging any MOSFETs. Features Shield for Arduino form factor Bidirectional control for two brushed DC motors Control one unipolar/bipolar stepper motor Operating Voltage: DC 7 V to 30 V Maximum Motor Current: 10 A continuous, 30 A peak Buck regulator to produce 5 V output (500 mA max) Buttons for quick testing LEDs for motor output state Selectable Arduino pins for PWM/DIR inputs. PWM/DIR inputs compatible with 1.8 V, 3.3 V and 5 V logic PWM frequency up to 20 kHz (Output frequency is same as input frequency). Overcurrent protection with active current limiting Temperature protection Undervoltage shutdown Possible applications Mobile Robot Automated Guided Vehicle (AGV) Solar Tracker Game Simulator Automation Machine Downloads Datasheet Sample Code 3D CAD Files Packing List 1x 10Amps 7V-30V DC Motor Driver Shield for Arduino (2 Channels) MDD010

Read more less

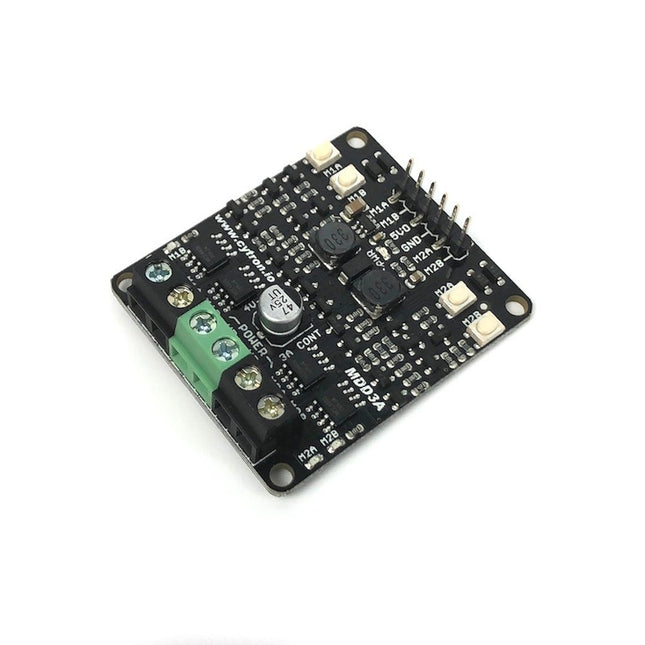

Features: Supports motor voltage from 4 V to 16 V DC Bidirectional control for two brushed DC motor. Control one unipolar or one bipolar stepper motor. Maximum Motor Current: 3A continuous, 5A peak LEDs for motor output state. Buttons for quick testing. Compatible with Arduino and Raspberry Pi PWM frequency up to 20kHz Reverse polarity protection Here you can find the product's Datasheet. Check out the sample code provided by Cytron here.

Read more less

Cytron Maker Pi RP2040 features the first microcontroller designed by Raspberry Pi – RP2040, embedded on a robot controller board. This board comes with dual channel DC motor driver, 4 servo motor ports and 7 Grove I/O connectors, ready for your next DIY robot / motion control project. Now you can build robot, while trying out the new RP2040 chip. The DC motor driver onboard is able to control 2x brushed DC motors or 1x bipolar/unipolar stepper motor rated from 3.6 V to 6 V, providing up to 1 A current per channel continuously. The built-in Quick Test buttons and motor output LEDs allow functional test of the motor driver in a quick and convenient way, without the need of writing any code. Vmotor for both DC and servo motors depends on the input voltage supplied to the board. Maker Pi RP2040 features all the goodness of Cytron's Maker series products. It too has lots of LEDs useful for troubleshooting (& visual effects), is able to make quite some noise with the onboard piezo buzzer and comes with push buttons ready to detect your touch. There are three ways to supply power to the Maker Pi RP2040 – via USB (5 V) socket, with a single cell LiPo/Li-Ion battery or through the VIN (3.6-6 V) terminals. However only one power source is needed to power up both controller board and motors at a time. Power supply from all these power sources can all be controlled with the power on/off switch onboard. Cytron Maker Pi RP2040 is basically the Raspberry Pi Pico + Maker series' goodness + Robot controller & other useful features. Therefore this board is compatible with the existing Pico ecosystem. Software, firmware, libraries and resources that are developed for Pico should work seamlessly with Cytron Maker Pi RP2040 too. CircuitPython is preloaded on the Maker Pi RP2040 and it runs a simple demo program right out-of-the-box. Connect it to your computer via USB micro cable and turn it on, you will be greeted by a melody tune and LEDs running light. Press GP20 and GP21 push buttons to toggle the LEDs on/off, while controlling any DC and servo motors connected to it to move and stop. With this demo code, you get to test the board the moment you receive it! While connected to your computer, a new CIRCUITPY drive appears. Explore and edit the demo code (code.py & lib folder) with any code editor you like, save any changes to the drive and you shall see it in action in no time. That's why we embrace CircuitPython – it's very easy to get started. Wish to use other programming lauguages? Sure, you are free to use MicroPython and C/C++ for Pico/RP2040. For those of you who loves the Arduino ecosystem, please take a look at this official news by Arduino and also the unofficial Pico Arduino Core by Earle F. Philhower. Features Powered by Rapberry Pi RP2040 Dual-core Arm Cortex-M0+ processor 264 KB internal RAM 2 MB of Flash memory the exact same specifications with Raspberry Pi Pico Robot controller board 4x Servo motors 2x DC motors with quick test buttons Versatile power circuit Automatic power selection: USB 5 V, LiPo (1-cell) or Vin (3.6-6 V) Built-in 1-cell LiPo/Li-Ion charger (over-charged & over-discharged protection) Power on/off switch 13x Status indicator LEDs for GPIO pins 1x Piezo buzzer with mute switch 2x Push button 2x RGB LED (Neopixel) 7x Grove ports (flexible I/O options: digital, analog, I²C, SPI, UART...) Preloaded with CircuitPython by default Mouting holes 4x 4.8 mm mounting hole (LEGO pin compatible) 6x M3 screw hole

Read more less

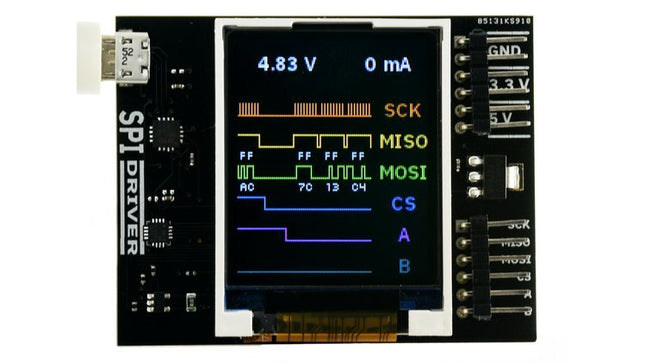

SPIDriver shows you what’s happening on the SPI bus in real time, so no more guessing about the bus state. Its purpose is to make understanding the functioning of SPI hardware more intuitive. It's useful if you're into debugging hardware or simply introduce a class to SPI for the first time. You can directly control LEDs and LCD displays just by having SPIDriver and you won't have to deal with microcontrollers. It's also a useful tool for examining, backing up and cloning an SPI flash as well as reading and writing SPI flash in circuit. SPIDriver is also applicable if you want to drive, test and evaluate different displays. With the help of current and voltage monitoring you'll be able to detect electrical problems at early stages. Thanks to the included color coded wires you can hook SPIDriver up without much effort; no pinout diagram required. It includes 3.3 V and 5 V supplies for your device, plus a high-side current meter. SPIDriver comes with software to control it from: a GUI the command-line C and C++ using a single source file Python 2 and 3, using a module Technical features Live display shows you exactly what it’s doing all the time Sustained SPI transfers at 500 Kbps USB line voltage monitor to detect supply problems, to 0.01 V Target device high-side current measurement, to 5 mA Two auxiliary output signals, A and B Two dedicated power outlines: of 3.3 V and 5 V All signals color coded to match jumper colors All signals are 3.3 V, and are 5 V tolerant Uses an FTDI USB serial adapter, and Silicon Labs automotive-grade EFM8 controller Also reports uptime, temperature, and running CRC of all traffic All sensors and signals controlled using a simple serial protocol GUI, command-line, C/C++, and Python 2/3 host software provided for Windows, Mac, and Linux Details Maximum power out current: up to 470 mA Signal current: up to 10 mA Device current: up to 25 mA Dimensions: 61 mm x 49 mm x 6 mm Interface: USB 2.0, micro USB connector Contents (SPIDriver Core) 1x SPIDriver 1x Set of hookup jumpers
