ZD-915 Desoldering Station

Description

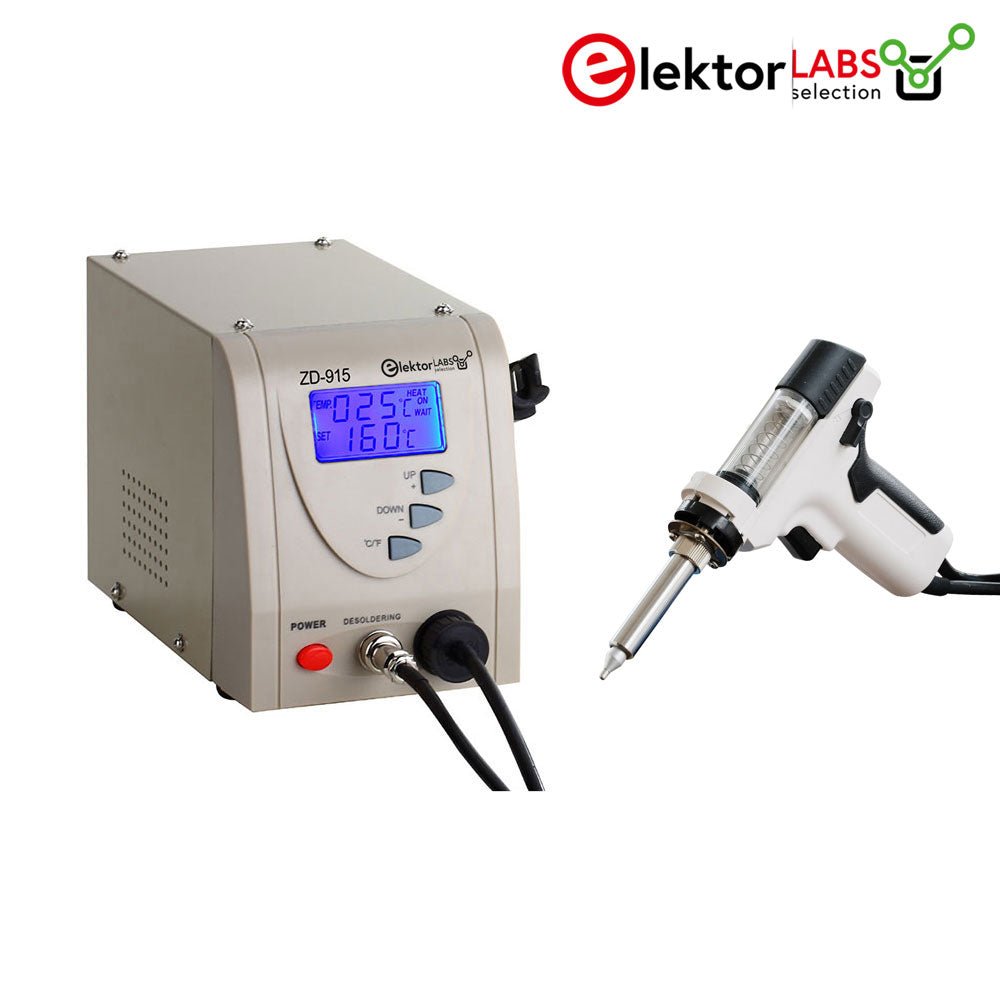

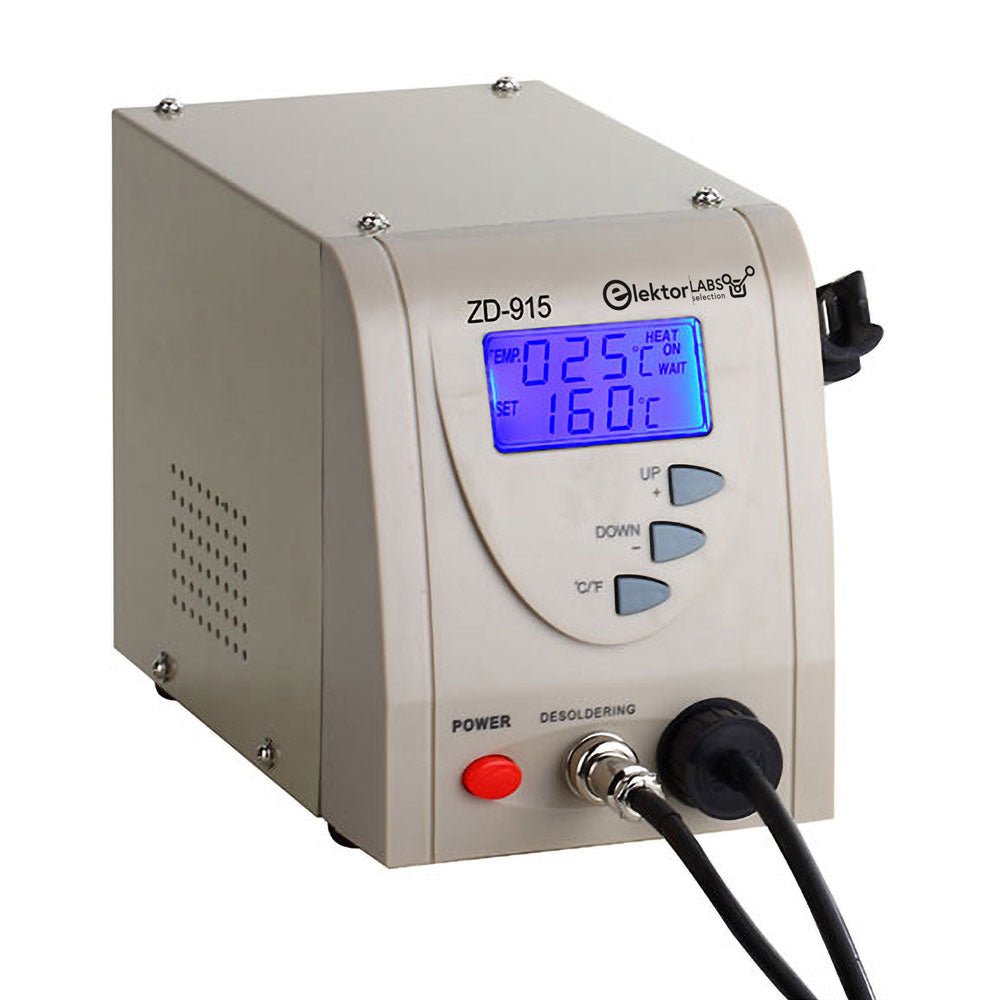

The ZD-915 is a digital desoldering station with ESD protection and digital display of both the actual and set value on an LCD screen. This desoldering station has high power in a compact and robust housing and makes desoldering easy, because it can be operated with one hand.

The ZD-915 features a soldering gun that houses a filter that catches any sucked material, so you only need to replace the filters to continue. There is also a temperature sensor in the tip so that temperature fluctuations can be quickly absorbed.

Features

  • The temperature is easily adjusted by simple up/down buttons.
  • 140 W temperature controlled soldering station with adjustable range from 160°C to 480°C.
  • The desoldering station is designed for lead free desoldering specially.
  • The side of the station features a typical holder with sponge.
  • An illuminated power on/off is also loacted on the front.

Specifications

Station
Voltage supply 220-240 V
Power consumption 140 W
Vakuum pressure 600 mm HG
Desoldering Gun
Power consumption 24 V AC 80 W
Heat up rating 130 W
Temperature 160-480 °C
Heating element Ceramic heater

Included

  • 1x ZD-915 Desoldering station
  • 2x Spare soldering tip
  • 3x Cleaning needle for desoldering tips
  • 1x Spare filter for desoldering gun
  • 1x Manual
Product form

The ZD-915 is a digital desoldering station with ESD protection and digital display of both the actual and set value... Read more

€ 107,00 (incl. VAT)
Order Now (at Eleshop)
By clicking on "Order Now", you will be redirected to our partner store, Eleshop. Elektor may earn a commission if you buy through this link. There are no additional costs for you. The terms & conditions of Eleshop apply to your purchase.

    Details

    SKU: 20142
    EAN: 020142

    Description

    The ZD-915 is a digital desoldering station with ESD protection and digital display of both the actual and set value on an LCD screen. This desoldering station has high power in a compact and robust housing and makes desoldering easy, because it can be operated with one hand.

    The ZD-915 features a soldering gun that houses a filter that catches any sucked material, so you only need to replace the filters to continue. There is also a temperature sensor in the tip so that temperature fluctuations can be quickly absorbed.

    Features

    • The temperature is easily adjusted by simple up/down buttons.
    • 140 W temperature controlled soldering station with adjustable range from 160°C to 480°C.
    • The desoldering station is designed for lead free desoldering specially.
    • The side of the station features a typical holder with sponge.
    • An illuminated power on/off is also loacted on the front.

    Specifications

    Station
    Voltage supply 220-240 V
    Power consumption 140 W
    Vakuum pressure 600 mm HG
    Desoldering Gun
    Power consumption 24 V AC 80 W
    Heat up rating 130 W
    Temperature 160-480 °C
    Heating element Ceramic heater

    Included

    • 1x ZD-915 Desoldering station
    • 2x Spare soldering tip
    • 3x Cleaning needle for desoldering tips
    • 1x Spare filter for desoldering gun
    • 1x Manual
