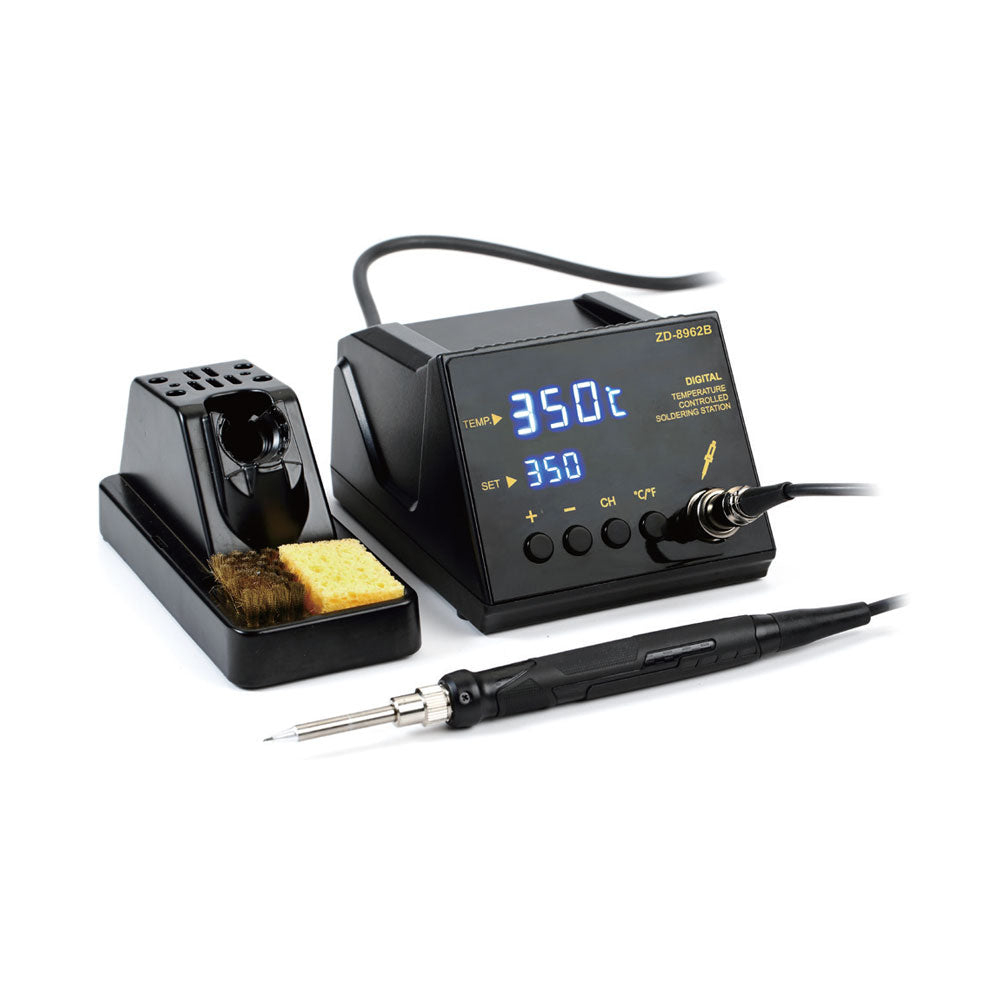

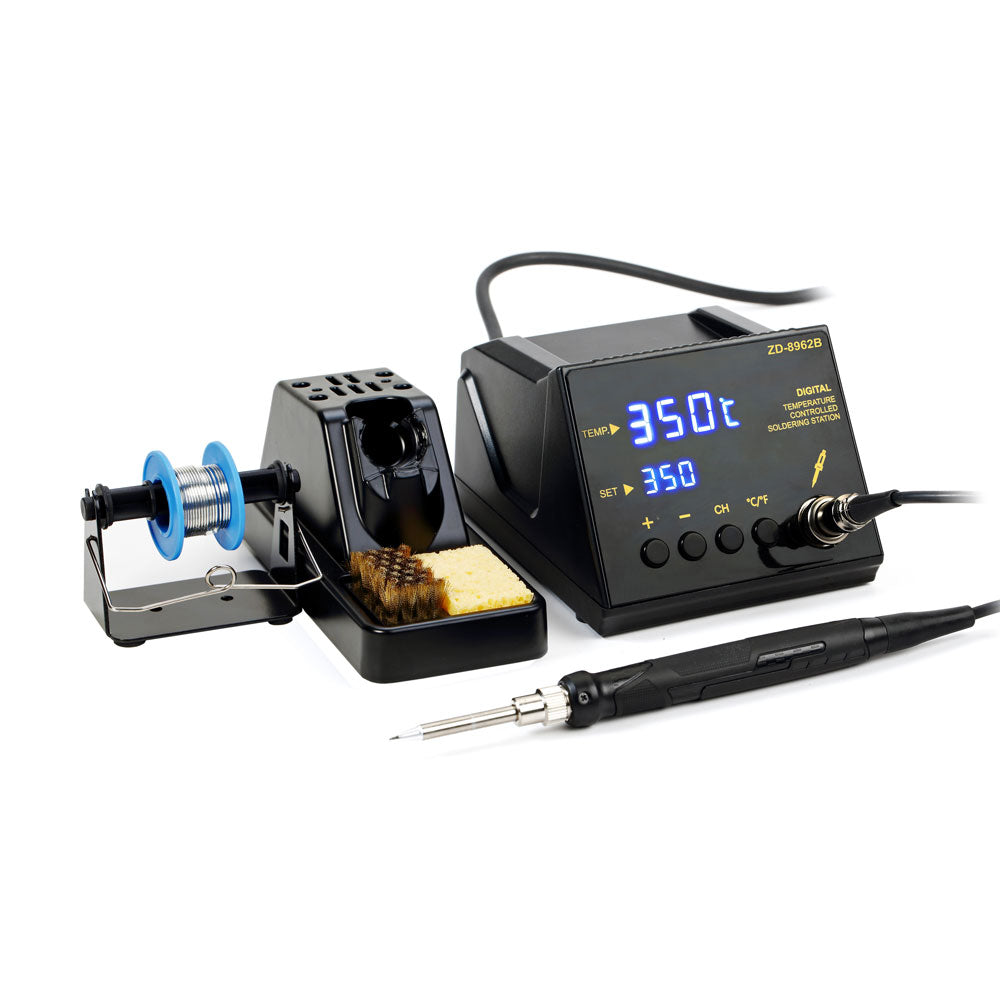

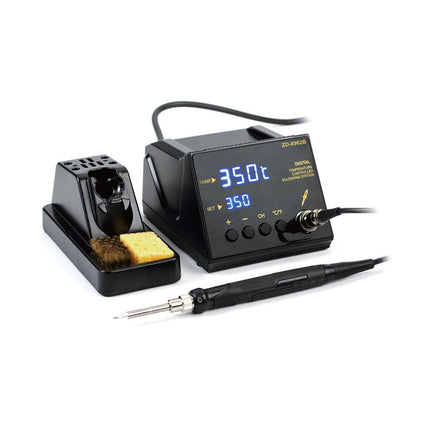

The ZD-8962B soldering station features an adjustable temperature range of 160°C to 480°C with an output power of 70 W. Equipped with an integrated heating element in the soldering tip, the station reaches the desired operating temperature in just 8 seconds.

A large digital display provides real-time monitoring, showing both the preset target and the actual temperature of the iron for precision control. Additionally, the station is ESD-safe, ensuring sensitive electronic components are fully protected from electrostatic discharge during use.

Specifications

Power	70 W
Input voltage	220-240 V AC/50 Hz
Output voltage	20 V
Temperature range	160°C – 480°C (320°F – 896°F)
Heating time	~8 s
Display	Large, two-line LED display for showing target and actual temperature
Compatibility	Uses soldering tips with integrated heating element (T12 series compatible)
Special features	ESD protection, Sleep mode/energy-saving function, Switch between °C and °F

Included

ZD-8962B Soldering station unit
Soldering iron
Soldering tip
Soldering iron stand with copper brush and sponge
Soldering wire stand with lead-free soldering wire (10 g)
Power cable (EU)
Manual
