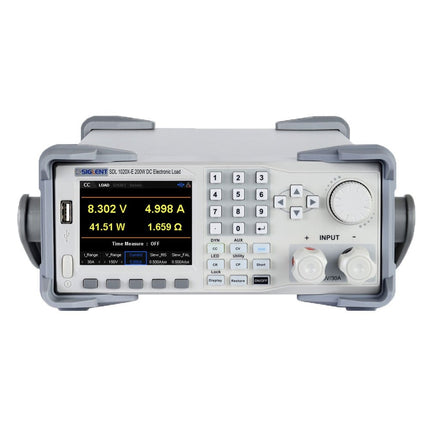

Siglent SDL1020X-E DC Electronic Load (200 W)

Description

The Siglent SDL1020X-E DC Load leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is 1 mV/1 mA and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes S232/USB/LAN interface types. The SDL1020X-E delivers stability over a wide range of applications and can meet all kinds of testing requirements. including: Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.

Features

  • SDL1020X-E (Single channel): DC 150 V/30 A, total power 200 W
  • 4 static modes / Dynamic mode: CC/CV/CR/CP
  • CC Dynamic mode: Continuous, pulsed, toggled
  • CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
  • Measuring speed of voltage and current: up to 500 kHz
  • Adjustable current rise time range: 0.001 A/us~2.5 A/us
  • Min. readback resolution: 0.1 mV, 0.1 mA
  • Short-circuit, Battery test, CR-LED mode, and factory test functions
  • 4-wire SENSE compensation mode function
  • List function supports editing as many as 100 steps
  • Program function supports 50 groups of steps
  • OCP, OVP, OPP, OTP and LRV protection
  • External analog control
  • Voltage, Current monitoring via 0-10 V
  • 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
  • Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional)
  • Waveform trend chart and easy-to-use file storage and call functions
  • Includes PC software: Supports SCPI, LabView driver

Included

  • 1x Siglent SDL1020X-E DC Programmable Load
  • 1x Quick start guide
  • 1x Guarantee Card
  • 1x Power Cord
  • 1x USB Cable

Downloads

Product form

The Siglent SDL1020X-E DC Load leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is... Read more

2 in stock

€ 529,00 (incl. VAT)
Members identical

      Details

      SKU: 19254
      EAN: SDL1020X-E

      Description

      The Siglent SDL1020X-E DC Load leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is 1 mV/1 mA and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes S232/USB/LAN interface types. The SDL1020X-E delivers stability over a wide range of applications and can meet all kinds of testing requirements. including: Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.

      Features

      • SDL1020X-E (Single channel): DC 150 V/30 A, total power 200 W
      • 4 static modes / Dynamic mode: CC/CV/CR/CP
      • CC Dynamic mode: Continuous, pulsed, toggled
      • CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
      • Measuring speed of voltage and current: up to 500 kHz
      • Adjustable current rise time range: 0.001 A/us~2.5 A/us
      • Min. readback resolution: 0.1 mV, 0.1 mA
      • Short-circuit, Battery test, CR-LED mode, and factory test functions
      • 4-wire SENSE compensation mode function
      • List function supports editing as many as 100 steps
      • Program function supports 50 groups of steps
      • OCP, OVP, OPP, OTP and LRV protection
      • External analog control
      • Voltage, Current monitoring via 0-10 V
      • 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
      • Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional)
      • Waveform trend chart and easy-to-use file storage and call functions
      • Includes PC software: Supports SCPI, LabView driver

      Included

      • 1x Siglent SDL1020X-E DC Programmable Load
      • 1x Quick start guide
      • 1x Guarantee Card
      • 1x Power Cord
      • 1x USB Cable

      Downloads

      Customer Reviews

      Based on 2 reviews
      100%
      (2)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      T
      Thierry B.
      Siglent SDG 1032 X

      Excellent produit. SIGLENT Fidèle à sa réputation.

      Livraison rapide, un achat chez Elektor c est un gage de confiance sur le produit.

      P
      Phildem
      Super produit

      Je recommande cette charge, elle est hyper complete et pourvue de quasi toutes les options que l`on peut attendre d`un tel appareil. Le rapport qualité prix est excellent comme pour tout les instruments Siglent. Attention cependant, les masses des sorties de monitoring V et I DOIVENT être isolées de l`entrée moins de la charge sous peine de destruction, cela limite l`utilisation d`un oscilloscope sur le montage en même temps que le monitoring.
