SEQURE HT140 (2-in-1) SMD Soldering & Desoldering Tweezers

Description

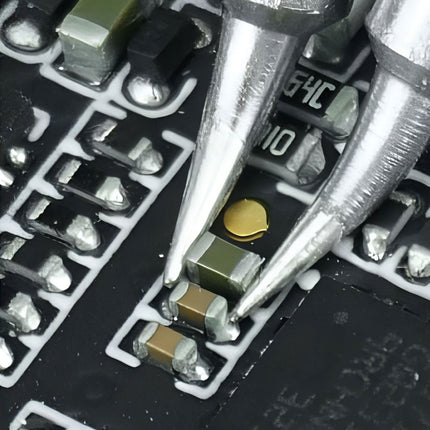

The SEQURE HT140 is a highly versatile 2-in-1 soldering tool that combines the functionality of hot tweezers and a soldering iron. It is specifically engineered for precise SMD soldering and desoldering tasks.

With independent control for single-sided heating, it operates as a traditional soldering iron when fitted with a standard tip. When configured for dual-sided heating, it transforms into hot tweezers – perfect for the efficient and accurate removal of SMD components.

Features

  • Working Temperature: 50-500°C (122-932°F)
  • Supports multiple power inputs: PD 3.1/3.0/2.0, QC 3.0/2.0, (5-28 V DC), LiPo batteries, and power adapters.
  • The HT140 combines hot tweezers and a soldering iron, with independent single- or dual-sided heating. Use it as a soldering iron with a tip, or as hot tweezers for easy SMD desoldering.
  • Voltage and current can be adjusted based on the power source.
  • Features dual temperature control, presets, quick temperature increase, and fine-tuning.
  • 128 x 32 OLED screen with adjustable brightness, and orientation. Switchable °C/°F.
  • High-precision heating element with ±1% accuracy. Melts solder in just 2 seconds.
  • Smart standby, sleep, and wake-up functions extend tip lifespan and boost efficiency.
  • Supports temperature calibration and compensation for precise work.
  • Includes a 1.5 m heat-resistant PD 150 W silicone cable and a sturdy all-metal HT Station.
  • Swappable tips and adjustable angles for various SMD soldering tasks.

Specifications

Working Voltage 5-28 V DC
Maximum Power 140 W
Working Temperature 50-500°C (122-932°F)
Tin Melting Time 2s
Interface Type USB-C, DC5525
Power Supply PD 3.1/3.0/2.0, QC 3.0/2.0, 28 V DC max
Display 128 x 32 OLED
Firmware Upgrade Yes
Menu Languages English, Russian, Chinese
Dimensions 160 x 27 x 17.5 mm
Weight 50 g

Included

  • 1x SEQURE HT140 Host
  • 2x HT140-IS Tapered Curved Desoldering Tips
  • 1x HT Station
  • 1x Accessory Package
  • 1x Storage Bag
  • 1x 65 W PD Power Supply (EU, UK & US)
  • 1x 24 W PD Silicone Wire (1.5 m)
  • 1x GND Wire Accessory Kit (1.8 m)


Product form

The SEQURE HT140 is a highly versatile 2-in-1 soldering tool that combines the functionality of hot tweezers and a soldering... Read more

€ 99,00 (incl. VAT)
Order Now (at Eleshop)
