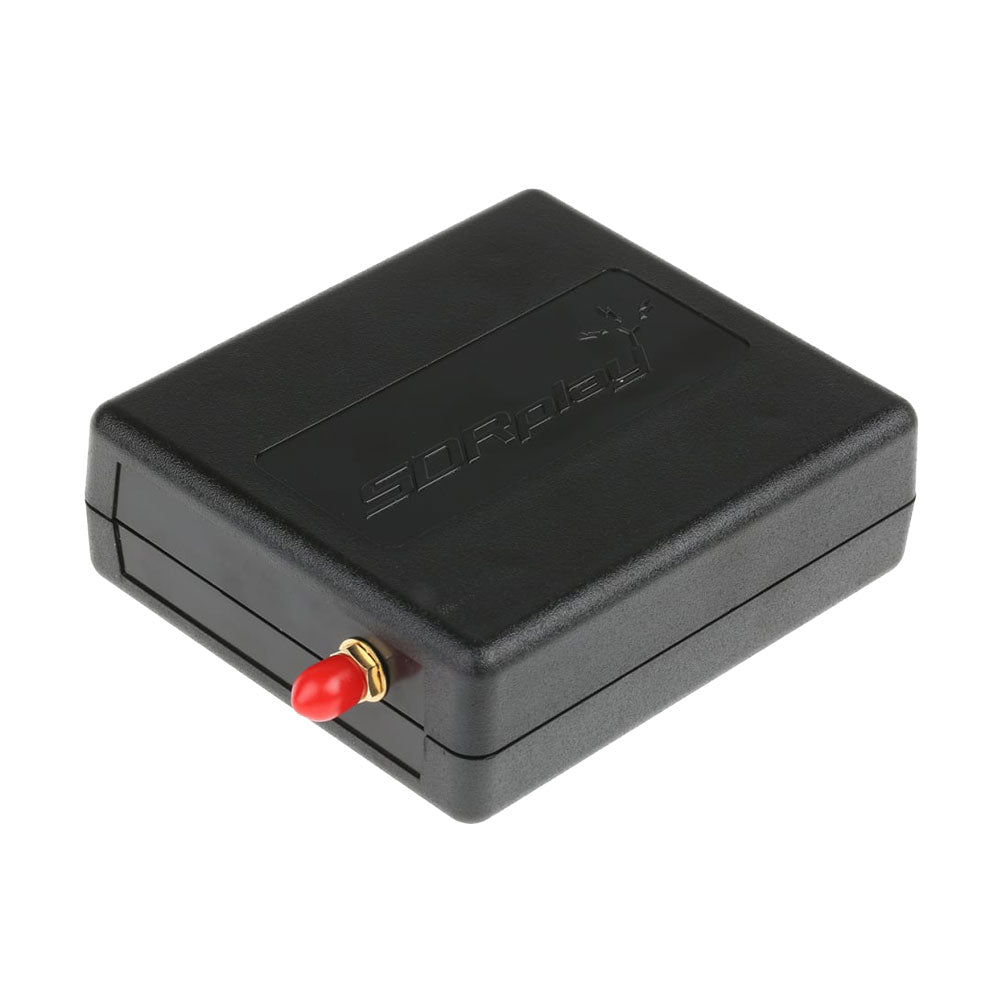

SDRplay RSP1B 14-bit SDR Receiver (1 kHz to 2 GHz)

Description

The SDRplay RSP1B is an enhanced version of the popular RSP1A – a powerful, wideband, full-featured 14-bit SDR that covers the RF spectrum from 1 kHz to 2 GHz. The RSP1B comes in a rugged, black-painted steel case and offers significantly improved noise performance.

All it needs is a computer and an antenna to deliver excellent communications-receiver functionality. It includes a choice of SDRuno for Windows and the multi-platform SDRconnect software for Windows, macOS, and Linux (supplied free of charge by SDRplay). You can monitor up to 10 MHz of spectrum at a time.

A documented API allows developers to create new demodulators or applications for the platform.

Features

  • Covers all frequencies from 1 kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2 GHz, with no gaps
  • Receive, monitor and record up to 10 MHz of spectrum at a time
  • Free use of windows-based SDRuno software which provides an ever-increasing feature-set
  • Strong and growing software support network
  • Calibrated S meter/ RF power and SNR measurement with SDRuno (including datalogging to .CSV file capability)
  • Documented API provided to allow demodulator or application development on multiple platforms
  • Excellent dynamic range for challenging reception conditions
  • Works with popular 3rd party SDR software (including HDSDR, SDR Console and Cubic SDR)
  • ExtIO based plugin available
  • Software upgradeable for future standards
  • Strong and growing software support network
  • API provided to allow demodulator or application development
  • Multiplatform driver and API support including Windows, Linux, Mac, Android and Raspberry Pi
  • Up to 16 individual receivers in any 10 MHz slice of spectrum using SDRuno
  • Calibrated S meter and power measurements with SDRuno
  • Stand-alone windows-based spectrum analyser software available (with sweep, sample and hold features)
  • Ideal for monitoring of ISM/ IoT/ Telemetry bands <2 GHz
  • Ideal for portable operation

Specifications

Frequency Range 1 kHz – 2 GHz
Antenna Connector SMA
Antenna Impedance 50 Ohms
Current Consumption (Typical) 185 mA (excl. Bias-T)
USB Connector USB Type B
Maximum Input Power +0 dBm Continuous
+10 dBm Short Duration
ADC Sample Rates 2-10.66 MSPS
ADC Number of Bits 14 bit 2-6.048 MSPS
12 bit 6.048-8.064 MSPS
10 bit 8.064-9.216 MSPS
8 bit >9.216 MSPS
Bias-T 4.7 V
100 mA guaranteed
Reference 0.5ppm 24 MHz TCXO.
Frequency error trimmable to 0.01ppm in field.
Operating Temperature Range -10˚C to +60˚C
Dimensions 98 x 88 x 34 mm
Weight 110 g

Downloads

RSP1B vs RSPdx vs RSPduo

RSP1B RSPdx RSPduo
Continuous coverage from 1 kHz to 2 GHz ✓ ✓ ✓
Up to 10 Mhz visible bandwidth ✓ ✓ ✓
14-bit ADC silicon technology plus multiple high-performance input filters ✓ ✓ ✓
Software selectable AM/FM & DAB broadcast band notch filters ✓ ✓ ✓
4.7 V Bias-T for powering external remote antenna amplifier ✓ ✓ ✓
Powers over the USB cable with a simple type B socket ✓ ✓ ✓
50Ω SMA antenna input(s) for 1 kHz to 2 GHz operation (software selectable) 1 2 2
Additional software selectable Hi-Z input for up to 30 Mhz operation ✓
Additional software selectable 50Ω BNC input for up to 200 MHz operation ✓
Additional LF/VLF filter for below 500 kHz ✓
24 MHz reference clock input (+ output on RSPduo) ✓ ✓
Dual tuners enabling reception on 2 totally independent 2 MHz ranges ✓
Dual tuners enabling diversity reception using SDRuno ✓
Robust and strong plastic case (with internal RF shielding layer) ✓
Rugged black painted steel case ✓ ✓
Overall performance below 2 MHz for MW and LF + ++ +
Multiple simultaneous applications + + ++
Performance in challenging fading conditions (*using diversity tuning) + + *++


Product form

The SDRplay RSP1B is an enhanced version of the popular RSP1A – a powerful, wideband, full-featured 14-bit SDR that covers... Read more

€ 148,99 (incl. VAT)
Order Now (at Eleshop)
By clicking on "Order Now", you will be redirected to our partner store, Eleshop. Elektor may earn a commission if you buy through this link. There are no additional costs for you. The terms & conditions of Eleshop apply to your purchase.

    Details

    SKU: 20421
    EAN: 0604565840349

    Description

    The SDRplay RSP1B is an enhanced version of the popular RSP1A – a powerful, wideband, full-featured 14-bit SDR that covers the RF spectrum from 1 kHz to 2 GHz. The RSP1B comes in a rugged, black-painted steel case and offers significantly improved noise performance.

    All it needs is a computer and an antenna to deliver excellent communications-receiver functionality. It includes a choice of SDRuno for Windows and the multi-platform SDRconnect software for Windows, macOS, and Linux (supplied free of charge by SDRplay). You can monitor up to 10 MHz of spectrum at a time.

    A documented API allows developers to create new demodulators or applications for the platform.

    Features

    • Covers all frequencies from 1 kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2 GHz, with no gaps
    • Receive, monitor and record up to 10 MHz of spectrum at a time
    • Free use of windows-based SDRuno software which provides an ever-increasing feature-set
    • Strong and growing software support network
    • Calibrated S meter/ RF power and SNR measurement with SDRuno (including datalogging to .CSV file capability)
    • Documented API provided to allow demodulator or application development on multiple platforms
    • Excellent dynamic range for challenging reception conditions
    • Works with popular 3rd party SDR software (including HDSDR, SDR Console and Cubic SDR)
    • ExtIO based plugin available
    • Software upgradeable for future standards
    • Strong and growing software support network
    • API provided to allow demodulator or application development
    • Multiplatform driver and API support including Windows, Linux, Mac, Android and Raspberry Pi
    • Up to 16 individual receivers in any 10 MHz slice of spectrum using SDRuno
    • Calibrated S meter and power measurements with SDRuno
    • Stand-alone windows-based spectrum analyser software available (with sweep, sample and hold features)
    • Ideal for monitoring of ISM/ IoT/ Telemetry bands <2 GHz
    • Ideal for portable operation

    Specifications

    Frequency Range 1 kHz – 2 GHz
    Antenna Connector SMA
    Antenna Impedance 50 Ohms
    Current Consumption (Typical) 185 mA (excl. Bias-T)
    USB Connector USB Type B
    Maximum Input Power +0 dBm Continuous
    +10 dBm Short Duration
    ADC Sample Rates 2-10.66 MSPS
    ADC Number of Bits 14 bit 2-6.048 MSPS
    12 bit 6.048-8.064 MSPS
    10 bit 8.064-9.216 MSPS
    8 bit >9.216 MSPS
    Bias-T 4.7 V
    100 mA guaranteed
    Reference 0.5ppm 24 MHz TCXO.
    Frequency error trimmable to 0.01ppm in field.
    Operating Temperature Range -10˚C to +60˚C
    Dimensions 98 x 88 x 34 mm
    Weight 110 g

    Downloads

    RSP1B vs RSPdx vs RSPduo

    RSP1B RSPdx RSPduo
    Continuous coverage from 1 kHz to 2 GHz ✓ ✓ ✓
    Up to 10 Mhz visible bandwidth ✓ ✓ ✓
    14-bit ADC silicon technology plus multiple high-performance input filters ✓ ✓ ✓
    Software selectable AM/FM & DAB broadcast band notch filters ✓ ✓ ✓
    4.7 V Bias-T for powering external remote antenna amplifier ✓ ✓ ✓
    Powers over the USB cable with a simple type B socket ✓ ✓ ✓
    50Ω SMA antenna input(s) for 1 kHz to 2 GHz operation (software selectable) 1 2 2
    Additional software selectable Hi-Z input for up to 30 Mhz operation ✓
    Additional software selectable 50Ω BNC input for up to 200 MHz operation ✓
    Additional LF/VLF filter for below 500 kHz ✓
    24 MHz reference clock input (+ output on RSPduo) ✓ ✓
    Dual tuners enabling reception on 2 totally independent 2 MHz ranges ✓
    Dual tuners enabling diversity reception using SDRuno ✓
    Robust and strong plastic case (with internal RF shielding layer) ✓
    Rugged black painted steel case ✓ ✓
    Overall performance below 2 MHz for MW and LF + ++ +
    Multiple simultaneous applications + + ++
    Performance in challenging fading conditions (*using diversity tuning) + + *++
