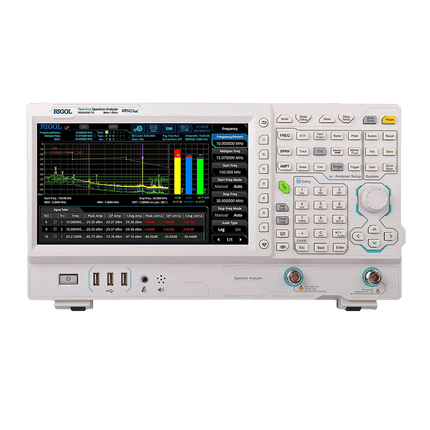

Rigol RSA3015E-TG Real-time Spectrum Analyzer (9 kHz – 1.5 GHz)

  • BrandRigol

Description

Highlights

  • Frequency: 1.5 GHz
  • DANL: -161 dBm
  • Phase Noise: -102 dBc/Hz
  • RBW: 1 Hz

Specifications

  • Ultra-Real technology
  • Frequency: up to 1.5 GHz
  • Displayed average noise level (DANL): <-161 dBm (typical)
  • Phase noise: <-102 dBc/Hz (typical)
  • Level measurement uncertainty: <1.0 dB
  • 1.5 GHz tracking generator
  • Min. RBW 1 Hz
  • Up to 10 MHz real-time analysis bandwidth
  • Multiple measurement modes
  • Various advanced measurement functions
  • EMI measurement application (option)
  • Multiple trigger modes and trigger masks
  • Density, spectrogram, and other display modes
  • PC software options
  • 10.1'' capacitive multi-touch screen; supporting touch gestures
  • USB, LAN, HDMI and other communication and display interfaces

Included

  • 1x Rigol RSA3015E-TG Spectrum Analyzer
  • 1x Power cord
  • 1x USB cable
Product form

Highlights Frequency: 1.5 GHz DANL: -161 dBm Phase Noise: -102 dBc/Hz RBW: 1 Hz Specifications Ultra-Real technology Frequency: up to... Read more

€ 2.176,79 (incl. VAT)
Order Now (at Eleshop)
By clicking on "Order Now", you will be redirected to our partner store, Eleshop. Elektor may earn a commission if you buy through this link. There are no additional costs for you. The terms & conditions of Eleshop apply to your purchase.

    Details

    SKU: 19348

    Description

    Highlights

    • Frequency: 1.5 GHz
    • DANL: -161 dBm
    • Phase Noise: -102 dBc/Hz
    • RBW: 1 Hz

    Specifications

    • Ultra-Real technology
    • Frequency: up to 1.5 GHz
    • Displayed average noise level (DANL): <-161 dBm (typical)
    • Phase noise: <-102 dBc/Hz (typical)
    • Level measurement uncertainty: <1.0 dB
    • 1.5 GHz tracking generator
    • Min. RBW 1 Hz
    • Up to 10 MHz real-time analysis bandwidth
    • Multiple measurement modes
    • Various advanced measurement functions
    • EMI measurement application (option)
    • Multiple trigger modes and trigger masks
    • Density, spectrogram, and other display modes
    • PC software options
    • 10.1'' capacitive multi-touch screen; supporting touch gestures
    • USB, LAN, HDMI and other communication and display interfaces

    Included

    • 1x Rigol RSA3015E-TG Spectrum Analyzer
    • 1x Power cord
    • 1x USB cable
