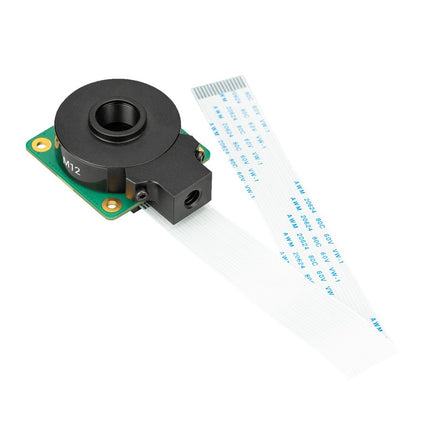

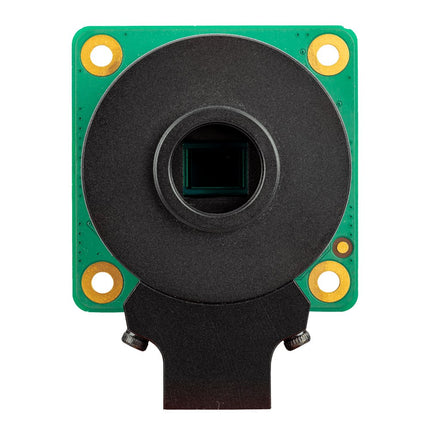

Raspberry Pi High Quality Camera Module (M12 Mount)

  • BrandRaspberry Pi Foundation

Description

The Raspberry Pi High Quality Camera is an affordable high-quality camera from Raspberry Pi. It offers 12-megapixel resolution and a 7.9-mm diagonal sensor for impressive low-light performance. The M12 Mount variant is designed to work with most interchangeable M12 lenses, and the CS Mount variant is designed to work with interchangeable lenses in both CS and C mount form factors (C mount lenses require the use of the C-CS adapter included with this variant). Other lens form factors can be accommodated using third-party lens adapters.

The High Quality Camera is well suited to industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/ or integration with specialist optics. It is compatible with all models of Raspberry Pi from Model B onwards.

Specifications

Sensor Sony IMX477R stacked, back-illuminated sensor
Resolution 12.3 megapixels
Sensor size 7.9 mm sensor diagonal
Pixel size 1.55 x 1.55 μm
Output RAW12/10/8, COMP8
Back focus length of lens 2.6–11.8 mm (M12 Mount variant)
12.5–22.4 mm (CS Mount variant)
Lens sensor format 1/2.3” (7.9 mm) or larger
IR cut filter Integrated
Ribbon cable length 200 mm
Tripod mount 1/4”-20

Included

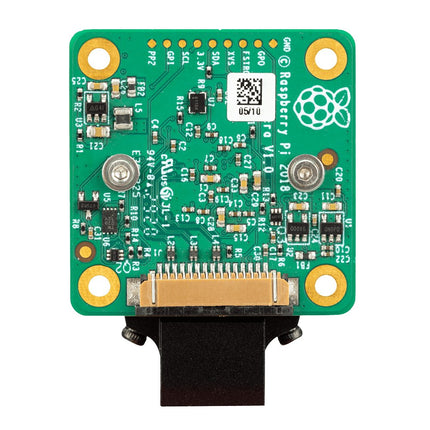

  • 1x Circuit board carrying a Sony IMX477 sensor
  • 1x FPC cable for connection to a Raspberry Pi computer
  • 1x Milled aluminium lens mount with integrated tripod mount
  • 1x C to CS mount adapter
  • 3x Lens locking rings

Required

  • M12 Mount Lens
Product form

The Raspberry Pi High Quality Camera is an affordable high-quality camera from Raspberry Pi. It offers 12-megapixel resolution and a... Read more

€ 59,95 incl. VAT
Members identical

    • Ship today? Order within Oct 11, 2024 17:00:00 +0200

    Details

    SKU: 20366
    EAN: 5056561803227

    Description

    The Raspberry Pi High Quality Camera is an affordable high-quality camera from Raspberry Pi. It offers 12-megapixel resolution and a 7.9-mm diagonal sensor for impressive low-light performance. The M12 Mount variant is designed to work with most interchangeable M12 lenses, and the CS Mount variant is designed to work with interchangeable lenses in both CS and C mount form factors (C mount lenses require the use of the C-CS adapter included with this variant). Other lens form factors can be accommodated using third-party lens adapters.

    The High Quality Camera is well suited to industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/ or integration with specialist optics. It is compatible with all models of Raspberry Pi from Model B onwards.

    Specifications

    Sensor Sony IMX477R stacked, back-illuminated sensor
    Resolution 12.3 megapixels
    Sensor size 7.9 mm sensor diagonal
    Pixel size 1.55 x 1.55 μm
    Output RAW12/10/8, COMP8
    Back focus length of lens 2.6–11.8 mm (M12 Mount variant)
    12.5–22.4 mm (CS Mount variant)
    Lens sensor format 1/2.3” (7.9 mm) or larger
    IR cut filter Integrated
    Ribbon cable length 200 mm
    Tripod mount 1/4”-20

    Included

    • 1x Circuit board carrying a Sony IMX477 sensor
    • 1x FPC cable for connection to a Raspberry Pi computer
    • 1x Milled aluminium lens mount with integrated tripod mount
    • 1x C to CS mount adapter
    • 3x Lens locking rings

    Required

    • M12 Mount Lens
