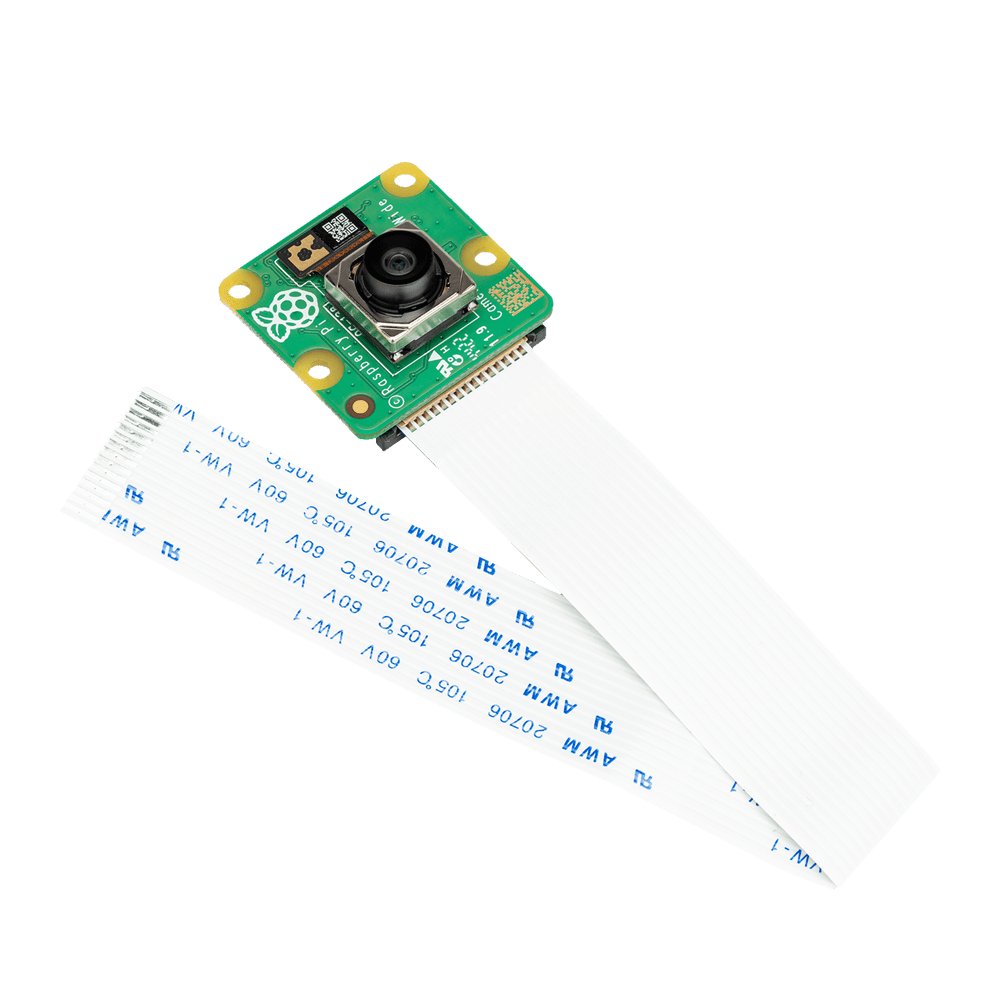

Raspberry Pi Camera Module 3 Wide

  • BrandRaspberry Pi Foundation

Description

Raspberry Pi Camera Module 3 is a compact camera from Raspberry Pi. It offers an IMX708 12-megapixel sensor with HDR, and features phase detection autofocus. Camera Module 3 is available in standard and wide-angle variants, both of which are available with or without an infrared cut filter.

Camera Module 3 can be used to take full HD video as well as stills photographs, and features an HDR mode up to 3 megapixels. Its operation is fully supported by the libcamera library, including Camera Module 3’s rapid autofocus feature: this makes it easy for beginners to use, while offering plenty for advanced users. Camera Module 3 is compatible with all Raspberry Pi computers.

All variants of Raspberry Pi Camera Module 3 feature:

  • Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
  • High signal-to-noise ratio (SNR)
  • Built-in 2D Dynamic Defect Pixel Correction (DPC)
  • Phase Detection Autofocus (PDAF) for rapid autofocus
  • QBC Re-mosaic function
  • HDR mode (up to 3 megapixel output)
  • CSI-2 serial data output
  • 2-wire serial communication (supports I²C fast mode and fast-mode plus)
  • 2-wire serial control of focus mechanism

Specifications

Sensor Sony IMX708
Resolution 11.9 MP
Sensor size 7.4 mm sensor diagonal
Pixel size 1.4 x 1.4 µm
Horizontal/vertical 4608 x 2592 pixels
Common video modes 1080p50, 720p100, 480p120
Output RAW10
IR cut filter Integrated in standard variants; not present in NoIR variants
Autofocus system Phase Detection Autofocus
Ribbon cable length 200 mm
Cable connector 15 x 1 mm FPC
Dimensions 25 x 24 x 11.5 mm (12.4 mm height for Wide variants)

Variants of Raspberry Pi Camera Module 3

Camera Module 3 Camera Module 3 NoIR Camera Module 3 Wide Camera Module 3 Wide NoIR
Focus range 10 cm - ∞ 10 cm - ∞ 5 cm - ∞ 5 cm - ∞
Focal length 4.74 mm 4.74 mm 2.75 mm 2.75 mm
Diagonal field of view 75 degrees 75 degrees 120 degrees 120 degrees
Horizontal field of view 66 degrees 66 degrees 102 degrees 102 degrees
Vertical field of view 41 degrees 41 degrees 67 degrees 67 degrees
Focal ratio (F-stop) F1.8 F1.8 F2.2 F2.2
Infrared-sensitive No Yes No Yes
