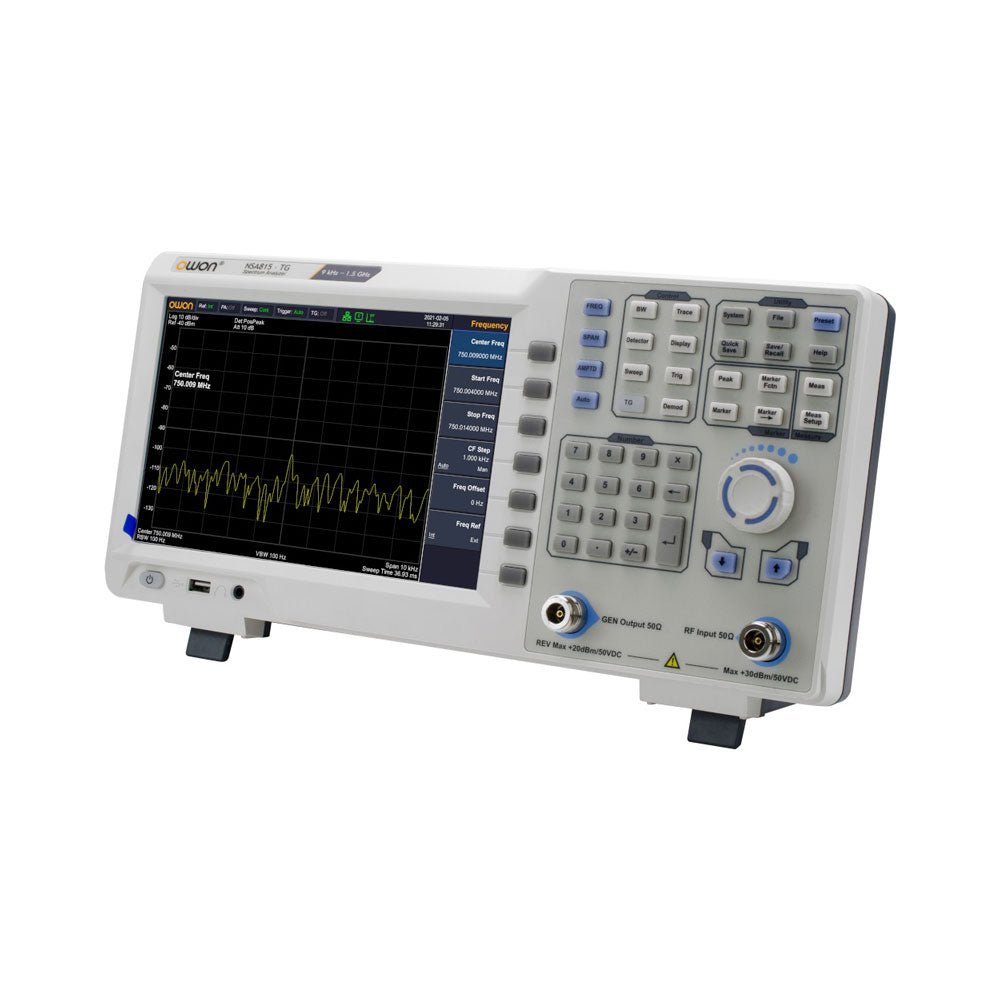

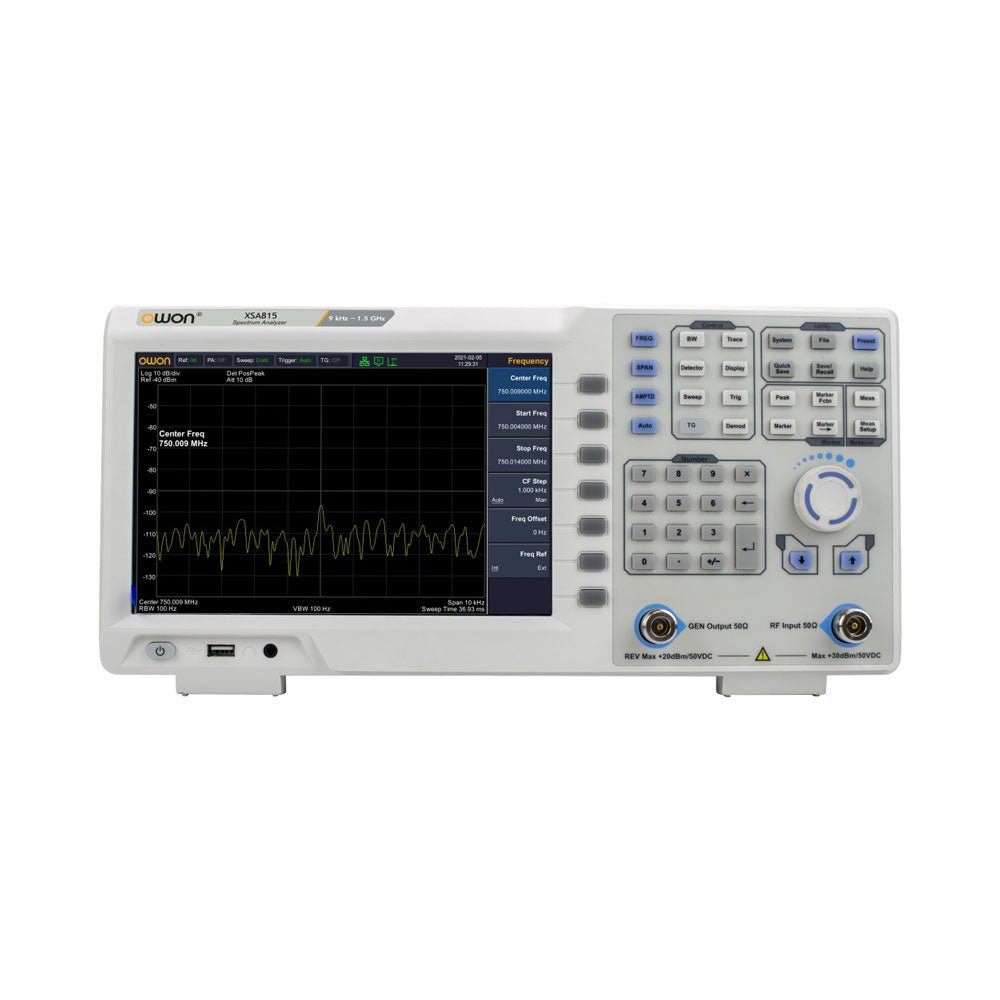

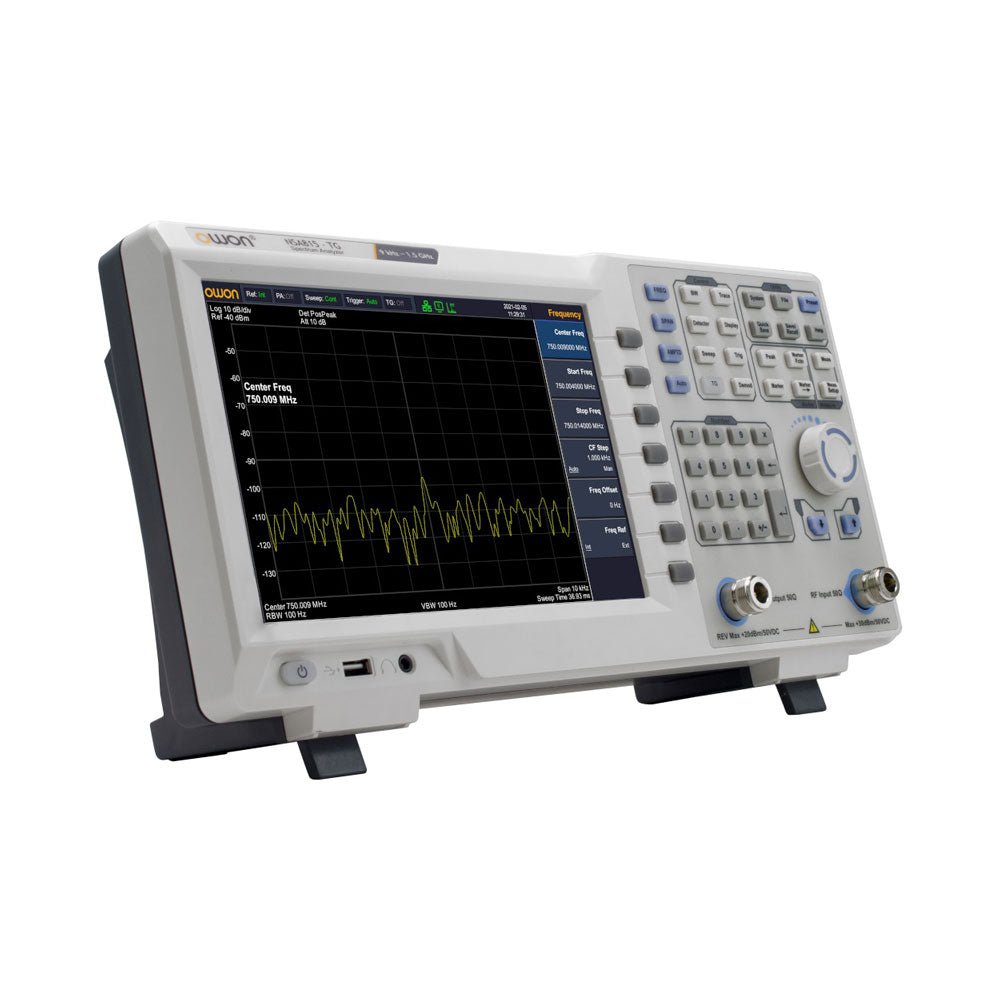

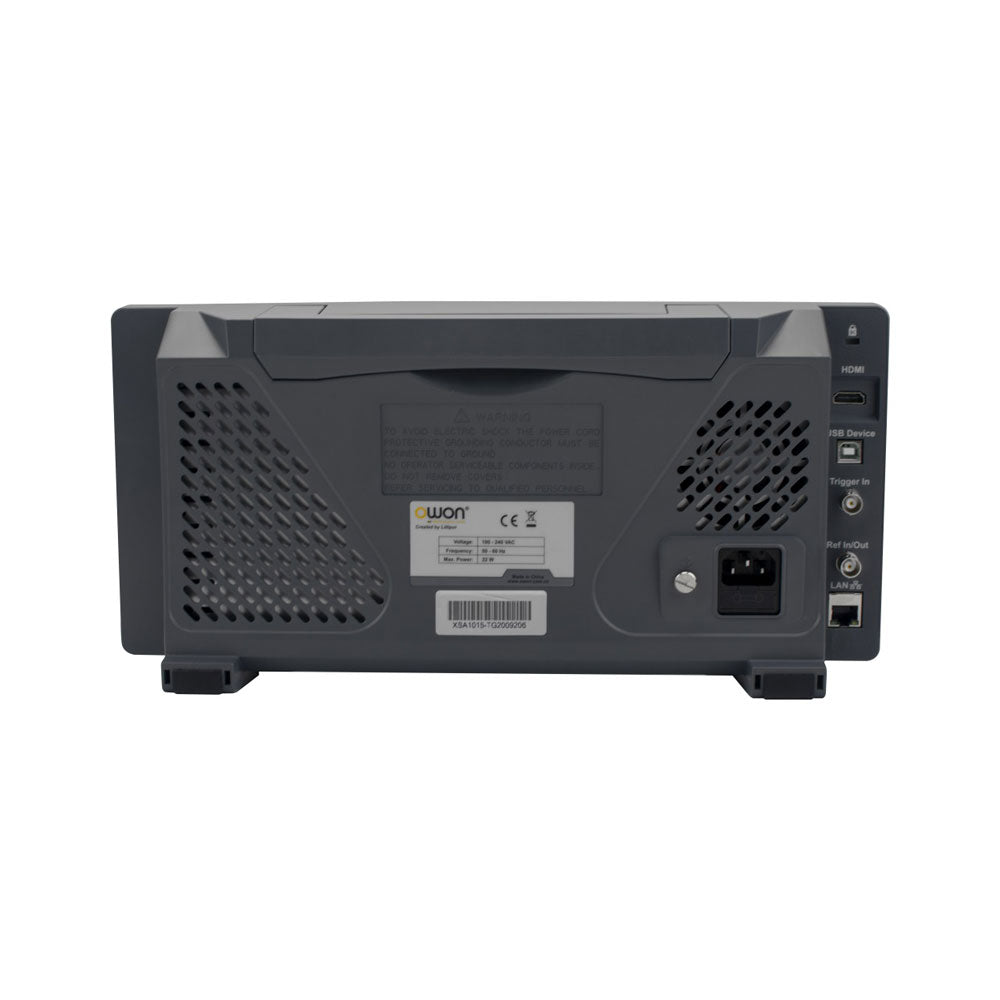

OWON XSA815-TG Spectrum Analyzer (9 kHz – 1.5 GHz)

  • BrandOWON

Description

The OWON XSA815-TG 9 kHz-1.5 GHz is a cost effective spectrum analyzer with tracking generator included and a frequency resolutions of 1 Hz.

Features

  • Frequency Range from 9 kHz to 1.500009 GHz
  • 9-inch display
  • 9 kHz to 1 MHz -95 dBm Displayed Average Noise Level, 1 MHz to 500 MHz 140 dBm (Typical), <-130 dBm
  • Phase Noise
    • -10 kHz < -80 dBc/Hz
    • 100 kHz < -100 dBc/Hz
    • 1 MHz < -115 dBc/Hz
  • Resolution Bandwidth (-3 dB): 1 Hz to 1 MHz, in 1-3-5-10 sequence
  • Tracking Generator Kit: 100 kHz to 1.500009 GHz

Specifications

Frequency Range 9 kHz to 500.009 MHz
Frequency Resolution 1 Hz
Frequency Span 9 kHz to 1.500009 GHz
Span Range 0 Hz, 100 Hz to max frequency of instrument
Span Uncertainty ± span / (sweep points-1)
SSB Phase Noise (20°C to 30°C, fc=1 GHz)
Carrier Offset 10 kHz < -80 dBc/Hz | 100 kHz < -100 dBc/Hz | 1 MHz < -115 dBc/Hz
Resolution Bandwidth (-3 dB) 1 Hz to 1 MHz, in 1-3-5-10 sequence
RBW Accuracy < 5% typical
Resolution Filter Shape Factor (60 dB: 3 dB) <5 typical
Video Bandwidth (-3 dB) 10 Hz to 1 MHz, in 1-3-5-10 sequence
Amplitude measurement range DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off
DANL to +20 dBm, 10 MHz to 1.5 GHz, Preamp Off
Reference Level -80 dBm to +30 dBm, 0.01dB by step
Preamp 20 dB, nominal, 100 kHz to 1.5 GHz
Input Attenuator 0 to 40 dB, 1 dB by step
Display Average Noise Level Input attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20°C to 30°C, input impedance = 50 Ω)
Preamp Off 9 kHz to 1 MHz -95 dBm (Typical), <-88 dBm
Preamp Off 1 MHz to 500 MHz -140 dBm (Typical), <-130 dBm
Preamp On 100 kHz to 1 MHz -135 dBm (Typical), <-128 dBm
Preamp On 1 MHz to 500 MHz -160 dBm (Typical),<-150 dBm
Tracking Generator (optional)
Frequency Range 100 kHz to 1.500009 GHz
Output power level range -40 dBm to 0 dBm
Output level resolution 1 dB
Output flatness Relative to 50 MHz | ±3 dB
Tracking generator spurious Harmonic spurious -30 dBc (Tracking generator output power -10 dBm)
Non-harmonic spurious -40 dBc (Tracking generator output power -10 dBm)
Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm)
Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm)
Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm)
Dimensions 375 x 185 x 120 mm
Weight 3.7 kg

Included

  • 1x XSA815-TG
  • 1x 220 V AC power cord
  • 1x USB Cable
  • 1x Quickstart guide

Downloads

Product form

The OWON XSA815-TG 9 kHz-1.5 GHz is a cost effective spectrum analyzer with tracking generator included and a frequency resolutions... Read more

No reviews

3 in stock

€ 1.099,00€ 899,00 incl. VAT
