The OWON XDS3102A is a 12-bit 2-channel digital storage oscilloscope (100 MHz) with digital multimeter and 2-channel arbitrary waveform generator (25 MHz). It features a touchscreen, a VGA output, WiFi and a 13200 mA battery. Performance 8-bit, 12-bit or 14-bit high-resolution ADC, restoring the waveform detail fully 40M record length, max 75,000 wfms/s waveform refresh rate Ow background noise, vertical sensitivity in 1 mV/div - 10 V/div Multi-trigger, and bus decoding function SCPI and LabVIEW supported Features Ultra-thin body-design, less space accommodation Multi-interface integration – USB host, USB device, USB port for PictBridge, LAN, AUX, and more VGA port – a better solution for video expansion, and teaching demonstration 8 inch 800 x 600 high-resolution LCD Optional multi-point touch screen, more user-friendly operation experience Specifications Bandwidth 100 MHz Sample Rate 1 GS/s Vertical Resolution (A/D) 12 bits Record length 40M Horizontal Scale (s/div) 2 ns/div - 1000s/div, step by 1 - 2 - 5 Channel 2 + 1 (external) Display 8" color LCD, 800 x 600 pixels Waveform Math ＋, －, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject) Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I²C, SPI, RS232 Bus Decoding I²C, SPI, RS232 Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN Power Supply 100-240 V AC, 50/60 Hz, CAT II Power Consumption ＜15 W Fuse 2A, T class, 250 V Dimension 340 x 177 x 90 mm Weight 2.6 kg

Read more less

The OWON VDS6000 Series PC Oscilloscope combines powerful performance with a sleek, ultra-thin design. With 100 MHz bandwidth, 1 GSa/s real-time sampling, and up to 14-bit resolution, it delivers highly accurate measurements. The built-in 5 MHz function generator, USB-C power supply, and optional WiFi connectivity make it incredibly versatile. Compatible with Windows, Linux, Android, and iOS, the VDS6000 is perfect for labs, fieldwork, and remote diagnostics – compact, flexible, and ready for any challenge. Features Bandwidth: 100 MHz Vertical resolution: 14 bits Rise time: ≤3.5 ns Memory: 10 Mpts Number of channels: 2 channels + 1 channel function generator Horizontal scale: 5ns - 100s/div Sample rate: Max. 1 GSa/s Maximum voltage: 40 V (peak - peak) Automatic measurements: Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Connectivity: USB-C, LAN, Wifi (optional) Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty Bandwidth: 5 MHz Sample rate: 25 MSa/s Standard waveforms: Sine (0.1 Hz - 5 MHz), Square (0.1 Hz - 200 kHz), Ramp (1 Hz - 10 kHz), Pulse (1 Hz - 10 kHz) Resolution: 10 bits DC offset range (AC + DC): ±2.5 V Amplitude range: 10 mVpp - 5 Vpp Dimensions: 190 x 120 x 18 mm Weight: 380 g Downloads Manual Quick Guide PC Software MacOS Software

Read more less

The OWON XSA815-TG (9 kHz-1.5 GHz) is a cost effective spectrum analyzer with tracking generator included and a frequency resolutions of 1 Hz. Features Frequency Range from 9 kHz to 1.500009 GHz 9-inch display 9 kHz to 1 MHz -95 dBm Displayed Average Noise Level, 1 MHz to 500 MHz 140 dBm (Typical), <-130 dBm Phase Noise -10 kHz <-80 dBc/Hz 100 kHz <-100 dBc/Hz 1 MHz <-115 dBc/Hz Resolution Bandwidth (-3 dB): 1 Hz to 1 MHz, in 1-3-5-10 sequence Tracking Generator Kit: 100 kHz to 1.500009 GHz Specifications Frequency Range 9 kHz to 500.009 MHz Frequency Resolution 1 Hz Frequency Span 9 kHz to 1.500009 GHz Span Range 0 Hz, 100 Hz to max frequency of instrument Span Uncertainty ±span / (sweep points-1) SSB Phase Noise (20°C to 30°C, fc=1 GHz) Carrier Offset 10 kHz <-80 dBc/Hz | 100 kHz <-100 dBc/Hz | 1 MHz <-115 dBc/Hz Resolution Bandwidth (-3 dB) 1 Hz to 1 MHz, in 1-3-5-10 sequence RBW Accuracy <5% typical Resolution Filter Shape Factor (60 dB: 3 dB) <5 typical Video Bandwidth (-3 dB) 10 Hz to 1 MHz, in 1-3-5-10 sequence Amplitude measurement range DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off DANL to +20 dBm, 10 MHz to 1.5 GHz, Preamp Off Reference Level -80 dBm to +30 dBm, 0.01dB by step Preamp 20 dB, nominal, 100 kHz to 1.5 GHz Input Attenuator 0 to 40 dB, 1 dB by step Display Average Noise Level Input attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20°C to 30°C, input impedance = 50 Ω) Preamp Off 9 kHz to 1 MHz -95 dBm (Typical), <-88 dBm Preamp Off 1 MHz to 500 MHz -140 dBm (Typical), <-130 dBm Preamp On 100 kHz to 1 MHz -135 dBm (Typical), <-128 dBm Preamp On 1 MHz to 500 MHz -160 dBm (Typical),<-150 dBm Tracking Generator (optional) Frequency Range 100 kHz to 1.500009 GHz Output power level range -40 dBm to 0 dBm Output level resolution 1 dB Output flatness Relative to 50 MHz | ±3 dB Tracking generator spurious Harmonic spurious -30 dBc (Tracking generator output power -10 dBm) Non-harmonic spurious -40 dBc (Tracking generator output power -10 dBm) Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm) Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm) Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm) Dimensions 375 x 185 x 120 mm Weight 3.7 kg Included 1x XSA815-TG 1x 220 V AC power cord 1x USB Cable 1x Quickstart guide Downloads Quick Guide Specifications

Read more less

Features Advanced DDS technology, up to 250 MHz frequency output 1.25 GS/s sampling rate, and 1 μHz frequency resolution Up to 1M arbitrary waveform length Vertical resolution: 14 bits Comprehensive waveform output: 6 groups waveforms, and 152 group built-in arbitrary waveforms Comprehensive modulation options: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, sweep, and burst High-accuracy frequency counter integrated, ranging from 100mHz till 200MHz SCPI and LabVIEW supported 8-inxch 800 x 600 pixels touch screen LCD Specifications XDG3102 Channel 2 Frequency Output 100MHz Sample Rate 1.25GSa/s Vertical Resolution 14 bits Waveform Standard Waveform sine, square, pulse, ramp, noise, and harmonic Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others, total of 150 built-in waveforms, and user-defined arbitrary waveform Frequency (resolution 1μHz) Sine 1μHz - 100MHz Square 1μHz - 40MHz Pulse 1μHz - 25MHz Ramp 1μHz - 5MHz Harmonic 1μHz - 50MHz Noise 120MHz (-3dB, typical) Arbitrary Waveform built-in waveform: 1uHz - 15MHzuser-defined waveform: 1uHz - 50MHz Accuracy ±1ppm, 0°C - 40°C Amplitude Amplitude (50Ω) 1mVpp - 10Vpp (≤40MHz); 1mVpp - 5Vpp (≤80MHz) 1mVpp - 2.5Vpp (≤120MHz); 1mVpp - 1Vpp (≤250MHz) Amplitude(high impedance) 2mVpp - 20Vpp (≤40MHz); 2mVpp - 10Vpp (≤80MHz); 2mVpp - 5Vpp (≤120MHz); 2mVpp - 2Vpp (≤250MHz) Resolution 1mV or 4 digits DC Offset Range (50Ω) ±(5 Vpk - Amplitude Vpp/2) Range (high-Z, open circuit) ±(10 Vpk - Amplitude Vpp/2) Accuracy ±(1% of |setting| + 1mV + Amplitude Vpp x 0.5%) Resolution 1mV or 4 digits Load Impedance 50Ω (typical) Accuracy ±(1% of setting + 1 mVpp) (typical, 1kHz sine, 0V offset) Sine Wave Spectrum Purity Harmonic Distortion Typical (0dB) DC - 1MHz: <-65dBc 1MHz - 10MHz: <-60dBc 10MHz - 120MHz: <-50dBc 120MHz - 200MHz: <-45dBc Total Harmonic Distortion ＜0.05 %, 10 Hz to 20 kHz, 1 Vpp Spurious (non-harmonic), Typical (0dB) ≤10MHz: <-70dBc >10MHz: <-70dBc + 6dB/ octave Phase Noise Typical (0 dBm, 10 kHz deviation) 10MHz: ≤-110dBc/Hz Square Rise/Fall Time <5ns Overshoot <3% Duty Cycle 50.0% (fixed) Jitter (rms) 300ps + 100ppm Pulse Pulse Width 12ns - 996875s Leading/Trailing Edge Time ≧7ns Overshoot <3% Jitter (rms) 300ps + 100ppm Ramp Linearity ≤1% of peak output (typical, 1kHz, 1 Vpp, 50% symmetry) Symmetry 0% to 100% Harmonic Harmonic Order ≤16 Harmonic Type even, odd, all, user Harmonic Amplitude could be set for all the harmonics Harmonic Phase Arbitrary Waveform Length 2 points - 1M points Vertical Resolution 14 bits Minimum Rise/Fall Time <7ns Jitter (rms) 3ns Modulation Type AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, sweep, and burst AM Carrier Waveform sine, square, ramp, and arbitrary (except DC) Source internal / external Modulating Waveform sine, square, ramp, noise, and arbitrary Depth 0.0% - 100.0% Modulating Frequency 2 mHz - 100 kHz FM Carrier Waveform sine, square, ramp, and arbitrary (except DC) Source internal / external Modulating Waveform sine, square, ramp, noise, and arbitrary Modulating Frequency 2 mHz - 100 kHz PM Carrier Waveform sine, square, ramp, and arbitrary (except DC) Source internal / external Modulating Waveform sine, square, ramp, noise, and arbitrary Phase Deviation 0° - 180° Modulating Frequency 2 mHz - 100 kHz PWM Carrier Waveform pulse Source internal / external Modulating Waveform sine, square, ramp, noise, and arbitrary Width Deviation 0 ~ minimum (pulse duty ratio, 100% - pulse duty ratio) Modulating Frequency 2 mHz - 100 kHz FSK / 3FSK / 4FSK Carrier Waveform sine, square, ramp, and arbitrary (except DC) Source internal / external Modulating Waveform square with 50% duty cycle Key Frequency 2 mHz - 1MHz PSK Carrier Waveform sine, square, ramp, and arbitrary (except DC) Source internal / external Modulating Waveform square with 50% duty cycle Key Frequency 2 mHz - 1MHz OSK Carrier Waveform sine, square, ramp, and arbitrary (except DC) Source internal Oscillation Time square with 50% duty cycle Key Frequency 2 mHz - 1MHz ASK Carrier Waveform sine, square, ramp, and arbitrary (except DC) Source internal / external Modulating Waveform square with 50% duty cycle Key Frequency 2 mHz - 1MHz BPSK Carrier Waveform sine, square, ramp, and arbitrary (except DC) Source internal Modulating Waveform square with 50% duty cycle Key Frequency 2 mHz - 1MHz Sweep Carrier Waveform sine, square, ramp, and arbitrary (except DC) Type linear, and log Direction up, and down Sweep Time 1 ms to 500s, ± 0.1% Trigger Source internal, external, and manual Burst Carrier Waveform sine, square, ramp, pulse, and arbitrary (except DC) Burst Count 1 to 50,000 period, infinite, gating Internal Period 10 ns - 500 s Gated Source external trigger Frequency Counter Function frequency period, +width, -width, +duty, and -duty Frequency Range 100mHz - 200MHz Frequency Resolution 7 digits Input / Output Display 8”800 x 600 pixels touch screen LCD Type frequency counter, external modulation input,external trigger input,external reference clock input / output Communication Interface USB Host, USB Device, and LAN Dimension (W×H×D) 340 x 177 x 90 (mm) Weight (without package) 2.50kg

Read more less

The PCW03A True RMS digital multimeter is an innovative tool for any electrician. technician. or ambitious hobbyist. It can measure AC/DC voltage. current. and resistance. as well as frequency. duty ratio. and temperature. Due to its smart measurement function. the PCW03A detects the inteded measurement (continuity. voltage. resistance) and chooses the correct measurement range/function for the user. making super easy to use and beginner-friendly. Another great feature of the device. especially for beginners. are the illuminated input sockets. Here the device indicates which input sockets to use for the chosen measurement function. This way it is almost impossible to connect the measurement leads to the wrong socket and it will prevent the device from damage. With its 9999 counts and bright colors. the HD display provides precise measurement read-outs. Additionally. the CAT III 1000V; CAT IV 600V rating ensures safety while in use for various applications. Its smartphone-like design is easy and intiutive to use. making it a joy for daily operations. The double insulation. ceramic fuse. and removable rubber casing provide durability and protection for device and the user. Features CAT III 1000 V; CAT IV 600 V 9999 counts & True RMS Auto Range & smart measurement function: device automatically recognizes intended measurement (continuity. voltage. resistance) and chooses correct measurement range/function LED illuminated input sockets ? the device shows you which input socket to use according to the measurement function chosen. Perfect for beginners to avoid damage to the device. AC/DC voltage. AC/DC current. resistance. capacitance. frequency. duty ratio. and temperature measurement NCV (non-contact voltage detection). live line. continuity. and diode test Double insulation & ceramic fuses Removable rubber casing with cushioning function for extra protection Large colour HD display with backlight Data hold with Min/Max function LED work light Innovative design and 5 button operating concept: like a smartphone Manual in various languages: EN. GER. ES. FR. PT. IT. GR Dimensions: 165 x 85 x 25 mm Weight: 255 g Included PCW03A Multimeter Batteries High-quality test leads K-type temp. probes Transport case Downloads Datasheets

Read more less

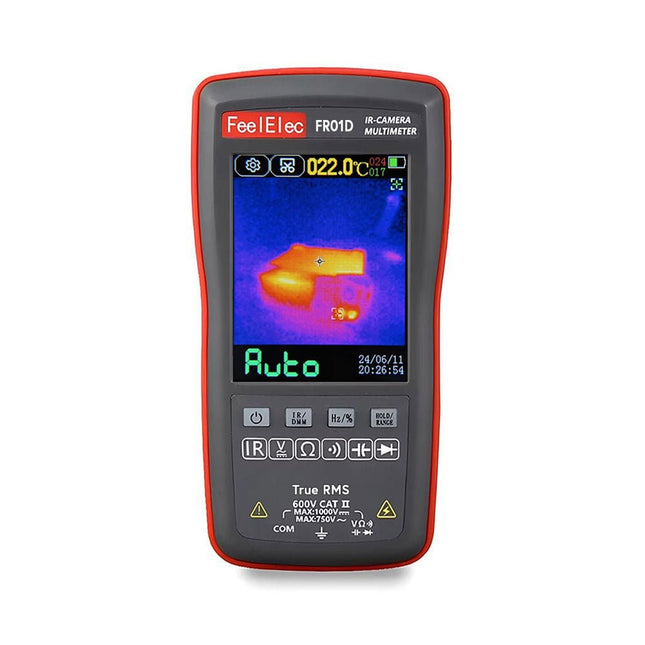

The FR01D (2-in-1) thermal imaging camera and multimeter is a compact and lightweight solution that simplifies diagnostic and maintenance tasks. The one-click function allows you to switch effortlessly between thermal imaging and multimeter mode, giving you two important tools in one portable device. The multimeter is capable of measuring DC and AC voltage, resistance, diode checks, continuity testing, and capacitance. The FR01D has a 2.8-inch touchscreen with a resolution of 320 x 480 pixels. The device is powered by an integrated rechargeable lithium battery and can be charged via USB. With the FR01D, you can inspect and maintain circuit boards, check power supplies, repair electronic devices, and overhaul household appliances. Its compact size, multifunctionality, and user-friendliness make the FR01D the ideal companion for electronics and maintenance technicians. General Specifications Display size 2.8" (320 x 480) Touchscreen Resistive Data transmission USB-C Image storage format BMP Battery Li-ion battery Storage temperature −20°C～60°C（−4°F～140°F) Operating temperature 0°C～50°C（32°F～122°F) Operating humidity <85% RH Dimensions 134 x 69 x 25 mm Weight 130 g Thermal Imaging Specifications Sensor Vanadium oxide (VOx) Image capture frequency 25 Hz Thermal imaging pixels 192 x 192 Field of View (FOV) 50.0°(H) x 50°(V) / 72.1°(D) Temperature range −20°C ~ +550°C (−4°F～1022°F) Gain mode Auto Accuracy ±2°C or ±2% Measurement resolution 0.1°C / 0.1°F Multimeter Specifications DC input voltage (max.) 1000 V AC input voltage (max.) 750 V Resistance (max.) 99.99 MΩ Capacitance (max.) 99.99 mF Duty cycle test range 0.1% ~ 99.9% Diode test range 0 V ~ 3 V Continuity test 999.9 Ω Display 9999 counts (Refreshes 3x per second) Accuracy Function Range Resolution Accuracy AC Voltage 400 mV 0.1 mV 2% +3 9.999 V 0.001 V 1.0% +3 99.99 V 0.01 V 999.9 V 0.1V DC Voltage 400 mV 0.1 mV 2% +3 9.999 V 0.001 V 1.0% +3 99.99 V 0.01 V 999.9 V 0.1 V Resistance 999.9 Ω 0.1 Ω 0.5% +3 9.999 KΩ 0.001 kΩ 99.99 KΩ 0.01 kΩ 999.9 KΩ 0.1 kΩ 9.999 MΩ 0.001 MΩ 99.99 MΩ 0.01 MΩ 1.5% +3 Diode Test 3.000 V 0.001 V 10% Capacitance 9.999 nF 0.001 nF 2% +5 99.99 nF 0.01 nF 999.9 nF 0.1 nF 9.999 uF 0.001 uF 99.99 uF 0.01 uF 999.9 uF 0.1 uF 9.999 mF 0.001 mF 5% +5 99.99 mF 0.01 mF Included 1x FR01D IR-Camera and Multimeter 2x Test Leads 1x USB Cable 1x Manual

Read more less

The BSIDE U0 digital clamp meter multimeter is a versatile tool designed for measuring AC current, AC/DC voltage, and resistance with high accuracy. Equipped with features like an on/off buzzer, alarm alert, automatic shutdown, and V-alert detection, it ensures user safety and ease of operation. Compact, precise, and user-friendly, it’s an ideal troubleshooting tool for quickly and safely addressing electrical issues in vehicles, industrial settings, and home environments. This multimeter is widely used across various fields, including electric power, telecommunications, railways, construction, oil and gas, metering, scientific research, education, as well as industrial and mining enterprises. Specifications Function Range Accuracy DC Voltage 0.800~610 V ±(0.8%+3) AC Voltage 0.800~610 V ±(1.0%+3) AC Current 1~100 A ±(2.5%+5) DC Current 1~100 A ±(2.5%+5) Resistance 5~40 MΩ ±(1.2%+3) Display 4000 Counts Battery Built-in 3.7 V 4000 mAh Lithium battery Automatic Shutdown After 15 minutes of inactivity LED Light Yes Dimensions 192 x 36 x 30 mm Weight 100 g Included 1x BSIDE U0 Clamp Meter 2x Test leads 1x USB cable 1x Manual
