Description

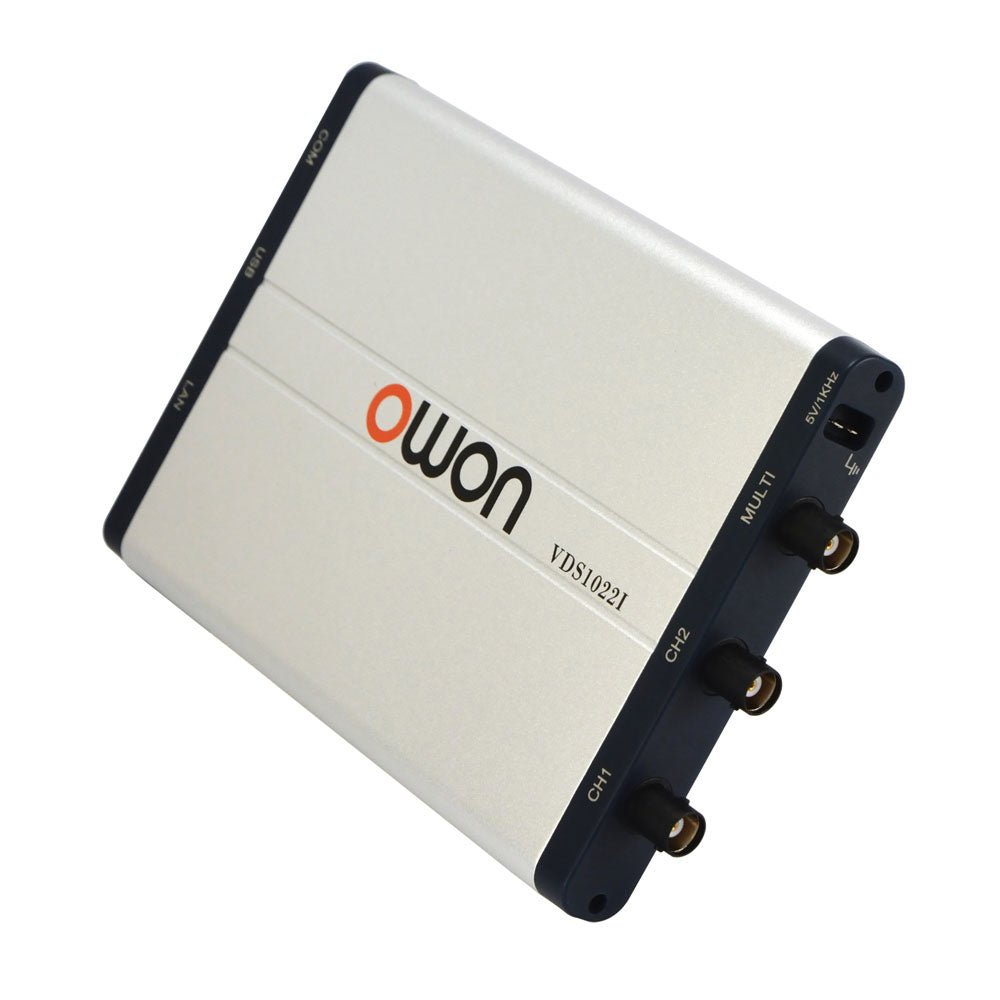

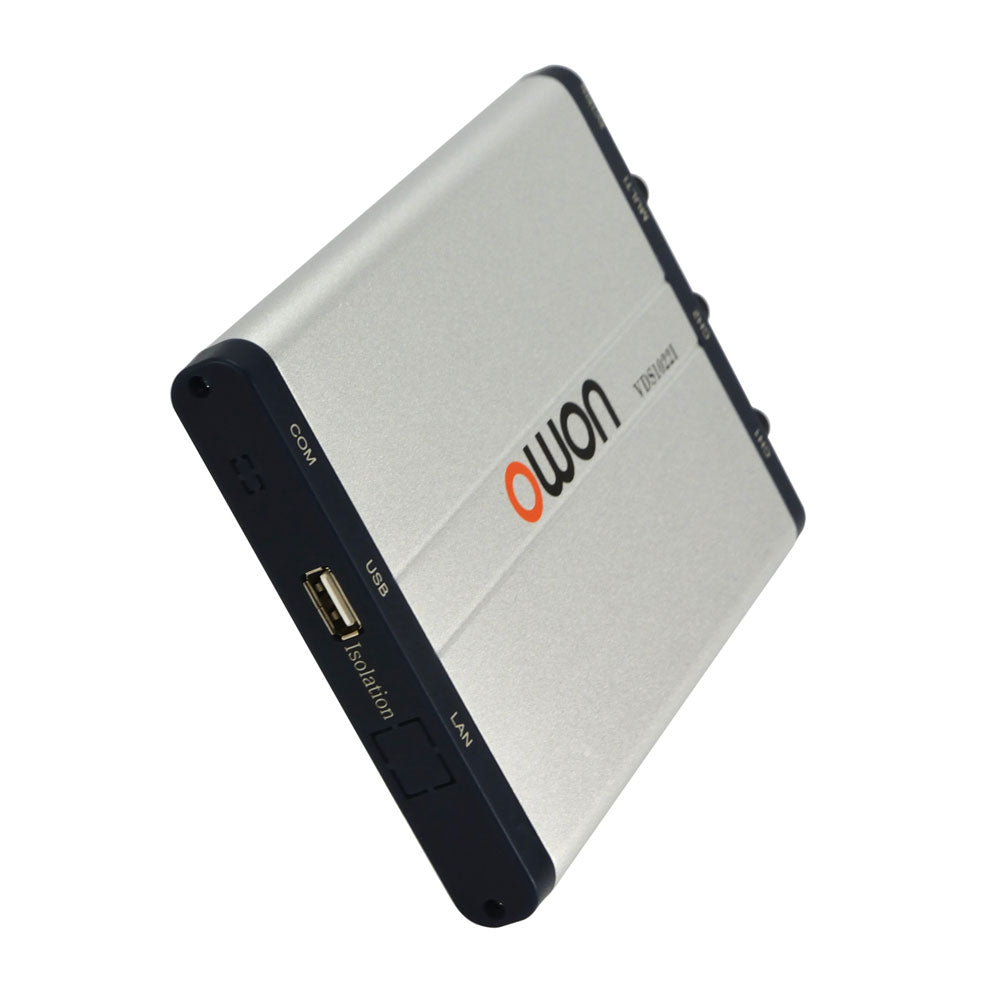

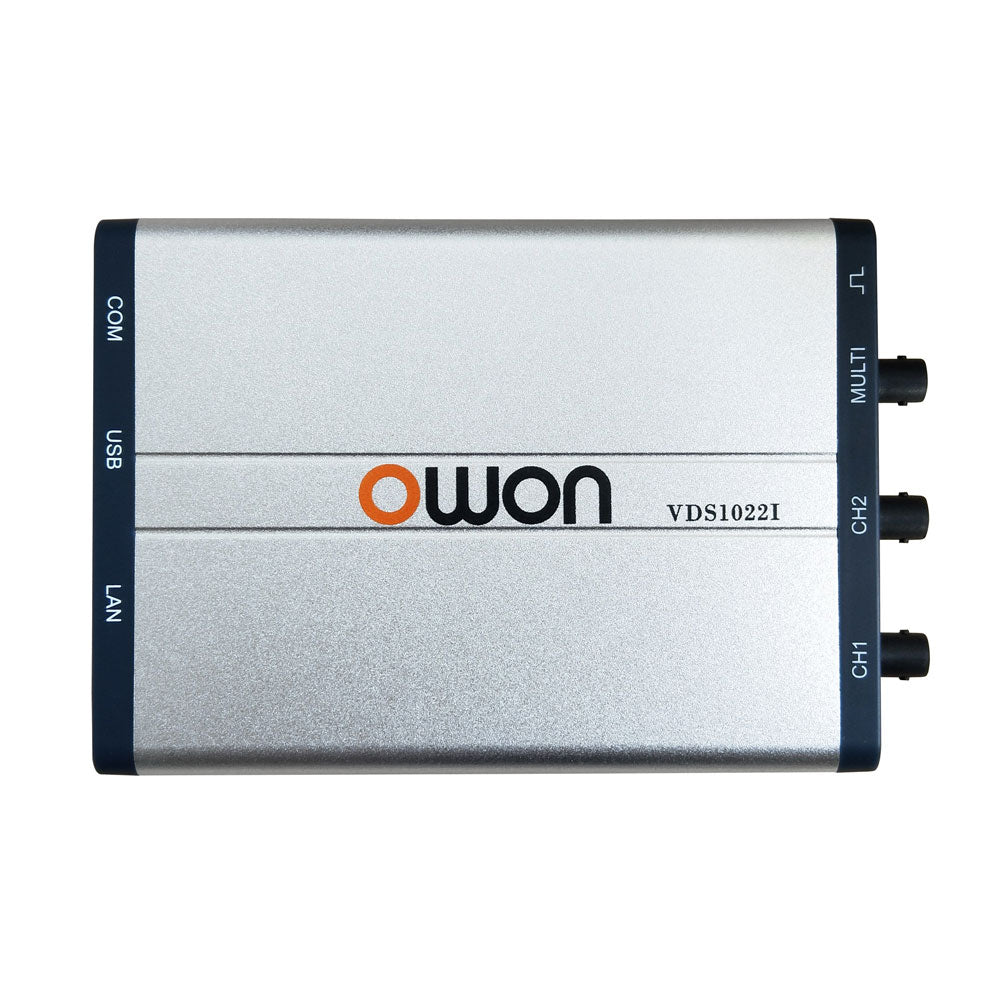

OWON VDS1022I 2-channel USB oscilloscope (25 MHz) is a oscilloscope for use with a computer. It is powered by USB and has a small size, making it easy to take it with you. The oscilloscope is very economical. It has a shielded USB connection, reducing interference and protecting the computer against over-voltage. The multi port on the scope can be used for external triggering, trigger out or Pass / Fail output.
Features
- 25 MHz bandwidth, and max 1 GS/s real-time sample rate
- 10M record length
- Friendly UI: FFT, or X-Y, and waveform 2 views displayed on the same screen
- Multi-trigger option: edge, video, slope, pulse, and alternate
- USB isolation – less signal inference, more PC protection
- USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability
Specifications
| Bandwidth | 25 MHz |
| Channel | 2+1 (multi) |
| Sample Rate | 100 MSa/s |
| Horizontal Scale (s/div) | 5 ns/div～100s/div, step by 1～2～5 |
| Record Length | 5K |
| Max Input Voltage | 400 V (PK - PK) |
| (DC+AC, PK - PK) | 40 V (PK - PK) (DC+AC, PK - PK) |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
| Model | VDS1022I |
| Vertical Sensitivity | 5 mV/div～5 V/div |
| Trigger Type | Edge, Pulse, Video, Slope, and Alternate |
| Trigger Mode | Auto, Normal, and Single |
| Acquisition Mode | Sample, Peak Detect, and Average |
| Waveform Math | ＋, －, ×, ÷, invert, FFT |
| Communication Interface | USB 2.0 (isolation) |
| Multi-function | |
| Interface | Signal Type |
| Level Standard | TTL |
| Power Supply | 5.0 V/1 A |
| Power Consumption | ≤2.5 W |
| Dimensions (W × H × D) | 170 x 120 x 18 mm |
| Weight | 0.26 kg |
Included
- 1x OWON VDS1022I oscilloscope
- 1x CD-ROM
- 1x Quick start guide
- 2x Oscilloscope probe
- 1x Probe tool
- 1x Power adapter
- 1x USB cable
- 1x Silicone case protectors
- 1x Power cable
