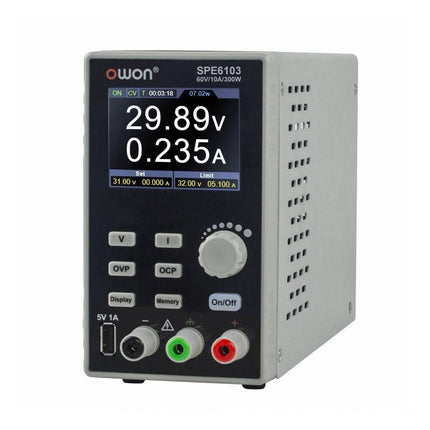

OWON SPE6103 DC Power Supply (300 W)

BrandOWON

Description

The OWON SPE6103 is a 1-channel DC power supply (300 W) in a small body with features like over voltage and over current protection. It has a high resolution of 10 mV/1 mA. The 2.8" LCD displays the following information (constant voltage output, constant current output, cumulative running time, actual output power, channel output status, actual voltage output, actual current output).

Features

Small body for easy carry
High resolution: 10 mV/1 mA
List waveform editing output, editable 10 groups of timing output function
Low ripple/noise
Over voltage / over current protection
Output voltage and current curve monitoring function
Intelligent temperature control fan cooling
2.8-inch TFT LCD display
USB communication interface, support SCPI

Specifications

Model		SPE6102	SPE6103
Rated Output (0-40°C)	Voltage	0-60 V	0-60 V
	Current	10 A	10 A
	Output Power	200 W	300 W
USB Output		5 V/1 A (SPE Series) or suppout QC2.0, QC3.0, BC1.2, Apple, Huawei, Samsung fast charging protocols (optional)
Load Regulation	Voltage	≤30 mV
Load Regulation	Current	≤20 mA
Power Regulation	Voltage	≤30 mV
Power Regulation	Current	≤20 mA
Setting Resolution	Voltage	10 mV
Setting Resolution	Current	1 mA
Readback Resolution	Voltage	10 mV
Readback Resolution	Current	1 mA
Value Resolution (within 12 months) (25 ±5°C)	Voltage	≤0.1% ±30 mV	≤0.1% ±30 mV
Value Resolution (within 12 months) (25 ±5°C)	Current	≤0.05% ±10 mA
Readback Value Resolution (25 ±5°C)	Voltage	≤0.1% ±30 mV	≤0.1% ±30 mV
Readback Value Resolution (25 ±5°C)	Current
Ripple/Noise	Voltage (Vp-p)	≤50mVp-p	≤50mVp-p
	Voltage (rms)	≤5mVrms	≤5mVrms
	Current (rms)	≤30mAp-p
Output temperature coefficient (0-40°C)	Voltage	100ppm/°C
Output temperature coefficient (0-40°C)	Current	200ppm/°C
Readback temperature coefficient	Voltage	100ppm/°C
Readback temperature coefficient	Current	200ppm/°C
Response Time (50-100% rated load)		≤1.0ms
Storage		4 groups of data
Working Temperature		0-40°C

Included

1x OWON SPE6102
1x Power Cord
1x Quick Guide
1x USB Cable
1x Fuse
