Description

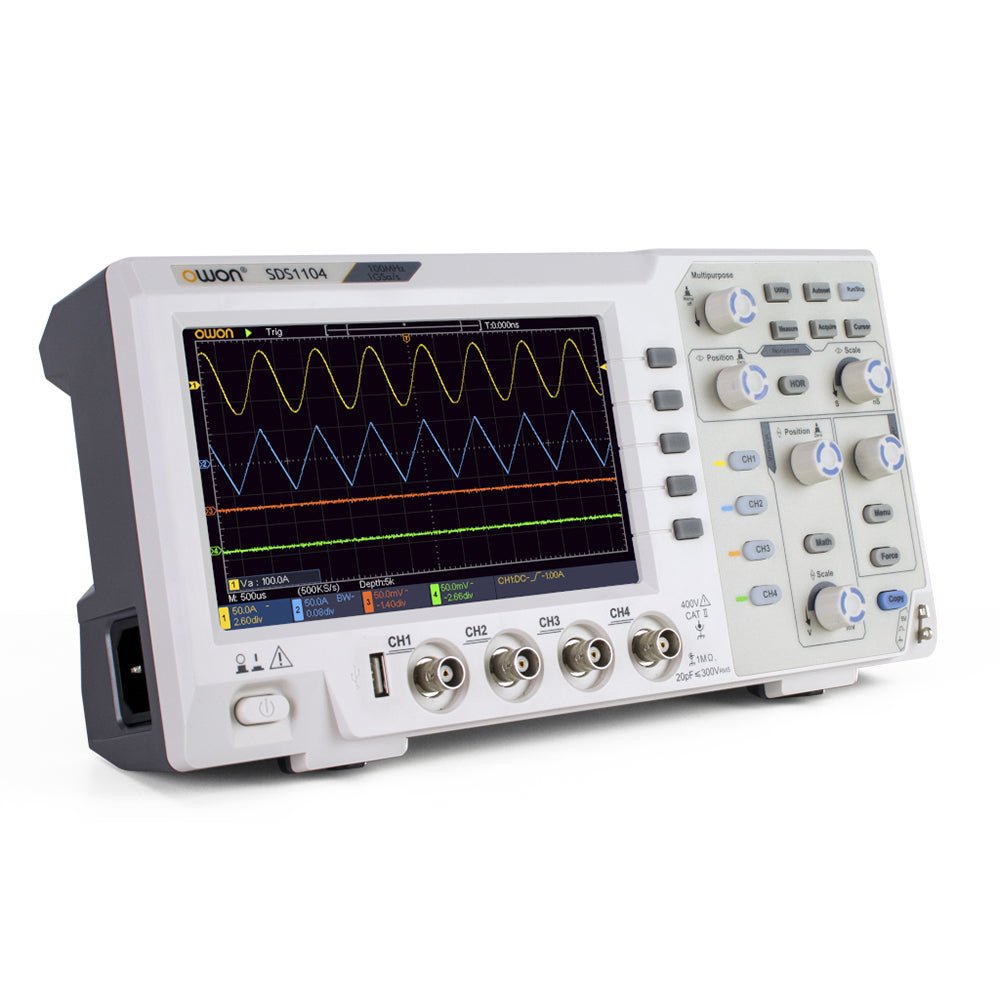

The OWON SDS1104 oscilloscope is a practical choice for engineers, technicians, students, and hobbyists who need accurate signal analysis without the cost of high-end instruments. With its 100 MHz bandwidth and 1 GSa/s sampling rate, it reliably captures low- to mid-frequency signals, making it well suited for electronics development, troubleshooting, and educational use.
Equipped with a 7-inch color TFT display, the SDS1104 provides clear waveform visualization, while automatic measurement functions and FFT analysis help users quickly evaluate frequency, voltage, and timing parameters. Advanced math operations, cursor measurements, and multiple trigger modes add further flexibility, making the oscilloscope a versatile tool for a wide range of testing scenarios.
Specifications
| Bandwidth |
100 MHz |
| Sample Rate |
1 GS/s |
| Horizontal Scale (s/div) |
5ns/div - 1000s/div, step by 1 - 2 - 5 |
| Channel |
4 |
| Display |
7" color LCD, 800 x 480 pixels |
| Input Coupling |
DC, AC and GND |
| Vertical Resolution (A/D) |
Vertical Resolution (A/D) |
| Vertical Sensitivity |
5mV/div - 5V/div (at input) |
| Trigger Type |
Edge, Video |
| Trigger Mode |
Auto, Normal and Single |
| Waveform Math |
＋, －, x, ÷, invert, FFT |
| Fuse |
2A, T class, 250 V |
| Dimension (W x H x D) |
301 x 152 x 70 mm |
| Weight |
1.1 kg |
Included
- 1x OWON SDS1104 Oscilloscope
- 1x Mains power cord
- 1x CD Rom
- 1x Quickstart Guide
- 1x USB Cable
- 4x Oscilloscope probe
- 1x Probe Adjust
