Miniware MDP-M01 Smart Digital Monitor

  • BrandMiniware

Description

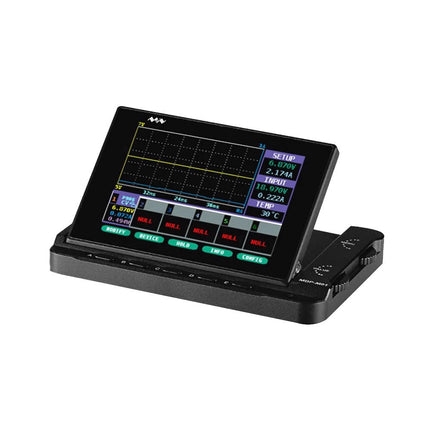

MDP-M01 is a display control module equipped with a 2.8-inch TFT display screen, the screen can be turned 90 degrees, which is convenient for users to view data and waveform. MDP-M01 can realize online display and control with MDP-P906 mini digital power supply modules and other modules of MDP system through 2.4 GHz wireless communication, and can control up to 6 sub-modules at the same time.

Specifications

Screen size 2.8' TFT
Screen resolution 240 x 320
Power Micro USB power input, or taking power from sub-module via dedicated power cable
Input DC 5 V/0.3 A
Other functions Can control up to 6 sub-modules
Upgrade formware through Micro USB
Dimensions 107 x 66 x 13.6 mm
Weight 133 g

Included

  • 1x MDP-M01 Smart Digital Monitor
  • 1x Cable (2.5 mm jack to Micro USB)

Downloads

Product form

MDP-M01 is a display control module equipped with a 2.8-inch TFT display screen, the screen can be turned 90 degrees,... Read more

€ 84,95€ 64,95 incl. VAT
Members identical

      Details

      SKU: 20454
      EAN: 020454

      Description

      MDP-M01 is a display control module equipped with a 2.8-inch TFT display screen, the screen can be turned 90 degrees, which is convenient for users to view data and waveform. MDP-M01 can realize online display and control with MDP-P906 mini digital power supply modules and other modules of MDP system through 2.4 GHz wireless communication, and can control up to 6 sub-modules at the same time.

      Specifications

      Screen size 2.8' TFT
      Screen resolution 240 x 320
      Power Micro USB power input, or taking power from sub-module via dedicated power cable
      Input DC 5 V/0.3 A
      Other functions Can control up to 6 sub-modules
      Upgrade formware through Micro USB
      Dimensions 107 x 66 x 13.6 mm
      Weight 133 g

      Included

      • 1x MDP-M01 Smart Digital Monitor
      • 1x Cable (2.5 mm jack to Micro USB)

      Downloads
