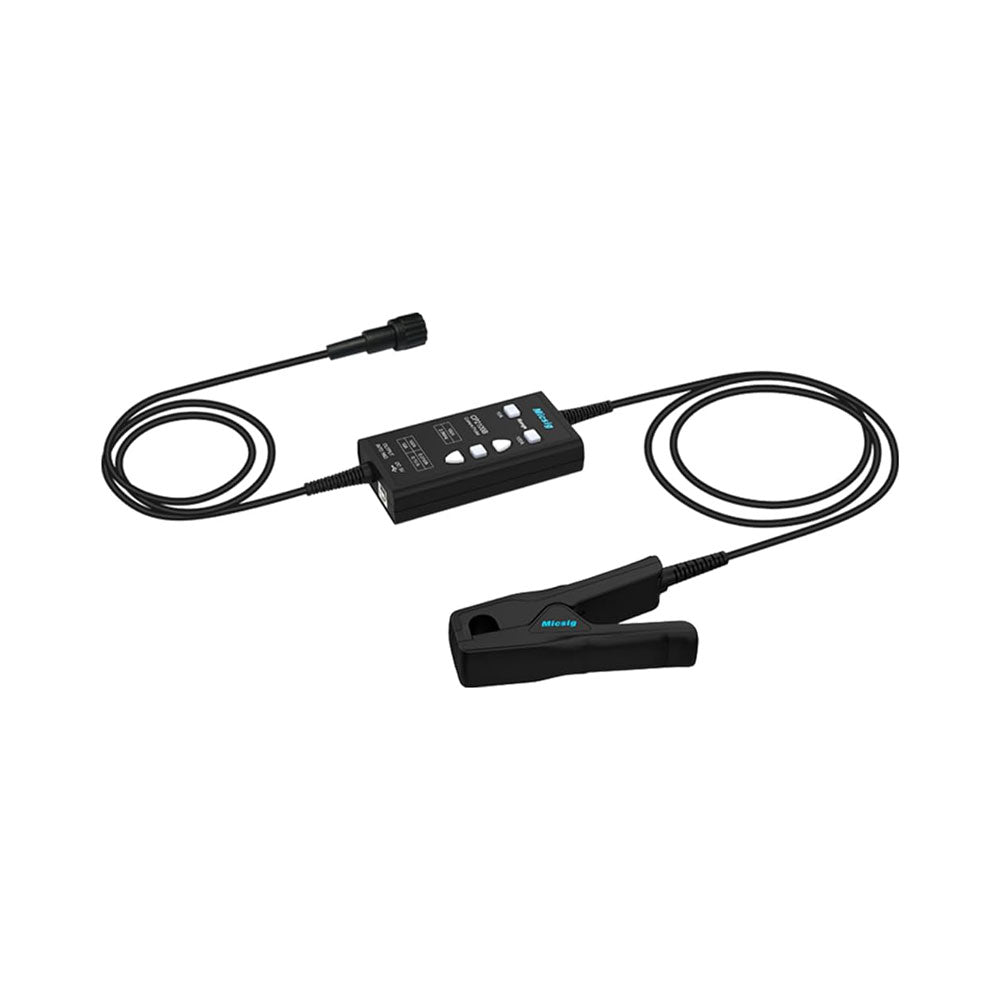

Micsig CP2100A AC/DC Current Probe

BrandMicsig

Product form

Features Bandwidth: DC-800 KHz Maximum measurable current: 100 Apk (70.7 Arms) Max. conductor diameter: 13 mm Auto & Manual "Zero"... Read more

€ 309,76 (incl. VAT)

Order Now (at Eleshop)

By clicking on "Order Now", you will be redirected to our partner store, Eleshop. Elektor may earn a commission if you buy through this link. There are no additional costs for you. The terms & conditions of Eleshop apply to your purchase.

Details

SKU: 19352

EAN: 019352

Bandwidth	DC-800 KHz
Rise time	<= 583 ns
Ranges	10 A / 100 A
Output sensitivity	0.1 V/A (10 A) 0.01 V/A (100 A)
DC accuracy	3% ±50 mA (10 A) 4% ±50 mA (100 A, 500 mA - 40 Apk) 15% (100 A, 40 Apk -100 Apk)
Signal delay	< 150 ns (10 A) < 200ns (100 A)
Current measurement range	50 mA - 10 Apk (10 A) 1 A - 100 Apk (100 A)
Max. Voltage	CAT III 300 V CAT II 600 V
Power supply	DC 5 V

Bandwidth	DC-800 KHz
Rise time	<= 583 ns
Ranges	10 A / 100 A
Output sensitivity	0.1 V/A (10 A) 0.01 V/A (100 A)
DC accuracy	3% ±50 mA (10 A) 4% ±50 mA (100 A, 500 mA - 40 Apk) 15% (100 A, 40 Apk -100 Apk)
Signal delay	< 150 ns (10 A) < 200ns (100 A)
Current measurement range	50 mA - 10 Apk (10 A) 1 A - 100 Apk (100 A)
Max. Voltage	CAT III 300 V CAT II 600 V
Power supply	DC 5 V
