Description

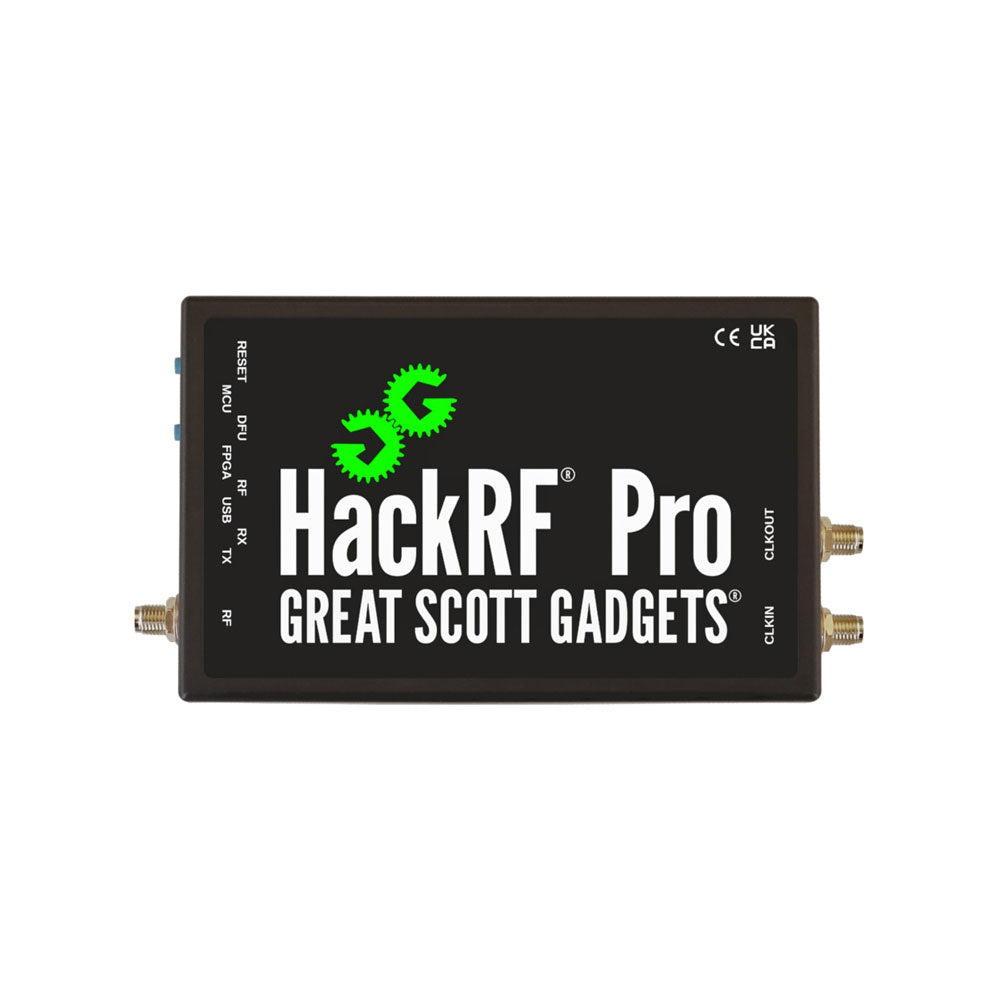

HackRF Pro is latest Software Defined Radio (SDR) from Great Scott Gadgets and the powerful successor to the legendary HackRF One. With a frequency range from 100 kHz to 6 GHz, it covers an enormous spectrum for transmitting and receiving radio signals.
Designed as an open-source hardware platform, the HackRF Pro is the ideal tool for analyzing and developing modern wireless technologies. It can be used flexibly as a USB peripheral or programmed for standalone operation.
Specifications
- Frequency: 100 kHz to 6 GHz
- Adjustable from 0 Hz to 7.1 GHz
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- Compatible with GNU Radio, SDR#, and more
- Software-configurable RX and TX gain and baseband filter
- Software-controlled RF port power (50 mA at 3.3 V)
- SMA RF connector

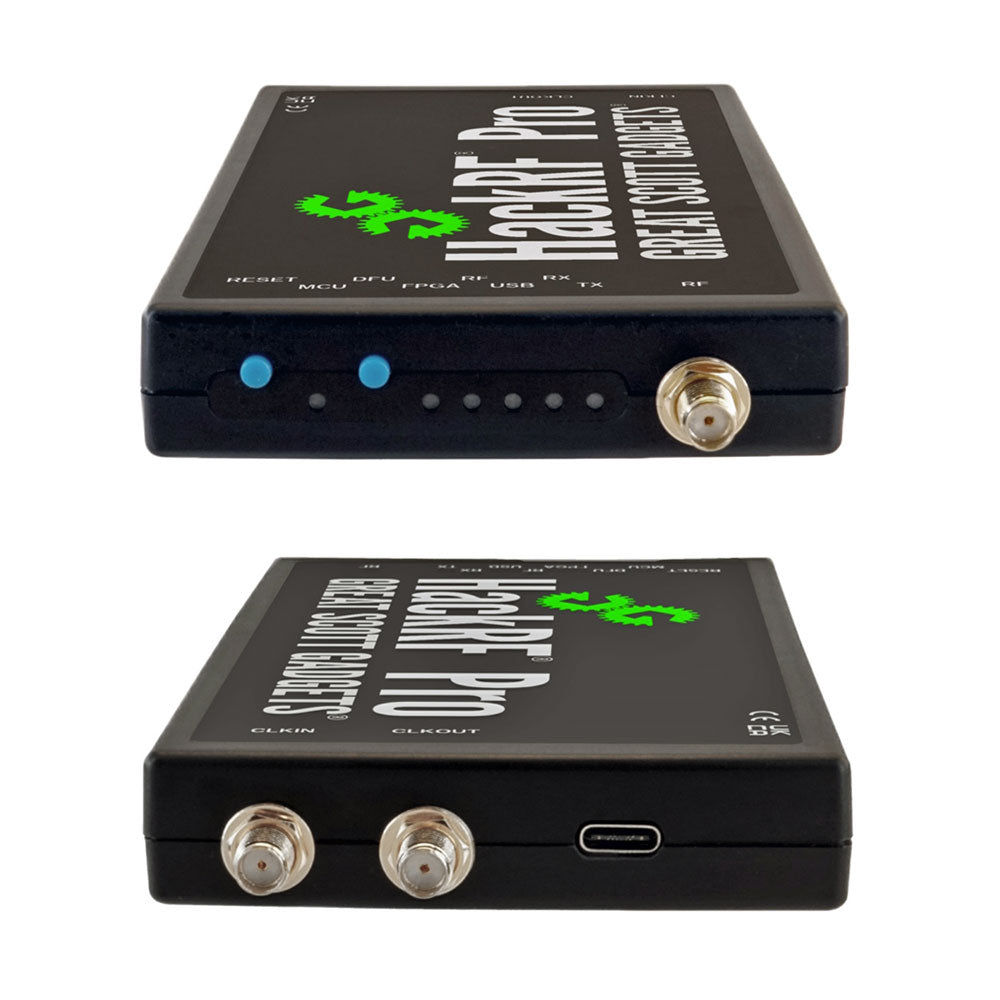

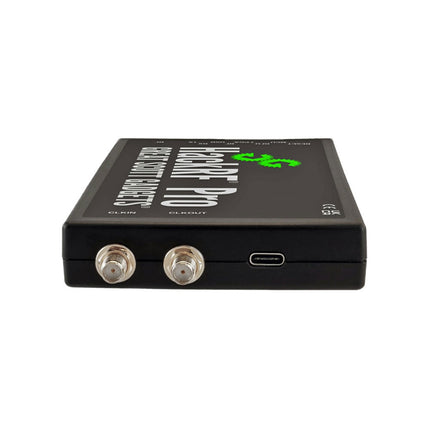

- SMA clock input and output for synchronization and triggering

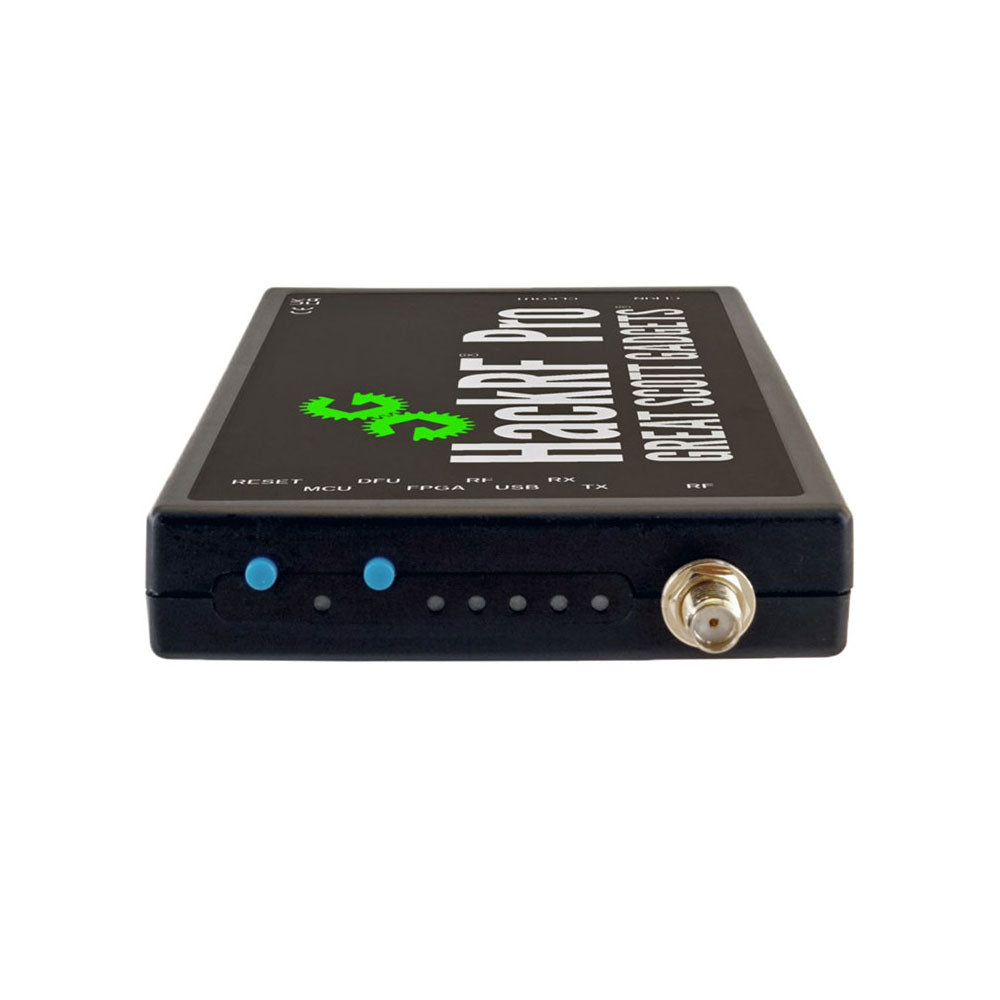

- Convenient buttons for programming
- Internal pin headers for expansion
- High-Speed USB 2.0 with USB-C connector
- USB-powered
- Open source hardware
Compared to its predecessor, HackRF Pro offers a variety of new features, including:
- Wider operating frequency range
- Improved RF performance with flatter frequency response
- USB-C connector
- Built-in TCXO crystal oscillator for superior timing stability
- Logic upgrade from a CPLD to a power-efficient FPGA
- Elimination of the DC spike
- Extended-precision mode with 16-bit samples for low sample rates (typical ENOB: 9-11)
- Half-precision mode with 4-bit samples at up to 40 Msps
- More RAM and flash memory for custom firmware
- Installed shielding around the radio section
- Trigger input and output accessible through clock connectors
- Cutout in the PCB provides space for future add-ons
- Improved power management
- Enhanced RF port protection
- Facility to hardware-disable transmit mode
Full Compatibility: Thanks to its proven architecture, existing software for the HackRF One can also be used directly with the HackRF Pro. The HackRF Pro offers seamless backward compatibility while significantly increasing performance.
Note: An antenna is not included. We recommend the ANT500 for the best experience.
Included

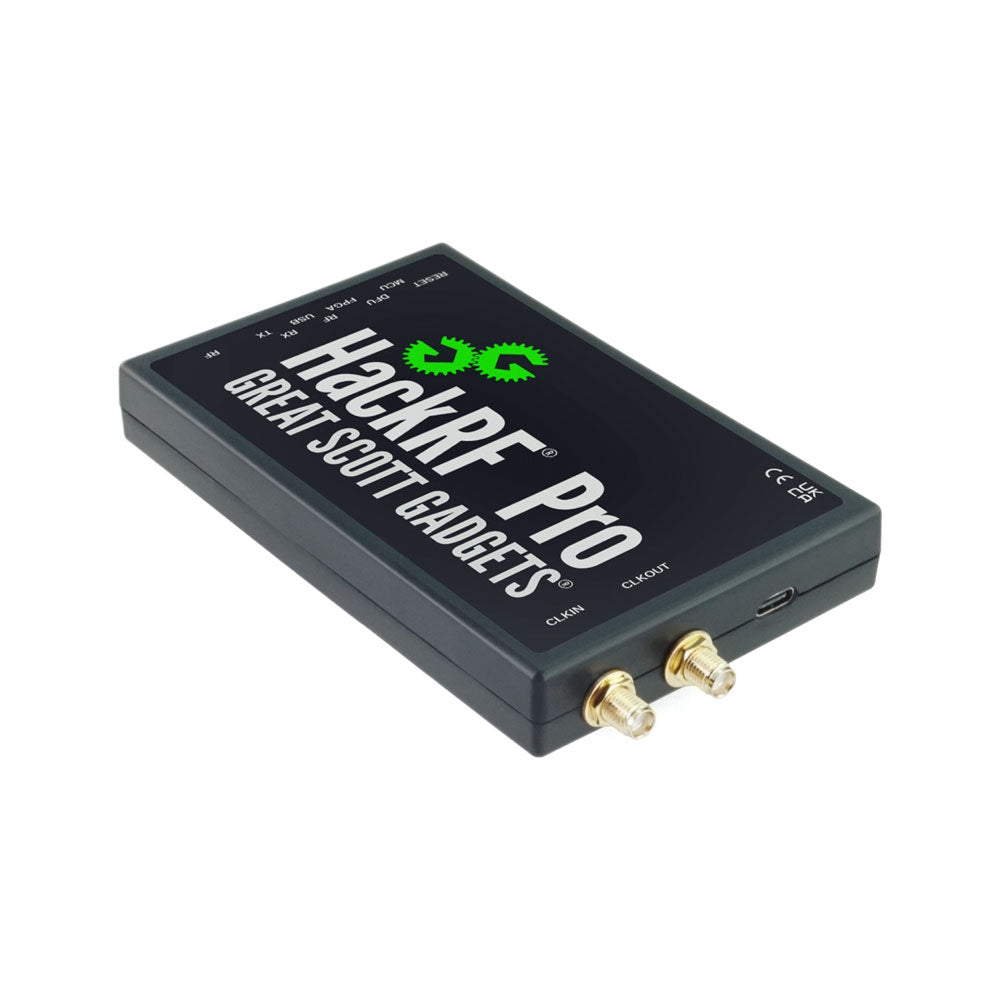

- HackRF Pro SDR with plastic enclosure
