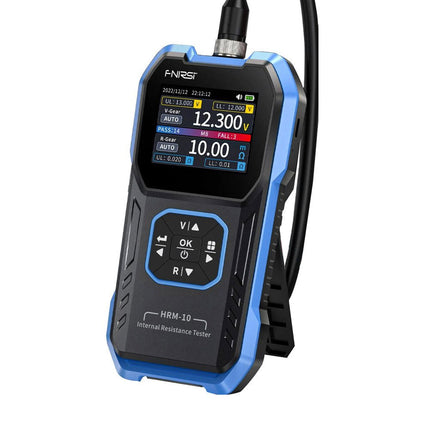

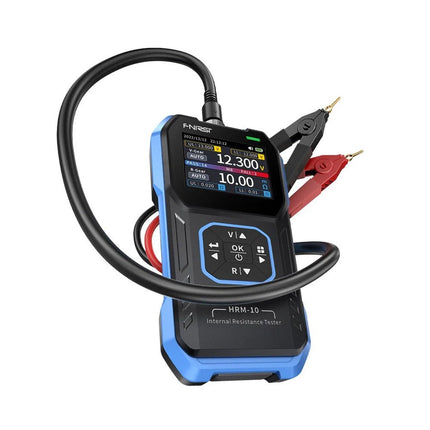

FNIRSI HRM-10 Battery Internal Resistance & Voltage Tester

Description

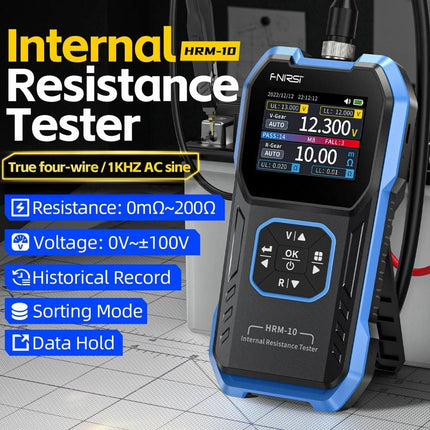

The FNIRSI HRM-10 is a portable, high-precision battery internal resistance and voltage tester. This device offers true four-wire measurement and is designed for both accuracy and ease of use. It automatically measures internal resistance and voltage values simultaneously, displaying the results on its HD color screen. Users have the option to manually adjust voltage and resistance ranges to suit their needs. The device also includes a sorting mode that automatically filters the good and bad batteries based on user-set thresholds. Additionally, it supports the storage of historical data and allows for exporting measurement records in table format.

Features

  • High Measurement Accuracy
  • Tabular Data Export
  • Auto-Evaluate Measurement Results
  • 8 Threshold Settings
  • HD Color Screen
  • Folding Stand
  • 1000 mAh Lithium Battery

Specifications

Voltage Resistance
Measuring range 0-100 V (DC) 0-200 Ω
Accuracy ±0.5% ±0.5%
Gear Automatic, 1 V, 10 V, 100 V Automatic, 20 mΩ, 200 mΩ, 2 Ω, 20 Ω, 200 Ω
Instrument test signal frequency 1 Khz (AC)
Rechargeable USB-C (5 V/1 A)
Built-in battery 1000 mAh lithium battery
User calibration Yes
Sorting mode Yes
History record Yes
Recorded data export Yes
Working environment –10°C to +45°C, relative humidity <80%
Storage environment –20°C to +80°C, relative humidity <80%
Dimensions 158.7 x 80.5 x 28.4 mm
Weight 225 g

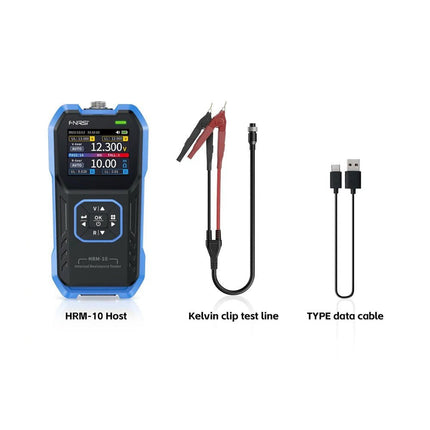

Included

  • 1x FNIRSI HRM-10 Internal Resistance Tester
  • 1x Clip Test Line
  • 1x USB-C data cable
  • 1x Manual

Downloads

Product form

The FNIRSI HRM-10 is a portable, high-precision battery internal resistance and voltage tester. This device offers true four-wire measurement and... Read more

€ 49,95 (incl. VAT)
Order Now (at Eleshop)
By clicking on "Order Now", you will be redirected to our partner store, Eleshop. Elektor may earn a commission if you buy through this link. There are no additional costs for you. The terms & conditions of Eleshop apply to your purchase.

    Details

    SKU: 20947
    EAN: 020947

    Description

    The FNIRSI HRM-10 is a portable, high-precision battery internal resistance and voltage tester. This device offers true four-wire measurement and is designed for both accuracy and ease of use. It automatically measures internal resistance and voltage values simultaneously, displaying the results on its HD color screen. Users have the option to manually adjust voltage and resistance ranges to suit their needs. The device also includes a sorting mode that automatically filters the good and bad batteries based on user-set thresholds. Additionally, it supports the storage of historical data and allows for exporting measurement records in table format.

    Features

    • High Measurement Accuracy
    • Tabular Data Export
    • Auto-Evaluate Measurement Results
    • 8 Threshold Settings
    • HD Color Screen
    • Folding Stand
    • 1000 mAh Lithium Battery

    Specifications

    Voltage Resistance
    Measuring range 0-100 V (DC) 0-200 Ω
    Accuracy ±0.5% ±0.5%
    Gear Automatic, 1 V, 10 V, 100 V Automatic, 20 mΩ, 200 mΩ, 2 Ω, 20 Ω, 200 Ω
    Instrument test signal frequency 1 Khz (AC)
    Rechargeable USB-C (5 V/1 A)
    Built-in battery 1000 mAh lithium battery
    User calibration Yes
    Sorting mode Yes
    History record Yes
    Recorded data export Yes
    Working environment –10°C to +45°C, relative humidity <80%
    Storage environment –20°C to +80°C, relative humidity <80%
    Dimensions 158.7 x 80.5 x 28.4 mm
    Weight 225 g

    Included

    • 1x FNIRSI HRM-10 Internal Resistance Tester
    • 1x Clip Test Line
    • 1x USB-C data cable
    • 1x Manual

    Downloads
