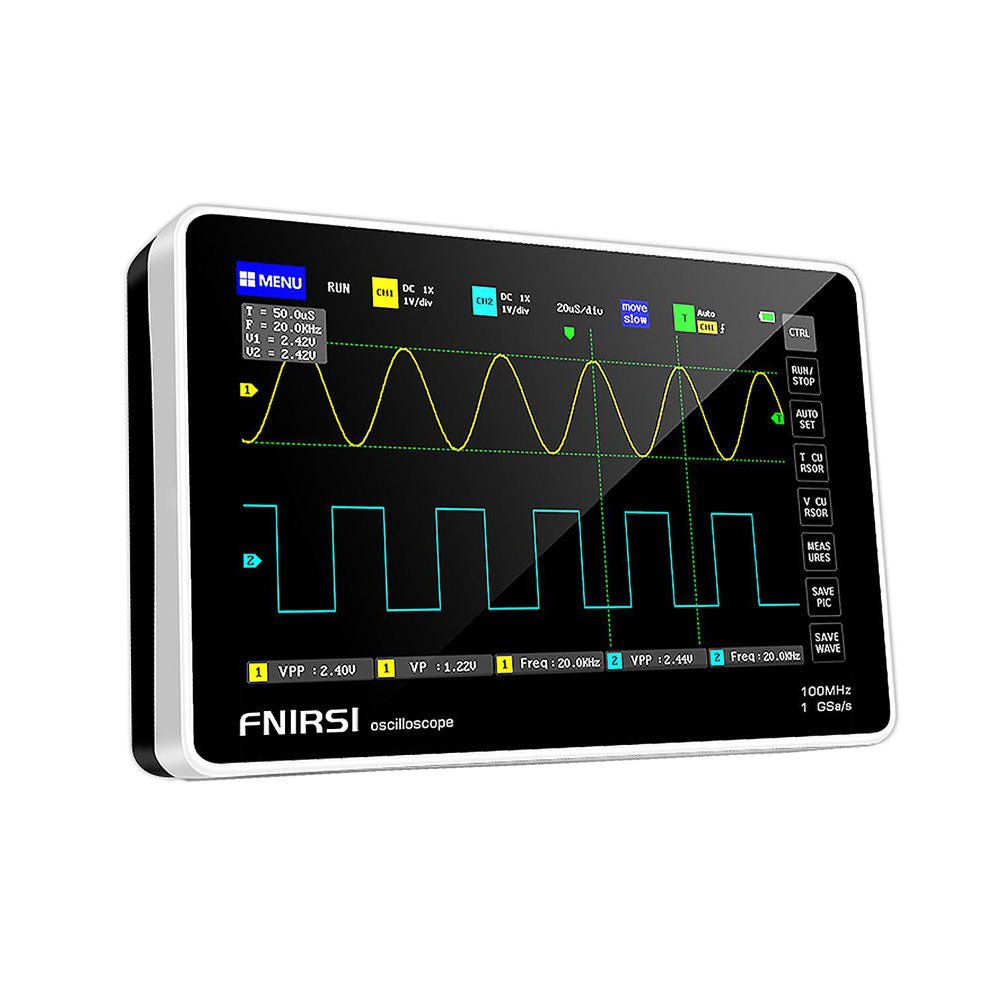

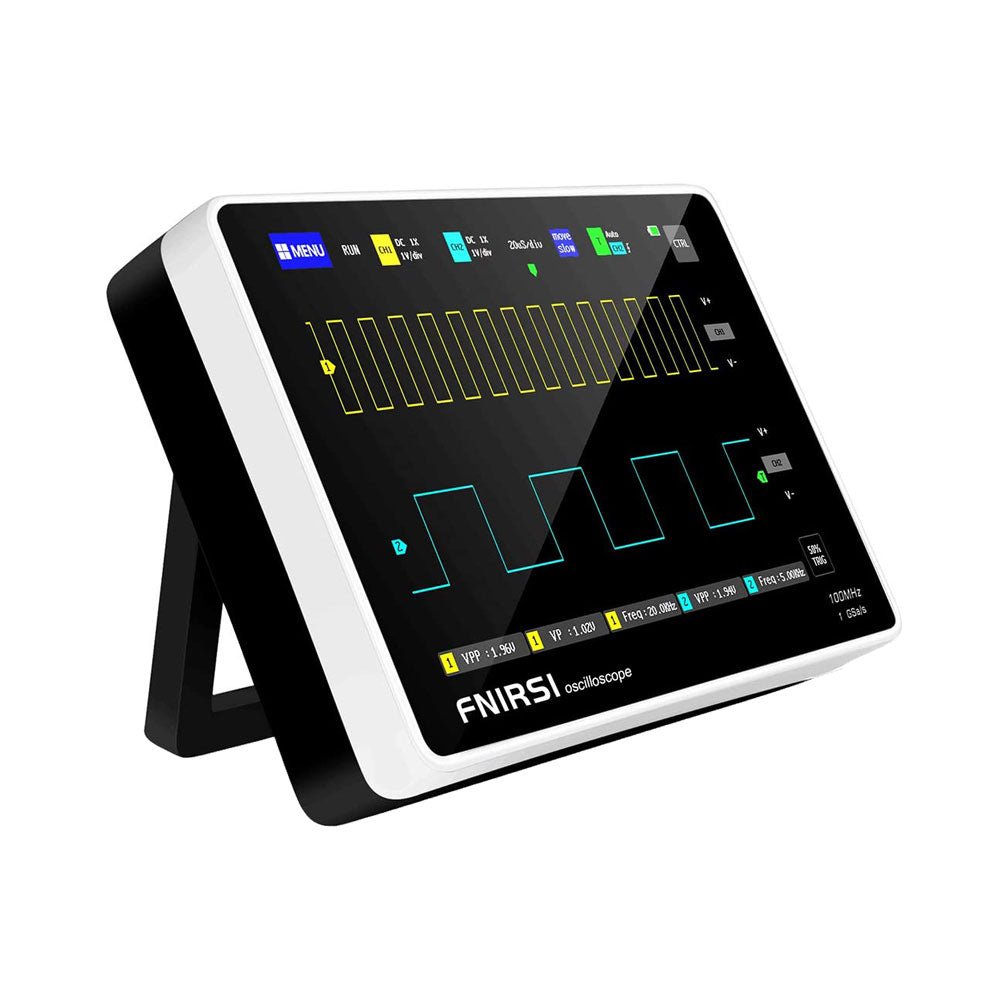

FNIRSI 1013D 2-ch Tablet Oscilloscope (100 MHz)

The FNIRSI 1013D is a fully featured 2-channel tablet oscilloscope with a high-resolution 7-inch LCD screen (800 x 480 pixels). The oscilloscope has a real-time sampling rate of 1 GSa/s and an analog bandwidth of 100 MHz.

With full trigger functions (single/normal/automatic), it can be used for periodic analog signals or non-periodic digital signals. The built-in high-voltage protection module can withstand a continuous voltage of up to 400 V.

Kenmerken

  • Intelligent anti-burn,1X can withstand up to 400 V withstand voltage.
  • 100 MHz analog bandwidth @ 1 GSa/s sampling rate (1X = 5 MHz,10X = 100 MHz).
  • Fully fit 7-inch 800 x 480 resolution color TFT LCD display with bright colors and high contrast.
  • Capacitive touching screen, the same as the touching mode of modern mobile tablet, is not a resistive touching screen with ancient nail operation.
  • High measurement voltage range, 1X can measure 0~40 V, 10X can measure 0~400 V,100X can measure 0~4000 V.
  • Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time−, Period.
  • Cursor measurement function, it is convenient to manually measure the period and frequency and voltage.

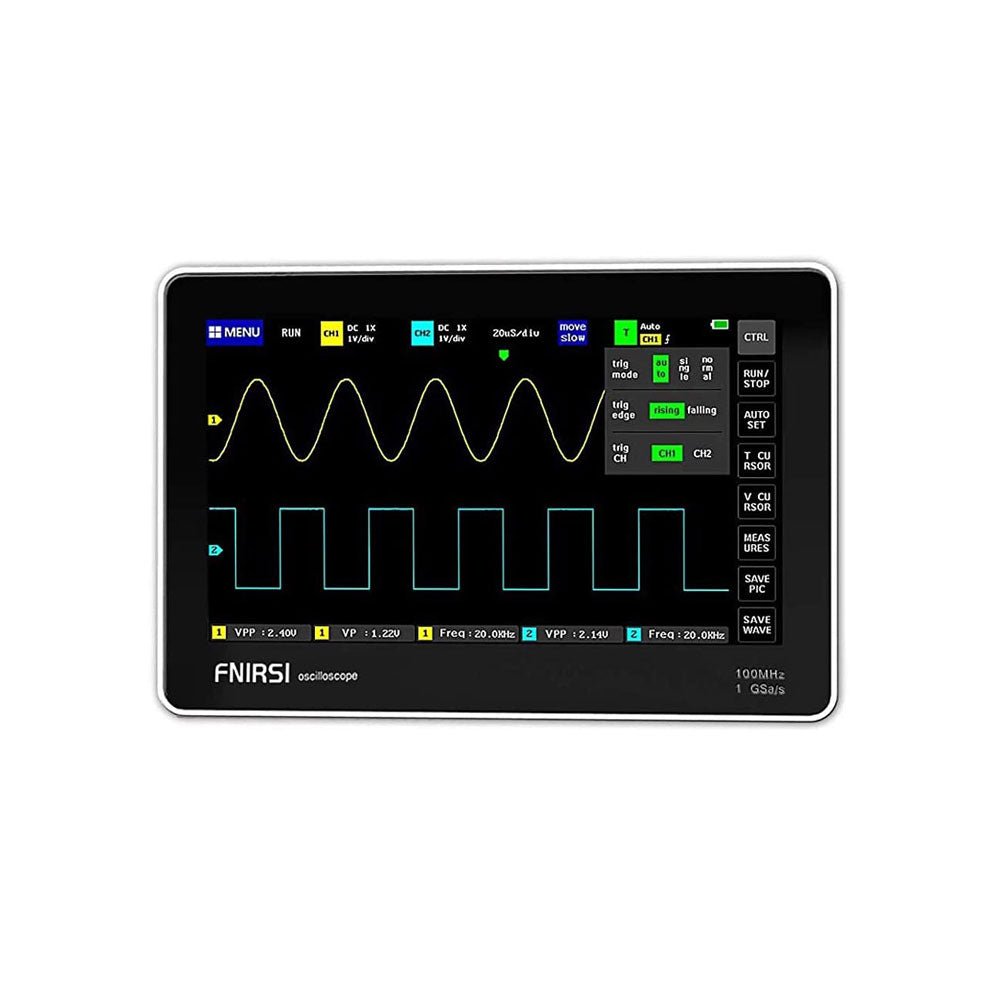

  • Complete triggering function (single, normal, automatic).
  • At any time, the waveform display (pause function) is frozen.
  • Equipped with high efficiency One-button AUTO.
  • One-button waveform storage and screenshot.
  • Built-in 1 GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
  • Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
  • Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis.
  • Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.
  • FFT display function, can analyze the spectral characteristics of the signal.
  • Built-in 6000 mAh rechargeable lithium battery, fully charged for 4 hours of continuous use at the highest screen brightness.
  • Memory compression technology, waveform refresh screen does not flicker.
  • Screen brightness adjustment.
  • Background grid brightness adjustment.

Toepassingen

  • Electronic DIY
  • Appliance repair
  • Car repair
  • Equipment debug
  • Scientific research
  • Product development

Specificaties

Channels 2
LCD size 7 inch
LCD resolution  800 x 480
Display technology TFT
Bandwidth 100 Mhz
Sampling rate 1 GSa/s
Rise time <3nS
Storage depth 240 Kbit
Input resistance 1 MΩ
Sensitivity 50 mV ~ 500 V
Time base 50S ~ 10nS
Trigger mode Single/Normal/Auto
Trigger edge Rising/Falling
Coupling AC/DC
Highest test voltage 1X: 40 V, 10X: 400 V
Cursor Position XY, Trigger Y
Roll mode Yes
One button AUTO Yes
Waveform storage 1000 pictures + 1000 waveforms
Waveform manager Yes
Voltage accuracy ±2%
Frequency precision ±0.01% high precision
Parameter 12 kinds in total
Battery 6000 mAh Lithium
Standby 4 hours
Extension USB export
Power supply USB-C, 5 V @ 2 A/3 A/4 A
Dimensions 184 x 124 x 50 mm
Weight 650 g

Inbegrepen

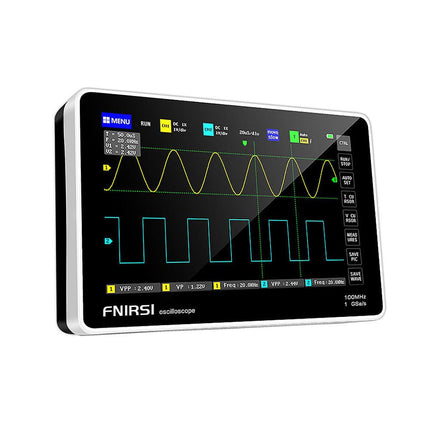

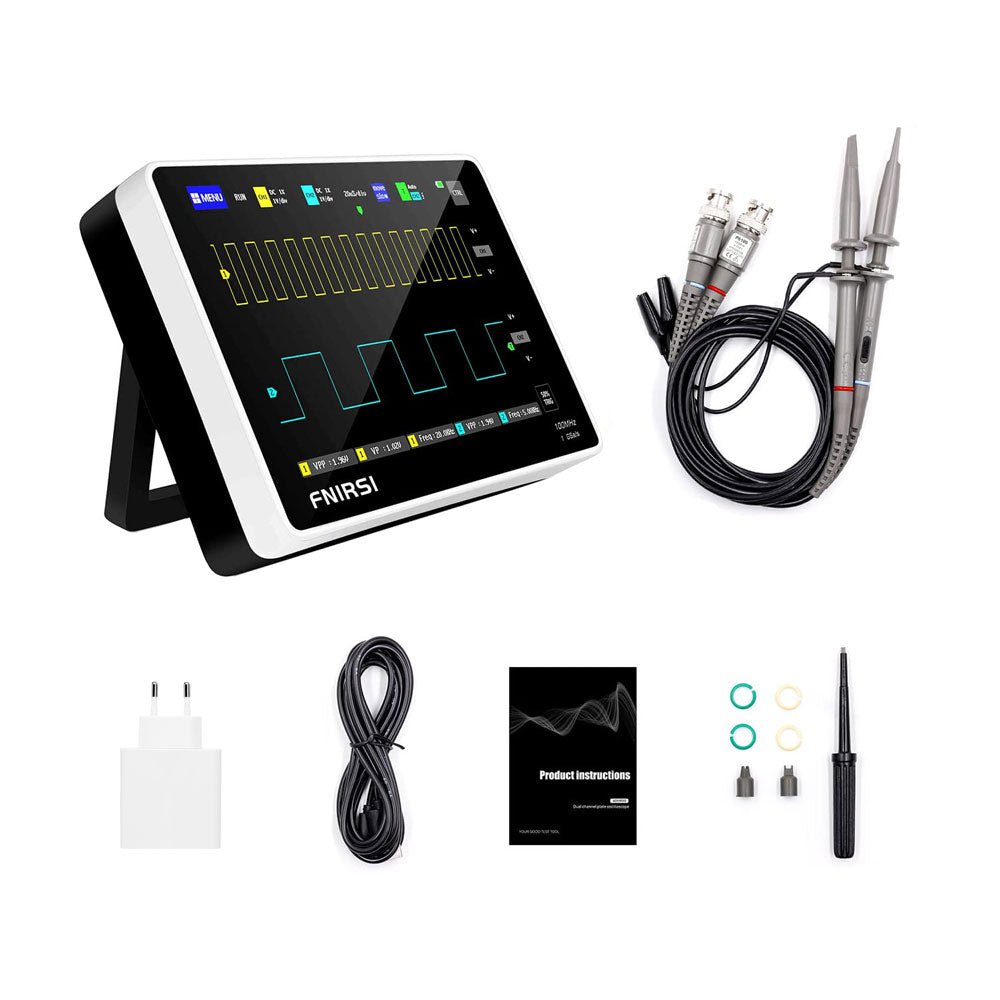

  • 1x FNIRSI 1013D 2-ch Tablet Oscilloscope
  • 2x 100 MHz Probes (1X and 10X)
  • 1x USB charger
  • 1x USB cable
  • 1x Manual
