Elektor Milliohmmeter Adapter

Description

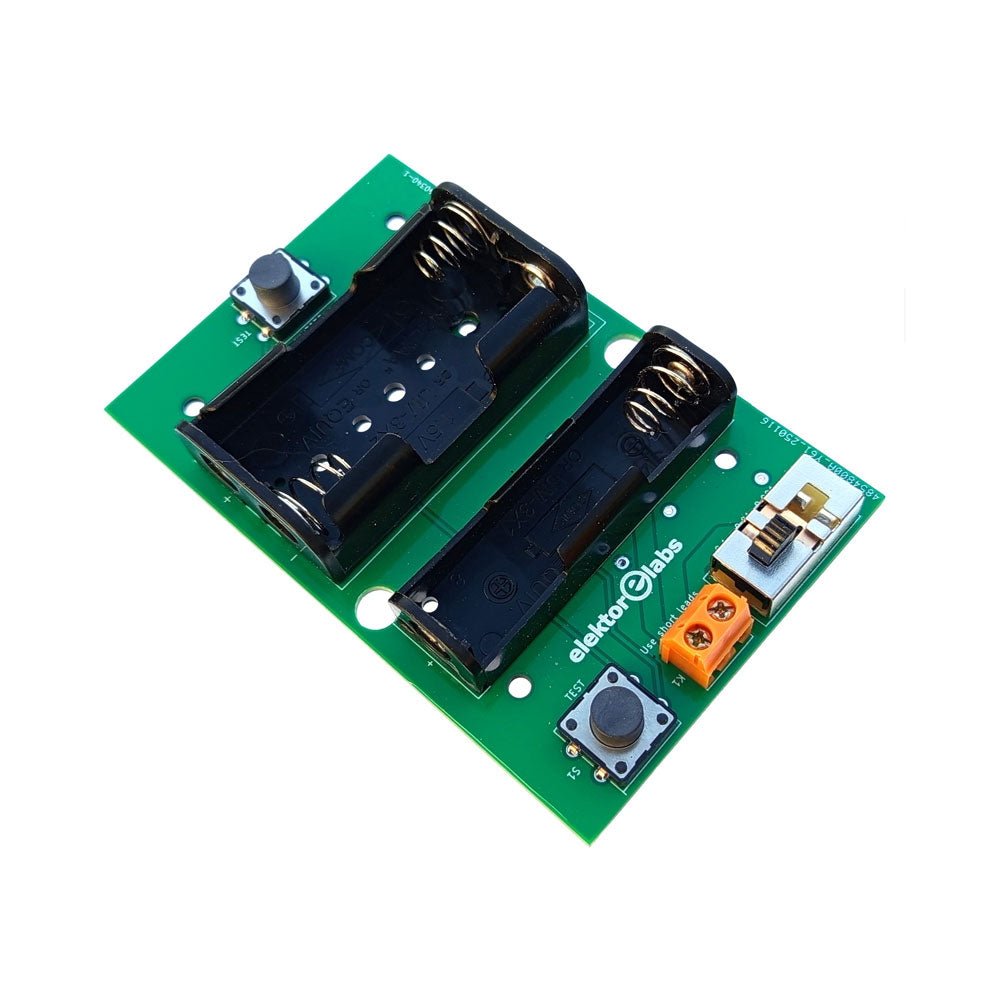

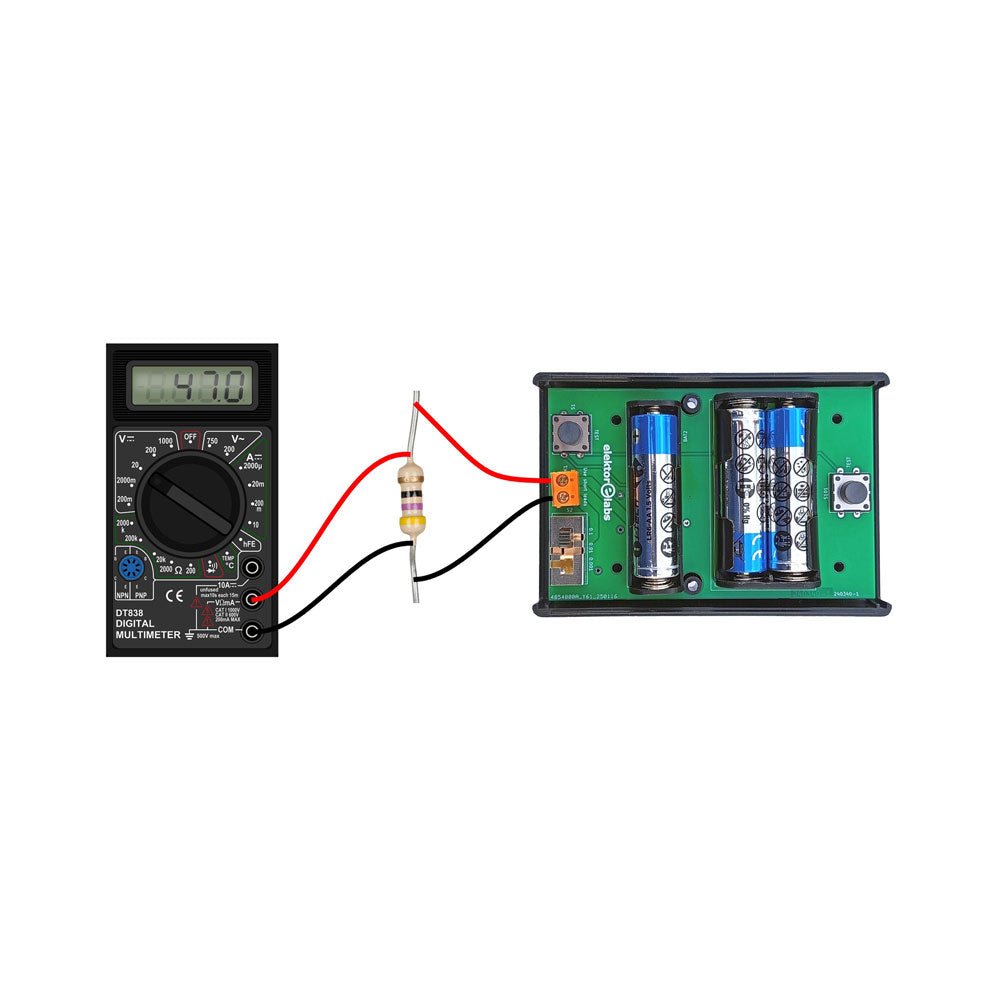

The Elektor Milliohmmeter Adapter uses the precision of a multimeter to measure very low resistance values. It is an adapter that converts a resistance into a voltage that can be measured with a standard multimeter.

The Elektor Milliohmmeter Adapter can measure resistances below 1 mΩ using a 4-wire (Kelvin) method. It is useful for locating short circuits on printed circuit boards (PCB).

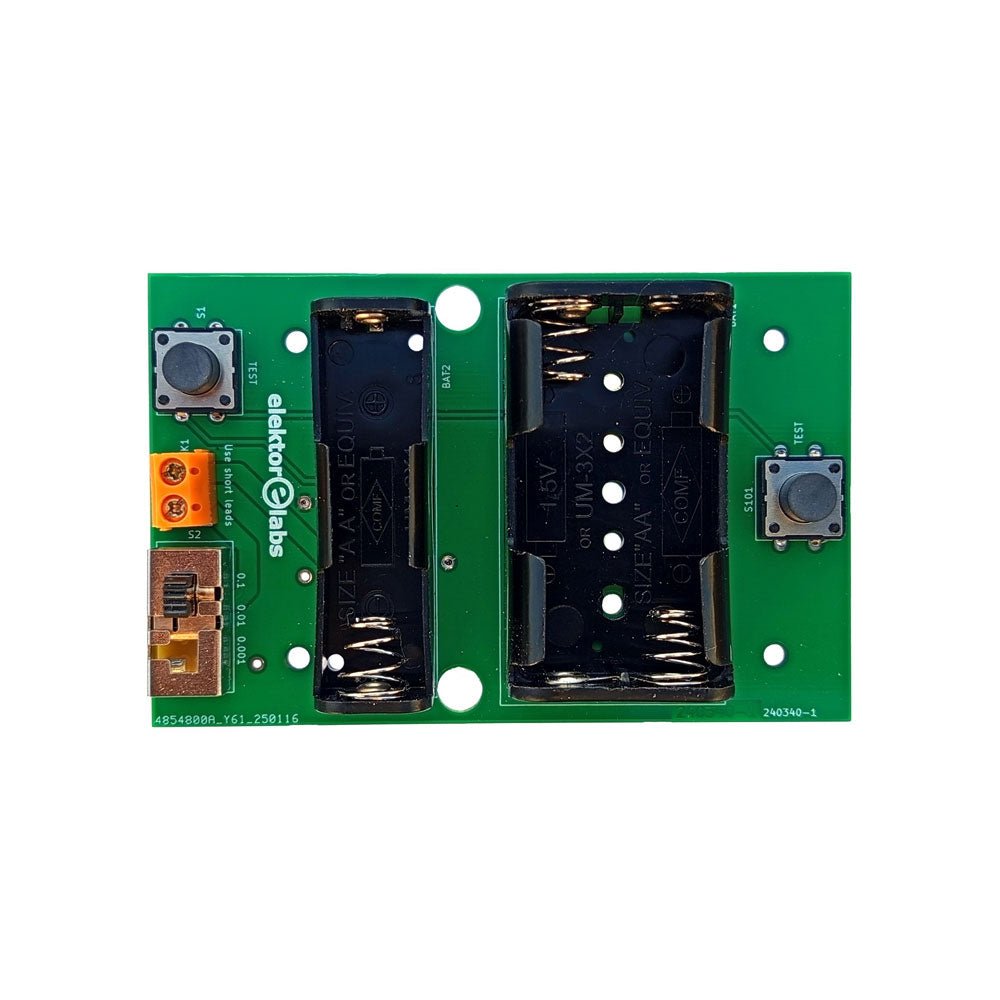

The adapter features three measurement ranges – 1 mΩ, 10 mΩ, and 100 mΩ – selectable via a slide switch. It also includes onboard calibration resistors. The Elektor Milliohmmeter Adapter is powered by three 1.5 V AA batteries (not included).

Specifications

Measurement ranges 1 mΩ, 10 mΩ, 100 mΩ, 0.1%
Power supply 3x 1.5 V AA batteries (not included)
Dimensions 103 x 66 x 18 mm (compatible with Hammond 1593N-type enclosure, not included)

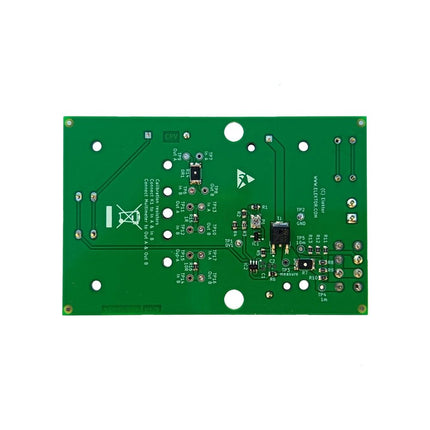

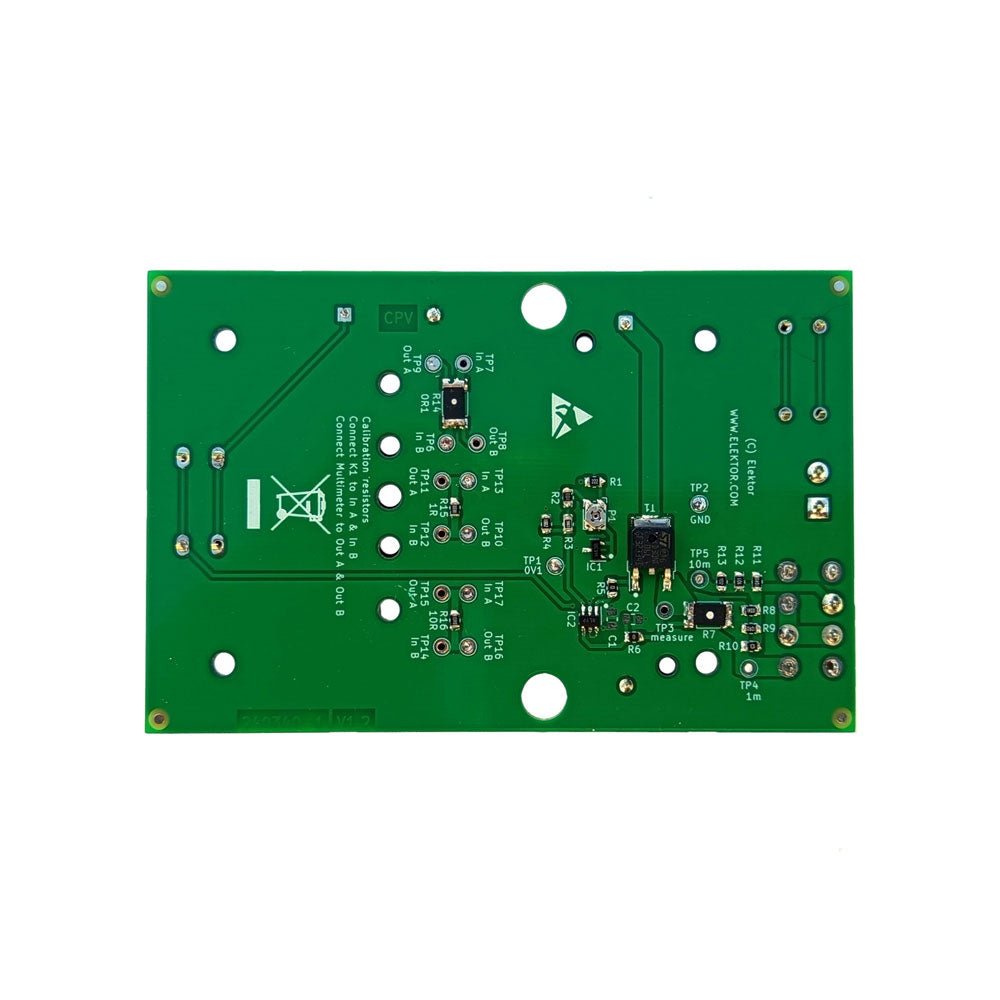

Special feature On-board calibration resistors

Downloads

Product form

The Elektor Milliohmmeter Adapter uses the precision of a multimeter to measure very low resistance values. It is an adapter... Read more

€ 34,95 € 24,95 (incl. VAT)
Members identical

      Details

      SKU: 21147
      EAN: 7442105134151

      Description

      The Elektor Milliohmmeter Adapter uses the precision of a multimeter to measure very low resistance values. It is an adapter that converts a resistance into a voltage that can be measured with a standard multimeter.

      The Elektor Milliohmmeter Adapter can measure resistances below 1 mΩ using a 4-wire (Kelvin) method. It is useful for locating short circuits on printed circuit boards (PCB).

      The adapter features three measurement ranges – 1 mΩ, 10 mΩ, and 100 mΩ – selectable via a slide switch. It also includes onboard calibration resistors. The Elektor Milliohmmeter Adapter is powered by three 1.5 V AA batteries (not included).

      Specifications

      Measurement ranges 1 mΩ, 10 mΩ, 100 mΩ, 0.1%
      Power supply 3x 1.5 V AA batteries (not included)
      Dimensions 103 x 66 x 18 mm (compatible with Hammond 1593N-type enclosure, not included)
      Special feature On-board calibration resistors

      Downloads
