Description
All-in-One AI Learning and Development Platform for Edge Intelligence

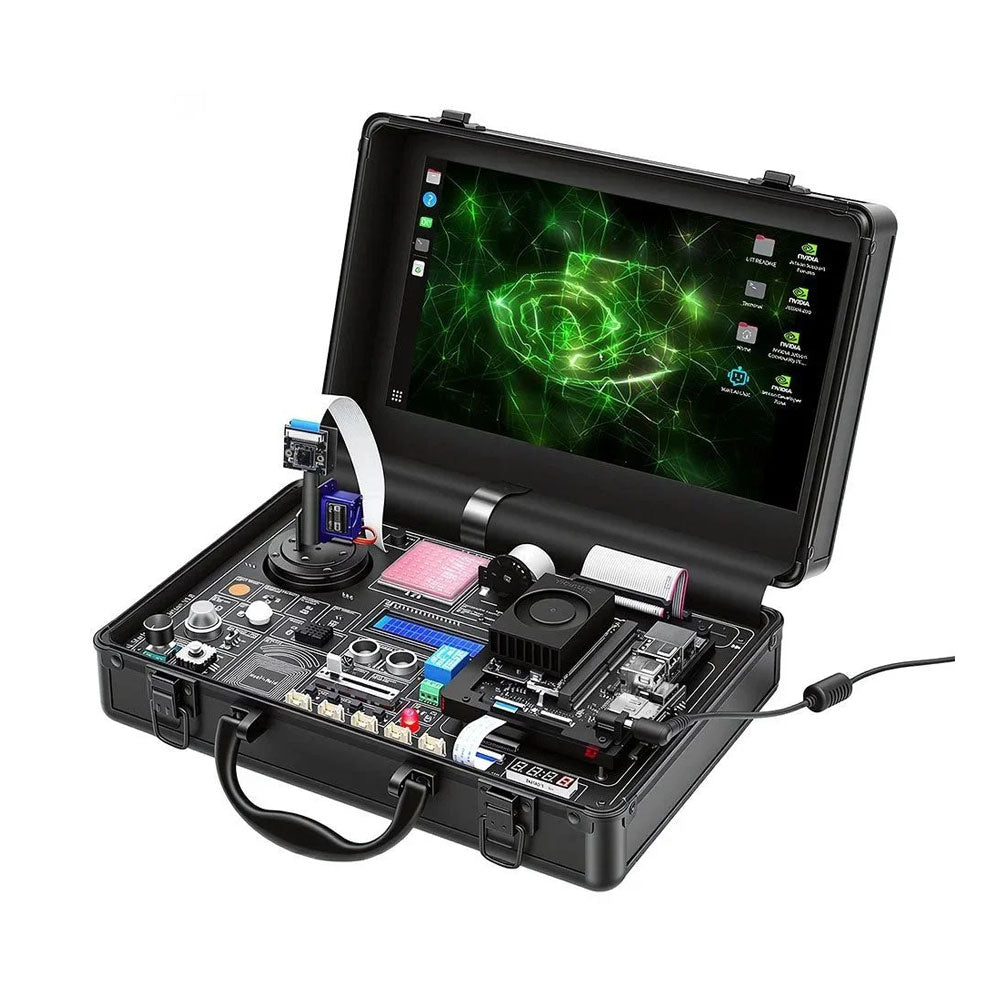

This NVIDIA Jetson-based AI Starter Kit is a versatile platform for learning, development, and hands-on experimentation in Edge AI.
Designed for use with the NVIDIA Jetson Orin Nano, the kit combines an 11.6-inch IPS display, an 8-megapixel pan-tilt camera, and an AI voice interaction system.

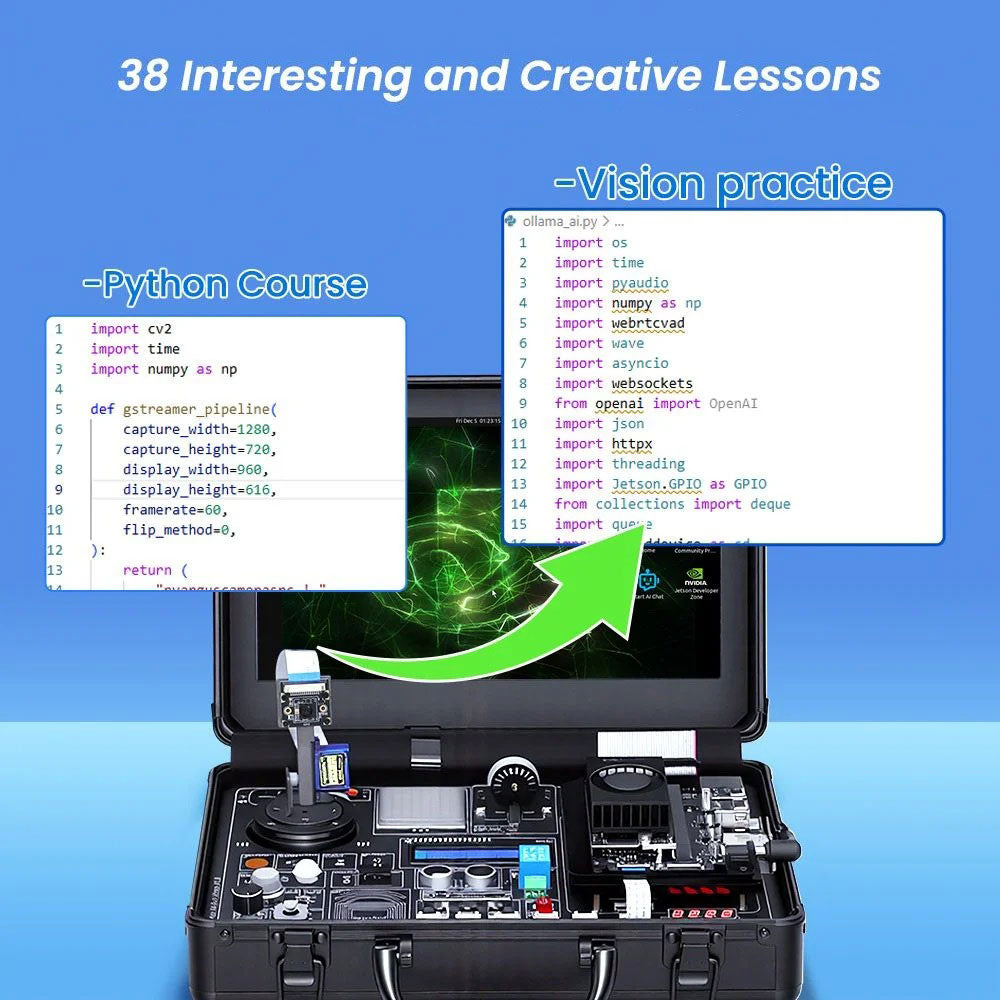

It includes 30 functional modules and 38 carefully designed Python courses that progress from beginner to advanced level. The course content covers Python fundamentals, sensor technology, AI vision, and image recognition.
With step-by-step practical exercises ranging from basic programming to real-world computer vision applications, this kit provides an ideal platform for students, makers, developers, and anyone looking to explore artificial intelligence and edge computing.
Please note: The NVIDIA Jetson Orin Nano is not included.

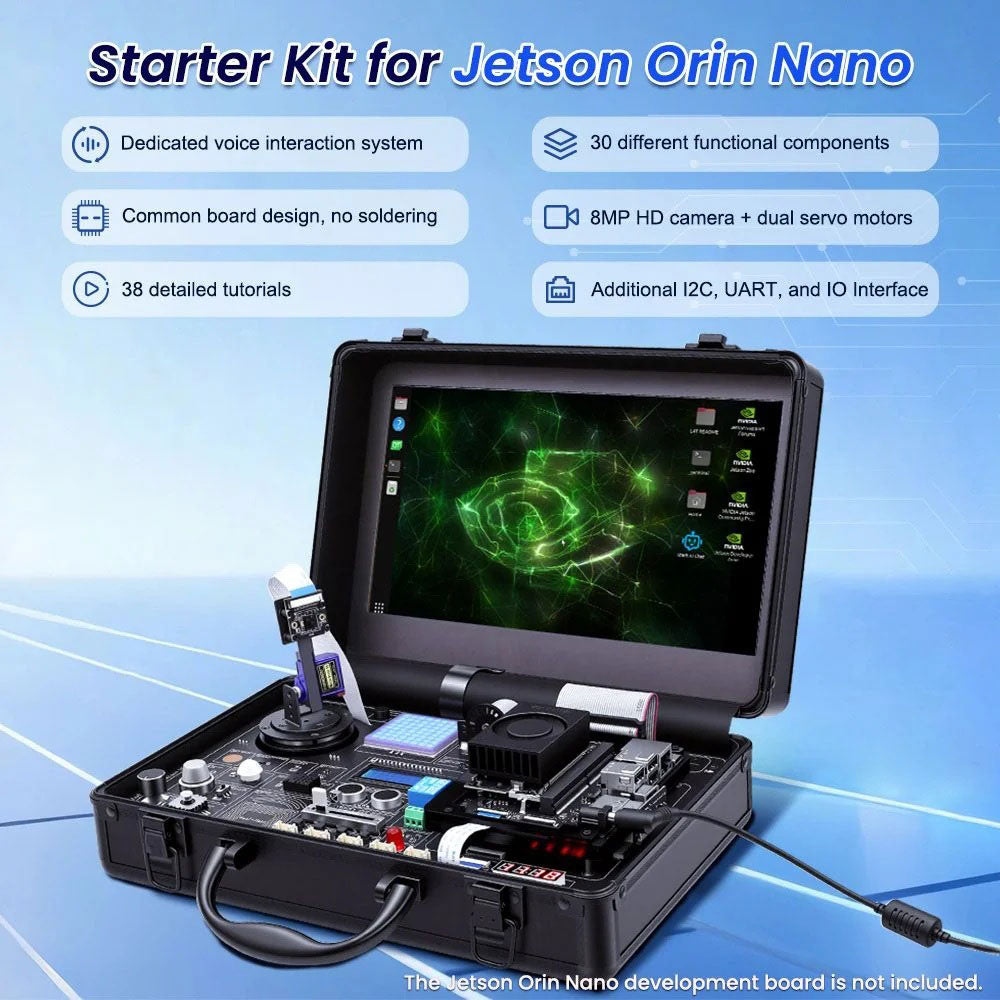

Features
- Designed for the NVIDIA Jetson Orin Nano
- AI voice interaction module

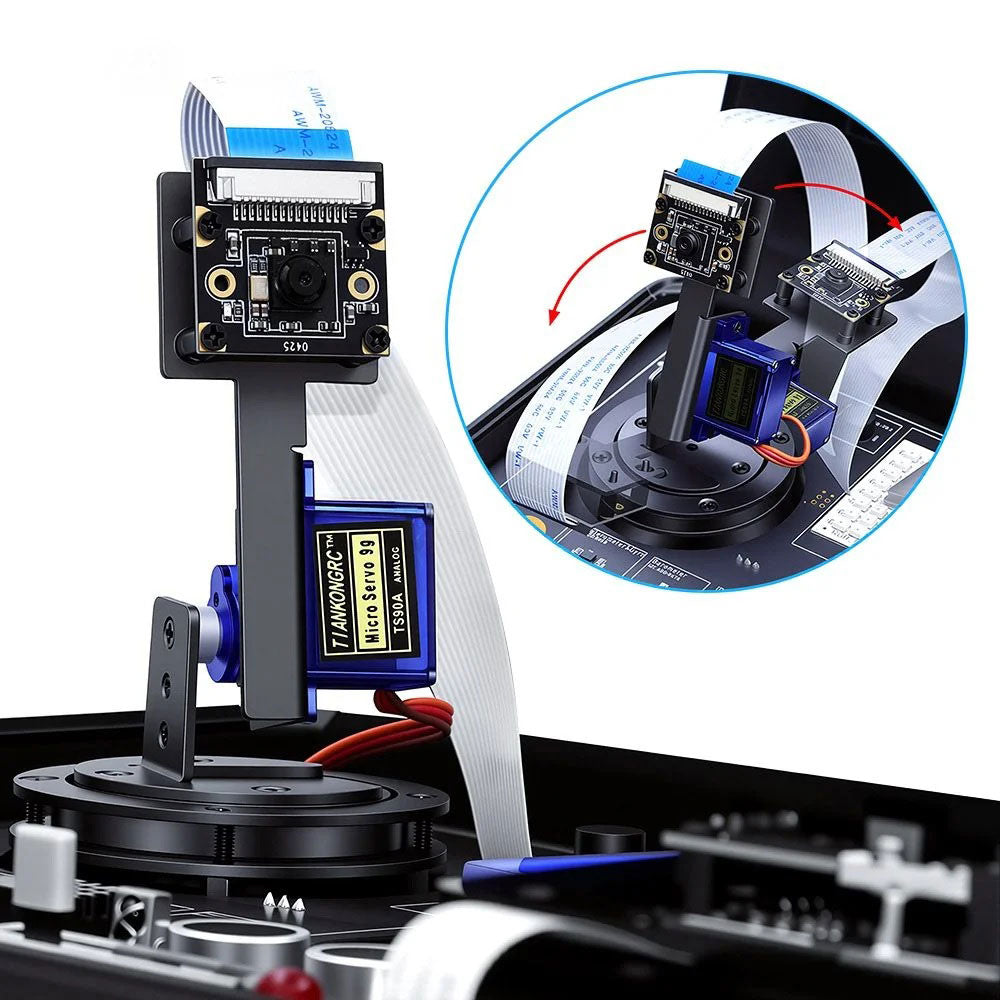

- 8 MP camera with pan-tilt control
- Supports object and face tracking
- No soldering or complex wiring required
- Built-in 11.6-inch IPS display
- 30 functional modules
- 38 step-by-step Python lessons
- I²C, UART, and GPIO expansion interfaces
- Portable carrying case included
Specifications
| Main Processor |
Jetson Orin Nano |
| Number of Sensors |
30 |
| Sensor Board Design |
Integrated sensor board, no soldering or complex wiring required |
| Screen |
11.6-inch IPS Screen |
| Screen Resolution |
1366 x 768 |
| Camera |
IMX219 8MP |
| Expansion Interfaces |
2x I²C, 1x UART, 1x IO D13, 1xIO D12 |
| Programming Environment |
Based on Python |
| Number of Tutorials |
38 creative tutorials |
| Target Audience |
Students, teachers, hardware enthusiasts |
| Application Scenarios |
Ideal for learning AI programming, Jetson Orin Nano basics |
| Dimensions |
300 x 200 x 100 mm |
Module List
| Module |
Quantity |
| Temperature & Humidity Sensor |
1 pcs |
| Button |
4 pcs |
| Ultrasonic Ranging Sensor |
1 pcs |
| Light Sensor |
1 pcs |
| Linear Potentiometer |
1 pcs |
| Buzzer |
1 pcs |
| LCD |
1 pcs |
| Infrared Remote |
1 pcs |
| Relay |
1 pcs |
| NFC |
1 pcs |
| PIR Motion Sensor |
1 pcs |
| Joystick |
1 pcs |
| 4-Digital Display |
1 pcs |
| LED |
1 pcs |
| Microphone |
1 pcs |
| Speaker |
1 pair |
| Vibration Motor |
1 pcs |
| Touch Sensor |
1 pcs |
| 8x8 RGB Matrix |
1 pcs |
| Atmospheric pressure sensor |
1 pcs |
| Tilt Switch |
1 pcs |
| Stepper Motor |
1 pcs |
| Accelerometer & Gyro |
1 pcs |
| Gas Sensor (MQ2) |
1 pcs |
| Hall Sensor |
1 pcs |
| Rotary Encoder |
1 pcs |
| U-shaped photoelectric switch |
1 pcs |
| NTC |
1 pcs |
| Servo |
2 pcs |
| Monocular camera |
1 pcs |

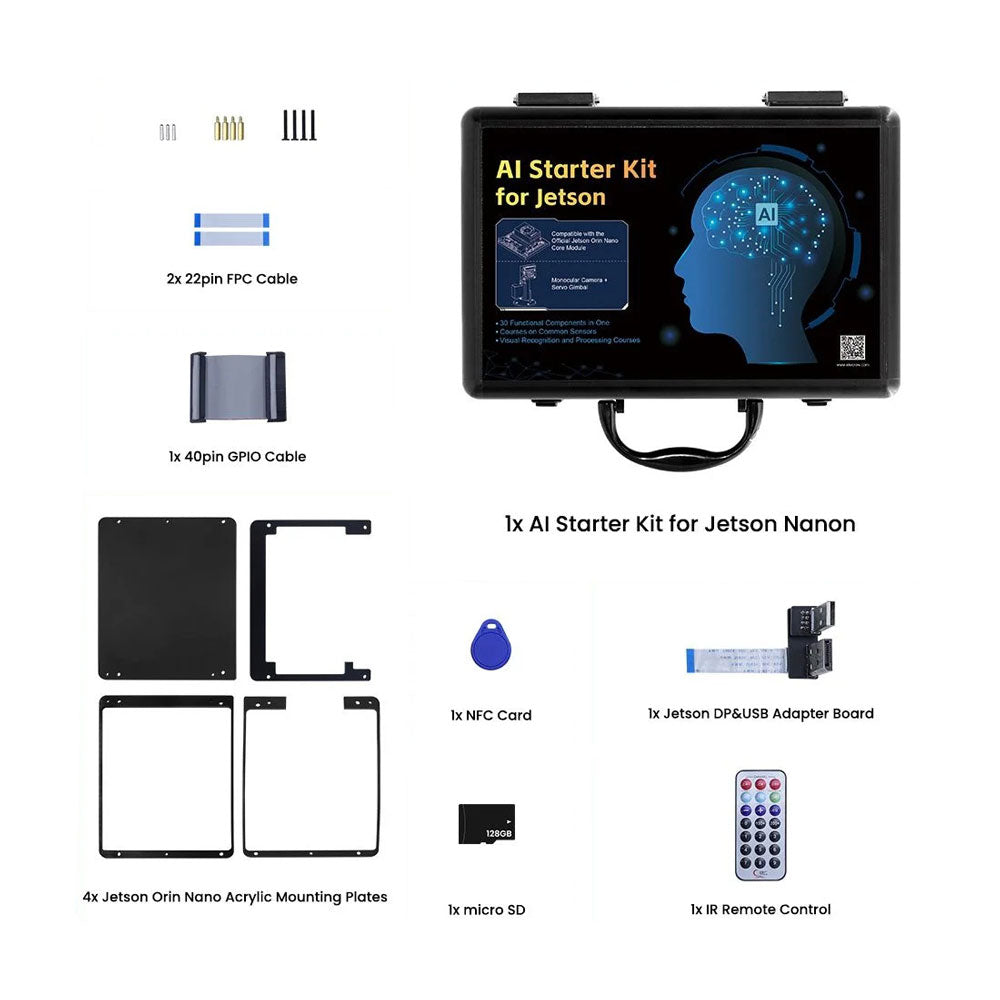

Included
- 1x Elecrow AI Starter Kit for Jetson Orin Nano
- 1x IR Remote Control
- 1x NFC Card
- 1x 128 GB SD Card
- 1x 40-pin GPIO Cable
- 2x 22-pin FPC Cable
- 2x 24-pin FPC Cable
- 1x Jetson DP & USB Adapter Board
Not included
Downloads
