Description
This bundle gives you everything you need to get started right away with the XIAO ESP32-C3 development board. Learn the fundamentals of the ESP32-C3 and build practical projects with Wi-Fi, Bluetooth, sensors, displays, PWM, Deep Sleep, and much more.
Book: Build Smart Projects with the XIAO ESP32-C3 Board
The XIAO ESP32-C3 board combines the ultra-compact form factor of the XIAO series with the full capabilities of the ESP32-C3 chip, including integrated Wi-Fi and Bluetooth 5.0. This book is a comprehensive, hands-on guide to getting the most out of this powerful yet affordable development board.
The author takes readers from the fundamentals to advanced projects. Starting with LED blinking and dimming, the book progresses to ADC and PWM for precise sensor interfacing and PWM-controlled lighting effects before moving on to building practical, real-world applications, including:
- A Wi-Fi weather station with an OLED display and real-time online weather data
- An ultrasonic parking assistant with audible feedback
- A refrigerator monitoring probe with climate sensing and Deep Sleep for years of battery operation
- A retro Pong game controlled by a touch-free sensor
- A microphone-based party app that responds to claps
- And much more: lighting control, reaction-time measurement, mains frequency analysis, soil moisture sensing, ambient LED lighting, and 7-segment displays

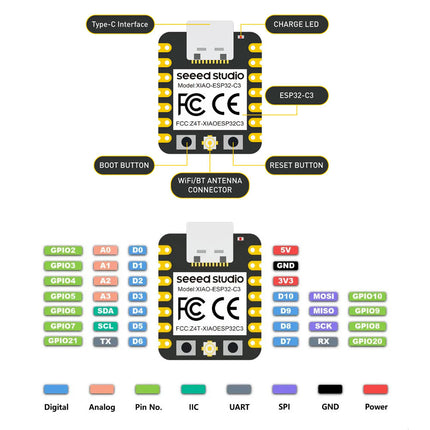

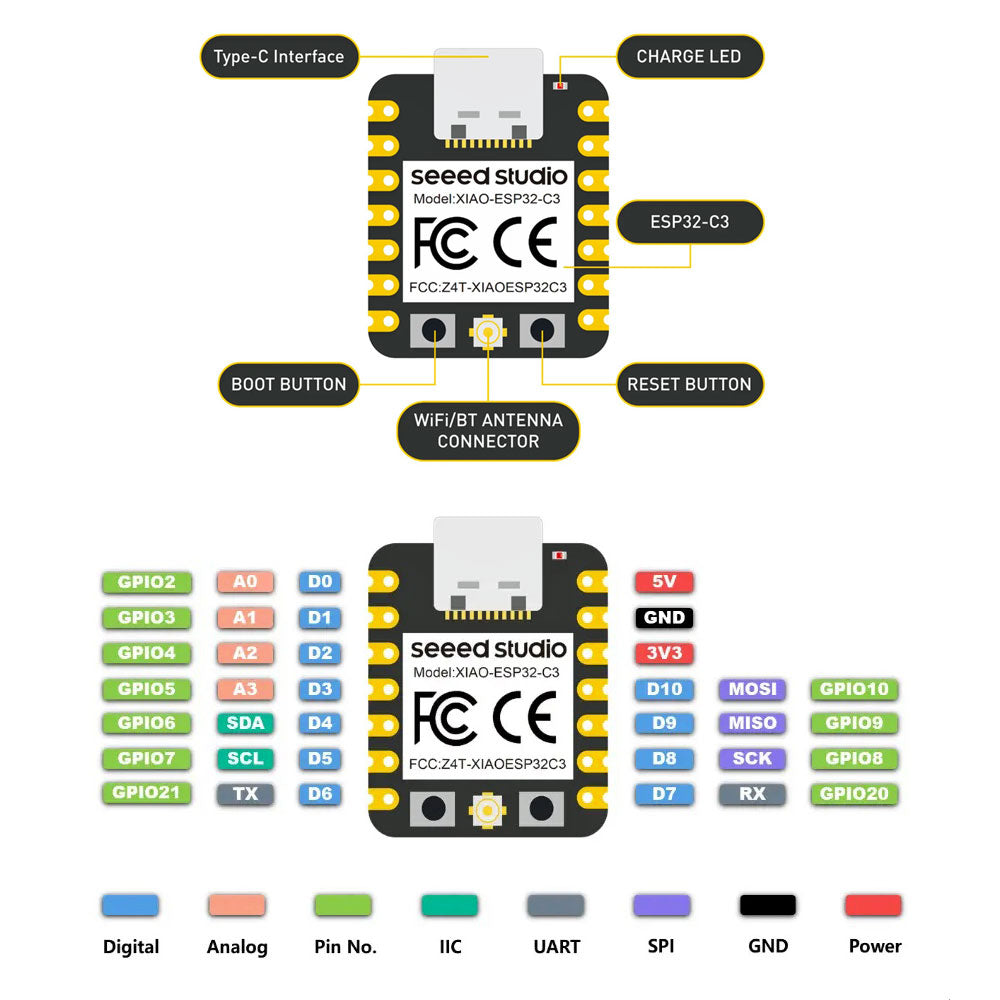

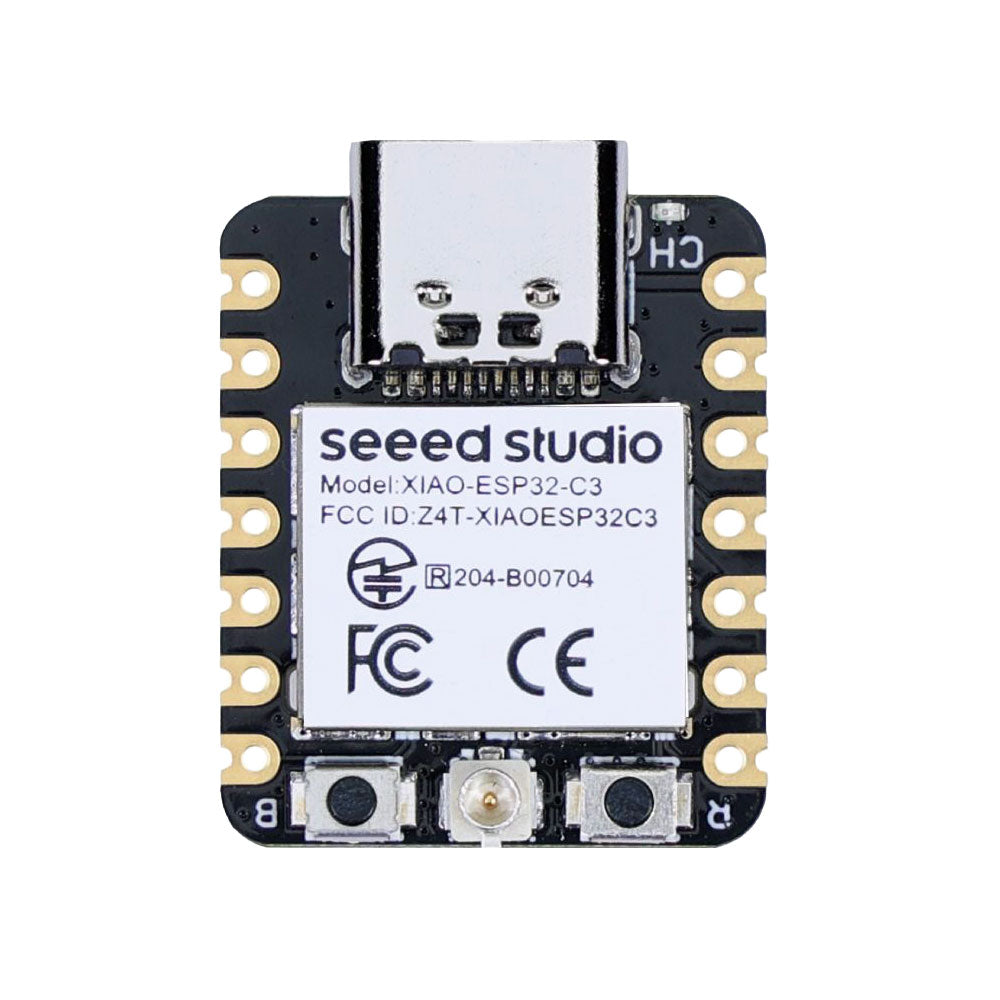

Seeed Studio XIAO ESP32C3
Seeed Studio XIAO ESP32C3 has equipped a highly-integrated ESP32-C3 chip, built around a 32-bit RISC-V chip processor with a four-stage pipeline that operates at up to 160 MHz.
The board equips highly-integrated ESP32-C3 SoC. The chip has been installed with a complete 2.4 GHz Wi-Fi subsystem which means it supports Station mode, SoftAP mode, SoftAP & Station mode, and promiscuous mode for multiple Wi-Fi applications. It works under an ultra-low power state, also supporting features of Bluetooth 5 and Bluetooth mesh. There are 400 KB SRAM & 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.
Applications
- Internet of Things
- Wearable devices
- Health monitoring
- Education
- Low-Power networking
- Rapid prototyping
Specifications
| Processor |
ESP32-C3 SoC |
| RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz |
| Wireless |
Complete 2.4GHz Wi-Fi subsystem |
| Bluetooth Low Energy 5.0/ Bluetooth Mesh |
| On-chip Memory |
400 KB SRAM & 4 MB Flash |
| Interface |
1x UART, 1x I²C, 1x SPI, 11x GPIO (PWM), 4x ADC |
| 1x Reset button, 1x Boot button |
| Power (Typ.) |
Max 3.3 V Output Current: 500 mA Test Condition: BAT Pin Input @ 3.8 V Source Capability: 3 A |
| Charging current: 380 mA(Fast) / 40 mA(Trickle) |
Input voltage (VIN): 5 V
Input voltage (BAT): 3.7 V |
| Deep Sleep Power Consumption |
Deep Sleep Mode: 44 μA |
| Wi-Fi Enabled Power Consumption |
Active Mode: 75 mA |
| Modem-sleep Mode: 25 mA |
| Light-sleep Mode: 4 mA |
| BLE Enabled Power Consumption |
Modem-sleep Mode: 27 mA |
| Light-sleep Mode: 10 mA |
| Dimensions |
21 x 17.8 mm |
Included
- 1x Seeed Studio XIAO ESP32C3
- 1x Antenna
- 2x 7-pin header
Downloads
This bundle contains:
- Book: Build Smart Projects with the XIAO ESP32-C3 Board (normal price: €35)
- Board: Seeed Studio XIAO ESP32C3 (normal price: €10)
