Waveshare ESP32-S3-GEEK Development Board

  • BrandWaveshare

Description

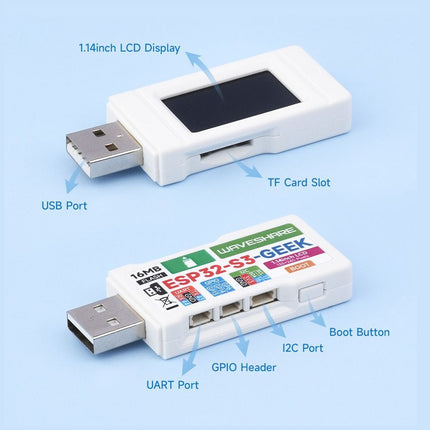

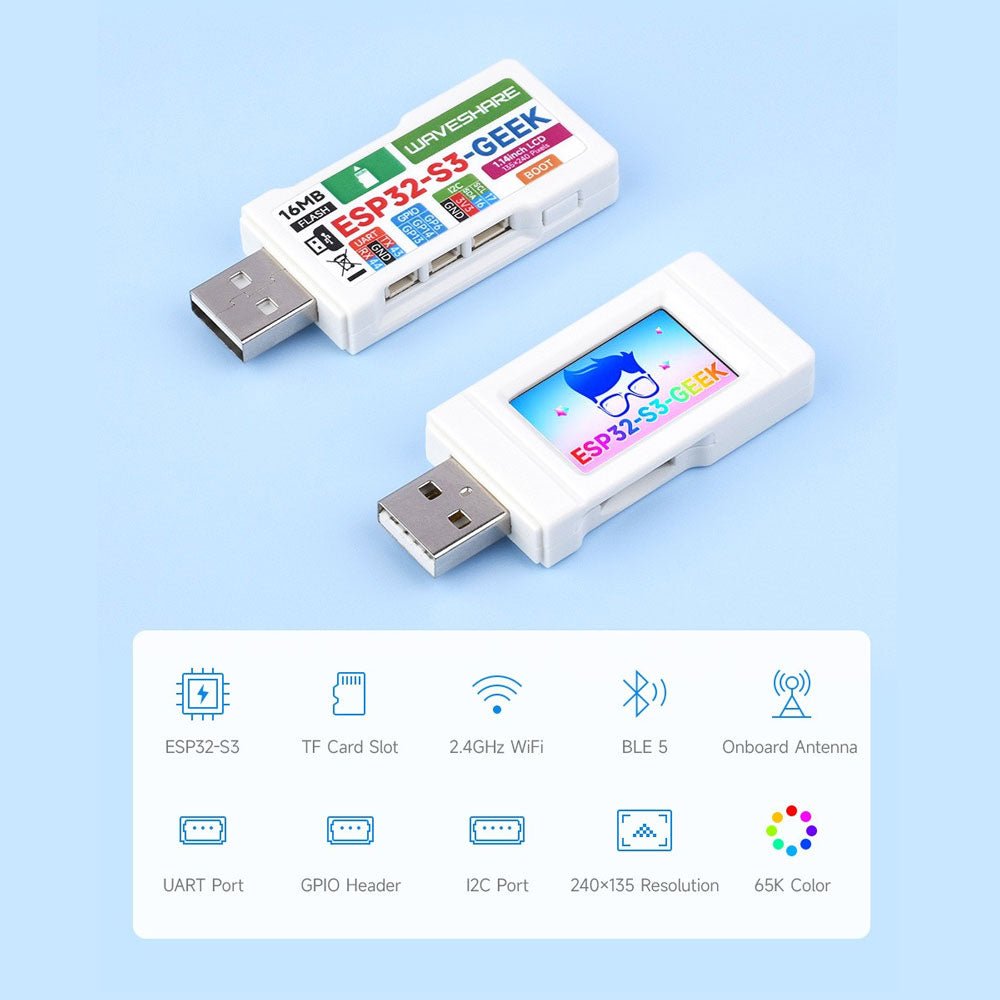

ESP32-S3-GEEK is a geek development board with built-in USB-A port, 1.14-inch LCD screen, TF card slot and other peripherals. It supports 2.4 GHz WiFi and BLE 5, with built-in 16 MB Flash & 2 MB PSRAM, provides I²C port, UART port and GPIO header for more possibilities for your project.

Features

  • Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
  • Built in 512 KB SRAM, 384 KB ROM, 2 MB of on-chip PSRAM, and onboard 16 MB Flash memory
  • Onboard 1.14-inch 240x135 pixels 65K color IPS LCD display
  • Integrated 2.4 GHz WiFi and Bluetooth LE wireless communication
    • WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes
    • WiFi supports 1T1R mode with data rate up to 150 Mbps
    • Bluetooth supports high power mode (20 dBm)
    • Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna
  • Onboard 3-pin UART port, 3-pin GPIO header and 4-pin I²C port
  • Equipped with plastic case and cables
  • Provides online open-source demo and resources, more convenient for learning and development
  • Dimensions: 61.0 x 24.5 x 9.0 mm

Downloads

Product form

ESP32-S3-GEEK is a geek development board with built-in USB-A port, 1.14-inch LCD screen, TF card slot and other peripherals. It... Read more

€ 17,95 incl. VAT
Members € 16,16

    • Ship today? Order within Mar 27, 2025 17:00:00 +0100

    Details

    SKU: 20961
    EAN: 26405

    Description

    ESP32-S3-GEEK is a geek development board with built-in USB-A port, 1.14-inch LCD screen, TF card slot and other peripherals. It supports 2.4 GHz WiFi and BLE 5, with built-in 16 MB Flash & 2 MB PSRAM, provides I²C port, UART port and GPIO header for more possibilities for your project.

    Features

    • Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
    • Built in 512 KB SRAM, 384 KB ROM, 2 MB of on-chip PSRAM, and onboard 16 MB Flash memory
    • Onboard 1.14-inch 240x135 pixels 65K color IPS LCD display
    • Integrated 2.4 GHz WiFi and Bluetooth LE wireless communication
      • WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes
      • WiFi supports 1T1R mode with data rate up to 150 Mbps
      • Bluetooth supports high power mode (20 dBm)
      • Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna
    • Onboard 3-pin UART port, 3-pin GPIO header and 4-pin I²C port
    • Equipped with plastic case and cables
    • Provides online open-source demo and resources, more convenient for learning and development
    • Dimensions: 61.0 x 24.5 x 9.0 mm

    Downloads

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    A
    Anonymous
    ESP32-S3-GEEK

    Bonjour

    La mise en œuvre de ce ESP32-S3-GEEK ne pose aucun problème (GPIO, UARTs, LCD, SDCard, etc.) grâce à la documentation en ligne https://www.waveshare.com/wiki/ESP32-S3-GEEK

    Je regrette seulement que cette documentation ne précise pas:
    - où est le bouton "hard" Reset indiqué dans ladite documentation
    - les types des 3 connecteurs + fils fournis dans la livraison et pour lesquels le support de la Société Waveshare, que j'ai contacté, n'apporte pas de réponse après 3 jours ;-(

    NB: En espérant connaître désespérément les références de ces connecteurs parmi la multitude des offres en ligne...

    Cordialement, A+
    --
