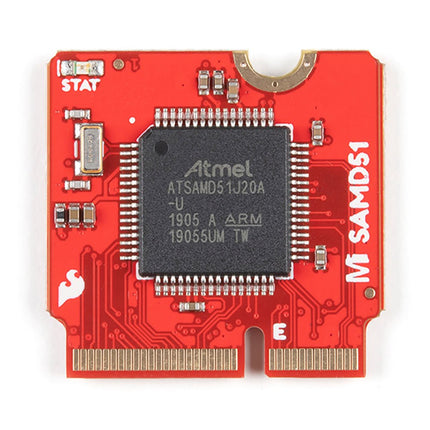

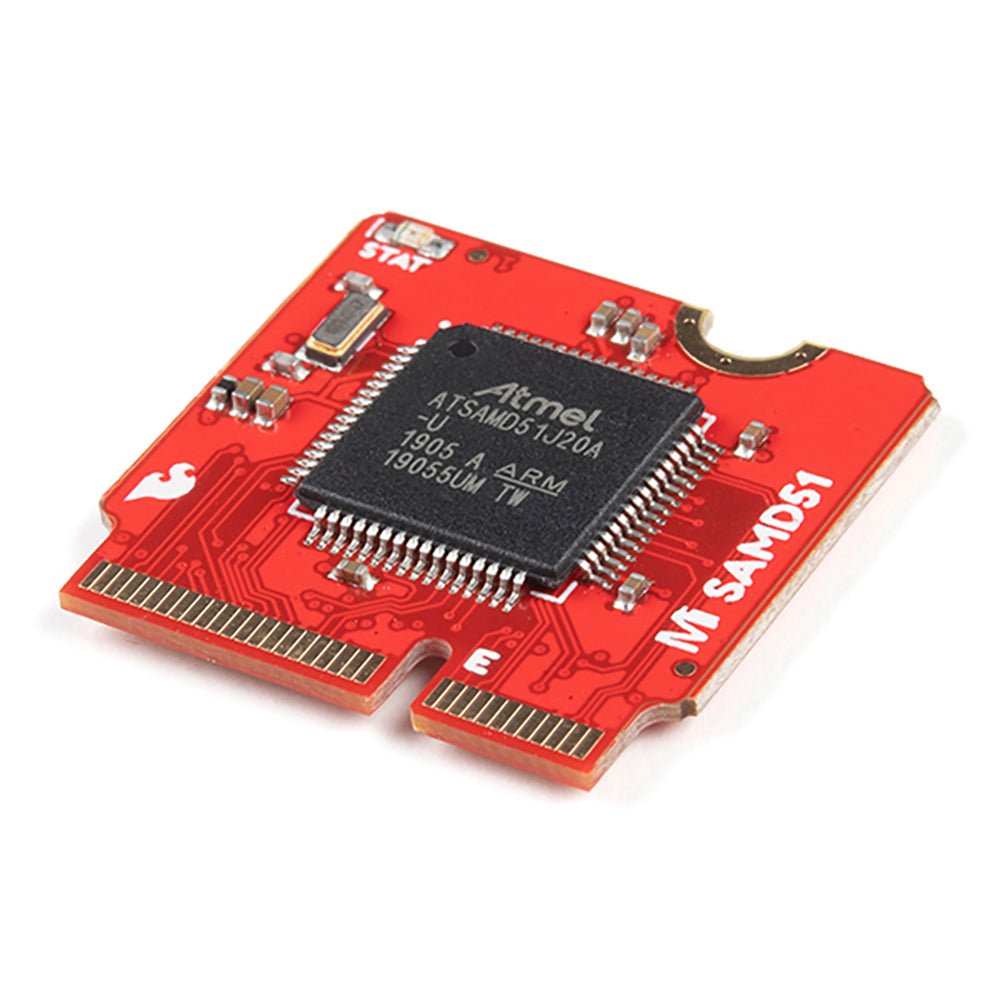

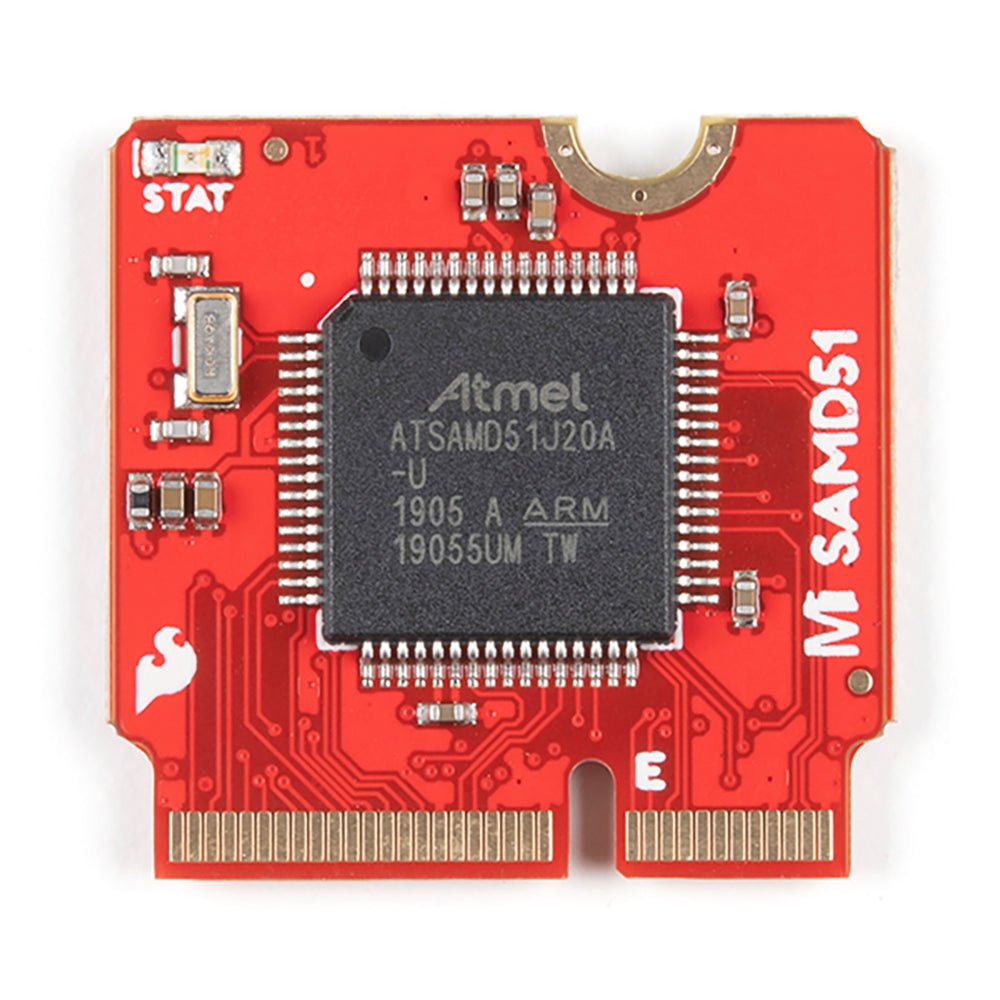

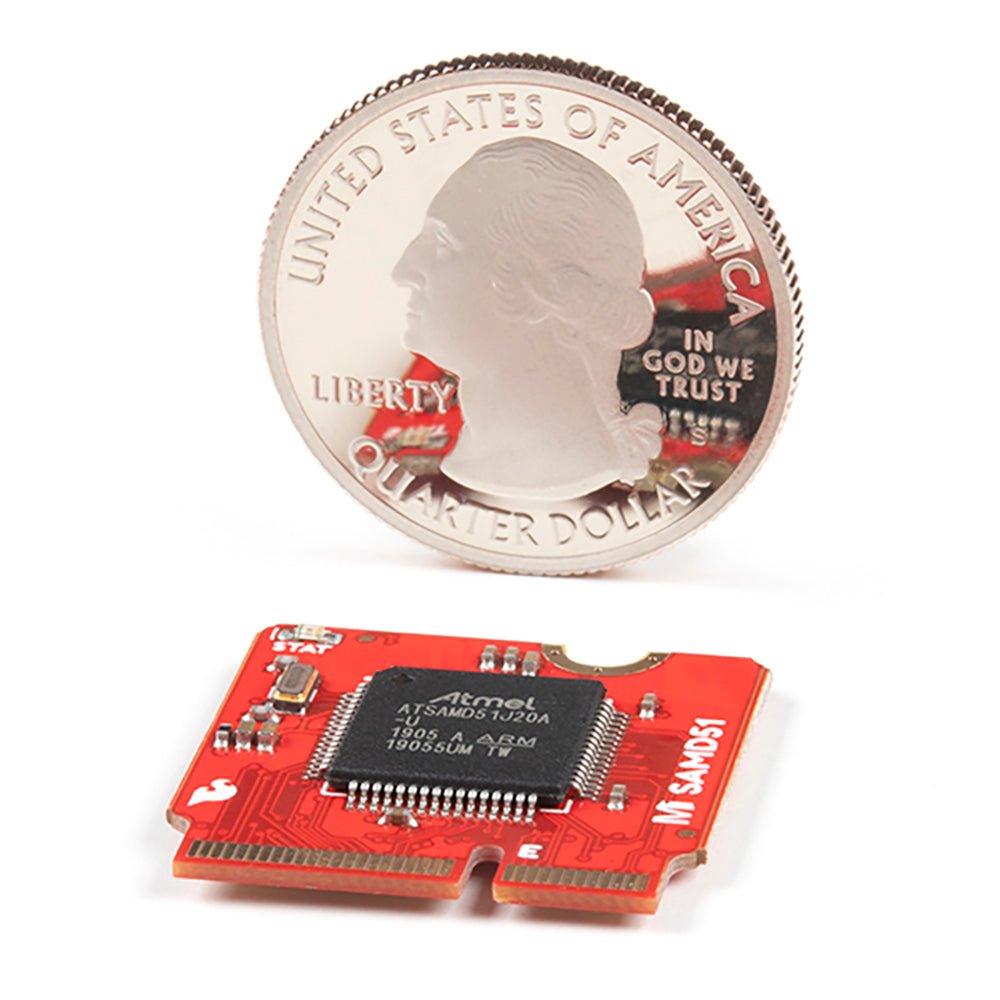

SparkFun MicroMod SAMD51 Processor

  • BrandSparkFun

Description

The board provides you with an economical and easy to use development platform if you're needing more power with minimal working space. With the M.2 MicroMod connector, connecting your SAMD51 Processor is a breeze. Simply match up the key on your processor's bevelled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards). The SAMD51 is one of the most powerful and economical microcontrollers available so to be able to add it to your MicroMod Carrier Board is a huge advantage for your project!

The ATSAMD51J20 utilizes a 32-bit ARM Cortex-M4 processor with Floating Point Unit (FPU), running up to 120MHz, up to 1MB of flash memory, up to 256KB of SRAM with ECC, up to 6 SERCOM interfaces, and other features. This MicroMod SAMD51 even comes flashed with the same convenient UF2 bootloader as the SAMD51 Thing Plus and the RedBoard Turbo.

Features

  • ATSAMD51J20 microcontroller
    • 32-bit ARM Cortex-M4F MCU
    • Up to 120MHz CPU speed
    • 1MB flash memory
    • 256 KB SRAM
    • Up to 6 SERCOM interfaces
  • UF2 bootloader
  • 1 x USB dedicated for programming and debug (Host capable)
  • 2 x UARTs
  • 2 x I²C
  • 1 x SPI
  • 1 x CAN
  • 11 x GPIO
  • 2 x Digital Pins
  • 2 x Analog Pins
  • 2 x PWM
  • 128 mbit / 16 MB (external) flash memory
  • Status LED
  • VIN Level ADC
Product form

The board provides you with an economical and easy to use development platform if you're needing more power with minimal... Read more

€ 18,95 incl. VAT
Members € 17,06

    • Ship today? Order within Jun 15, 2024 17:00:00 +0200

    Details

    SKU: 19584
    EAN: DEV-16791

    Description

    The board provides you with an economical and easy to use development platform if you're needing more power with minimal working space. With the M.2 MicroMod connector, connecting your SAMD51 Processor is a breeze. Simply match up the key on your processor's bevelled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards). The SAMD51 is one of the most powerful and economical microcontrollers available so to be able to add it to your MicroMod Carrier Board is a huge advantage for your project!

    The ATSAMD51J20 utilizes a 32-bit ARM Cortex-M4 processor with Floating Point Unit (FPU), running up to 120MHz, up to 1MB of flash memory, up to 256KB of SRAM with ECC, up to 6 SERCOM interfaces, and other features. This MicroMod SAMD51 even comes flashed with the same convenient UF2 bootloader as the SAMD51 Thing Plus and the RedBoard Turbo.

    Features

    • ATSAMD51J20 microcontroller
      • 32-bit ARM Cortex-M4F MCU
      • Up to 120MHz CPU speed
      • 1MB flash memory
      • 256 KB SRAM
      • Up to 6 SERCOM interfaces
    • UF2 bootloader
    • 1 x USB dedicated for programming and debug (Host capable)
    • 2 x UARTs
    • 2 x I²C
    • 1 x SPI
    • 1 x CAN
    • 11 x GPIO
    • 2 x Digital Pins
    • 2 x Analog Pins
    • 2 x PWM
    • 128 mbit / 16 MB (external) flash memory
    • Status LED
    • VIN Level ADC
