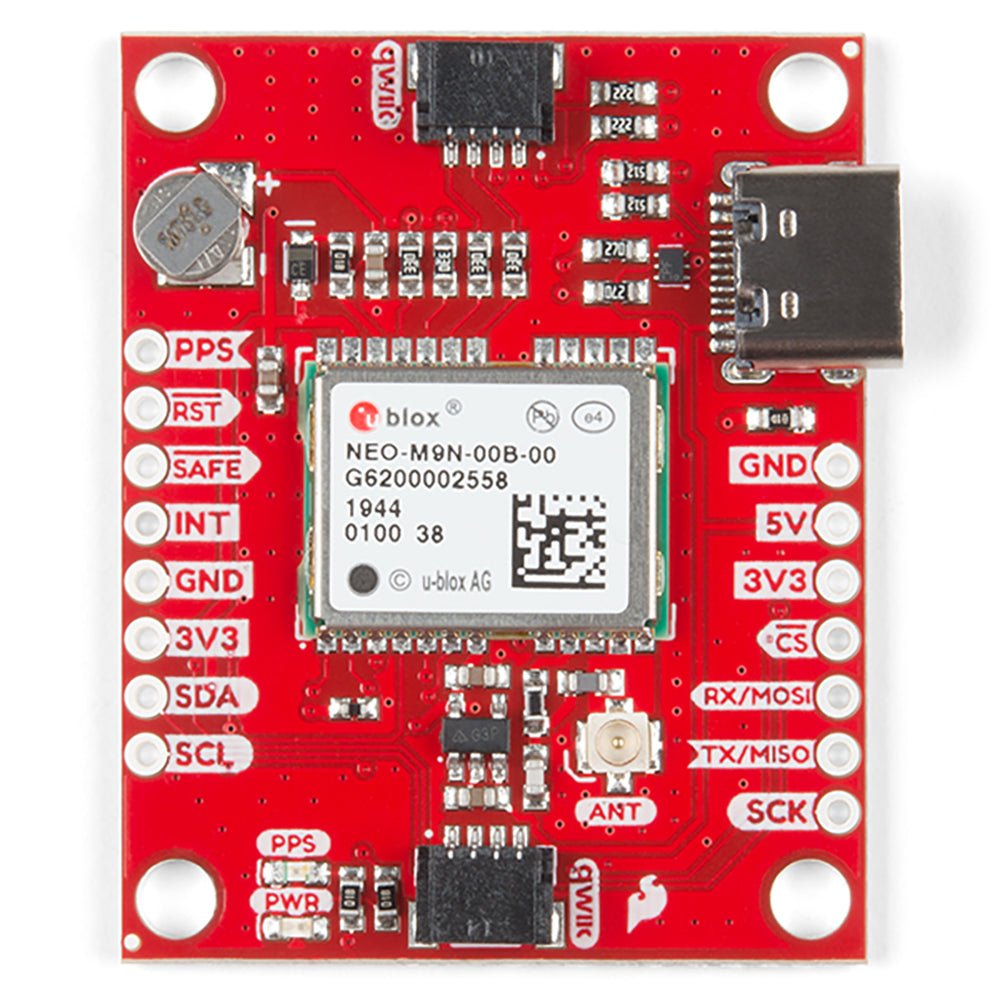

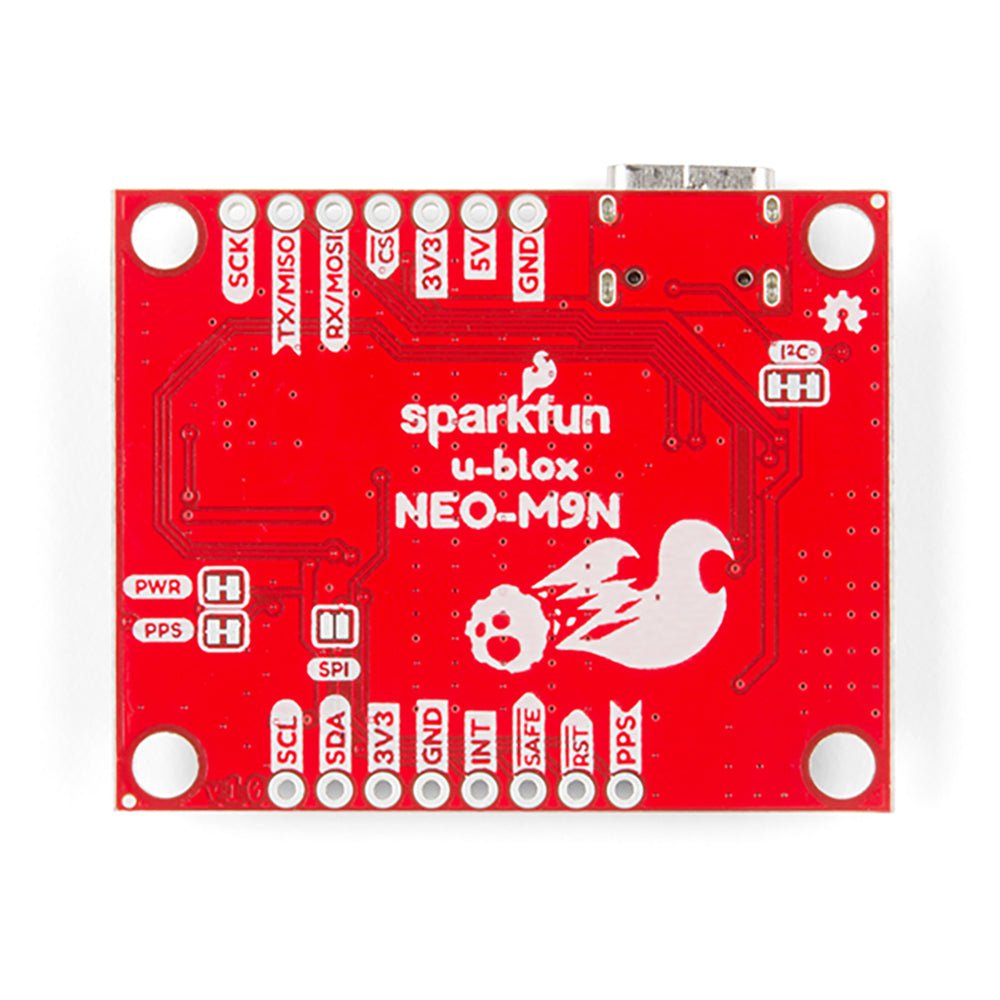

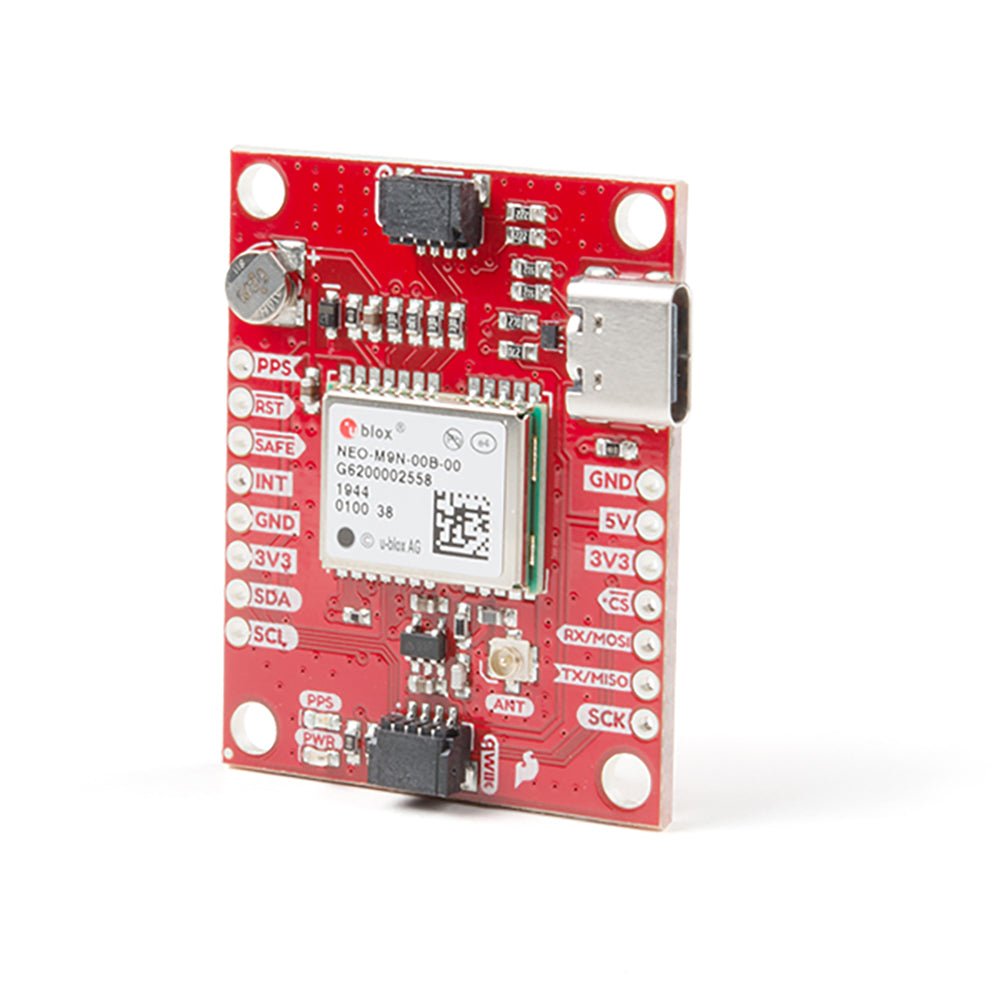

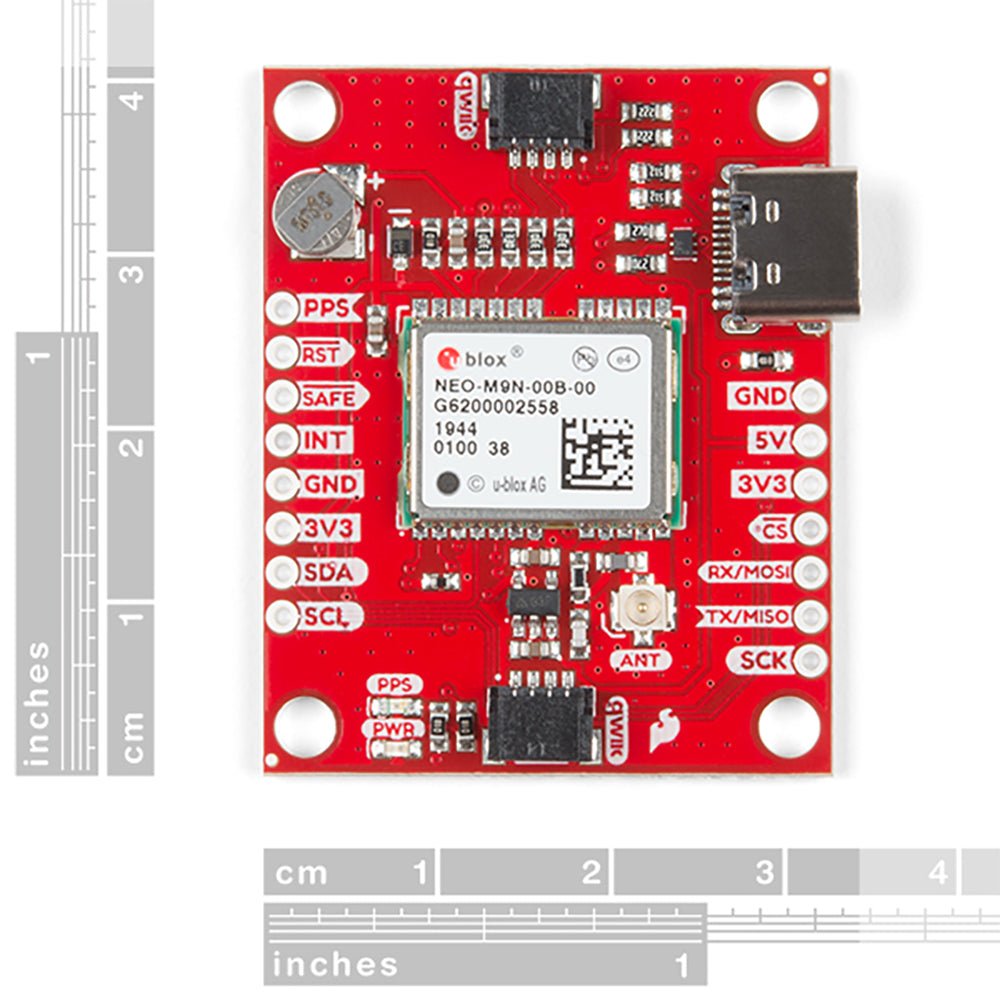

SparkFun GPS Breakout - NEO-M9N, U.FL (Qwiic)

  • BrandSparkFun

Description

Additionally, this u-blox receiver supports I²C (u-blox calls this Display Data Channel), making it perfect for the Qwiic compatibility, so we don't have to use up our precious UART ports. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1'-spaced pins if you prefer to use a breadboard.

The NEO-M9N module detects jamming and spoofing events and can reports them to the host so that the system can react to such events. A SAW (Surface Acoustic Wave) filter combined with an LNA (Low Noise Amplifier) in the RF path is integrated into the NEO-M9N module, allowing normal operation even under strong RF interferences.

U-blox based GPS products are configurable using the popular but dense, windows program called u-centre. Plenty of different functions can be configured on the NEO-M9N: baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GPS, etc. All of this can be done within the SparkFun Arduino Library!

The SparkFun NEO-M9N GPS Breakout is also equipped with an on-board rechargeable battery that provides power to the RTC on the NEO-M9N. This reduces the time-to-first fix from a cold start (~24s) to a hot start (~2s). The battery will maintain RTC and GNSS orbit data without being connected to power for plenty of time.

Features

  • Integrated U.FL connector for use with an antenna of your choice
  • 92-Channel GNSS Receiver
  • 1.5 m Horizontal Accuracy
  • 25 Hz Max Update Rate (4 concurrent GNSS)
  • Time-To-First-Fix:
    • Cold: 24 s
    • Hot: 2 s
  • Max Altitude: 80,000 m
  • Max G: ≤ 4
  • Max Velocity: 500 m/s
  • Velocity Accuracy: 0.05 m/s
  • Heading Accuracy: 0.3 degrees
  • Time Pulse Accuracy: 30 ns
  • 3.3 V VCC and I/O
    • Current Consumption: ~31 mA Tracking GPS+GLONASS
  • Software Configurable
    • Geofencing
    • Odometer
    • Spoofing Detection
    • External Interrupt
    • Pin Control
    • Low Power Mode
    • Many others!
  • Supports NMEA, UBX, and RTCM protocols over UART or I²C interfaces

Product form

Additionally, this u-blox receiver supports I²C (u-blox calls this Display Data Channel), making it perfect for the Qwiic compatibility, so... Read more

€ 72,95 incl. VAT
Members € 65,66

    • Ship today? Order within Jun 15, 2024 17:00:00 +0200

    Details

    SKU: 19608
    EAN: GPS-15712

    Description

    Additionally, this u-blox receiver supports I²C (u-blox calls this Display Data Channel), making it perfect for the Qwiic compatibility, so we don't have to use up our precious UART ports. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1'-spaced pins if you prefer to use a breadboard.

    The NEO-M9N module detects jamming and spoofing events and can reports them to the host so that the system can react to such events. A SAW (Surface Acoustic Wave) filter combined with an LNA (Low Noise Amplifier) in the RF path is integrated into the NEO-M9N module, allowing normal operation even under strong RF interferences.

    U-blox based GPS products are configurable using the popular but dense, windows program called u-centre. Plenty of different functions can be configured on the NEO-M9N: baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GPS, etc. All of this can be done within the SparkFun Arduino Library!

    The SparkFun NEO-M9N GPS Breakout is also equipped with an on-board rechargeable battery that provides power to the RTC on the NEO-M9N. This reduces the time-to-first fix from a cold start (~24s) to a hot start (~2s). The battery will maintain RTC and GNSS orbit data without being connected to power for plenty of time.

    Features

    • Integrated U.FL connector for use with an antenna of your choice
    • 92-Channel GNSS Receiver
    • 1.5 m Horizontal Accuracy
    • 25 Hz Max Update Rate (4 concurrent GNSS)
    • Time-To-First-Fix:
      • Cold: 24 s
      • Hot: 2 s
    • Max Altitude: 80,000 m
    • Max G: ≤ 4
    • Max Velocity: 500 m/s
    • Velocity Accuracy: 0.05 m/s
    • Heading Accuracy: 0.3 degrees
    • Time Pulse Accuracy: 30 ns
    • 3.3 V VCC and I/O
      • Current Consumption: ~31 mA Tracking GPS+GLONASS
    • Software Configurable
      • Geofencing
      • Odometer
      • Spoofing Detection
      • External Interrupt
      • Pin Control
      • Low Power Mode
      • Many others!
    • Supports NMEA, UBX, and RTCM protocols over UART or I²C interfaces
