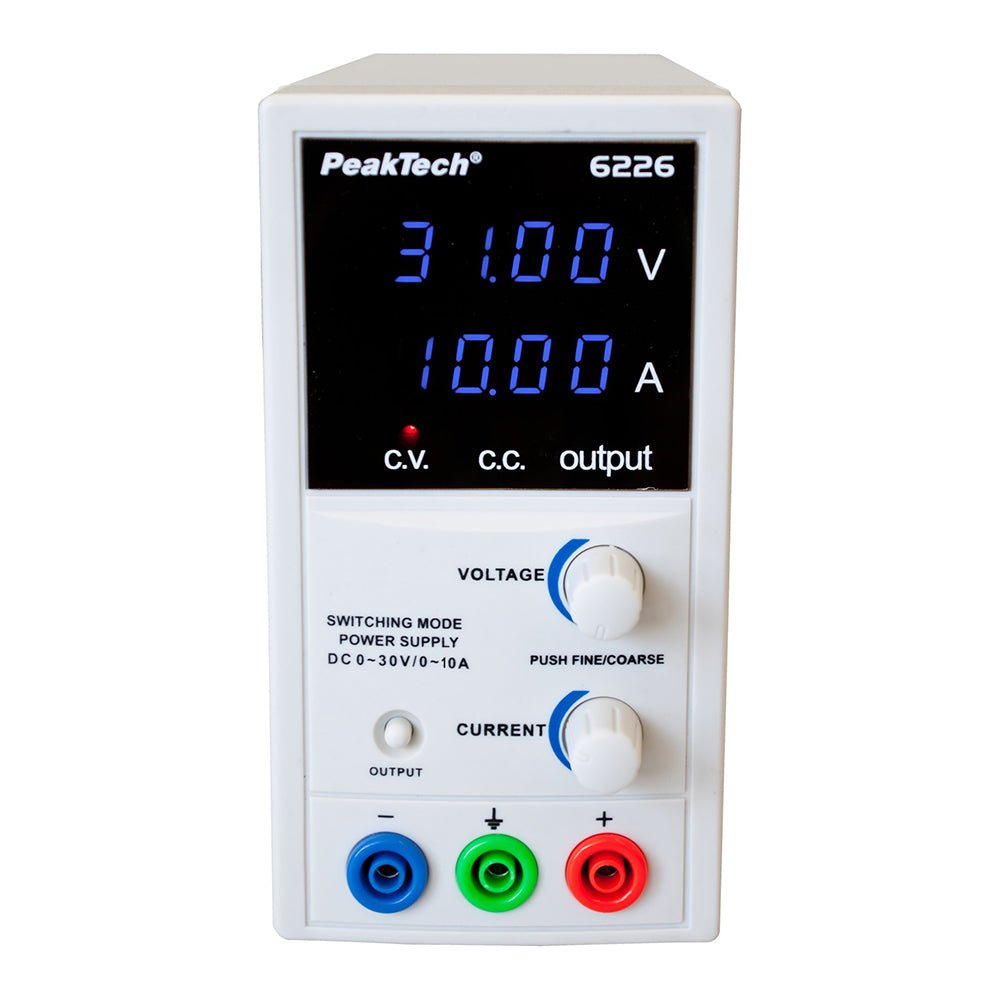

PeakTech 6226 Laboratory Switching Mode Power Supply DC (0-30 V, 0-10 A)

  • BrandPeakTech

Description

  • Blue LED display to show the output voltage - and current values
  • Adjustable voltage range: 0 ~ 30 V; Current range: 0 ~ 10 A
  • Voltage and current pre-selection with switchable output
  • C.C. (Constant Current) and C.V. (Constant Voltage) mode with connected load
  • Protection against short circuit, overload and overtemperature
  • Automatic shutdown at short circuit as protection
  • Safety: EN 61010-1
  • Accessories: Power cable and manual
Output Voltage 0 V ~ 30 V DC
Output Current 0 A ~ 10 A DC
Output Power 300 W
Display Voltage 10 mV (0 to 30V)
Display Current 1 mA (0 A to 9.9 A) ; 10 mA (from 10 A)
Ripple & noise ≤ 10 mV RMS; ; ≤ 10 mA RMS
Load regulation ≤ 0.02% + 5 mV
Line regulation ≤ 0.02% + 10 mV
Display accuracy +/- 0.5% + 5 dgt.
Protection Overload, overtemperature, short circuit protections by constant current circuitry and output overvoltage
Operating voltage 115 / 240 V AC; 50 / 60 Hz
Dimensions 80 x 160 x 260 mm
Weight 1.6 kg

For more information, check out the User Manual here.

Product form

Blue LED display to show the output voltage - and current values Adjustable voltage range: 0 ~ 30 V; Current... Read more

€ 149,95 incl. VAT
Members € 134,96

      Details

      SKU: 19324
      EAN: 4250569403705

      Description

      • Blue LED display to show the output voltage - and current values
      • Adjustable voltage range: 0 ~ 30 V; Current range: 0 ~ 10 A
      • Voltage and current pre-selection with switchable output
      • C.C. (Constant Current) and C.V. (Constant Voltage) mode with connected load
      • Protection against short circuit, overload and overtemperature
      • Automatic shutdown at short circuit as protection
      • Safety: EN 61010-1
      • Accessories: Power cable and manual
      Output Voltage 0 V ~ 30 V DC
      Output Current 0 A ~ 10 A DC
      Output Power 300 W
      Display Voltage 10 mV (0 to 30V)
      Display Current 1 mA (0 A to 9.9 A) ; 10 mA (from 10 A)
      Ripple & noise ≤ 10 mV RMS; ; ≤ 10 mA RMS
      Load regulation ≤ 0.02% + 5 mV
      Line regulation ≤ 0.02% + 10 mV
      Display accuracy +/- 0.5% + 5 dgt.
      Protection Overload, overtemperature, short circuit protections by constant current circuitry and output overvoltage
      Operating voltage 115 / 240 V AC; 50 / 60 Hz
      Dimensions 80 x 160 x 260 mm
      Weight 1.6 kg

      For more information, check out the User Manual here.
