M5Stack UnitV K210 AI Camera for Edge Computing (OV7740)

  • BrandM5Stack

Description

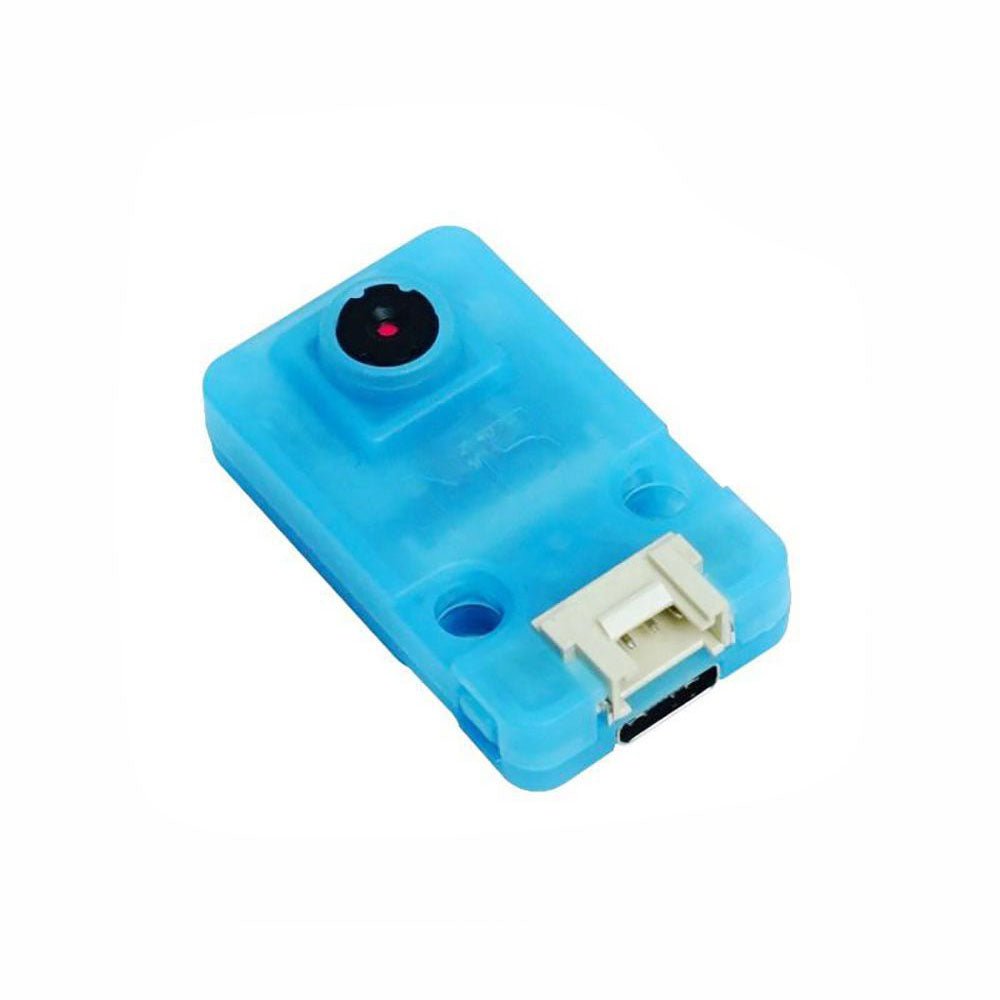

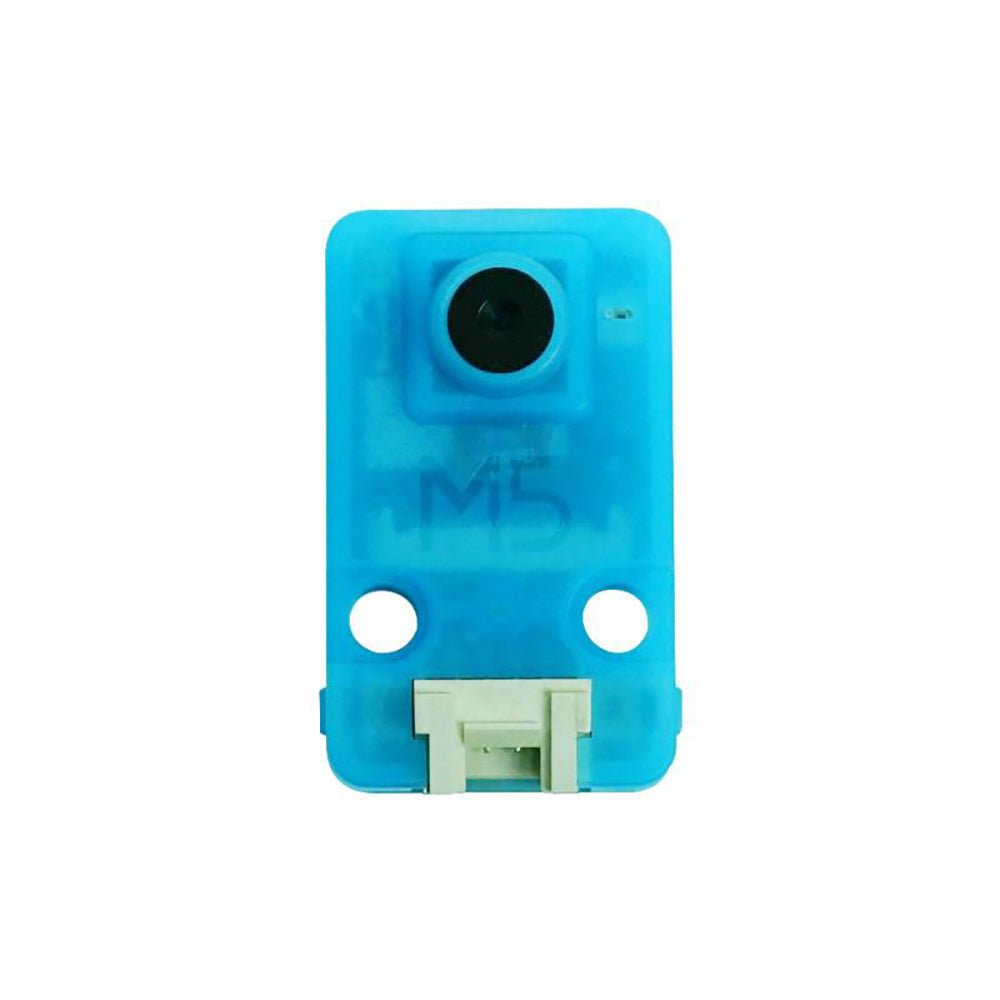

OV7740 is a AI Camera powered by Kendryte K210, an edge computing system-on-chip(SoC) with a dual-core 64bit RISC-V CPU and state-of-art neural network processor.

Features

  • Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
  • Dual Independent Double Precision FPU
  • 8MiB 64bit width On-Chip SRAM
  • Neural Network Processor(KPU) / 0.8Tops
  • Field-Programmable IO Array (FPIOA)
  • AES, SHA256 Accelerator
  • Direct Memory Access Controller (DMAC)
  • Micropython Support
  • Firmware encryption support

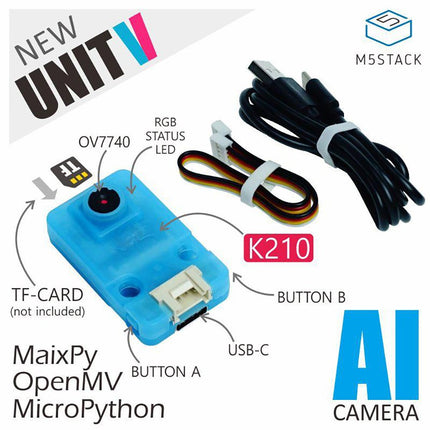

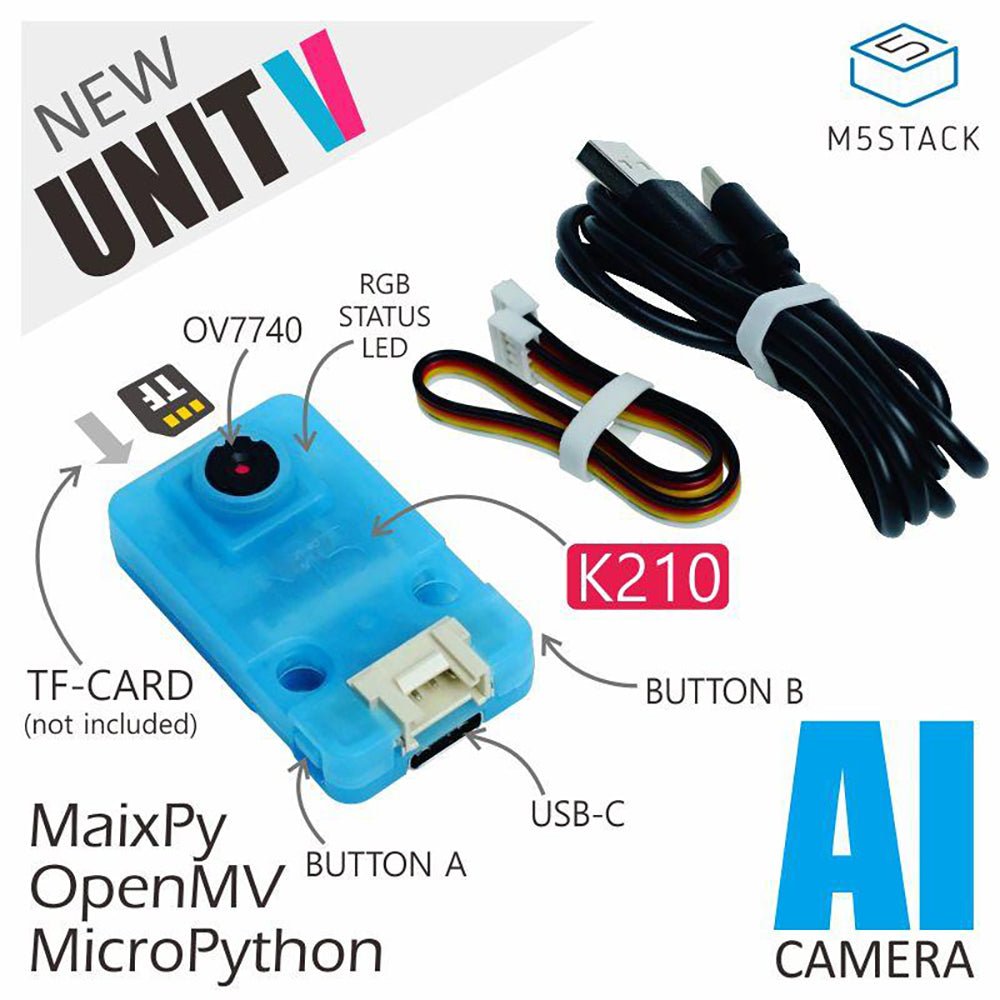

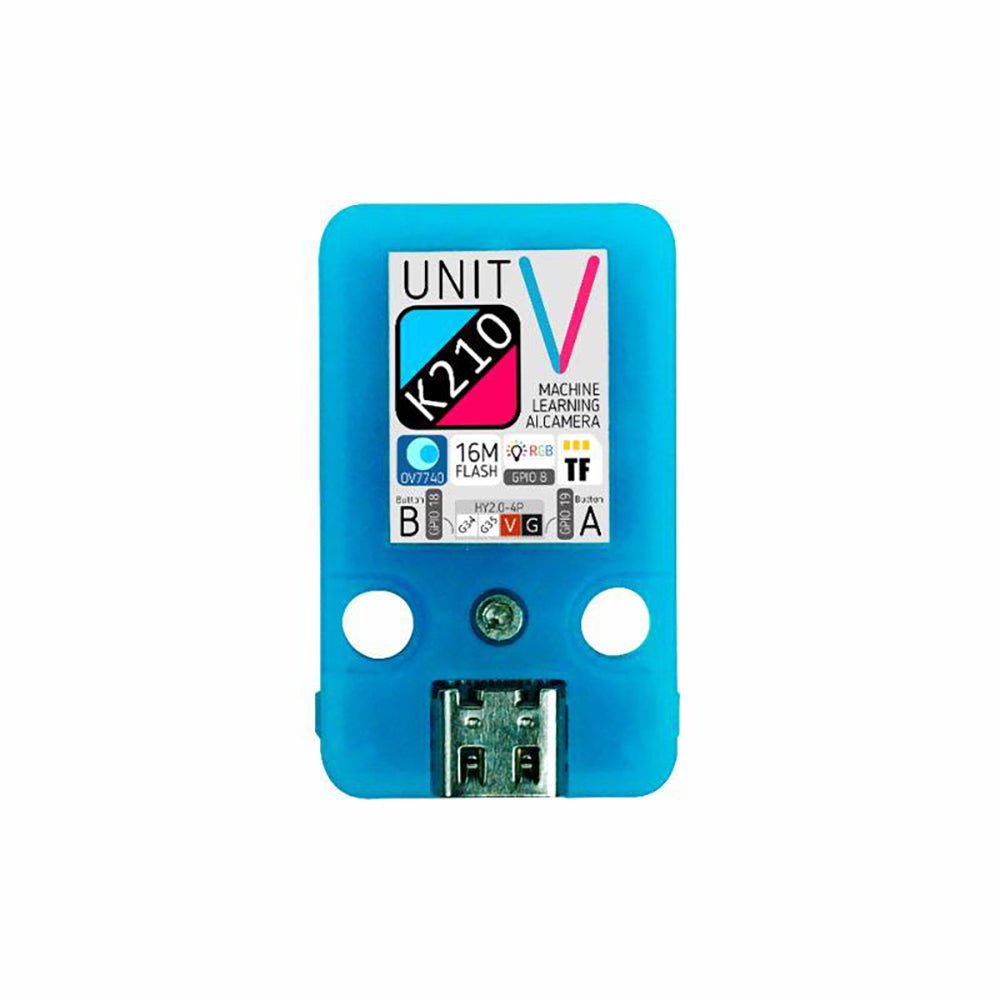

  • On-board Hardware:
    • Flash: 16M Camera :OV7740
    • 2x Buttons
    • Status Indicator LED
    • External storage: TF card/Micro SD
    • Interface: HY2.0/compatible GROVE

Applications

  • Face recognition/detection
  • Object detection/classification
  • Obtain the size and coordinates of the target in real-time
  • Obtain the type of detected target in real-time
  • Shape recognition Video recorder

Included

  • 1x UNIT-V(include 20cm 4P cable and USB-C cable)
Product form

OV7740 is a AI Camera powered by Kendryte K210, an edge computing system-on-chip(SoC) with a dual-core 64bit RISC-V CPU and... Read more

€ 49,95 incl. VAT
Members € 44,96

      Details

      SKU: 19778
      EAN: 019778

      Description

      OV7740 is a AI Camera powered by Kendryte K210, an edge computing system-on-chip(SoC) with a dual-core 64bit RISC-V CPU and state-of-art neural network processor.

      Features

      • Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
      • Dual Independent Double Precision FPU
      • 8MiB 64bit width On-Chip SRAM
      • Neural Network Processor(KPU) / 0.8Tops
      • Field-Programmable IO Array (FPIOA)
      • AES, SHA256 Accelerator
      • Direct Memory Access Controller (DMAC)
      • Micropython Support
      • Firmware encryption support
      • On-board Hardware:
        • Flash: 16M Camera :OV7740
        • 2x Buttons
        • Status Indicator LED
        • External storage: TF card/Micro SD
        • Interface: HY2.0/compatible GROVE

      Applications

      • Face recognition/detection
      • Object detection/classification
      • Obtain the size and coordinates of the target in real-time
      • Obtain the type of detected target in real-time
      • Shape recognition Video recorder

      Included

      • 1x UNIT-V(include 20cm 4P cable and USB-C cable)
