HackRF One PortaPack H2 (All-in-One Wideband SDR)

  • BrandPortaPack

Description

The HackRF One and PortaPack H2 combination is a standalone, portable SDR device without the need for a computer.

The PortaPack H2 enhances the well-known capabilities of the popular HackRF One with a suite of additional features, including a 3.2-inch touchscreen display for easy control and visualization, a built-in real-time clock for precise timestamping, a headphone jack for audio monitoring, a microSD slot for data storage, and convenient navigation buttons along with a rotary knob for smooth, intuitive operation of the SDR.

With the Mayhem firmware installed, the PortaPack H2 unlocks advanced capabilities including spectrum analysis, signal recording and playback, protocol decoding (such as ADS-B, AIS, and Bluetooth), and flexible signal transmission at low power.

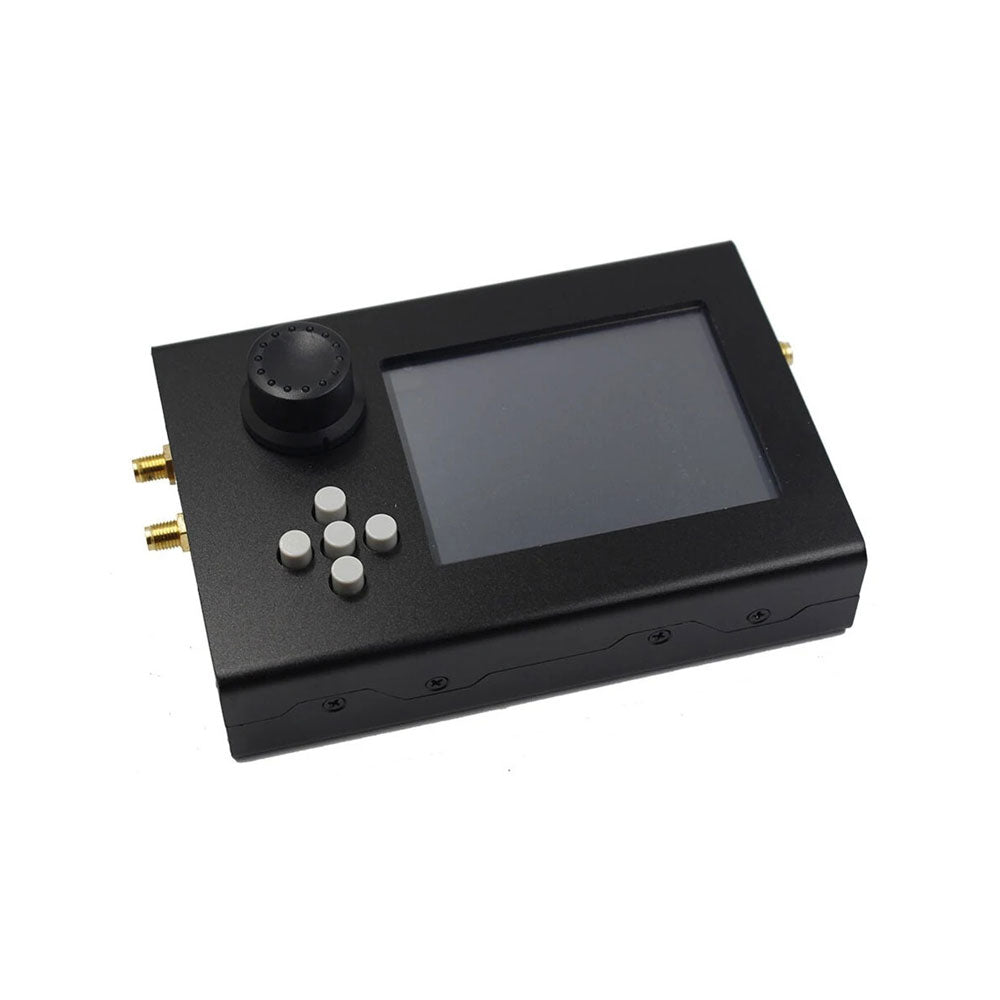

Ready-mounted in a compact metal case, the HackRF One/PortaPack H2 combo is the perfect choice for both professionals and hobbyists seeking robust SDR functionality, accessible anytime and anywhere.

Features of HackRF One

  • 1 MHz to 6 GHz operating frequency
  • Half-duplex transceiver
  • Up to 20 million samples per second
  • 8-bit quadrature samples (8-bit I and 8-bit Q)
  • Compatible with GNU Radio, SDR and more
  • Software-configurable RX and TX gain and baseband filter
  • Software-controlled antenna port power (50 mA at 3.3 V)

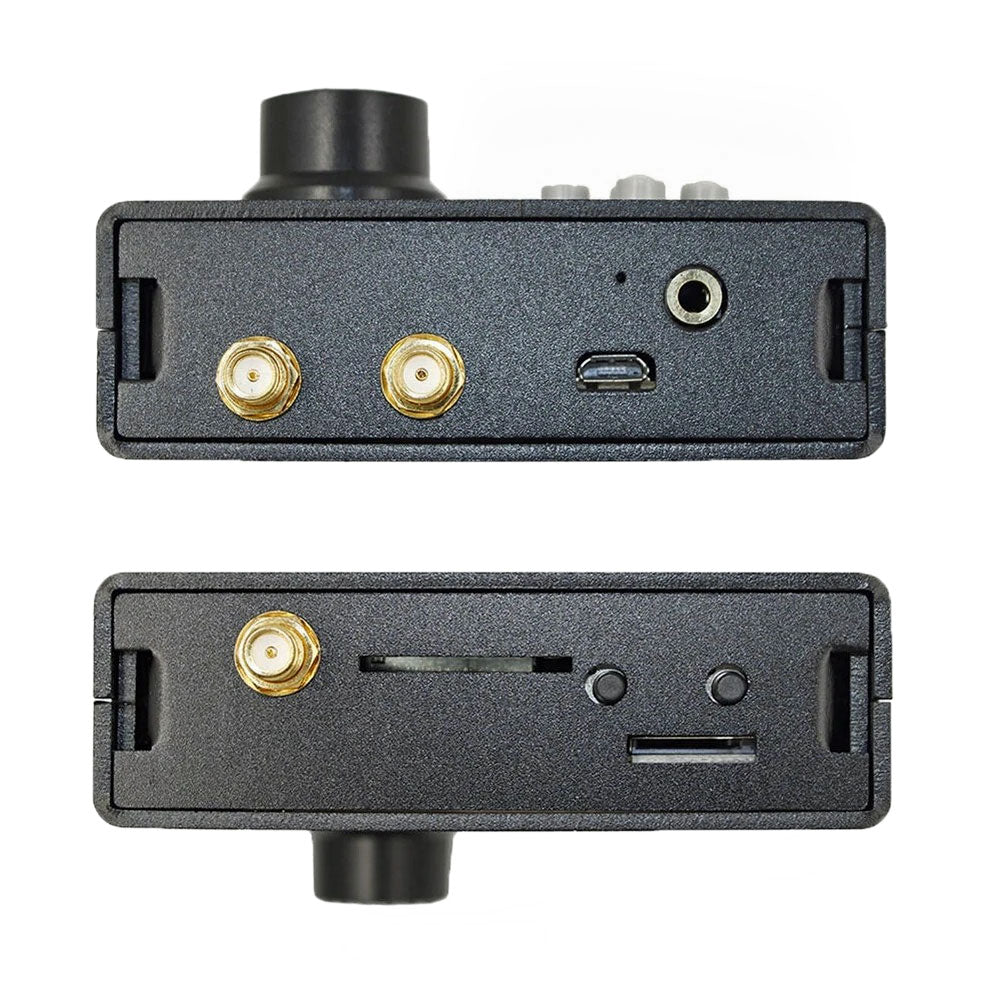

  • SMA antenna socket
  • SMA clock I/O sync socket
  • Convenient buttons for programming
  • Hi-Speed USB 2.0
  • USB-powered
  • Open-source hardware
  • Large community of followers

Features of PortaPack H2

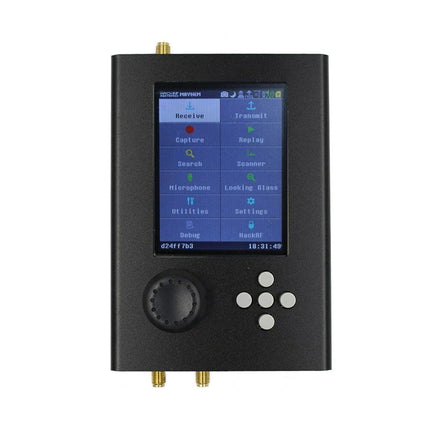

  • 3.2-inch color LCD with resistive touch (240 x 320)
  • 4-way arrow buttons, rotary wheel with Select pushbutton
  • Coin battery to preserve settings and date/time
  • Micro SD card slot for data/code storage, and app transfer
  • SSB, AM, narrowband FM, broadband FM audio reception, with cascade spectrum
  • Broadband (18 MHz max.) spectrum and cascade analysis
  • Digital TX/RX signal decoding: AIS, ADS-B, TPMS, APRS, BLE Rx, POCSAG, Weather Balloon
  • HackRF mode runs HackRF firmware for use with the SDR host computer software
  • PPM calibration for more accurate tuning
  • Sleep mode saves energy by turning off the display only
  • Built-in 2400 mAh Lithium battery
  • Headphones output

Included

  • HackRF One and PortaPack H2 (ready-assembled in compact metal case, ready to operate)

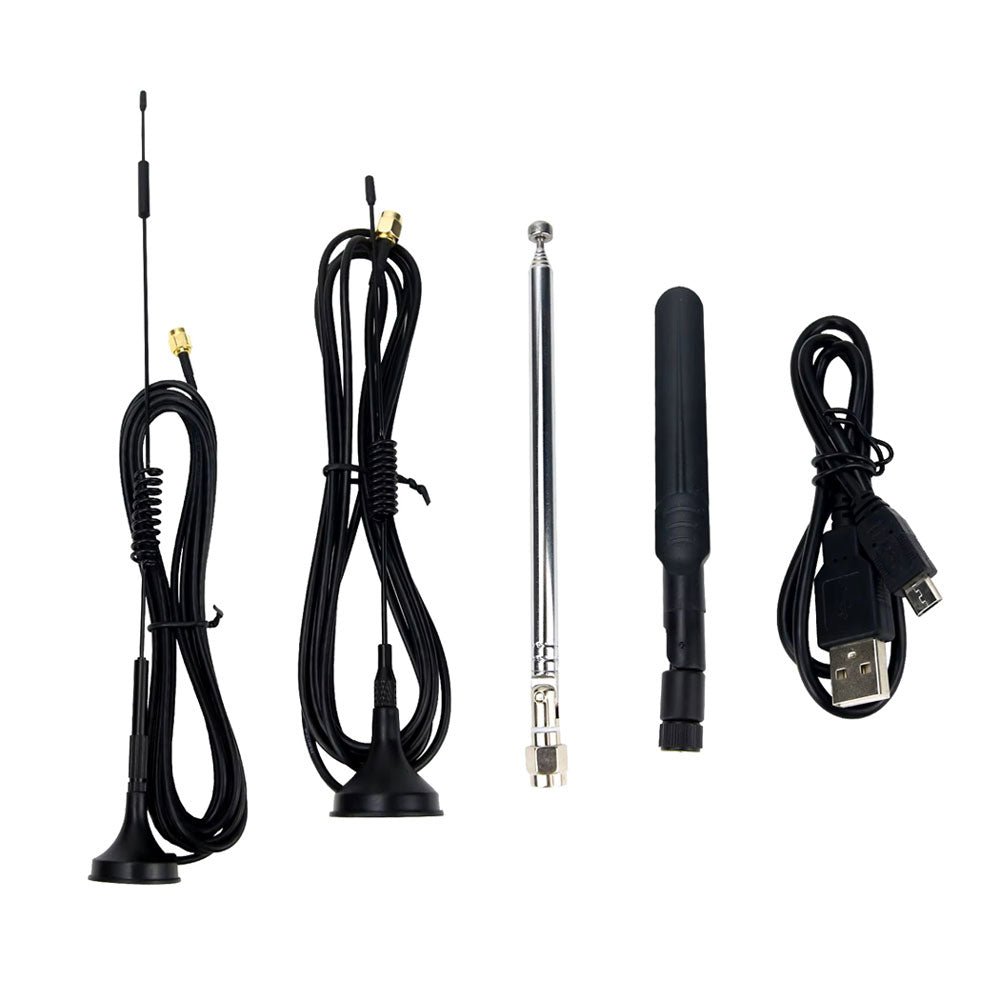

  • Antenna Complement
    • 1x VHF BLC-TLC, 30 cm, magnetic base, coax cable, SMA connector
    • 1x UHF CLC, 19 cm, magnetic base, coax cable, SMA connector
    • 1x 2.4 GHz WiFi, 15 cm, foldable, SMA connector
    • 1x Telescopic rod, 48 cm, SMA connector
    • 1x ADS-B 1-2 GHz, 12 cm, detachable, screw-on, SMA connector
    • 1x Magnetic base, screw top, coax cable, SMA connector
  • 1x USB cable
Product form

The HackRF One and PortaPack H2 combination is a standalone, portable SDR device without the need for a computer. The... Read more

Out of stock

€ 269,00 incl. VAT
Members € 242,10

    Details

    SKU: 20962
    EAN: 020962

    Description

    The HackRF One and PortaPack H2 combination is a standalone, portable SDR device without the need for a computer.

    The PortaPack H2 enhances the well-known capabilities of the popular HackRF One with a suite of additional features, including a 3.2-inch touchscreen display for easy control and visualization, a built-in real-time clock for precise timestamping, a headphone jack for audio monitoring, a microSD slot for data storage, and convenient navigation buttons along with a rotary knob for smooth, intuitive operation of the SDR.

    With the Mayhem firmware installed, the PortaPack H2 unlocks advanced capabilities including spectrum analysis, signal recording and playback, protocol decoding (such as ADS-B, AIS, and Bluetooth), and flexible signal transmission at low power.

    Ready-mounted in a compact metal case, the HackRF One/PortaPack H2 combo is the perfect choice for both professionals and hobbyists seeking robust SDR functionality, accessible anytime and anywhere.

    Features of HackRF One

    • 1 MHz to 6 GHz operating frequency
    • Half-duplex transceiver
    • Up to 20 million samples per second
    • 8-bit quadrature samples (8-bit I and 8-bit Q)
    • Compatible with GNU Radio, SDR and more
    • Software-configurable RX and TX gain and baseband filter
    • Software-controlled antenna port power (50 mA at 3.3 V)
    • SMA antenna socket
    • SMA clock I/O sync socket
    • Convenient buttons for programming
    • Hi-Speed USB 2.0
    • USB-powered
    • Open-source hardware
    • Large community of followers

    Features of PortaPack H2

    • 3.2-inch color LCD with resistive touch (240 x 320)
    • 4-way arrow buttons, rotary wheel with Select pushbutton
    • Coin battery to preserve settings and date/time
    • Micro SD card slot for data/code storage, and app transfer
    • SSB, AM, narrowband FM, broadband FM audio reception, with cascade spectrum
    • Broadband (18 MHz max.) spectrum and cascade analysis
    • Digital TX/RX signal decoding: AIS, ADS-B, TPMS, APRS, BLE Rx, POCSAG, Weather Balloon
    • HackRF mode runs HackRF firmware for use with the SDR host computer software
    • PPM calibration for more accurate tuning
    • Sleep mode saves energy by turning off the display only
    • Built-in 2400 mAh Lithium battery
    • Headphones output

    Included

    • HackRF One and PortaPack H2 (ready-assembled in compact metal case, ready to operate)
    • Antenna Complement
      • 1x VHF BLC-TLC, 30 cm, magnetic base, coax cable, SMA connector
      • 1x UHF CLC, 19 cm, magnetic base, coax cable, SMA connector
      • 1x 2.4 GHz WiFi, 15 cm, foldable, SMA connector
      • 1x Telescopic rod, 48 cm, SMA connector
      • 1x ADS-B 1-2 GHz, 12 cm, detachable, screw-on, SMA connector
      • 1x Magnetic base, screw top, coax cable, SMA connector
    • 1x USB cable
