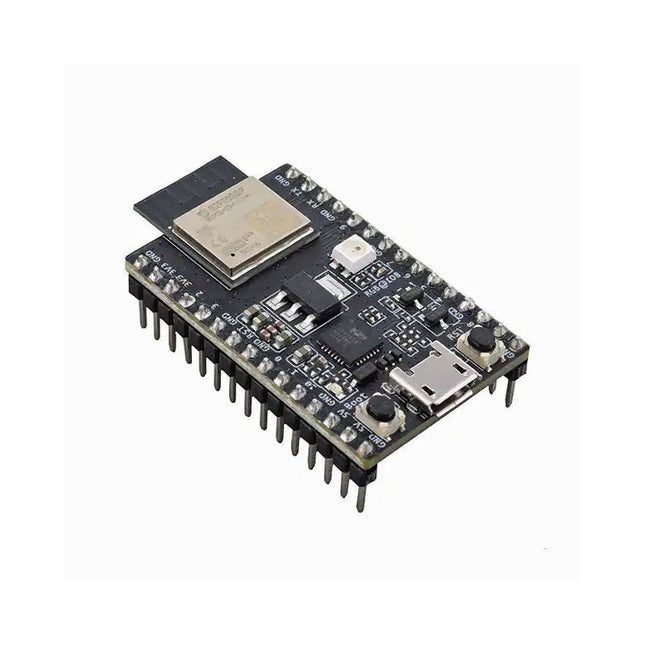

ESP32-C3-DevKitM-1 is an entry-level development board based on ESP32-C3-MINI-1, a module named for its small size. This board integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the ESP32-C3-MINI-1 module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitM-1 on a breadboard. Specifications ESP32-C3-MINI-1 ESP32-C3-MINI-1 is a general-purpose Wi-Fi and Bluetooth LE combo module that comes with a PCB antenna. At the core of this module is ESP32-C3FN4, a chip that has an embedded flash of 4 MB. Since flash is packaged in the ESP32-C3FN4 chip, rather than integrated into the module, ESP32-C3-MINI-1 has a smaller package size. 5 V to 3.3 V LDO Power regulator that converts a 5 V supply into a 3.3 V output. 5 V Power On LED Turns on when the USB power is connected to the board. Pin Headers All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board. For details, please see Header Block. Boot Button Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port. Micro-USB Port USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-C3FN4 chip. Reset Button Press this button to restart the system. USB-to-UART Bridge Single USB-UART bridge chip provides transfer rates up to 3 Mbps. RGB LED Addressable RGB LED, driven by GPIO 8. Downloads ESP32-C3 Datasheet ESP32-C3-MINI-1 Datasheet ESP32-C3-DevKitM-1 Schematic ESP32-C3-DevKitM-1 PCB Layout ESP32-C3-DevKitM-1 Dimensions

Read more less

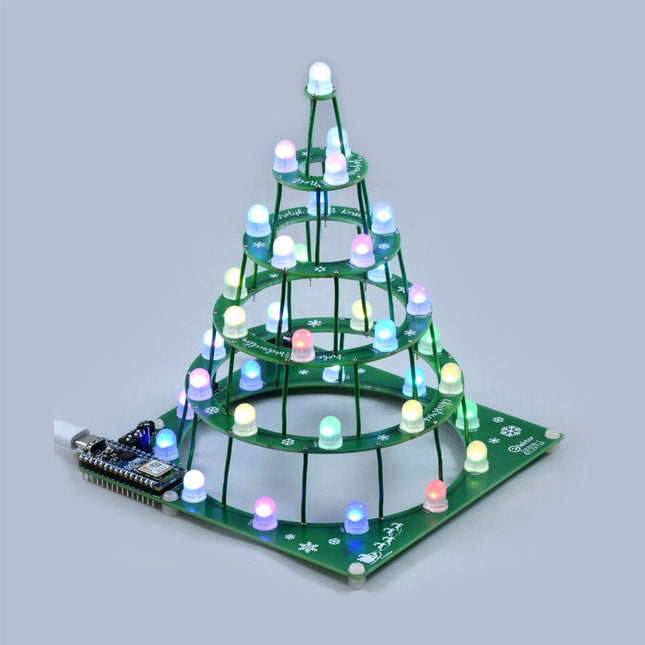

This Arduino-based Christmas Tree Kit contains 36 digitally programmable 8 mm RGB LEDs (WS2812D-F8) that are individually addressable for creating impressive light effects. The LEDs can be controlled externally or by an Arduino Nano ESP32. Features 36 digital RGB LEDs (NeoPixel-addressable) Suitable for any microcontroller system Perfect match with Arduino Nano ESP32 (not included) High-quality PCBs: 5x circular, 1x square Easy, fun assembly with popular tools Detailed construction manual Dimensions: 136 x 136 x 175 mm Included PCB (136 x 136 mm) Resistors R1…R36 = 75 #, 0W125, 5%, SMD 0805 P1 = 10 k#, 0W1, 20%, trimmer, top adjust, 6mm round (Piher PT6KV-103A2020) Capacitors C1…C36 = 100 n, 50 V, 5%, X7R, SMD 0805 C37, C38 = 47u, 6V3, 10%, tantalum, case size A (1206) Semiconductors D1, D2 = S5J-E3/57T, SMD case size SMC LED1-LED36 = WS2812D-F8, 8mm, THT Others K1, JP1 = Pin header, 3x1, vertical, 2.54mm pitch Shunt jumper for JP1, 2.54 mm spacing K2 = MJ-179PH (Multicomp Pro), DC power connector, 4A, pin diam. 1.95mm S1 = DIP switch, 4-way PA1…PE6 = 2m wire, 0.81mm solid, 0.52mm² / 20AWG, insulated green (Alpha Wire 3053/1 GR005) H1…H5 = Nylon standoff, female-female, M3, 5mm H1…H5 = Nylon screw, M3, 5mm Optional Arduino Nano ESP32 with Headers Links Elektor Labs

Read more less

The Arduino Nano ESP32 is a Nano form factor board based on the ESP32-S3 (embedded in the NORA-W106-10B from u-blox). This is the first Arduino board to be based fully on an ESP32, and features Wi-Fi, Bluetooth LE, debugging via native USB in the Arduino IDE as well as low power. The Nano ESP32 is compatible with the Arduino IoT Cloud, and has support for MicroPython. It is an ideal board for getting started with IoT development. Features Tiny footprint: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects. Wi-Fi and Bluetooth: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth connectivity. Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps. Arduino IoT Cloud compatible: Quickly and easily create IoT projects with just a few lines of code. The setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. HID support: Simulate human interface devices, such as keyboards or mice, over USB, opening up new possibilities for interacting with your computer. Specifications Microcontroller u-blox NORA-W106 (ESP32-S3) USB connector USB-C Pins Built-in LED pins 13 Built-in RGB LED pins 14-16 Digital I/O pins 14 Analog input pins 8 PWM pins 5 External interrupts All digital pins Connectivity Wi-Fi u-blox NORA-W106 (ESP32-S3) Bluetooth u-blox NORA-W106 (ESP32-S3) Communication UART 2x I²C 1x, A4 (SDA), A5 (SCL) SPI D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS) Power I/O Voltage 3.3 V Input voltage (nominal) 6-21 V Source Current per I/O pin 40 mA Sink Current per I/O pin 28 mA Clock speed Processor Up to 240 MHz Memory ROM 384 kB SRAM 512 kB External Flash 128 Mbit (16 MB) Dimensions 18 x 45 mm Downloads Datasheet Schematics

Read more less

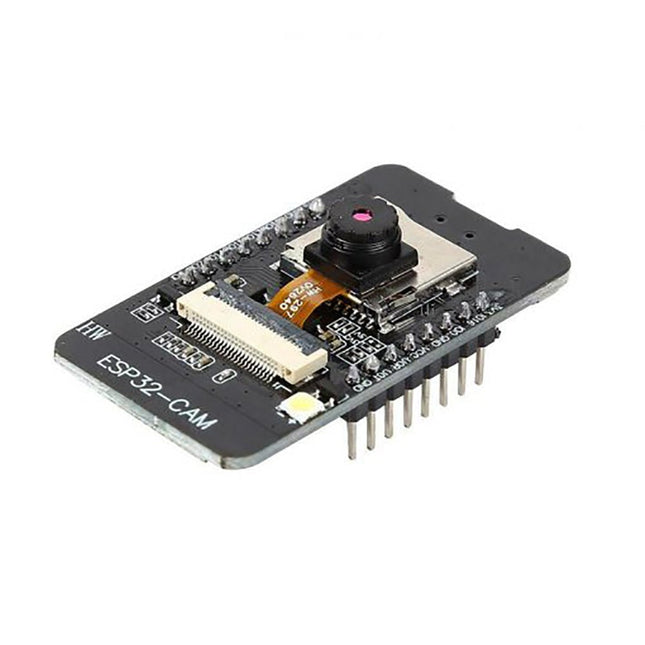

Features Product model: HW-818 Working voltage: DC 5V Product size: 27mm x 48.5 mm x 4.5 mm / 1.06” x 1.9” x 0.17” SPI Flash: Default 32Mbit RAM: Internal 520KB + External 4MPSRAM Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards Wi-Fi: 802 II b/g/n/e/i Support interfaces: UART, SPI, I2C, PWM Supporting TF Card: Maximum Supporting 4G IO port: 9 Serial port rate: default 115200 BPS Image output format: JPEG (OV2640 only), BMP, GRAYSCALE Spectrum range: 2412-2484 MHz Antenna form: board PCB antenna, gain 2dBi Transmitting power: 802.l1b: 17 + 2dBm (1lMbps) 802.l1g:14+2dBm (54Mbps) 802.l1n:13+2dBm (MCS7)

Read more less

The Elektor ESP32 Energy Meter is a device designed for real-time energy monitoring and smart home integration. Powered by the ESP32-S3 microcontroller, it offers robust performance with modular and scalable features. The device uses a 220 V-to-12 V step-down transformer for voltage sampling, ensuring galvanic isolation and safety. Its compact PCB layout includes screw-type terminal blocks for secure connections, a Qwiic connector for additional sensors, and a programming header for direct ESP32-S3 configuration. The energy meter is compatible with single-phase and three-phase systems, making it adaptable for various applications. The energy meter is simple to set up and integrates with Home Assistant, offering real-time monitoring, historical analytics, and automation capabilities. It provides accurate measurements of voltage, current, and power, making it a valuable tool for energy management in homes and businesses. Features Comprehensive Energy Monitoring: Get detailed insights into your energy usage for smarter management and cost savings. Customizable Software: Tailor functionality to your needs by programming and integrating custom sensors. Smart Home Ready: Compatible with ESPHome, Home Assistant, and MQTT for full Smart Home integration. Safe & Flexible Design: Operates with a 220 V-to-12 V step-down transformer and features a pre-assembled SMD board. Quick Start: Includes one Current Transformer (CT) sensor and access to free setup resources. Specifications Microcontroller ESP32-S3-WROOM-1-N8R2 Energy Metering IC ATM90E32AS Status Indicators 4x LEDs for power consumption indication2x Programmable LEDs for custom status notifications User Input 2x Push buttons for user control Display Output I²C OLED display for real-time power consumption visualization Input Voltage 110/220 V AC (via step-down transformer) Input Power 12 V (via step-down transformer or DC input) Clamp Current Sensor YHDC SCT013-000 (100 A/50 mA) included Smart Home Integration ESPHome, Home Assistant, and MQTT for seamless connectivity Connectivity Header for programming, Qwiic for sensor expansion Applications Supports single-phase and three-phase energy monitoring systems Dimensions 79.5 x 79.5 mm Included 1x Partly assembled board (SMDs are pre-mounted) 2x Screw terminal block connerctors (not mounted) 1x YHDC SCT013-000 current transformer Required Power transformer not included Downloads Datasheet (ESP32-S3-WROOM-1) Datasheet (ATM90E32AS) Datasheet (SCT013-000) Frequently Asked Questions (FAQ) From Prototype to Finished Product What started as an innovative project to create a reliable and user-friendly energy meter using the ESP32-S3 microcontroller has evolved into a robust product. Initially developed as an open-source project, the ESP32 Energy Meter aimed to provide precise energy monitoring, smart home integration and more. Through meticulous hardware and firmware development, the energy meter now stands as a compact, versatile solution for energy management.

Read more less

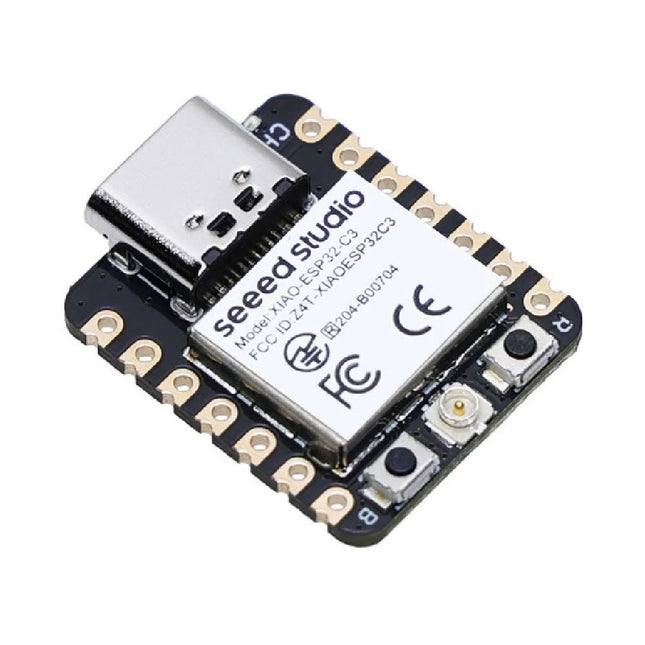

Seeed Studio XIAO ESP32C3 has equipped a highly-integrated ESP32-C3 chip, built around a 32-bit RISC-V chip processor with a four-stage pipeline that operates at up to 160 MHz.The board equips highly-integrated ESP32-C3 SoC. The chip has been installed with a complete 2.4 GHz Wi-Fi subsystem which means it supports Station mode, SoftAP mode, SoftAP & Station mode, and promiscuous mode for multiple Wi-Fi applications. It works under an ultra-low power state, also supporting features of Bluetooth 5 and Bluetooth mesh. There are 400 KB SRAM & 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.Applications Internet of Things Wearable devices Health monitoring Education Low-Power (LP) networking Rapid prototyping Features Outstanding RF performance: Powerful ESP32-C3 SoC and U.FL antenna provided that supports WiFi/Bluetooth connection over 100 m. Thumb-size Design: 21 x 17.5 mm overall dimension, portable and lightweight. Low power consumption: Lowest as 44 μA (deep sleep mode), with 4 working modes available. Onboard battery charge IC: Supports battery charging, great for various wearable scenarios and wireless IoT applications. Specifications Processor ESP32-C3 SoC RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz Wireless Complete 2.4 GHz Wi-Fi subsystem Bluetooth 5.0 / Bluetooth mesh On-chip Memory 400 KB SRAM & 4 MB Flash Interface 1x UART, 1x I²C, 1x I²S, 1x SPI, 11x GPIO (PWM), 4x ADC 1x Reset button, 1x Boot button Dimensions 21 x 17.5 mm Power Circuit operating voltage: 3.3 V @ 200 mA Charging current: 50 mA/100 mA Input voltage (VIN): 5 V Deep Sleep Power Consumption Deep Sleep Model: >44 μA Wi-Fi Enabled Power Consumption Active Model: <75 mA Modem-sleep Model: <25 mA Light-sleep Model: <4 mA BLE Enabled Power Consumption Modem-sleep Model: <27 mA Light-sleep Model: <10 mA Included 1x Seeed Studio XIAO ESP32C3 1x Antenna Downloads XIAO ESP32 Pinout ESP32-C3 Datasheet

Read more less

The ESP32-C3 chip has industry-leading low-power performance and radio frequency performance, and supports Wi-Fi IEEE802.11b/g/n protocol and BLE 5.0. The chip is equipped with a RISC-V 32-bit single-core processor with an operating frequency of up to 160 MHz. Support secondary development without using other microcontrollers or processors. The chip has built-in 400 KB SRAM, 384 KB ROM, 8 KB RTC SRAM, built-in 4 MB Flash also supports external Flash. The chip supports a variety of low power consumption working states, which can meet the power consumption requirements of various application scenarios. The chip's unique features such as fine clock gating function, dynamic voltage clock frequency adjustment function, and RF output power adjustable function can achieve the best balance between communication distance, communication rate and power consumption. The ESP-C3-12F module provides a wealth of peripheral interfaces, including UART, PWM, SPI, I²S, I²C, ADC, temperature sensor and up to 15 GPIOs. Features Support Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150 Mbps Support BLE5.0, does not support classic Bluetooth, rate support: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps RISC-V 32-bit single-core processor, supports a clock frequency of up to 160 MHz, has 400 KB SRAM, 384 KB ROM, 8 KB RTC SRAM Support UART/PWM/GPIO/ADC/I²C/I²S interface, support temperature sensor, pulse counter The development board has RGB three-in-one lamp beads, which is convenient for the second development of customers. Support multiple sleep modes, deep sleep current is less than 5 uA Serial port rate up to 5 Mbps Support STA/AP/STA+AP mode and promiscuous mode Support Smart Config (APP)/AirKiss (WeChat) of Android and iOS, one-click network configuration Support serial port local upgrade and remote firmware upgrade (FOTA) General AT commands can be used quickly Support secondary development, integrated Windows and Linux development environment About Flash configuration ESP-C3-12F uses the built-in 4 MB Flash of the chip by default, and supports the external Flash version of the chip.

Read more less

This ESP32 terminal is a microcontroller based on the ESP32 master. It adopts Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240 Mhz, supports 2.4 GHz Wi-Fi and Bluetooth 5 (LE), and can easily handle common edge terminal device application scenarios, such as industrial control, agricultural production environment detection and processing, intelligent logistics monitoring, smart home scenarios and more. The ESP32 module also has a 3.5-inch parallel RGB interface capacitive touch screen with a resolution of 320x480 to ensure perfect image output at a frame rate 60 FPS. The 4 Crowtail interfaces on the back of this terminal can be used with Crowtail series sensors, plug and play, and create more interesting projects quickly and conveniently. In addition, it is also equipped with an SD card slot for extended storage (SPI leads) and a buzzer function. The ESP32 touchscreen supports ESP-IDF and Arduino IDE development and is compatible with Python/MicroPython/Arduino. It also supports LVGL, which is the most popular free and open-source embedded graphics library to create beautiful UIs for any MCU, MPU, and display type. Now it has also obtained the official certification of LVGL. LVGL's board certificate shows that the boards can be easily used with LVGL and has decent performance for UI applications. The onboard charging circuit and lithium battery interface can use the type-C power supply interface to supply power and charge the battery at the same time, providing more outdoor scene expansion possibilities. Features Integrated ESP32-S3 module, which is support 2.4 GHz Wi-Fi and Bluetooth 5 (LE) LCD 3.5 inches parallel TFT-LCD with 320x480 resolution Compatible with Arduino/Python/MicrmoPython Mature software support, support ESP-IDF and Arduino IDE development Support open-source Graphics Library-LVGL Support 1T1R mode, data rate up to 150 Mbps, Wireless Multimedia (WMM) Perfect security mechanism, support AES-128/256, Hash, RSA, HMAC, digital signatures and secure boot Onboard charging chip and interface, use type-C interface to charge With 4 Crowtail interfaces (HY2.0-4P connector), plug and play with various Crowtail sensor Applications Smart Home Industrial Control Medical Monitor Home Appliance Display Logistics Monitoring Specifications ESP32-S3 module with 16 MB Flash and 8 MB PSRAM Wi-Fi Protocol: 802.11b/g/n (802.11n up to 150 Mbps) Wi-Fi Frequency Range: 2.402-2.483 Ghz Support Bluetooth 5 With 4 Crowtail interfaces (HY2.0-4P connector) and onboard Micro TF card slot 3.5-inch TFT LCD RGB true color LCD screen with 320x480 resolution Driver chip: ILI9488 (16-bit parallel line) Capacitive touch panel controller IC FT6236 series Operating Voltage: DC 5 V-500 mA Sleep current: USB power supply: 6.86 mA Lithium battery power supply: 3.23 mA LiPo Battery Interface: PH2.0 Operating temperature: -10°C ~ 65°C Active Area: 73.63 x 49.79 mm (L x W) Dimensions: 106 x 66 x 13 mm (L x W x H) Included 1x 3.5-inch ESP RGB Display with Acrylic Shell 1x USB-C Cable Downloads Wiki Schematic Diagram 16 learning Lessons for LVGL Source code Lesson code LVGL Reference ESP32-S3 Datasheet ILI9488 Datasheet Capacitive Touch Display Data

Read more less

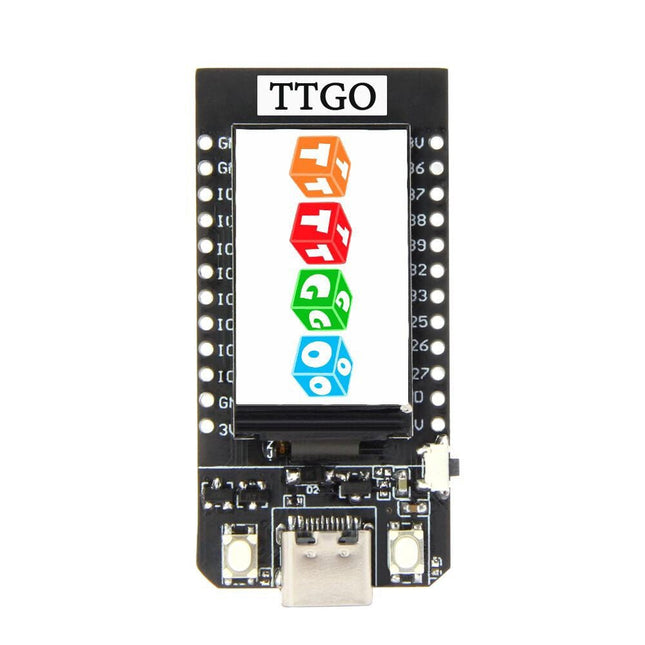

LILYGO T-Display ESP32 WiFi and Bluetooth Module Development Board 1.14-inch LCD Control BoardSpecifications Chipset Espressif-ESP32 240 MHz Xtensa single-/dual-core 32-bit LX6 microprocessor Flash QSPI flash 16 MB SRAM 520 kB SRAM Button Reset USB to TTL CP2104 Modular interface UART, SPI, SDIO, I²C, LED PWM, TV PWM, I²S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifier Display IPS ST7789V 1.14 Inch Working voltage 2.7-4.2 V Working current About 67 MA Sleep current About 350 uA Working temperature range -40°C ~ +85°C Size & Weight 51.52 x 25.04 x 8.54 mm (7.81 g) Power Supply USB 5 V/1 A Charging current 500 mA Battery 3.7 V lithium battery JST Connector 2-Pin 1.25 mm USB Type-C WiFi Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 chip) Protocol 802.11 b/g/n (802.11n, speed up to 150 Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval Frequency range 2.4~2.5 GHz (2400~2483.5 M) Transmit Power 22 dBm Communication distance 300 m Bluetooth Protocol Meet bluetooth v4.2BR/EDR and BLE standard Radio frequency With -97 dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH Audio frequency CVSD&SBC audio frequency Software Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P Security mechanism WPA/WPA2/WPA2-Enterprise/WPS Encryption Type AES/RSA/ECC/SHA Firmware upgrade UART download/OTA (Through network/host to download and write firmware) Software Development Support cloud server development /SDK for user firmware development Networking protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT User Configuration AT + Instruction set, cloud server, Android/iOS app OS FreeRTOS Included 1x T-Display (16 MB) 1x Charging Cable 2x Pin

Read more less

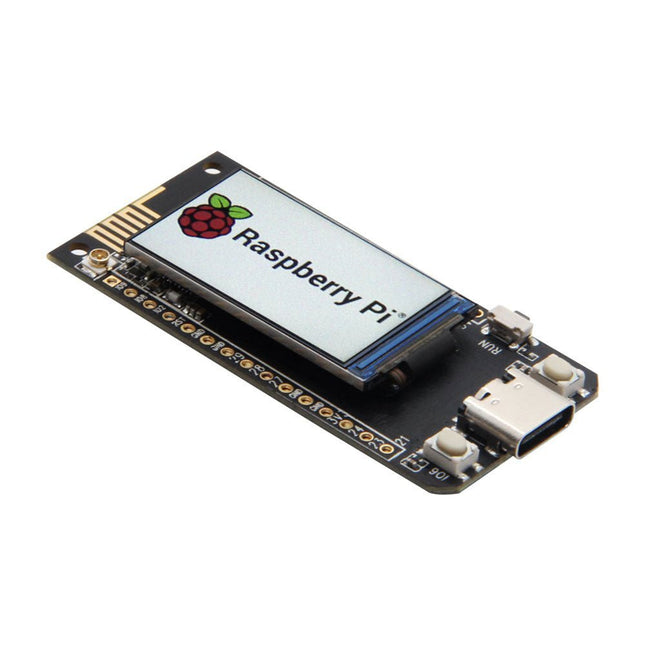

T-PicoC3 is LILYGO's first motherboard with dual MCUs – equipped with Raspberry Pi RP2040 and ESP32-C3 chip (supporting WiFi and Bluetooth).Specifications MCU RP2040 Dual ARM Cortex-M0+ Flash 4 MB Programming language C/C++, MicroPython Support machine leraning library TensorFlow Lite Onboard functions Buttons: IO06+IO07, battery power detection 1.14 inch ST7789V IPS LCD Resolution 135 x 240 Display Full-color TFT Interface 4-Wire SPI Power supply 3.3 V Operating temperature -20~70°C Dimensions 2.4 x 5.3 cm (W x H) DownloadsGitHub

Read more less

This is a soldering kit for the starters to learn soldering. After 1-2 hours soldering and assembly, and easy steps to set the Wifi name/password with a phone, you will get: A real-time clock, it will get the world real-time from the Network timing protocol, you can set your local time zone easily An Alarm clock, with loud noise An Online world weather forecaster, about the local temperature/weather, you can easily change/alter your address/cities without any re-programming To reduce the soldering difficulty, all the SMD parts have been soldered, you only need to solder the THT parts, and then set the Wifi network with a phone, and finally turn on the power to enjoy the success. Included ESP32 SmartClock kit mainboard Batch of capacitors & resistors/connectors Colorful LCD module Lipo battery Acrylic boards Nuts & screws Downloads User Manual Source code on GitHub

Read more less

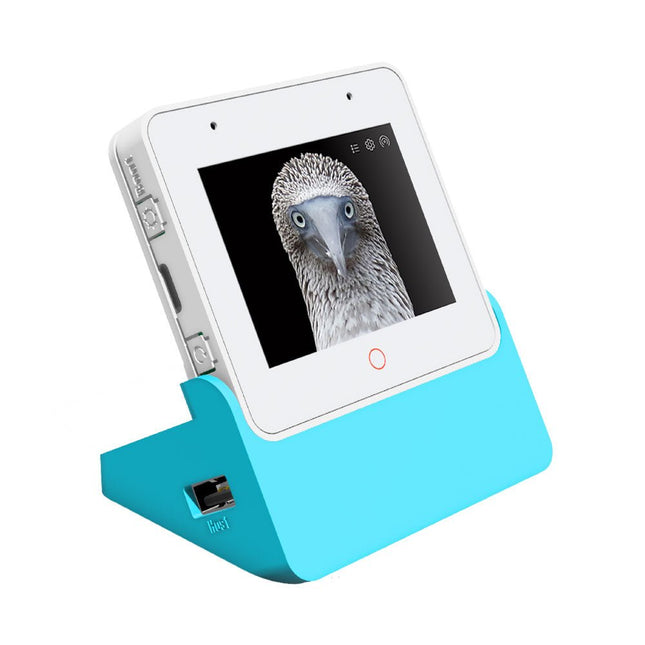

ESP32-S3-BOX-3 is based on Espressif’s ESP32-S3 Wi-Fi + Bluetooth 5 (LE) SoC, with AI acceleration capabilities. In addition to ESP32-S3’s 512 KB SRAM, ESP32-S3-BOX-3 comes with 16 MB of Quad flash and 16 MB of Octal PSRAM. ESP32-S3-BOX-3 runs Espressif’s own speech-recognition framework, ESP-SR, which provides users with an offline AI voice-assistant. It features far-field voice interaction, continuous recognition, wake-up interruption, and the ability to recognize over 200 customizable command words. BOX-3 can also be transformed into an online AI chatbot using advanced AIGC development platforms, such as OpenAI. Powered by the high-performance ESP32-S3 SoC, BOX-3 provides developers with an out-of-the-box solution to creating Edge AI and HMI applications. The advanced features and capabilities of BOX-3 make it an ideal choice for those in the IIoT industry who want to embrace Industry 4.0 and transform traditional factory-operating systems. ESP32-S3-BOX-3 is the main unit powered by the ESP32-S3-WROOM-1 module, which offers 2.4 GHz Wi-Fi + Bluetooth 5 (LE) wireless capability as well as AI acceleration capabilities. On top of 512 KB SRAM provided by the ESP32-S3 SoC, the module comes with additional 16 MB Quad flash and 16 MB Octal PSRAM. The board is equipped a 2.4-inch 320 x 240 SPI touch screen (the ‘red circle’ supports touch), two digital microphones, a speaker, 3‑axis Gyroscope, 3‑axis Accelerometer, one Type-C port for power and download/debug, a high-density PCIe connector which allows for hardware extensibility, as well as three functional buttons. Features ESP32-S3 WiFi + Bluetooth 5 (LE) Built-in 512 KB SRAM ESP32-S3-WROOM-1 16 MB Quad flash 16 MB Octal PSRAM Included ESP32-S3-BOX-3 Unit ESP32-S3-BOX-3 Sensor ESP32-S3-BOX-3 Dock ESP32-S3-BOX-3 Bracket ESP32-S3-BOX-3 Bread RGB LED module and Dupont wires USB-C cable Downloads GitHub

Read more less

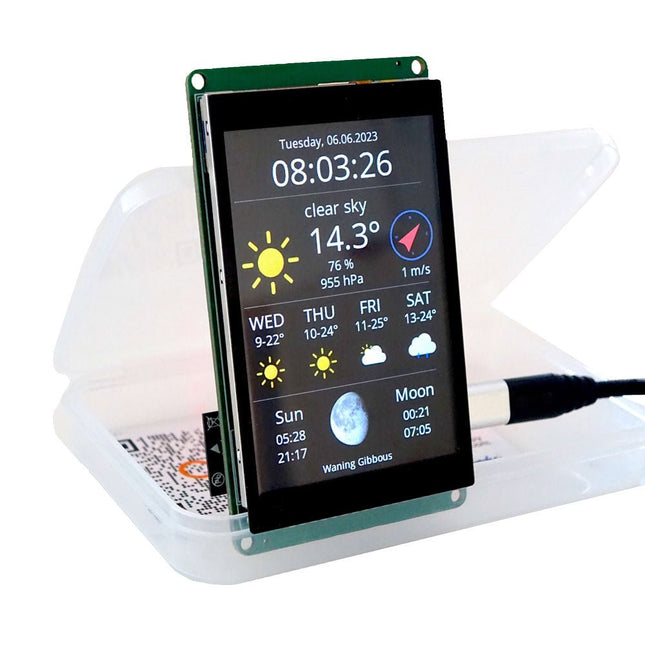

This DIY Color Display Kit is a fun and educational project for makers of all ages. It is a great way to learn about electronics, programming, and improve your soldering skills. Microcontroller As this kit ships with the ePulse Feather ESP32 development board, the kit thereby inherits all the great features of said devkit. Display The large 3.5" 320x480 color display also sports a high-precision capacitive touch interface. Contrary to resistive touch interfaces that often work best when using a stylus this auto-calibrated module offers a smartphone-like user experience. Connector PCB The connectors for the display are already pre-assembled on the connector PCB, as those require a more experienced hand at the soldering iron. Hence, for the inexperienced solderer this offers the best of both worlds. Also, you may choose to not add the on-off switch or the Grove connector; both are optional. The connector PCB offers extendability in two ways: the broken out pins of the microcontroller and the connector for the Grove system. Specifications Microcontroller ESP32 Module ePulse Feather Display Resolution 320 x 480 Display Driver ILI9488 Touch Display Capacitive Included 1x ePulse Feather, low-power ESP32 development board 1x 3.5" 320x480 Color Display (ILI9488, TFT) with capacitive touch Interface (FT6236) Color Kit Grande Connector Board 1x Custom connector PCB to connect the ESP32 and the display Header Pins 1x Set of special pin headers (to be soldered to connector PCB Color Kit Power Switch) 1x On-off switch (to be optionally soldered to connector PCB SMD Grove Connector) 1x Grove connector (to be optionally soldered to connector PCB Color Kit Grande Foam Stickers) 4x Double-sided foam adhesive to secured display to PCB Downloads Schematics Documentation

Read more less

This hardware kit is especially prepared for 'The Official ESP32 Book'. The kit contains all the components used in the projects in this book. With the help of this hardware kit it should be easy and fun to build the projects in the book. Included 1x ESP32 DevKitC 8x LEDs (RED) 1x LED (GREEN) 2x push-button 8x 330 ohm resistors 1x Buzzer 1x RGB LED 1x TMP36 temperature sensor chip 1x DHT11 temperature and humidity chip 1x MCP23017 (DIL 28 package) 1x LDR 1x BC108 (or any other PNP) transistor 1x 7 segment LED 1x Small Microphone Module 1x I²C LCD 1x SG90 servo 1x 4x4 Keypad 8x Female-Male jumpers 4x Male-Male jumpers 1x Small breadboard

Read more less

This is a simple DIY kit using Makerfabs' ESP32-S3 3.5" Parallel TFT with Touch (320x480) and Mabee MLX90640 module to monitor the temperature and display on the screen or save to SD card. It is a nice tool for circuit testing and non-contact temperature sensing. Features Based on ESP32-S3, 3.5-inch TFT with capacitive touch Auto check the highest temperature point Temperature accuracy: <1°C Suitable for applications such as human temperature checking or electronic boards debugging All hardware & software are open, users can modify & add more functions, such WiFi/Bluetooth data transmitting Downloads Default firmware New remote monitoring firmware Blog

Read more less

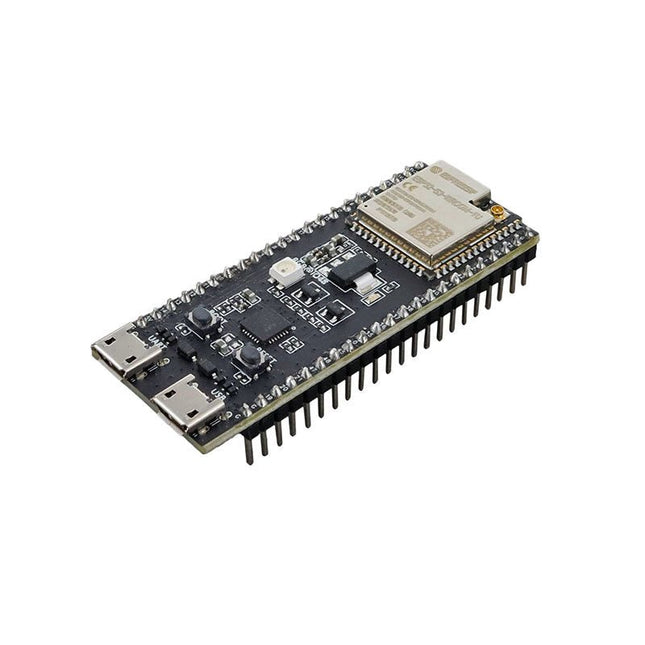

The ESP32-S3-DevKitC-1 is an entry-level development board equipped with ESP32-S3-WROOM-1U, a general-purpose Wi-Fi + Bluetooth Low Energy MCU module that integrates complete Wi-Fi and Bluetooth Low Energy functions. Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S3-DevKitC-1 on a breadboard. Features Module integrated: ESP32-S3-WROOM-1U-N8R8 Flash: 8 MB QD PSRAM: 8 MB OT SPI voltage: 3.3 V Specifications ESP32-S3-WROOM-1U ESP32-S3-WROOM-1U is a powerful, generic Wi-Fi + Bluetooth Low Energy MCU module that has a rich set of peripherals. It provides acceleration for neural network computing and signal processing workloads. ESP32-S3-WROOM-1U comes with an external antenna connector. 5 V to 3.3 V LDO Power regulator that converts a 5 V supply into a 3.3 V output. Pin Headers All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board for easy interfacing and programming. USB-to-UART Port A Micro-USB port used for power supply to the board, for flashing applications to the chip, as well as for communication with the chip via the on-board USB-to-UART bridge. Boot Button Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port. Reset Button Press this button to restart the system. USB Port ESP32-S3 full-speed USB OTG interface, compliant with the USB 1.1 specification. The interface is used for power supply to the board, for flashing applications to the chip, for communication with the chip using USB 1.1 protocols, as well as for JTAG debugging. USB-to-UART Bridge Single USB-to-UART bridge chip provides transfer rates up to 3 Mbps. RGB LED Addressable RGB LED, driven by GPIO38. 3.3 V Power On LED Turns on when the USB power is connected to the board. Downloads Pinout

Read more less

The Arduino Nano ESP32 (with and without headers) is a Nano form factor board based on the ESP32-S3 (embedded in the NORA-W106-10B from u-blox). This is the first Arduino board to be based fully on an ESP32, and features Wi-Fi, Bluetooth LE, debugging via native USB in the Arduino IDE as well as low power. The Nano ESP32 is compatible with the Arduino IoT Cloud, and has support for MicroPython. It is an ideal board for getting started with IoT development. Features Tiny footprint: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects. Wi-Fi and Bluetooth: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth connectivity. Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps. Arduino IoT Cloud compatible: Quickly and easily create IoT projects with just a few lines of code. The setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. HID support: Simulate human interface devices, such as keyboards or mice, over USB, opening up new possibilities for interacting with your computer. Specifications Microcontroller u-blox NORA-W106 (ESP32-S3) USB connector USB-C Pins Built-in LED pins 13 Built-in RGB LED pins 14-16 Digital I/O pins 14 Analog input pins 8 PWM pins 5 External interrupts All digital pins Connectivity Wi-Fi u-blox NORA-W106 (ESP32-S3) Bluetooth u-blox NORA-W106 (ESP32-S3) Communication UART 2x I²C 1x, A4 (SDA), A5 (SCL) SPI D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS) Power I/O Voltage 3.3 V Input voltage (nominal) 6-21 V Source Current per I/O pin 40 mA Sink Current per I/O pin 28 mA Clock speed Processor Up to 240 MHz Memory ROM 384 kB SRAM 512 kB External Flash 128 Mbit (16 MB) Dimensions 18 x 45 mm Downloads Datasheet Schematics

Read more less

This LILYGO T-Beam V1.2 ESP32 LoRa Development Board comes with pre-installed Meshtastic and soldered 0.96' display. The board has a built-in Semtech SX1262 LoRa transceiver and is equipped with a NEO-6M GPS receiver. GPS NEO-6M GPS module: Support GPS protocol Onboard RTC crystal: Support interrupt/wakeup LoRa Long Range Low Power LoRa Transceiver High sensitivity: -i48 dBm Transceive rate: 300 kbps Version: SX1276 (868 MHz) Firmware: Meshtastic Display OLED: 0.96 inch Driver: SSD1306 Specifications Microcontroller ESP32 Flash 4 MB PSRAM 8 MB Serial Chip CH9102 Wireless protocol Wi-Fi + Bluetooth 4.2 PMU AXP2101 Onboard functions 3 buttons (Power + IO38 + Reset) Power supply Micro USB, 18650 battery Antenna 3D WiFi Antenna LoRa antenna GPS ceramic antenna Included 1x LILYGO T-Beam V1.2 CH9102 1x 868 MHz Antenna 1x Soldered 0.96' LCD (128x64) 2x Pin headers Downloads GitHub Schematics
