Seeed Studio XIAO ESP32S3 Sense integrates a camera sensor, digital microphone, and SD card support. Combining embedded ML computing power and photography capability, this development board can be your great tool to get started with intelligent voice and vision AI. Seeed Studio XIAO ESP32S3 Sense is built around a highly-integrated, Xtensa processor ESP32-S3R8 SoC, which supports 2.4 GHz WiFi and low-power Bluetooth BLE 5.0 dual-mode for multiple wireless applications. It has lithium battery charge management capability. As the advanced version of Seeed Studio XIAO ESP32S3, this board comes with a plug-in OV2640 camera sensor for displaying full 1600x1200 resolution. The base of it is even compatible with OV5640 for supporting up to 2592x1944 resolution. The digital microphone is also carried with the board for voice sensing and audio recognition. SenseCraft AI provides various pre-trained Artificial Intelligence (AI) models and no-code deployment to XIAO ESP32S3 Sense. With powerful SoC and built-in sensors, this development board has 8 MB PSRAM and 8 MB Flash on the chip, an additional SD card slot for supporting up to 32 GB FAT memory. These allow the board for more programming space and bring even more possibilities into embedded ML scenarios. Features Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor chip operating up to 240 MHz, mounted multiple development ports, Arduino/MicroPython supported Advanced Functionality: with OV5640 camera sensor, integrating additional digital microphone Great Memory for more Possibilities: Offer 8 MB PSRAM and 8 MB Flash, supporting SD card slot for external 32 GB FAT memory Outstanding RF performance: Support 2.4 GHz Wi-Fi and BLE dual wireless communication, support 100m+ remote communication when connected with U.FL antenna Thumb-sized Compact Design: 21 x 17.5 mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices Pretrained Al model from SenseCraft Al for no-code deployment Applications Image processing Speech Recognition Video Monitoring Wearable devices Smart Homes Health monitoring Education Low-Power (LP) networking Rapid prototyping Specifications Processor ESP32-S3R8 Xtensa LX7 dual-core, 32-bit processor that operates at up to 240 MHz Wireless Complete 2.4 GHz Wi-Fi subsystem BLE: Bluetooth 5.0, Bluetooth mesh Built-in Sensors oV2640 camera sensor for 1600x1200 Digital Microphone Memory On-chip 8 MB PSRAM & 8 MB Flash Onboard SD Card Slot, supporting 32 GB FAT lnterface 1x UART, 1x I²C, 1x I²S, 1x SPI, 11x GPIOs (PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x B2B Connector (with 2 additional GPIOs) 1x Reset button, 1x Boot button Dimensions 21 x 17.5 x 15 mm (with expansion board) Power Input voltage (Type-C): 5 V lnput voltage (BAT): 4.2 V Circuit operating Voltage (ready to operate): - Type-C: 5 V @ 38.3 mA - BAT: 3.8 V @ 43.2 mA (with expansion board) Webcam Web application: Type-C: - Average power consumption: 5 V/138 mA - Photo moment: 5 V/341 mA Battery: - Average power consumption: 3.8 V/154 mA - Photo moment: 3.8 V/304 mA Microphone recording & SD card writing: Type-C: - Average power consumption: 5 V/46.5 mA - Peak power consumption: 5 V/89.6 mA Battery: - Average power consumption: 3.8 V/54.4 mA - Peak power consumption: 3.8 V/108 mA Charging battery current: 100 mA Low Power Consumption Model (Supply Power: 3.8 V) Modem Sleep Model: ~44 mA Light Sleep Model: ~5 mA Deep Sleep Model: ~3 mA Wi-Fi Enabled Power Consumption Active Model: ~ 110 mA (with expansion board) BLE Enabled Power Consumption Active Model: ~ 102 mA (with expansion board) Included 1x XIAO ESP32S3 1x Plug-in camera sensor board 1x Antenna Downloads GitHub

Read more less

This is an add-on kit for the Seeed Studio Grove Beginner Kit for Arduino. Applications Suitable for Arduino beginners Suitable for infrared control and motion detect Suitable for getting started with open-source hardware and Arduino coding Included 1x Grove Water Atomization 1x Grove Mini Fan 1x Grove Servo 1x Grove Ultrasonic Distance Sensor 1x Grove Infrared Receiver 1x Grove Mini PIR Motion Sensor 1x Grove Green Wrapper 1x Grove Blue Wrapper 5x Grove Cable 1x Infrared Remote Control Key 1x Ultrasonic Sensor Bracket Set 1x Motor Bracket Set 1x Servo Base

Read more less

Seeed Studio XIAO ESP32C3 has equipped a highly-integrated ESP32-C3 chip, built around a 32-bit RISC-V chip processor with a four-stage pipeline that operates at up to 160 MHz.The board equips highly-integrated ESP32-C3 SoC. The chip has been installed with a complete 2.4 GHz Wi-Fi subsystem which means it supports Station mode, SoftAP mode, SoftAP & Station mode, and promiscuous mode for multiple Wi-Fi applications. It works under an ultra-low power state, also supporting features of Bluetooth 5 and Bluetooth mesh. There are 400 KB SRAM & 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.Applications Internet of Things Wearable devices Health monitoring Education Low-Power (LP) networking Rapid prototyping Features Outstanding RF performance: Powerful ESP32-C3 SoC and U.FL antenna provided that supports WiFi/Bluetooth connection over 100 m. Thumb-size Design: 21 x 17.5 mm overall dimension, portable and lightweight. Low power consumption: Lowest as 44 μA (deep sleep mode), with 4 working modes available. Onboard battery charge IC: Supports battery charging, great for various wearable scenarios and wireless IoT applications. Specifications Processor ESP32-C3 SoC RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz Wireless Complete 2.4 GHz Wi-Fi subsystem Bluetooth 5.0 / Bluetooth mesh On-chip Memory 400 KB SRAM & 4 MB Flash Interface 1x UART, 1x I²C, 1x I²S, 1x SPI, 11x GPIO (PWM), 4x ADC 1x Reset button, 1x Boot button Dimensions 21 x 17.5 mm Power Circuit operating voltage: 3.3 V @ 200 mA Charging current: 50 mA/100 mA Input voltage (VIN): 5 V Deep Sleep Power Consumption Deep Sleep Model: >44 μA Wi-Fi Enabled Power Consumption Active Model: <75 mA Modem-sleep Model: <25 mA Light-sleep Model: <4 mA BLE Enabled Power Consumption Modem-sleep Model: <27 mA Light-sleep Model: <10 mA Included 1x Seeed Studio XIAO ESP32C3 1x Antenna Downloads XIAO ESP32 Pinout ESP32-C3 Datasheet

Read more less

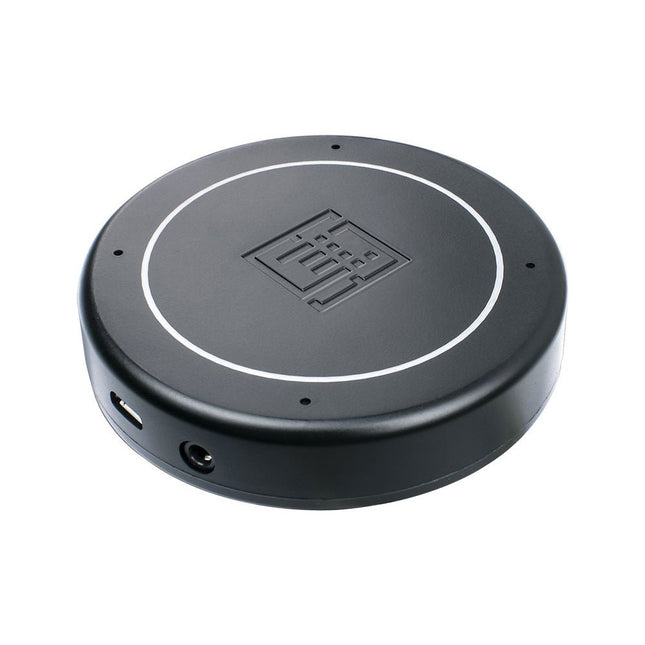

Features Plug & Play (No driver required), compatible with Windows 10/8/7, Mac, Linux and Android that support OTG. Voice Pick-up device, Far-field voice pick-up up to 5m and supports 360° pick-up pattern Acoustic algorithms implemented: DOA(Direction of Arrival), AEC(Automatic Echo Cancellation), AGC(Automatic Gain Control), NS(Noise Suppression) Built-in audio jack, which allows for plugging in headphones or speakers (speaker not included) Applications Voice pick-up device Home/Office automation device In-car voice assistant Healthcare device Voice interaction robot Other applications Technical Specifications XVF-3000 from XMOS 4 High-Performance Digital Microphones Supports Far-field Voice Capture Speech Algorithms On-Chip 12 Programmable RGB LED Indicators Microphones: MEMS MSM261D4030H1CPM Sensitivity: -26 dBFS (Omnidirectional) Acoustic Overload Point: 120 dB SPL SNR: 63 dB Power Supply: 5V DC from Micro USB or Expansion Header Dimensions: 77mm (Diameter) 3.5mm Audio Jack Output Socket

Read more less

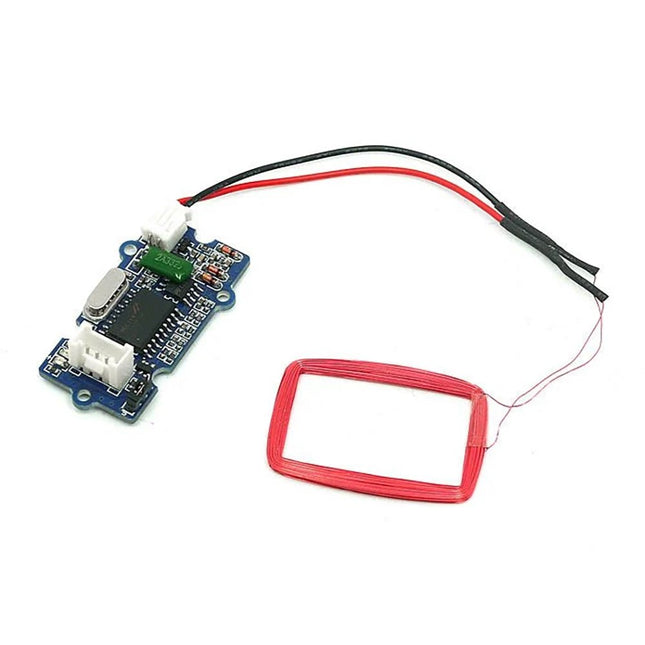

Features Selectable output format: Uart or Wiegand. 4Pins Electronic Brick Interface High Sensitivity Specifications Dimensions: 44 mm x 24 mm x9.6 mm Weight: 15 g Battery: Exclude Voltage: 4.75 V - 5.25 V Working Frequency: 125 kHz Sensing Distance(Max): 70 mm TTL Output: 9600 baud rate, 8 data bits, 1 stop bit, and no verify bit Wiegand Output: 26 bits Wiegand format, 1 even verify bit, 24 data bits, and 1 odd verify bit
