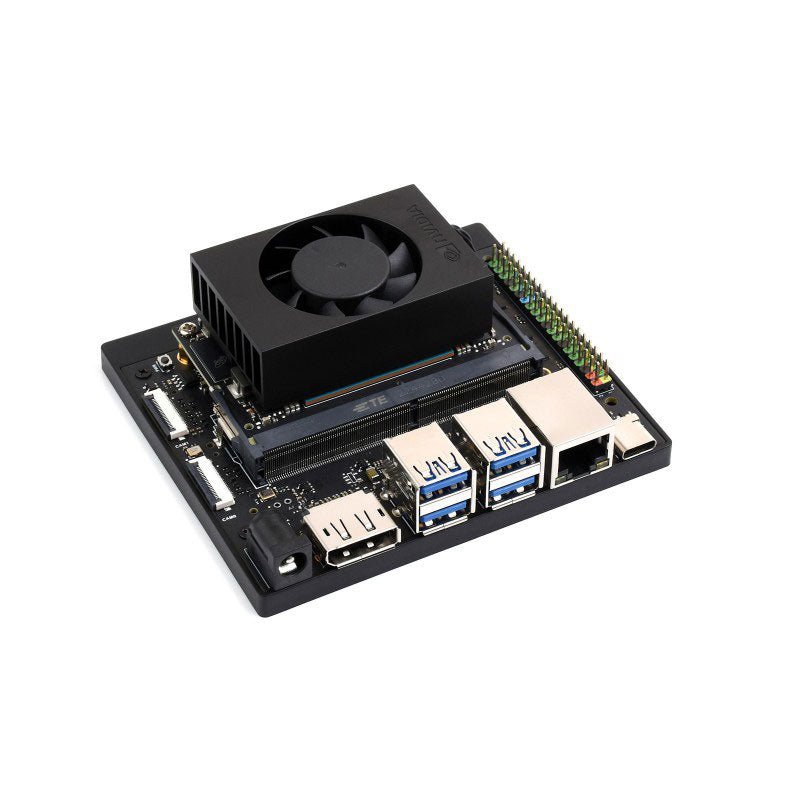

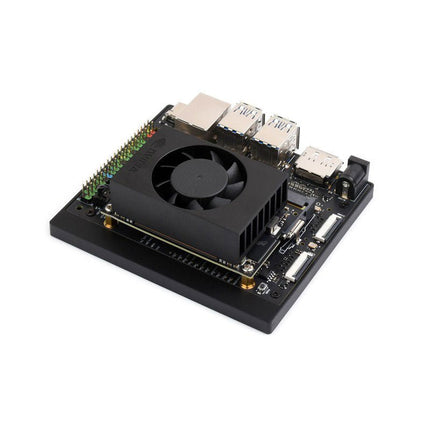

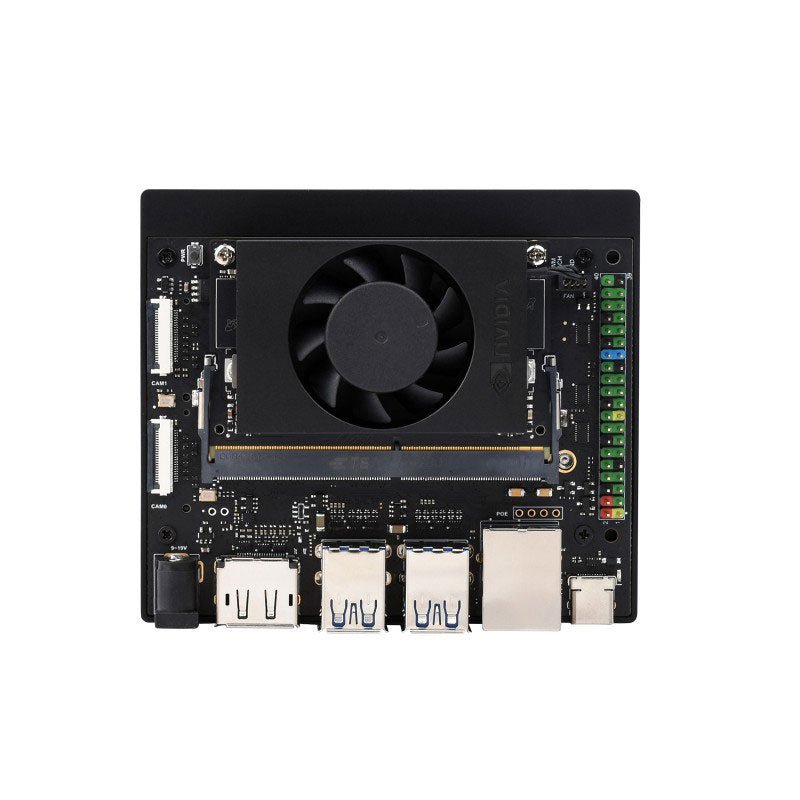

Waveshare Jetson Orin Nano AI Development Kit

  • BrandWaveshare

Description

This AI Edge Computing Development Kit is based on the Jetson Orin Nano Module providing rich peripheral interfaces such as M.2, DP, USB, etc.

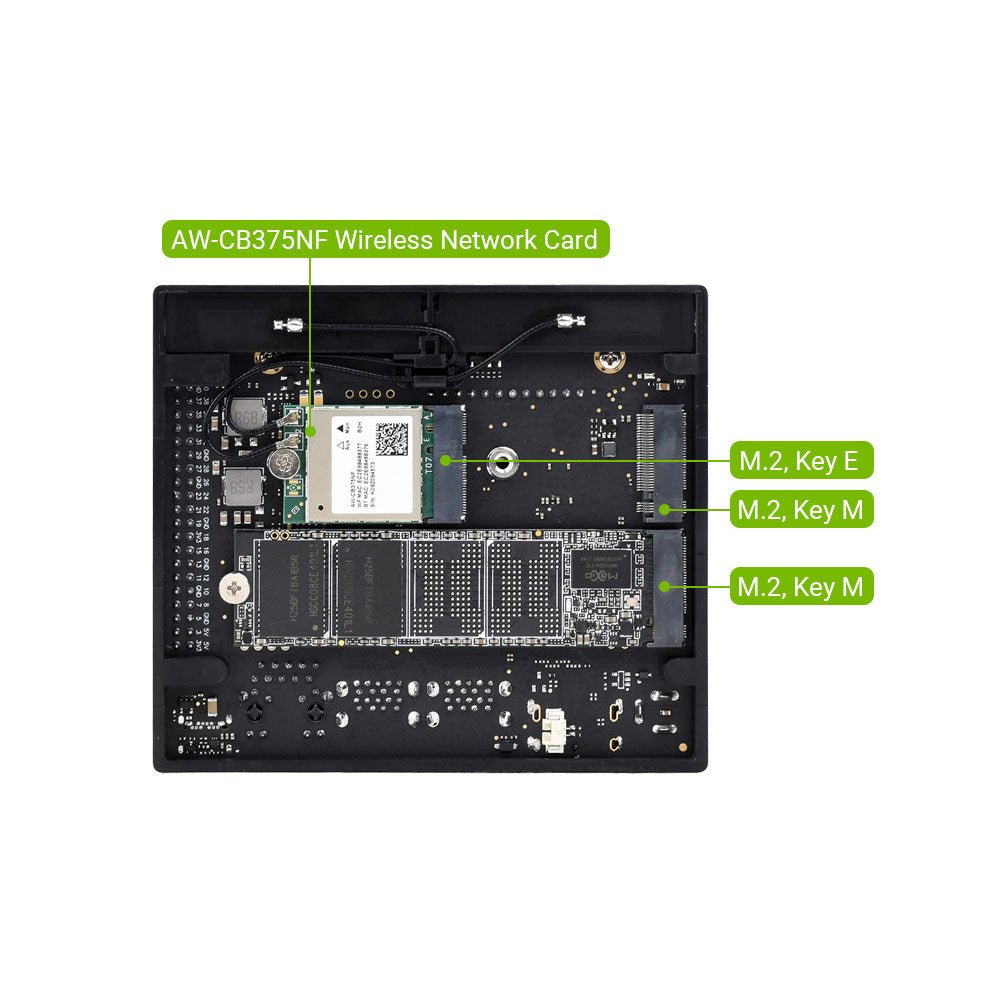

This kit also comes with a pre-installed AW-CB375NF wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.

Specifications

AI performance 40 TOPS
GPU 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores
GPU frequency 625 MHz (max)
CPU 6-core Arm Cortex-A78AE v8.2 64-bit CPU, 1.5 MB L2 + 4 MB L3
CPU frequency 1.5 GHz (max)
RAM 8 GB 128-bit LPDDR5, 68 GB/s
Storage 128 GB NVMe Solid State Drive
Power 7~15 W

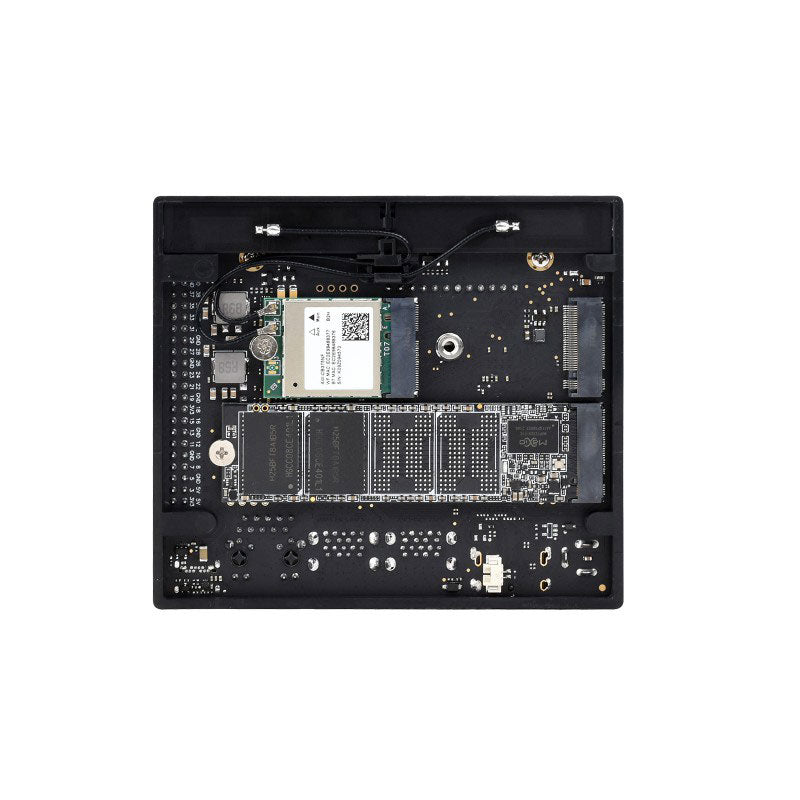

PCIE M.2 Key M slot with x4 PCIe Gen3
M.2 Key M slot with x2 PCIe Gen3
M.2 Key E slot
USB USB Type-A: 4x USB 3.2 Gen2
USB Type-C (UFP)
CSI camera 2x MIPI CSI-2 camera connector
Video encode 1080p30 supported by 1-2 CPU cores
Video decode 1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
Display 1x DisplayPort 1.2 (+MST) connector

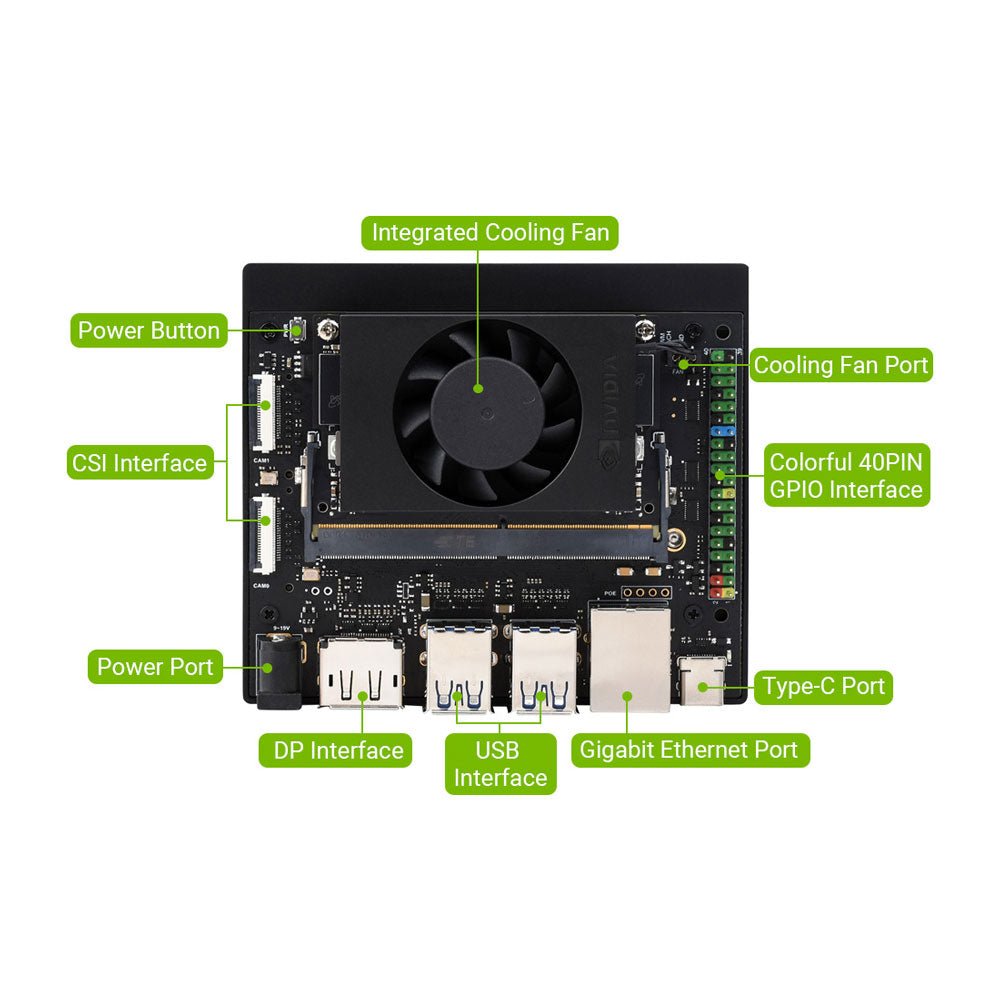

Interfaces 40-Pin Expansion Header (UART, SPI, I²S, I²C, GPIO), 12-pin button header, 4-pin fan header, DC power jack
Networking 1x GbE connector
Dimensions 103 x 90.5 x 34 mm

Included

  • Waveshare Orin Nano development kit
    • 1x Jetson Orin Nano Module (8 GB)
    • 1x JETSON-ORIN-IO-BASE
    • 1x Cooling Fan
    • 1x 128 GB NVMe Solid State Drive (assembled)
    • 1x Wireless network card (assembled)
  • 1x USB Type A to Type-C cable (1 m)
  • 1x Ethernet cable (1.5 m)
  • 1x Jumper
  • 1x Power adapter (EU)

Documentation

Product form

This AI Edge Computing Development Kit is based on the Jetson Orin Nano Module providing rich peripheral interfaces such as... Read more

€ 799,00 incl. VAT
Members € 719,10

      Details

      SKU: 20762
      EAN: 24504

      Description

      This AI Edge Computing Development Kit is based on the Jetson Orin Nano Module providing rich peripheral interfaces such as M.2, DP, USB, etc.

      This kit also comes with a pre-installed AW-CB375NF wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.

      Specifications

      AI performance 40 TOPS
      GPU 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores
      GPU frequency 625 MHz (max)
      CPU 6-core Arm Cortex-A78AE v8.2 64-bit CPU, 1.5 MB L2 + 4 MB L3
      CPU frequency 1.5 GHz (max)
      RAM 8 GB 128-bit LPDDR5, 68 GB/s
      Storage 128 GB NVMe Solid State Drive
      Power 7~15 W
      PCIE M.2 Key M slot with x4 PCIe Gen3
      M.2 Key M slot with x2 PCIe Gen3
      M.2 Key E slot
      USB USB Type-A: 4x USB 3.2 Gen2
      USB Type-C (UFP)
      CSI camera 2x MIPI CSI-2 camera connector
      Video encode 1080p30 supported by 1-2 CPU cores
      Video decode 1x 4K60 (H.265)
      2x 4K30 (H.265)
      5x 1080p60 (H.265)
      11x 1080p30 (H.265)
      Display 1x DisplayPort 1.2 (+MST) connector
      Interfaces 40-Pin Expansion Header (UART, SPI, I²S, I²C, GPIO), 12-pin button header, 4-pin fan header, DC power jack
      Networking 1x GbE connector
      Dimensions 103 x 90.5 x 34 mm

      Included

      • Waveshare Orin Nano development kit
        • 1x Jetson Orin Nano Module (8 GB)
        • 1x JETSON-ORIN-IO-BASE
        • 1x Cooling Fan
        • 1x 128 GB NVMe Solid State Drive (assembled)
        • 1x Wireless network card (assembled)
      • 1x USB Type A to Type-C cable (1 m)
      • 1x Ethernet cable (1.5 m)
      • 1x Jumper
      • 1x Power adapter (EU)

      Documentation
