The 555SE Discrete 555 Timer

  • BrandEvil Mad Science

Description

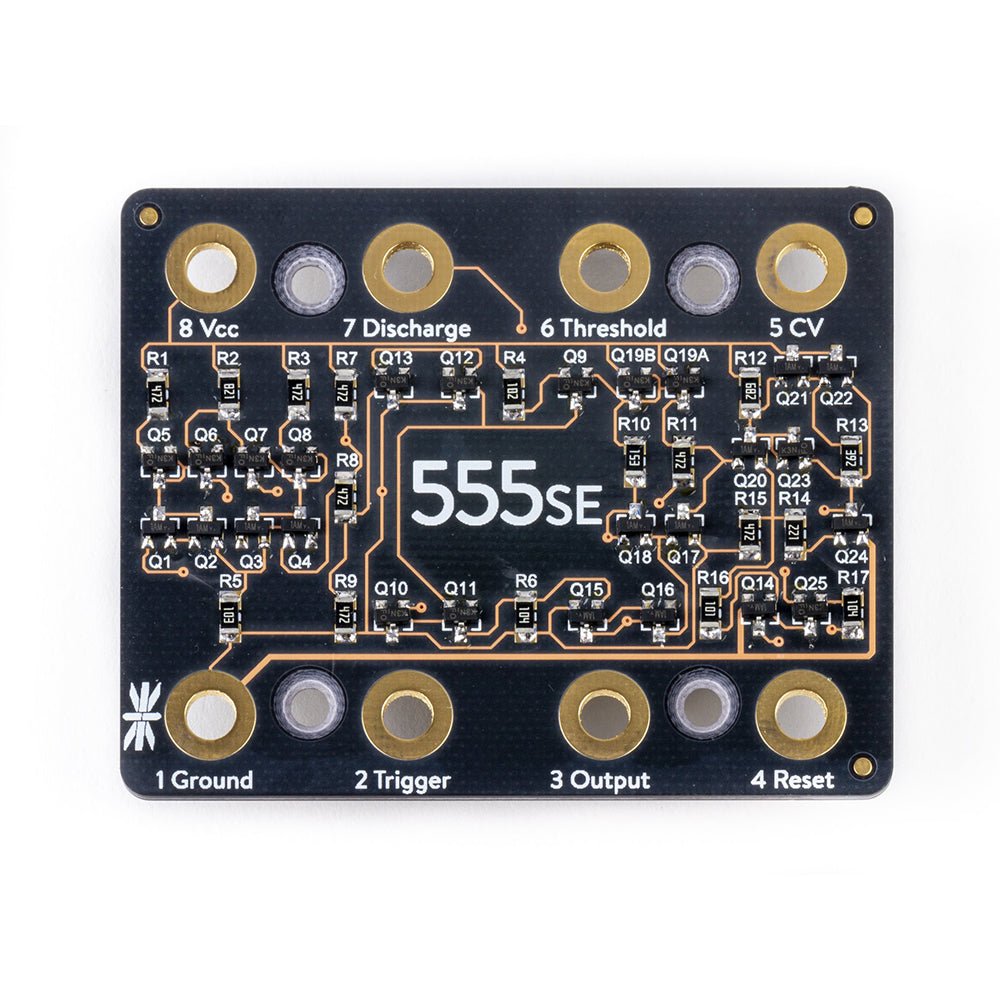

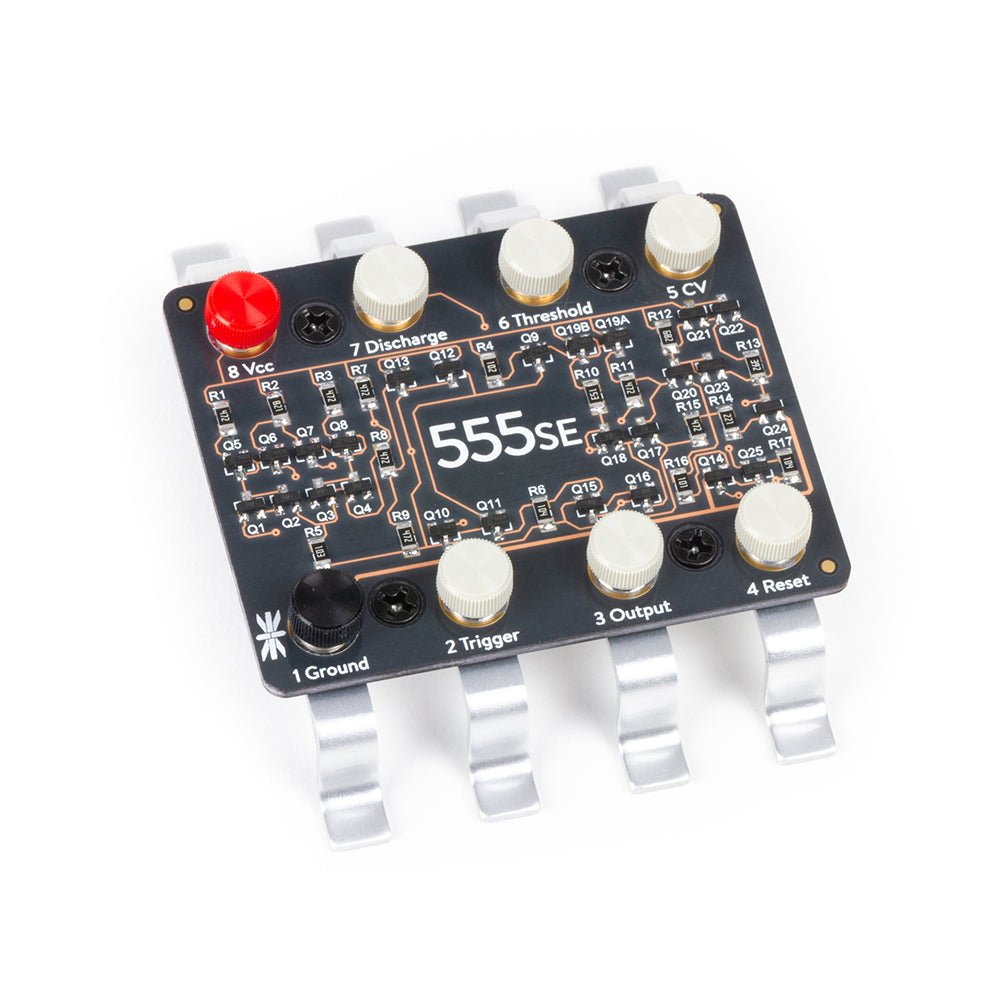

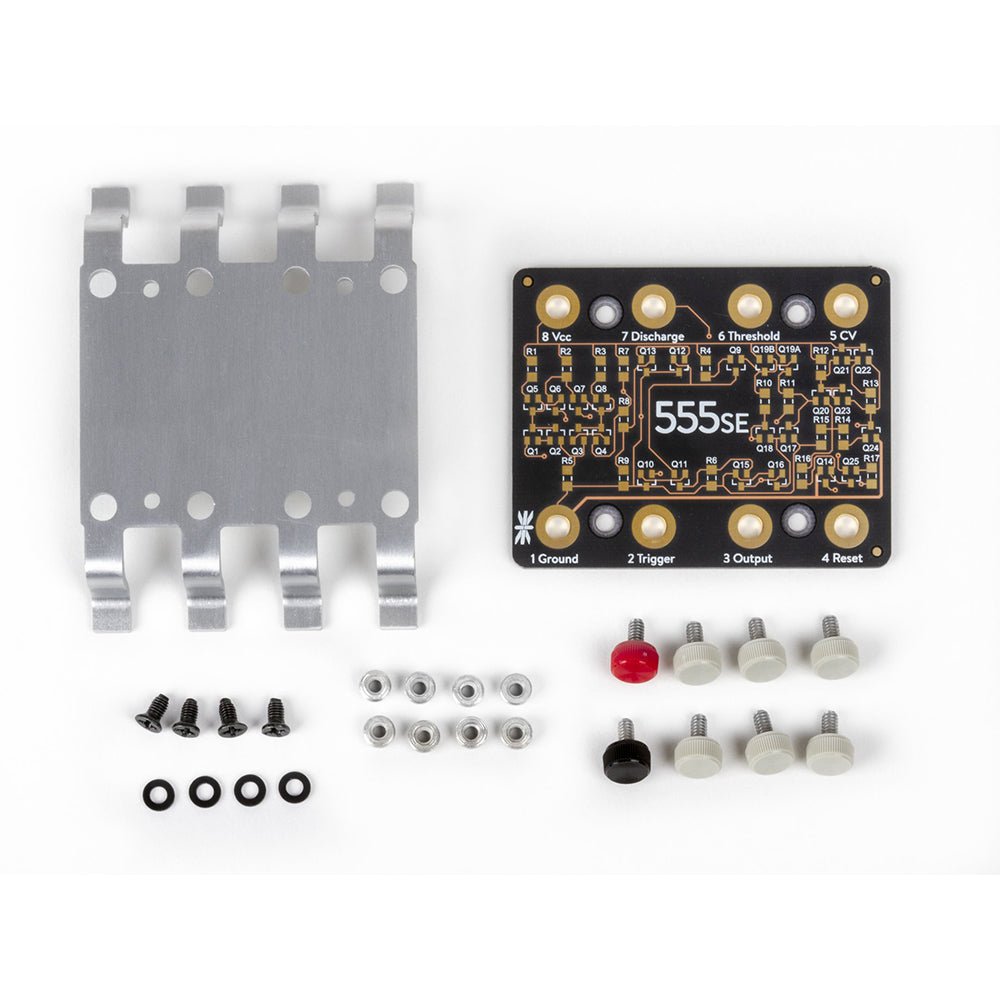

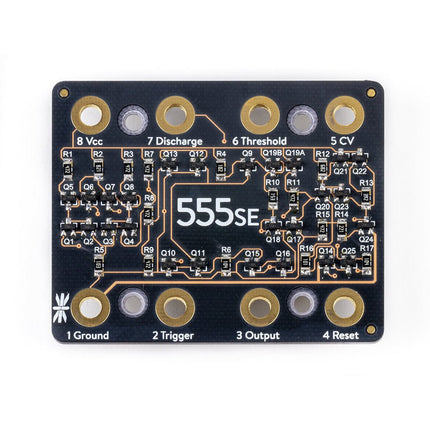

The 555SE is an easy-to-build surface-mount soldering kit. It includes the circuit board, resistors, and transistors that make up the electrical circuit and printed assembly instructions. The kit also comes complete with the 'IC Leg' stand and 8 colour-coded thumbscrew terminal posts.

To build the 555SE, basic electronic soldering skill and tools are required, but no additional knowledge of electronics is presumed or required. You provide standard surface-mount soldering tools: a soldering iron, solder (wire or paste), small metal tweezers, as well as a Phillips head screwdriver.

The kit features relatively large surface mount components (1206 and SOT-23) and is a great first surface-mount soldering kit if you're just getting started. However, if you are experienced at surface mount soldering and have tools like a hot air rework station or other equipment, you're welcome to use them for assembling this kit.

Features

  • Anodized aluminium stand
  • 8x 4-40 surface-mount threaded inserts
  • Stainless steel thumbscrews with colour-coded plastic caps (1 red, 1 black, 6 grey)
  • All materials (including the circuit board and stand) are RoHS compliant (lead-free)
  • Dimensions: 65 × 52 x 16 mm

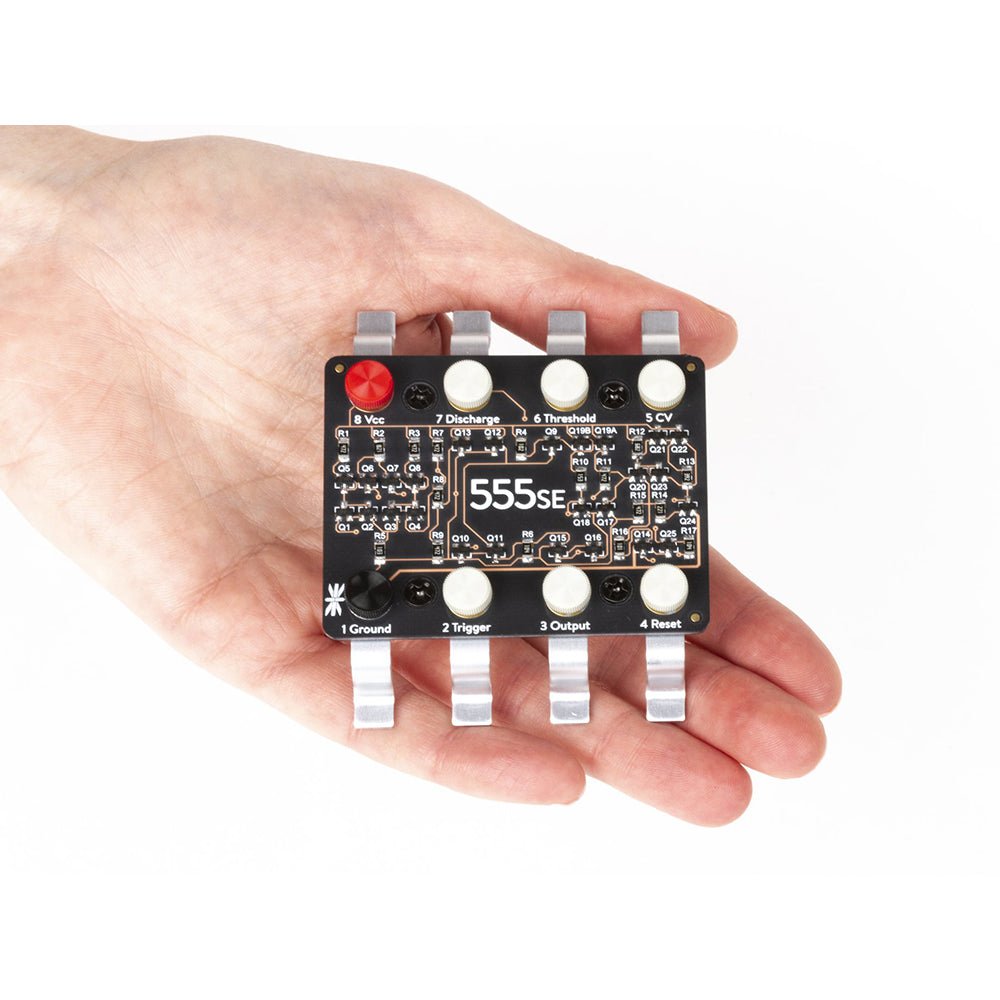

  • Dimensions assembled: 65 × 78 × 20 mm
Product form

The 555SE is an easy-to-build surface-mount soldering kit. It includes the circuit board, resistors, and transistors that make up the... Read more

Out of stock

€ 44,95 incl. VAT
Members € 40,46

    Details

    SKU: 19732
    EAN: 799422830721

    Description

    The 555SE is an easy-to-build surface-mount soldering kit. It includes the circuit board, resistors, and transistors that make up the electrical circuit and printed assembly instructions. The kit also comes complete with the 'IC Leg' stand and 8 colour-coded thumbscrew terminal posts.

    To build the 555SE, basic electronic soldering skill and tools are required, but no additional knowledge of electronics is presumed or required. You provide standard surface-mount soldering tools: a soldering iron, solder (wire or paste), small metal tweezers, as well as a Phillips head screwdriver.

    The kit features relatively large surface mount components (1206 and SOT-23) and is a great first surface-mount soldering kit if you're just getting started. However, if you are experienced at surface mount soldering and have tools like a hot air rework station or other equipment, you're welcome to use them for assembling this kit.

    Features

    • Anodized aluminium stand
    • 8x 4-40 surface-mount threaded inserts
    • Stainless steel thumbscrews with colour-coded plastic caps (1 red, 1 black, 6 grey)
    • All materials (including the circuit board and stand) are RoHS compliant (lead-free)
    • Dimensions: 65 × 52 x 16 mm
    • Dimensions assembled: 65 × 78 × 20 mm
