Seeed Studio LoRa-E5 STM32WLE5JC Development Kit

  • BrandSeeed Studio

Description

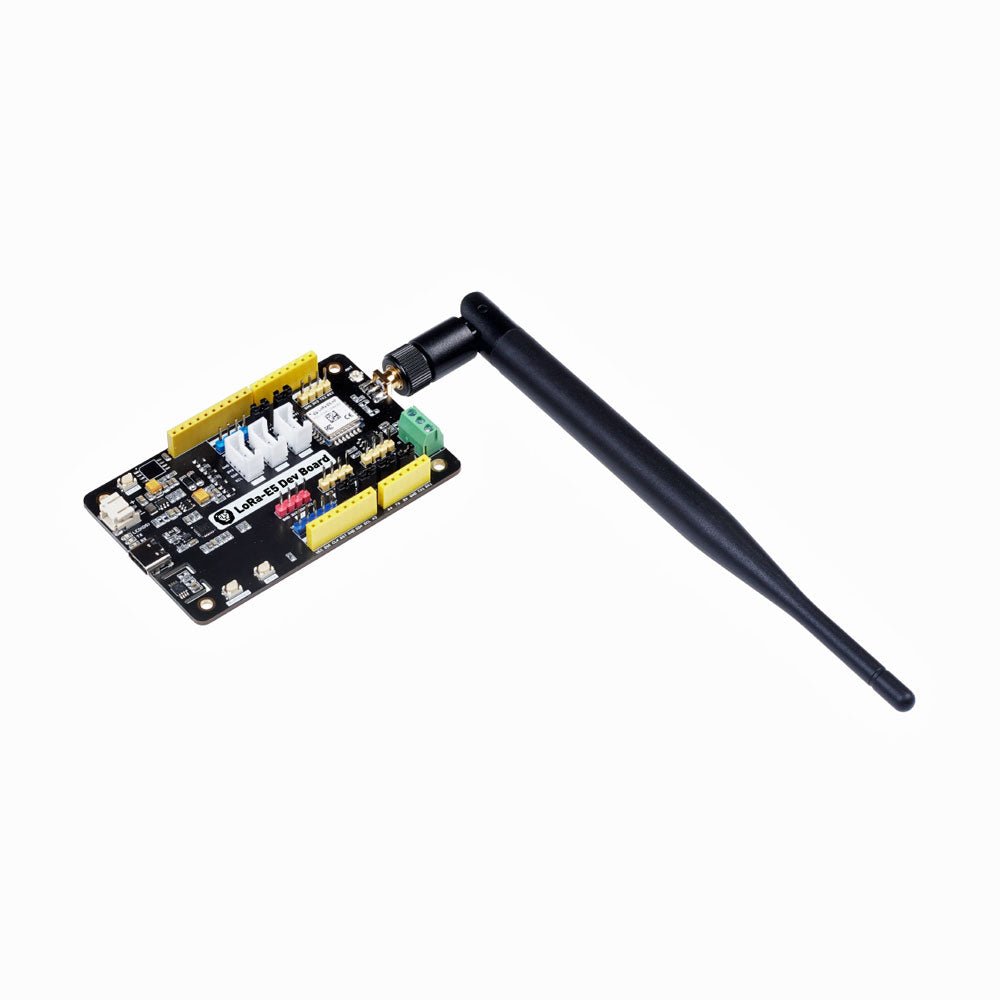

LoRa-E5 Development Kit is an easy-to-use compact development toolset for you to unlock the powerful performance of the LoRa-E5 STM32WLE5JC. It consists of a LoRa-E5 Dev Board, an antenna (EU868), a USB type C cable, and a 2-AA 3 V Battery Holder.

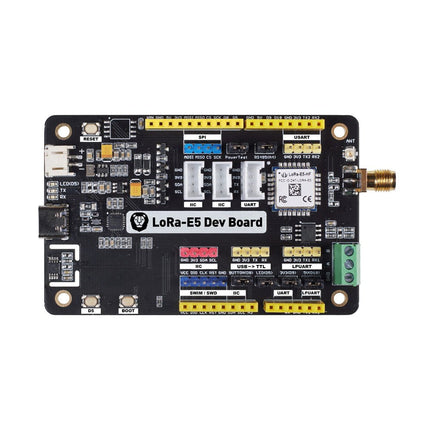

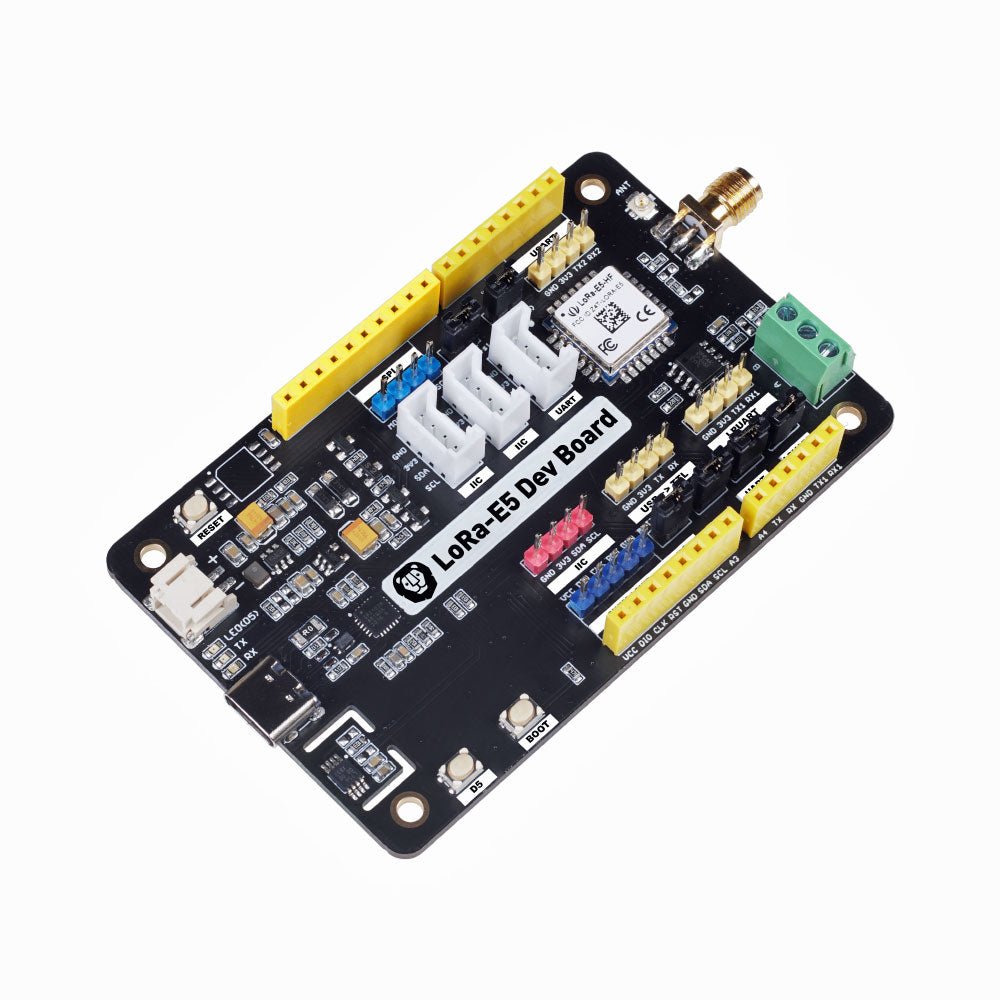

LoRa-E5 Dev Board embedded with LoRa-E5 STM32WLE5JC Module, which is the world-first combo of LoRa RF and MCU chip into one single tiny chip and is FCC and CE certified. It is powered by ARM Cortex-M4 core and Semtech SX126X LoRa chip, supports both LoRaWAN and LoRa protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations.

The LoRa-E5 development board features a very long transmission range, extremely low power consumption and user-friendly interfaces.

LoRa-E5 Dev Board has a long-distance transmission range of LoRa-E5 up to 10 km in an open area. The sleep current of LoRa-E5 modules on board is as low as 2.1 uA (WOR mode). It is designed with industrial standards with a wide working temperature at -40℃ ~ 85℃, high sensitivity between -116.5 dBm ~ -136 dBm, and power output up to +20.8 dBm at 3.3 V.

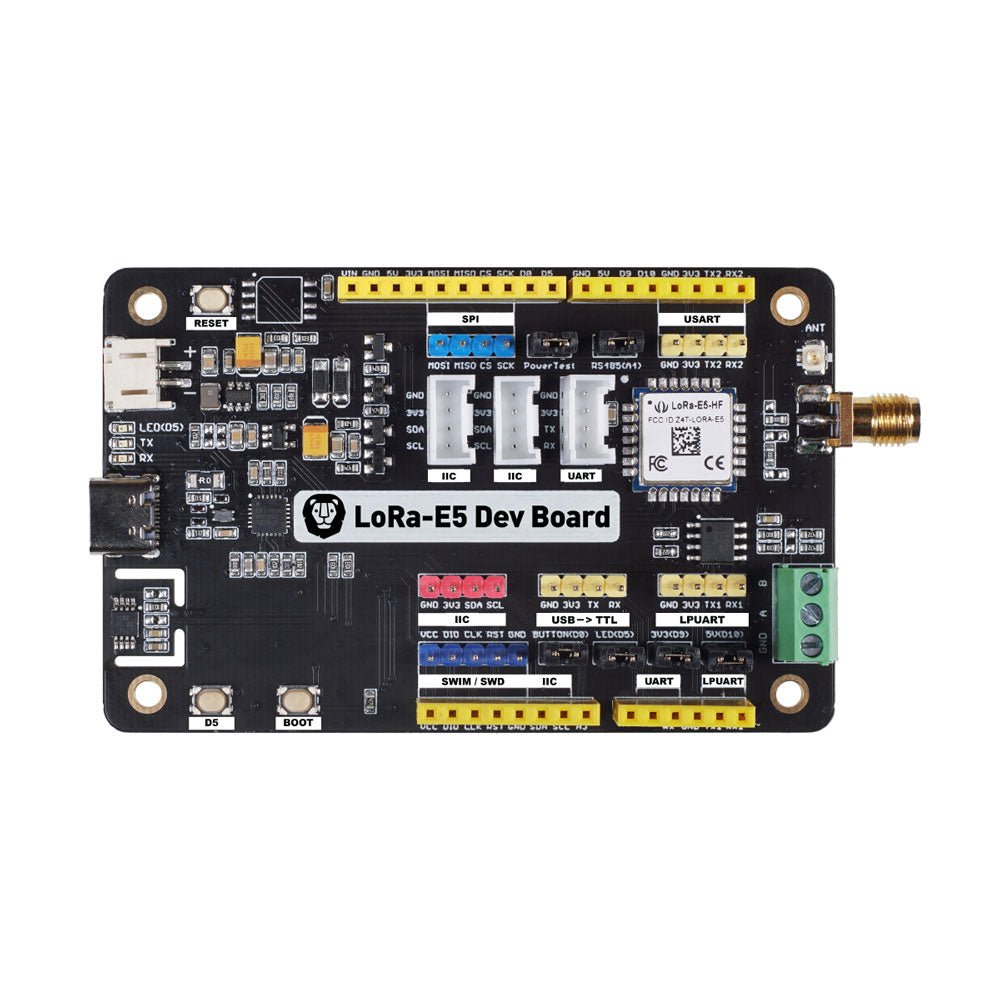

LoRa-E5 Dev Board also has rich interfaces. Developed to unlock the full functionality of the LoRa-E5 module, LoRa-E5 Dev Board has led out full 28 pins of LoRa-E5 and provides with rich interfaces including Grove connectors, RS-485 terminal, male/female pin headers for you to connect sensors and modules with different connectors and data protocols, saving your time on wire soldering. You could also easily power the board by connecting the battery holder with 2-AA batteries, enabling temporary use when lacking an external power source. It is a user-friendly board for easy testing and rapid prototyping.

Specifications

Size LoRa-E5 Dev Board: 85.6 x 54 mm
Voltage (supply) 3-5 V (Battery) / 5 V (USB-C)
Voltage (output) EN 3V3 / 5 V
Power (output) Up to +20.8 dBm at 3.3 V
Frequency EU868
Protocol LoRaWAN
Sensitivity -116.5 dBm ~ -136 dBm
Interfaces USB Type C / JST2.0 / 3x Grove (2x I²C/1x UART) / RS485 / SMA-K / IPEX
Modulation LoRa, (G)FSK, (G)MSK, BPSK
Working temperature -40℃ ~ 85℃
Current LoRa-E5 module sleep current as low as 2.1 uA (WOR mode)

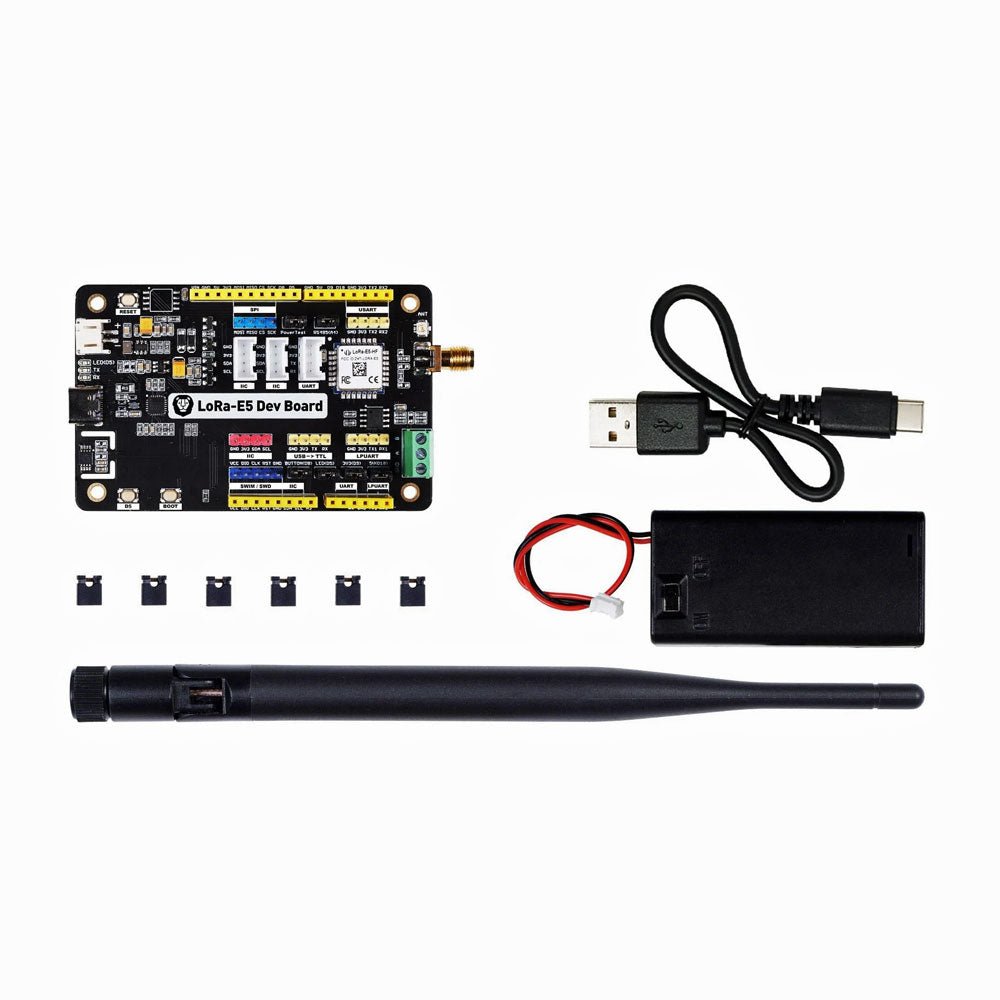

Included

  • 1x LoRa-E5 Dev Board
  • 1x Antenna (EU868)
  • 1x USB Type C Cable (20 cm)
  • 1x 2-AA 3 V Battery Holder
Product form

LoRa-E5 Development Kit is an easy-to-use compact development toolset for you to unlock the powerful performance of the LoRa-E5 STM32WLE5JC.... Read more

€ 39,95 incl. VAT
Members € 35,96

      Details

      SKU: 19956
      EAN: 113990934

      Description

      LoRa-E5 Development Kit is an easy-to-use compact development toolset for you to unlock the powerful performance of the LoRa-E5 STM32WLE5JC. It consists of a LoRa-E5 Dev Board, an antenna (EU868), a USB type C cable, and a 2-AA 3 V Battery Holder.

      LoRa-E5 Dev Board embedded with LoRa-E5 STM32WLE5JC Module, which is the world-first combo of LoRa RF and MCU chip into one single tiny chip and is FCC and CE certified. It is powered by ARM Cortex-M4 core and Semtech SX126X LoRa chip, supports both LoRaWAN and LoRa protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations.

      The LoRa-E5 development board features a very long transmission range, extremely low power consumption and user-friendly interfaces.

      LoRa-E5 Dev Board has a long-distance transmission range of LoRa-E5 up to 10 km in an open area. The sleep current of LoRa-E5 modules on board is as low as 2.1 uA (WOR mode). It is designed with industrial standards with a wide working temperature at -40℃ ~ 85℃, high sensitivity between -116.5 dBm ~ -136 dBm, and power output up to +20.8 dBm at 3.3 V.

      LoRa-E5 Dev Board also has rich interfaces. Developed to unlock the full functionality of the LoRa-E5 module, LoRa-E5 Dev Board has led out full 28 pins of LoRa-E5 and provides with rich interfaces including Grove connectors, RS-485 terminal, male/female pin headers for you to connect sensors and modules with different connectors and data protocols, saving your time on wire soldering. You could also easily power the board by connecting the battery holder with 2-AA batteries, enabling temporary use when lacking an external power source. It is a user-friendly board for easy testing and rapid prototyping.

      Specifications

      Size LoRa-E5 Dev Board: 85.6 x 54 mm
      Voltage (supply) 3-5 V (Battery) / 5 V (USB-C)
      Voltage (output) EN 3V3 / 5 V
      Power (output) Up to +20.8 dBm at 3.3 V
      Frequency EU868
      Protocol LoRaWAN
      Sensitivity -116.5 dBm ~ -136 dBm
      Interfaces USB Type C / JST2.0 / 3x Grove (2x I²C/1x UART) / RS485 / SMA-K / IPEX
      Modulation LoRa, (G)FSK, (G)MSK, BPSK
      Working temperature -40℃ ~ 85℃
      Current LoRa-E5 module sleep current as low as 2.1 uA (WOR mode)

      Included

      • 1x LoRa-E5 Dev Board
      • 1x Antenna (EU868)
      • 1x USB Type C Cable (20 cm)
      • 1x 2-AA 3 V Battery Holder
