Molex Flexible GNSS Antenna - U.FL (Adhesive)

  • BrandSparkFun

Description

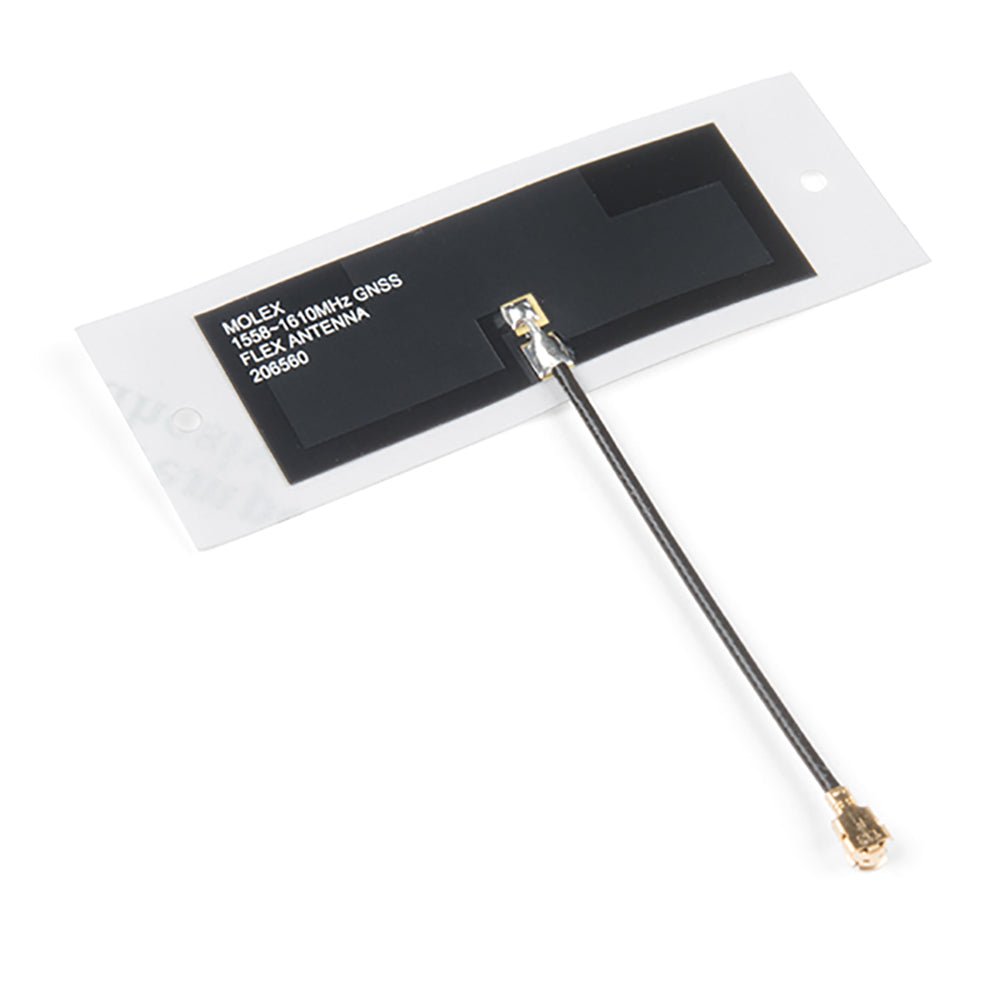

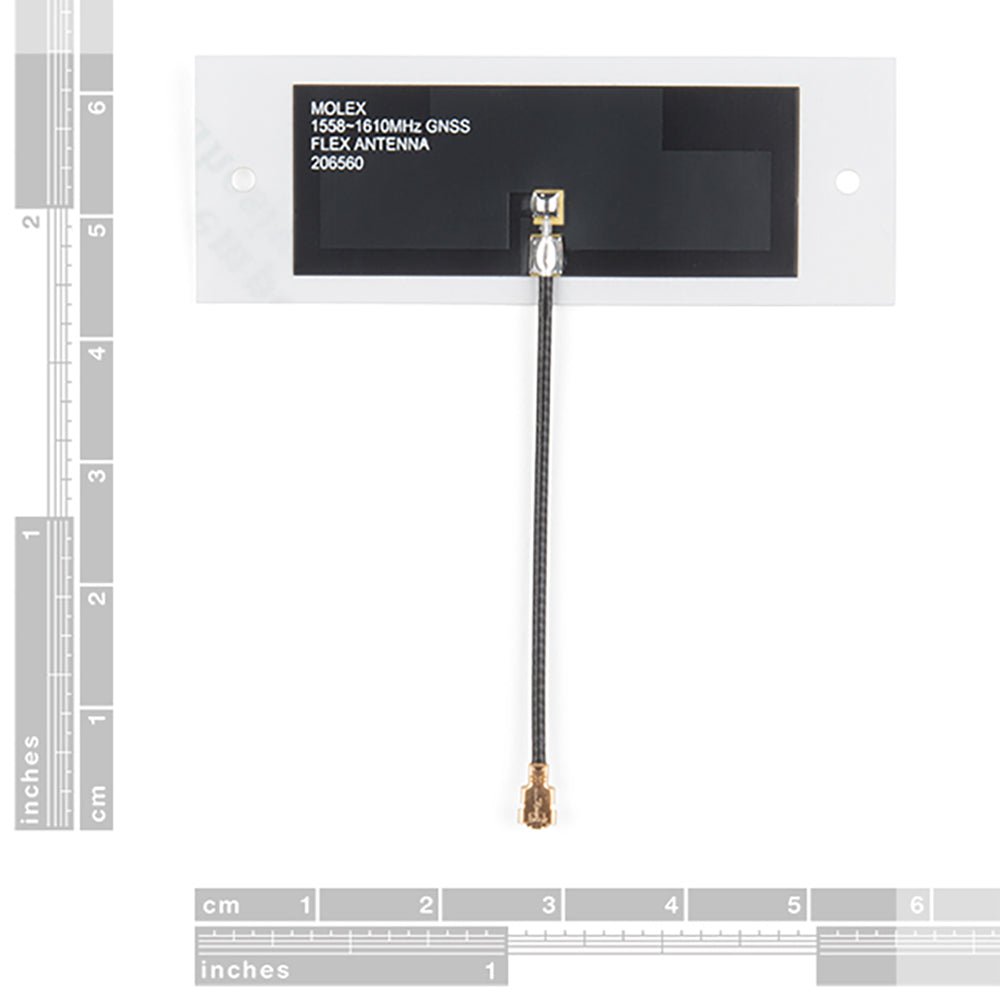

The Molex Flexible GNSS Antenna has a tiny footprint at 40.40mm x 15.40mm, while the adhesive pad is a bit bigger at 56.40mm x 20mm. Even better, the antenna is only 0.1mm thick (or about the thickness of a piece of paper). Remove the backing and stick this to any surface, or leave the backing on (be careful of the fragile U.FL connector).

Features

  • Cable length: 50mm

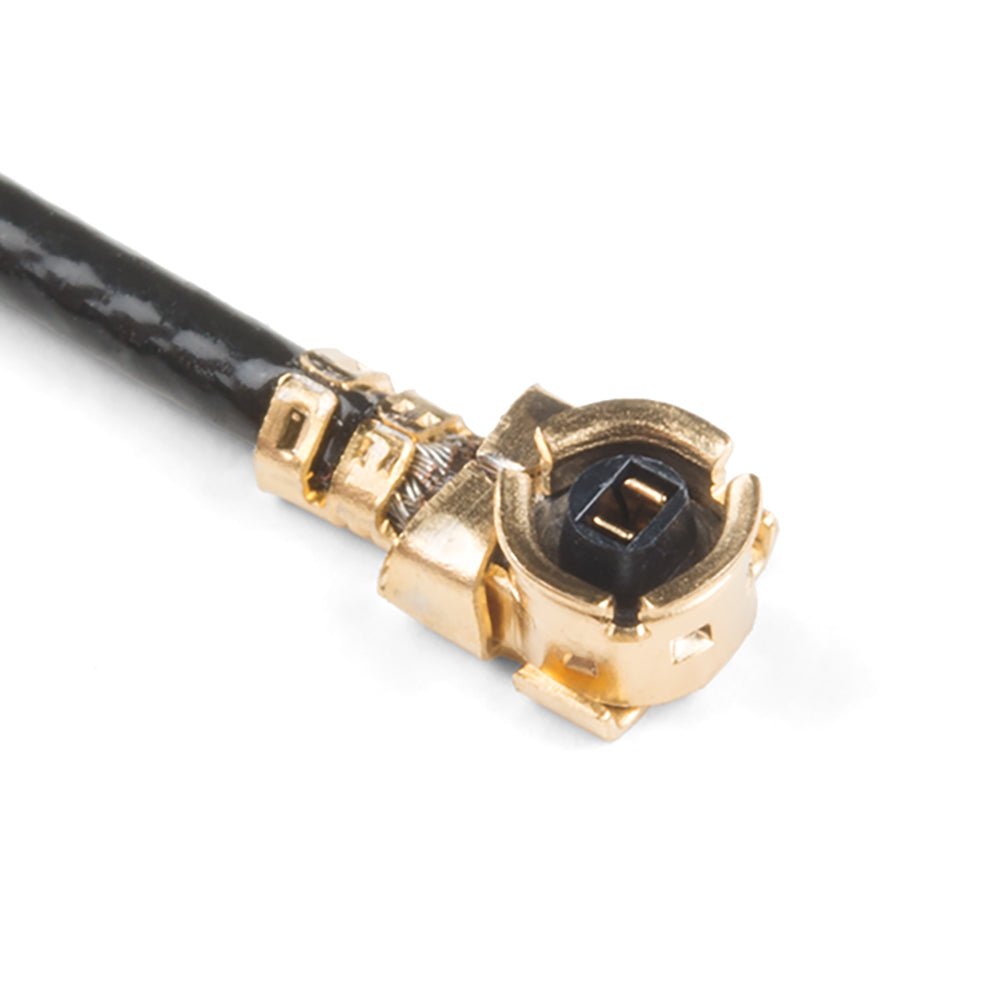

  • Connector: U.FL
  • Radiation Pattern: Omnidirectional
  • Polarization: Linear
  • Weigth: 0.466 g
  • Mounting Style: Adhesive
  • Protocol: BeiDou, Galileo, GLONASS, GPS
  • Return Loss: < -8dB
  • Peak Gain (Max): 1.1 dBi+
  • Efficiency: >74%
  • Input Impedance 50 Ohms
Product form

The Molex Flexible GNSS Antenna has a tiny footprint at 40.40mm x 15.40mm, while the adhesive pad is a bit... Read more

€ 4,95 incl. VAT
Members € 4,46

      Details

      SKU: 19654
      EAN: GPS-15246

      Description

      The Molex Flexible GNSS Antenna has a tiny footprint at 40.40mm x 15.40mm, while the adhesive pad is a bit bigger at 56.40mm x 20mm. Even better, the antenna is only 0.1mm thick (or about the thickness of a piece of paper). Remove the backing and stick this to any surface, or leave the backing on (be careful of the fragile U.FL connector).

      Features

      • Cable length: 50mm
      • Connector: U.FL
      • Radiation Pattern: Omnidirectional
      • Polarization: Linear
      • Weigth: 0.466 g
      • Mounting Style: Adhesive
      • Protocol: BeiDou, Galileo, GLONASS, GPS
      • Return Loss: < -8dB
      • Peak Gain (Max): 1.1 dBi+
      • Efficiency: >74%
      • Input Impedance 50 Ohms
