Description
The AxiDraw's pen holder normally holds the pen parallel to the front face of the vertical pen slide, either vertically or at 45° from vertical.

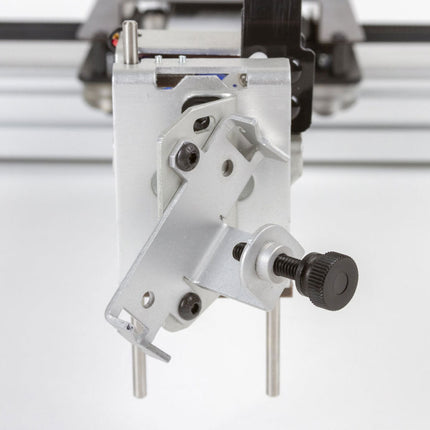

This heavy-gauge aluminum adapter sits between the front face of the vertical slide and the pen clip, and serves to rotate the pen tip an additional 45°, not from vertical but out from parallel to the front face of the vertical slide. This gives the AxiDraw the ability to hold a pen in a 'right handed' grip, as opposed to the normal 'center-handed' (for lack of a better description) position.

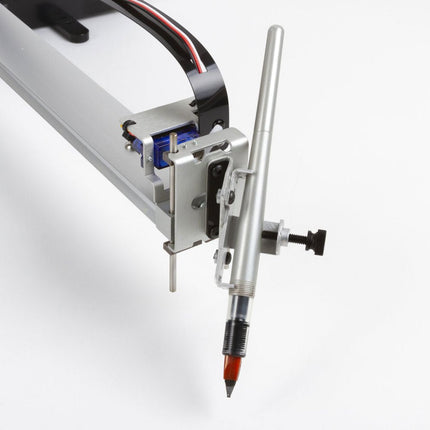

The right-handed grip makes it possible to hold the pen at a consistent angle suitable for use with regular pens, but also stub, italic, parallel, and chisel-point pens.
Compatibility
This adapter is compatible only with AxiDraw V3 family pen plotters that mount the pen on a 2-hole vertical slide. This includes all AxiDraw V3/A3 and AxiDraw V3 XLX units, and all AxiDraw V3 units manufactured after February 2017.
